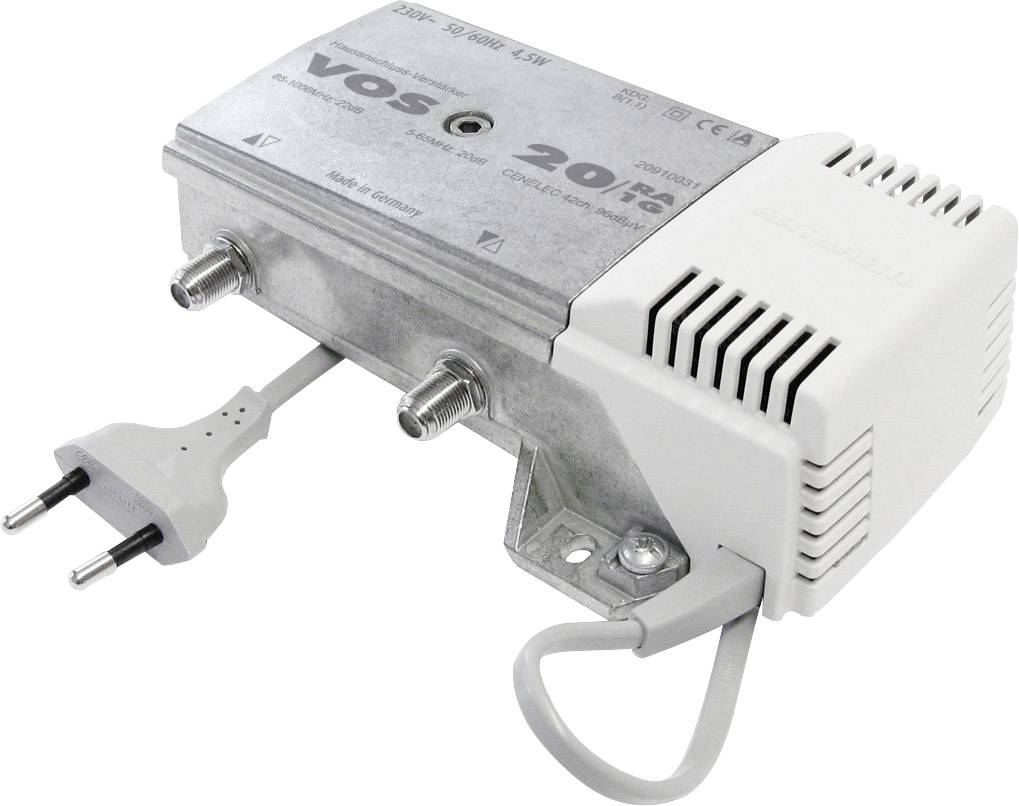

Kathrein VOS 20/RA-1G Cable TV amplifier 20 dB
EAN:
Part number:
Item no:
Number
Total (€ 89.99 / piece)
€ 89.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Kathrein VOS 20/RA-1G House connection amplifier
- House-connection amplifier for modern HFC networks up to 1 GHz
- Built-in high-efficient switched-mode power supply
- Complete device with forward amplifier, return path amplifier, Diplexer, actuators and power supply
- This text is machine translated.
Technical specifications
- Product type
Cable TV amplifier
- Factory colour
Grey
White
- Dim
(W x H x D) 155 x 105 x 54 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Output level
96 dBµV
- Adjustable attentuation
18 dB
- Adjustable EQ
15 dB
- Max. frequency
1006 MHz
- Min. frequency
85 MHz
- Width
155 mm
- Height
105 mm
- Depth
54 mm
- Active reverse channel
5-65 MHz
- Amplification
20 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1507230 Kathrein VOS 20/RA-1G Cable TV amplifier 20 dB
Description
Features
- Die-cast housing with F-connections
- LED as power indicator
- Interstage equaliser with jumpers can be activated (6 dB Preemphase)
- Built-in, adjustable attenuator (forward and back; delivery state on the way back: maximum attenuation)
- Built-in, adjustable equaliser (Vorwartsweg)
- Integrated return path 5-65 MHz active
- Meet: EN 60728-11, EN 50083-2 and EN 60065
- For indoor installation
