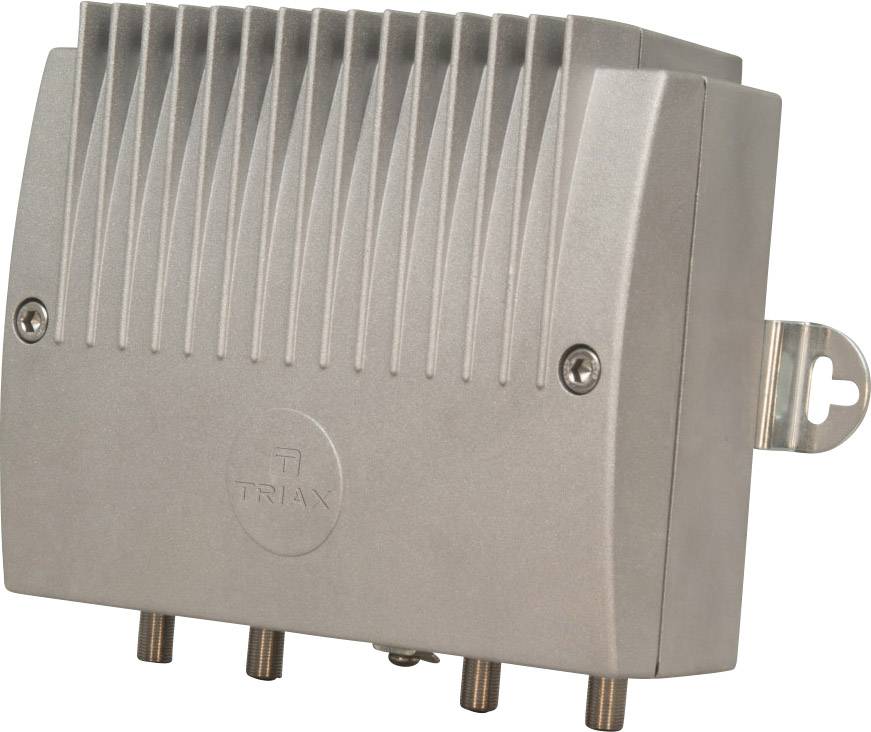

Triax GHV 930 Cable TV amplifier 30 dB
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Highlights & Details
Triax GHV930 Cable-TV amplifier
- Future-proof 1 Ghz Technology
- Rotary switch for setting the damping and distortion in 1dB steps
- All-on-board: no modules and plug-pads required
Technical specifications
- Product type
Cable TV amplifier
- Noise factor
6.5 dB
- Factory colour
Silver
Blue
- Dim
(W x H x D) 130 x 75 x 230 mm
- No. of outputs
3 x
- No. of inputs
1 x
- Adjustable attentuation
15 dB
- Adjustable EQ
15
- Max. frequency
1006 MHz
- Min. frequency
47 MHz
- Width
130 mm
- Height
75 mm
- Depth
230 mm
- Adjustable reverse channel amplification
6 dB
- Amplification
30 dB
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1661809 Triax GHV 930 Cable TV amplifier 30 dB
Description
For multimedia enabled CATV/BK-networks with aktrivem (passive) return path.
This text is machine translated.
This text is machine translated.
Features
- The amplification of the return path by 6dB lowerable without affecting noise and VU meter capability
- VHF Band I operation by switching off the back path can be activated
- Particularly economically by highly efficient, long-lasting and energy-saving switching power supply
- High-quality F-connectors for secure connection and thus ingress and LTE-protection
- Measuring jacks of input and output
- Extensive ESD/surge protection
