Kathrein WFS 55 Splitter
EAN:
Part number:
Item no:
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 3 Piece(s) available

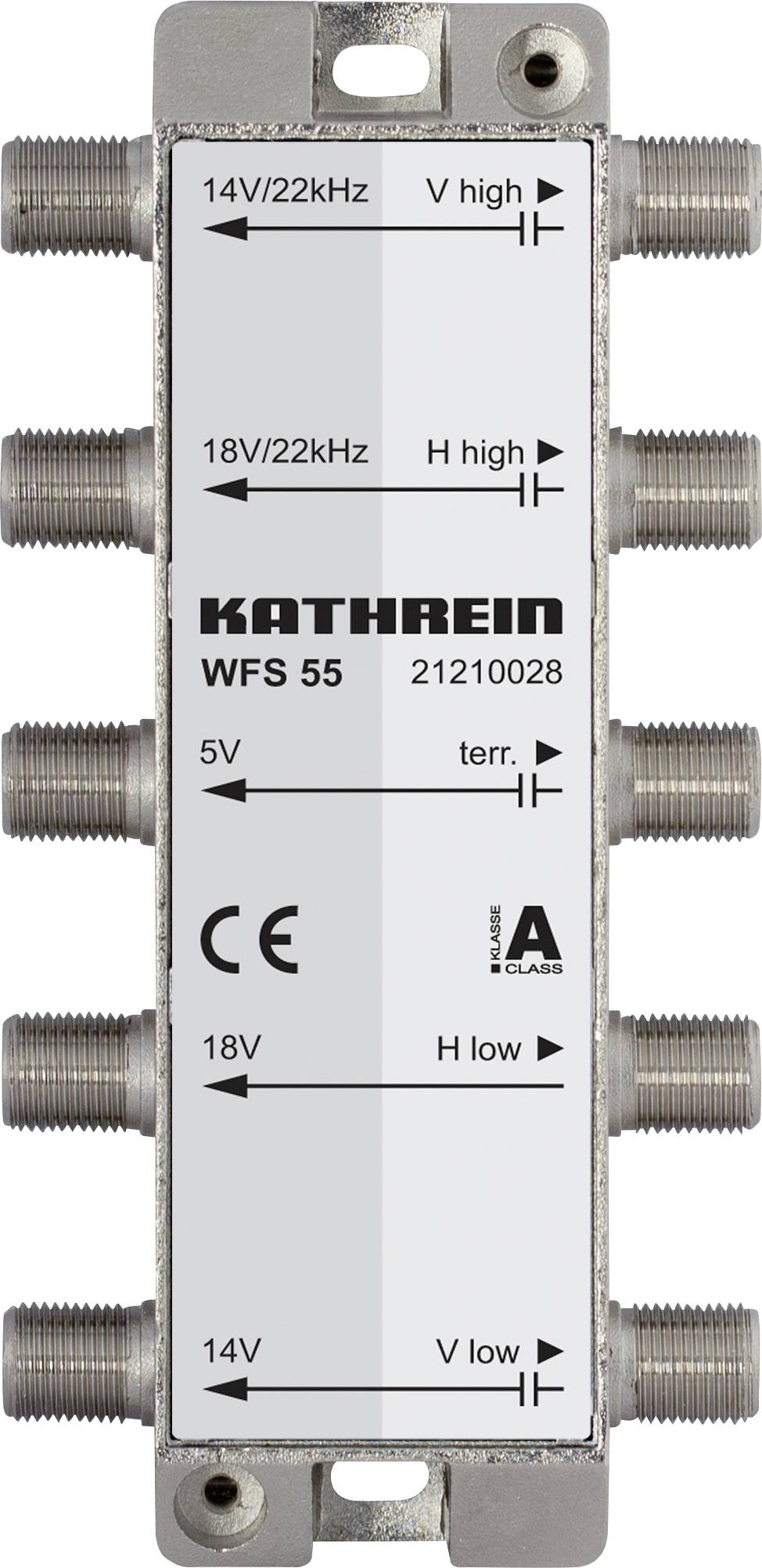

WFS 55 Feed point with F-connections
Highlights & Details
- Precise signal generation: The switch generates all four standard switching voltages and signals, including 14 V (VL), 18 V (HL), 14 V/22 kHz (VH) and 18 V/22 kHz (HH), from a 18 V supply at the "horizontal low" input.
- Multi-switch cascade operation: It is designed to operate a multi-switch cascade on an already existing optical receiver OEC 44.
- Flexible LNB and terrestrial connection: It enables the operation of a multi-switch on a universal quad LNB and is used to supply an active DVB-T antenna with 5 V supply voltage from a multi-switch.
- Category and design: The WFS 55 is a 5-way feed-in point with F-connections, which is intended for indoor mounting and is included in the category SAT-ZF accessories.
Technical specifications
- Voltage generation (generated 14 V/18 V, with/without 22 kHz from 18 V).
- For operating a multi-switch cascade at optical receiver OEC 44.
- For operating a multi-switch at a Universal Quad-LNB.
- For supplying an active DVB-T antenna (with 5V supply voltage).
- For indoor mounting.
- Content
1 pc(s)
- Product type
Splitter
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3479069 Kathrein WFS 55 Splitter
Description
The Kathrein WFS 55 Feed point is the smart core for your SAT-ZF distribution. It converts a single control voltage precisely in the four LNB-signals needed for switching (vertical/horizontal, low/high-band). Whether for controlling a multi-switch cascade at an optical receiver or for supplying an active DVB-T-antenna - the WFS 55 provides for error-free frequency conversion and maximum flexibility in your receiver system
This text is machine translated.
This text is machine translated.
Scope of delivery
- WFS 55 Feed point with F-connections.
