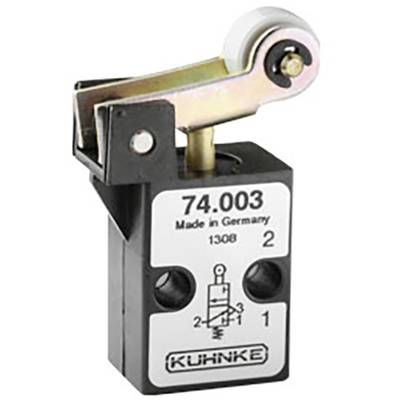

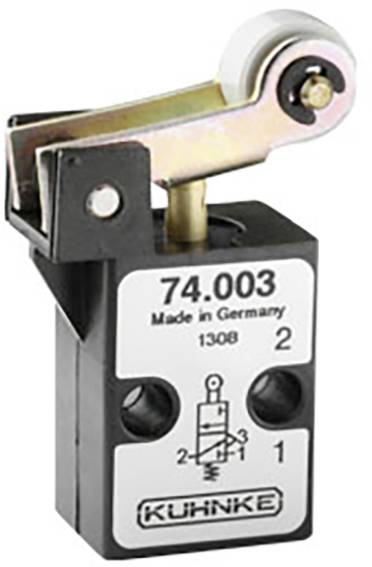

Kendrion Poppet valve 0 up to 12 bar 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
14-day return policy included
Technical specifications
- M5 connector
- Design: 3/2-way NC seat valve
- Pressure range 0-12 bar
- Nominal width 2 mm
- Product type
Poppet valve
- Min. display range
0 bar
- Display range (max.)
12 bar
- Type
3/2-way NC seat valve
- Manufacturer part #
74.003
- Connection
M5 plug connector
- Connection
M5
- Max. operating pressure
12 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 12 bar
- Operating medium
Compressed air
- Operation type
Tappet
- Function
3/2-way
- Enclosure material
Zinc alloy
- Nominal width
2.0 mm
- Nominal width
2 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3168393 Kendrion Poppet valve 0 up to 12 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3168393 Kendrion Poppet valve 0 up to 12 bar 1 pc(s)
Description

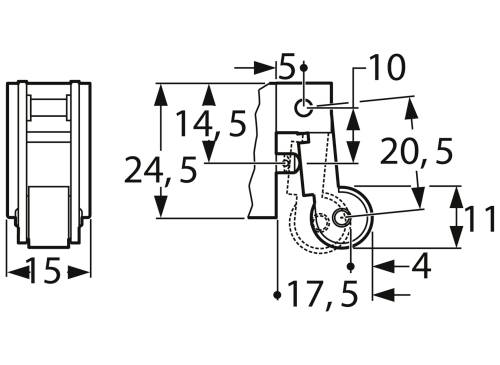

Seat valves directly controlled type Kuhnke 74.00. Specially designed for use in control panels and actuators; pressure range: 0 to 12 bar, nominal width: 2.0 mm, function: 3/2-way, material housing: Zinc alloy, plunger: Brass, Guide bearing: polyamide, installation position: arbitrary, pressure medium connection: M 5, Medium: filtered (5.0 µm) oiled or filtered non-oiled compressed air or other gaseous media with permissible viscosity according to ISO-VG 10, ambient temperature: –10 to +60°C. Design with feeler roller type 74,003. Operating force at 6, ; 0 bar: Approx. 9.0 N. Type: 74,003, seat valve
