Buy Kendrion Steel slide valve 0 up to 10 bar 1 pc(s)

A rectangular valve with a metallic top and bottom surface, three lateral connections, and a label displaying technical specifications.

A rectangular, metallic valve with multiple ports and mounting holes, likely for industrial applications.

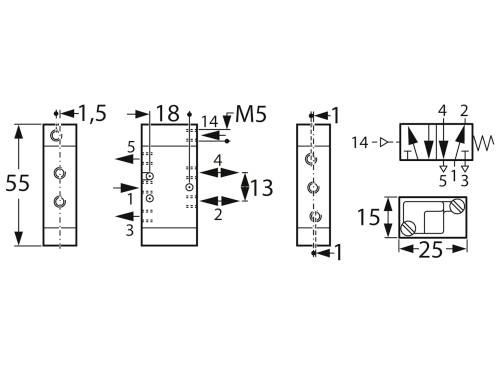

Technical Drawing with Dimensions in Millimetres: Height 55, Width 25, Thread M5. Details of Holes and Spacing are Provided.

1/3

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 239.50 / piece)

€ 239.50

plus VAT.

Report legal concerns

Technical specifications

M5 connector
Design: 5/2-way steel sliding valve
Pressure range 0-10 bar
Nominal width 2 mm

Type: 5/2-way steel slide valve

Manufacturer part #: 81012

Connection: M5 plug connector

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Nominal width: 2 mm

Documents & Downloads

Datasheet

Datasheet 3168422 Kendrion Steel slide valve 0 up to 10 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3168422 Kendrion Steel slide valve 0 up to 10 bar 1 pc(s)

Description

Steel valves type Kuhnke 81. As 5/2-way valve; pressure range: 0 to 10 bar, nominal diameter: 2.0 mm, housing: Al alloy, housing cover: Zinc alloy or Makrolon, control slide: Steel hardened, corrosion resistant, pressure equipment connection: M 5, Medium: Filtered, Oiled or filtered non-oiled compressed air or other gaseous media with a permissible viscosity according to ISO-VG 10, ambient temperature: –10 to +70 °C. Type pneumatically actuated 81,012. Control pressure: Min. 2.0 bar. Type 81,012, valve
