Buy Knipex 03 06 200 VDE Comb pliers 200 mm DIN ISO 5746, DIN EN 60900

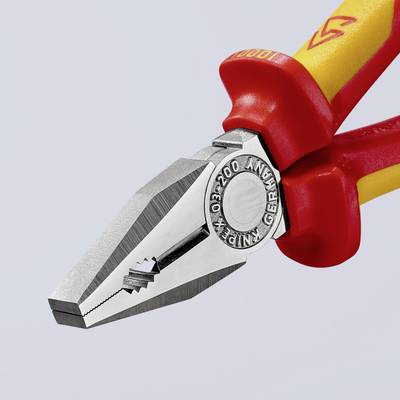

A pair of combination pliers with plastic handles in red and yellow, showing the distinctive shape of the gripping jaws and its purpose as a tool.

A red combination pliers cuts through a black cable. The pliers have yellow handles and are fitted with protective insulation.

A red and yellow combination pliers holds a black cable, ready to cut or grip. The tool is ergonomically shaped.

A tool cuts through a grey cable, revealing four colourful wires. The tool is red and yellow and displays 'VDE' and '1000V'.

A red and yellow combination pliers with a ribbed gripping surface and lever mechanism, suitable for cutting and holding wires.

A red combination pliers cuts through a two-coloured cable, which is primarily used for electrical work.

Red and yellow combination pliers with insulated handles for safe working on live parts up to 1000 volts.

Pliers with red and yellow handles and a metal tip, certified for 1000V, with the inscription 'Made in Germany'.

Wire cutters slice through a cable. Red and yellow insulated handle, silver plier tip open.

1/9

Fast track dispatch on Thu, 17 Sep

34 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€ 25.20

plus VAT.

Report legal concerns

Combination pliers

Highlights & Details

With gripping zones for flat and round material, suitable for versatile use
With cutting edges for soft and hard wire
Long cutting edges for thicker cables
Cutting edges additionally induction hardened, cutting edge hardness approx. 60 HRC
Special tool steel, forged, oil-hardened

Technical specifications

Cutting value max. 16 mm²

Product type: Comb pliers

Manufacturer part #: 03 06 200

Range of use: VDE

Length: 200 mm

Material: Tool steel

Material properties: chrome plated
tempered

Edge hardness: 60 HRC

Wire hardness (max.) medium wire: 3.8 mm

Wire hardness (max.) hard wire: 2.5 mm

DIN standard: DIN ISO 5746
DIN EN 60900

Weight: 326 g

Width: 58 mm

Height: 30 mm

EN standard: EN 60900

Type: 03 06 200

Standards: DIN ISO 5746

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822035 Knipex 03 06 200 VDE Comb pliers 200 mm DIN ISO 5746, DIN EN 60900

Description

With grip zones for flat and round material for a versatile use With cutting edges for soft and hard wire Long cutting for thicker cables. Induction hardened blades. Blade hardness approx. 60 HRC Special tool steel, forged, oil-hardened multi-level

This text is machine translated.
