Name: Knipex 26 27 200 VDE Round nose pliers 40-degree Vanadium electric furnace steel 200 mm
Brand: Knipex
SKU: 822102
Availability: InStock

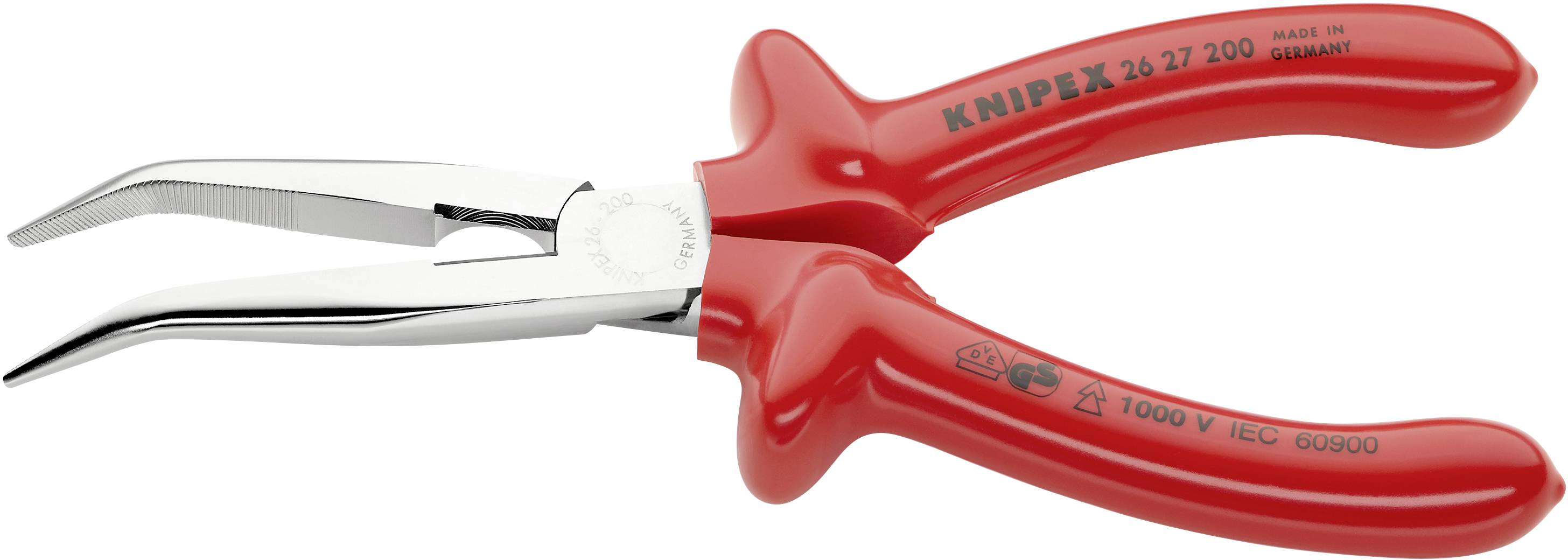

Rote VDE safety pliers with curved jaws, suitable for live working up to 1000 V. Marking 'Knipex 26 27 200'.

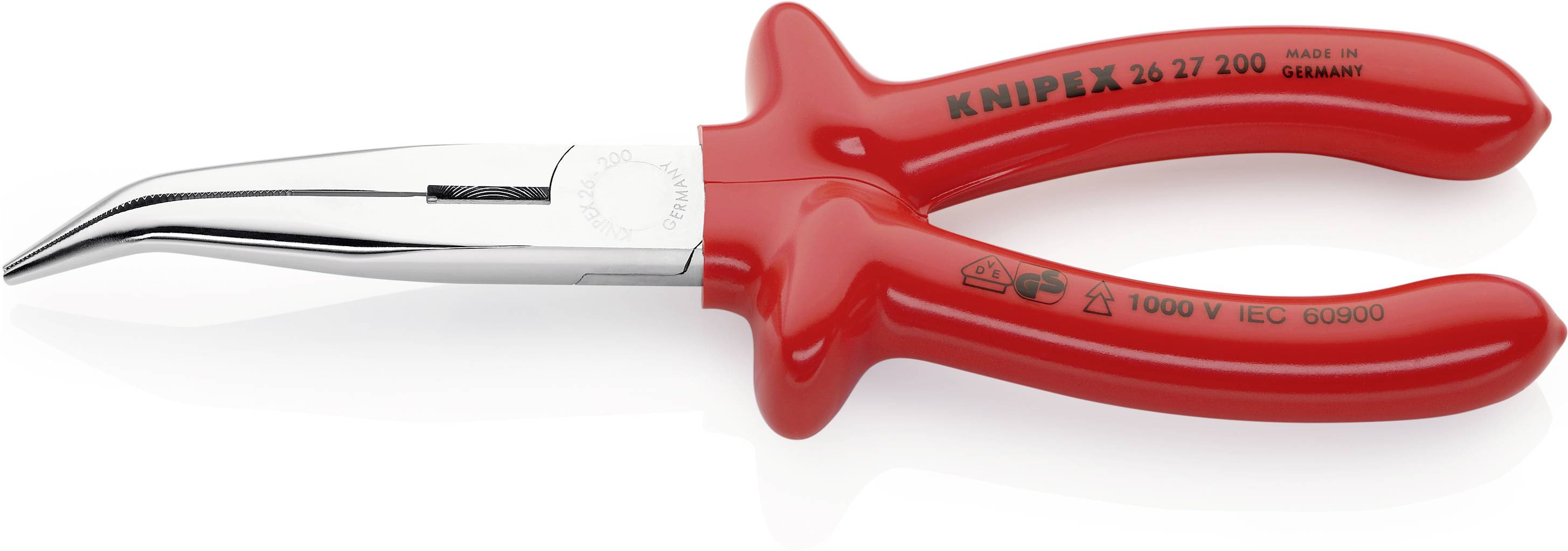

Red, curved flat round pliers with a metal tip, a tool for precise gripping and bending, marked 'Knipex'.

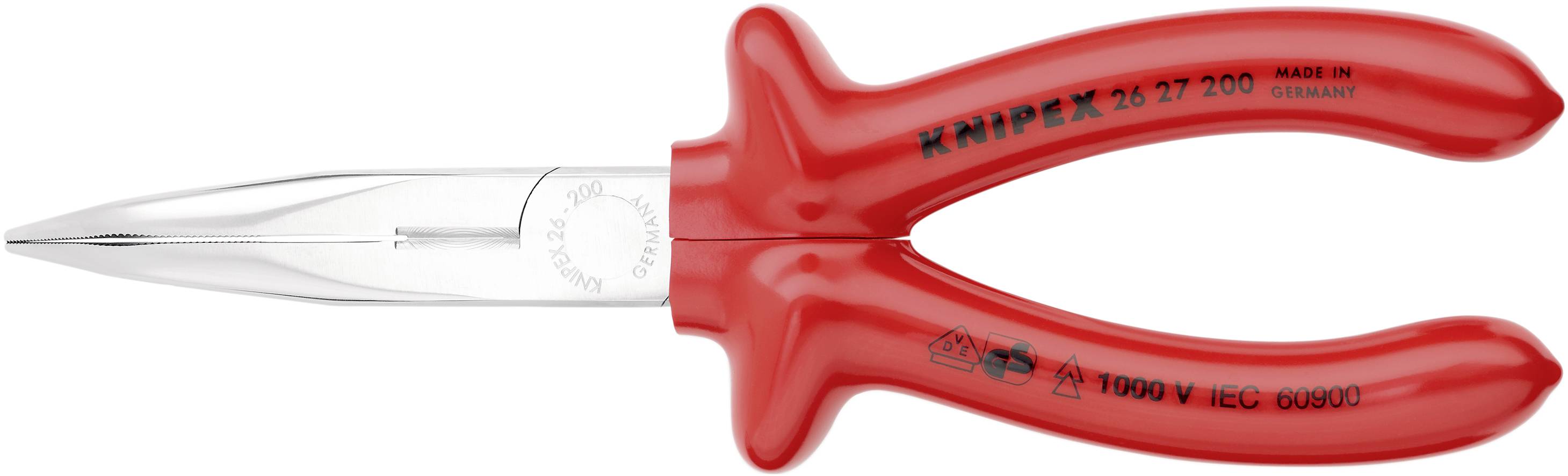

Red, isolated needle-nose pliers with the inscription 'Knipex 26 27 200'. Suitable for electrical work, manufactured in Germany.

1/3

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 40.99 / piece)

€ 40.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Needle nose pliers with cutting edge

High loadable, elastic precision points
Half-round, long jaws
Serrated gripping surfaces
With cutting edges for medium hard wire max. dia. 3.2 mm and hard wire max. dia. 2.2 mm
Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
Vanadium electric steel; forged, oil-hardened
Chrome plated pliers
Insulated with multi-component grips, VDE-tested handles
DIN ISO, 5745 IEC 60900, DIN EN 60900

Technical specifications

Cutting capacity medium-hard wire diameter 3.20 mm
Cutting value for hard wire 2.20 mm dia.
L3 73.00 mm
T1 9.50 mm
W3 17.50 mm
W4 3.00 mm
T2 2.50mm
L4 23.00 mm
Angle 40 °

Product type: Round nose pliers

Manufacturer part #: 26 27 200

Range of use: VDE

Length: 200 mm

Jaw shape: 40-degree

Edge hardness: 61 HRC

Wire hardness (max.) medium wire: 3.2 mm

Wire hardness (max.) hard wire: 2.2 mm

Material: Vanadium electric furnace steel

Material properties: tempered
chrome plated

DIN standard: DIN ISO 5745
DIN EN 60900

Weight: 220 g

EN standard: EN 60900

Type: 26 27 200

Standards: DIN ISO 5745

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822102 Knipex 26 27 200 VDE Round nose pliers 40-degree Vanadium electric furnace steel 200 mm

Description

Chrome-vanadium electric steel, forged, oil-hardened, chrome-plated pliers, handles insulated, VDE-tested
Style: 40° angled jaws

Features

Highly resilient, elastic precision tips
Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
With cutting edges for medium-hard wire diameter 3.2 mm and hard wire diameter 2.2 mm
Flat-round, long jaws
Serrated gripping surfaces
