Buy Knipex 74 22 250 Workshop Kraft side cutter non-flush type 250 mm

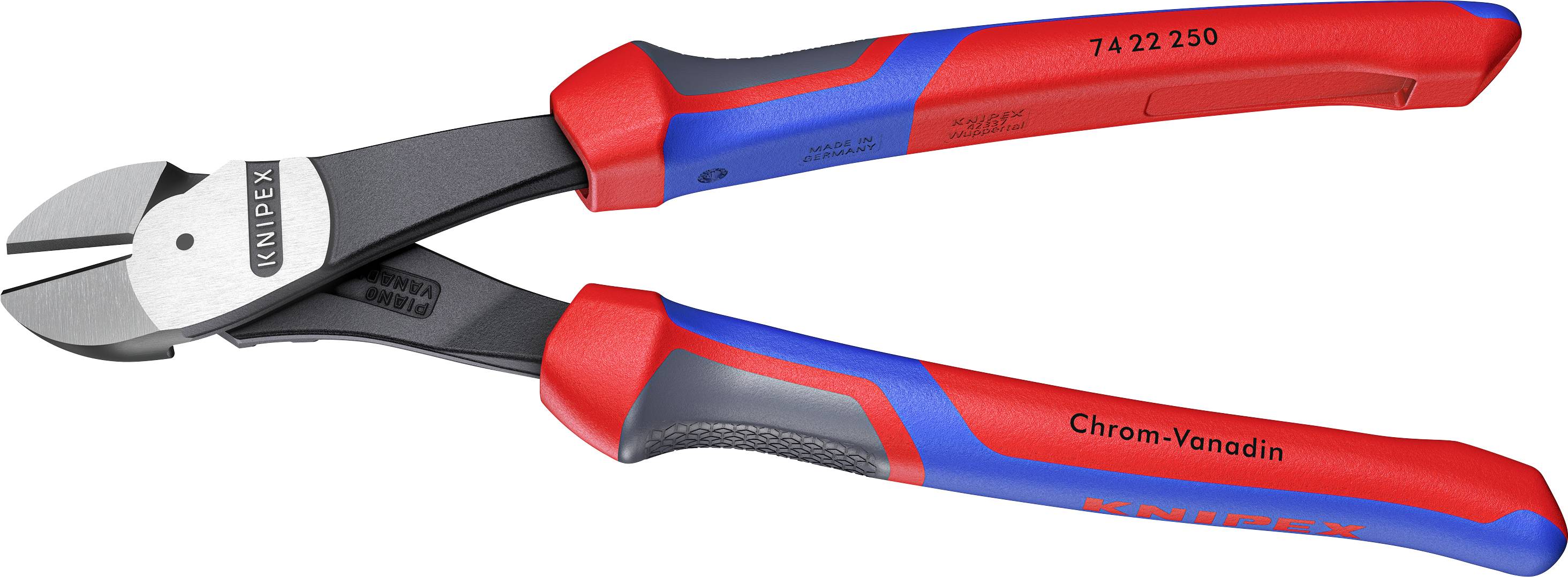

Red and blue-handled Knipex diagonal cutters with black jaws labeled 'Chrom-Vanadin' and model number '7422 250'.

Diagonal cutting pliers with red and blue handles, labeled 'Knipex Chrom-Vanadin'.

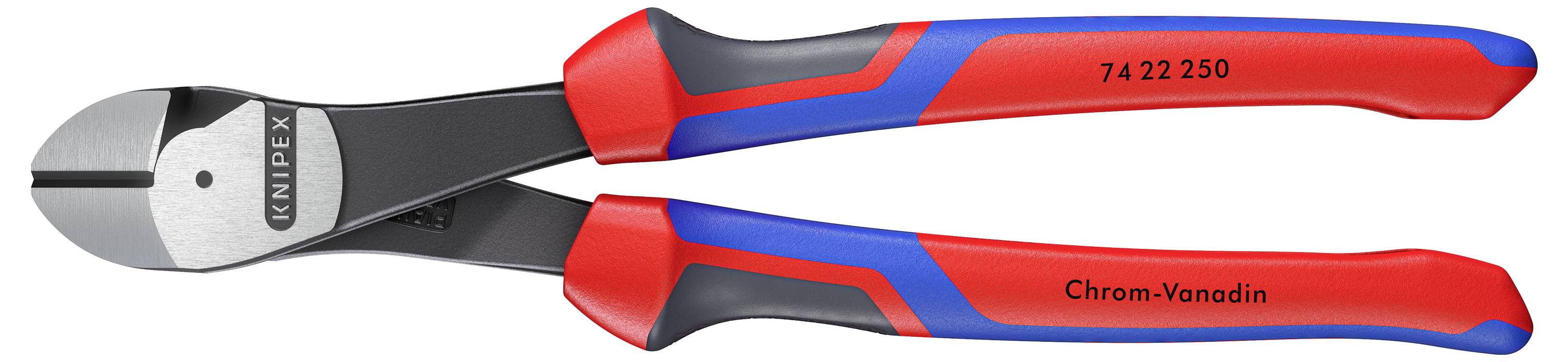

Red and blue-handled diagonal cutters with black blades, labeled 'Knipex' and 'Chrom-Vanadin'. Designed for cutting wires and cables.

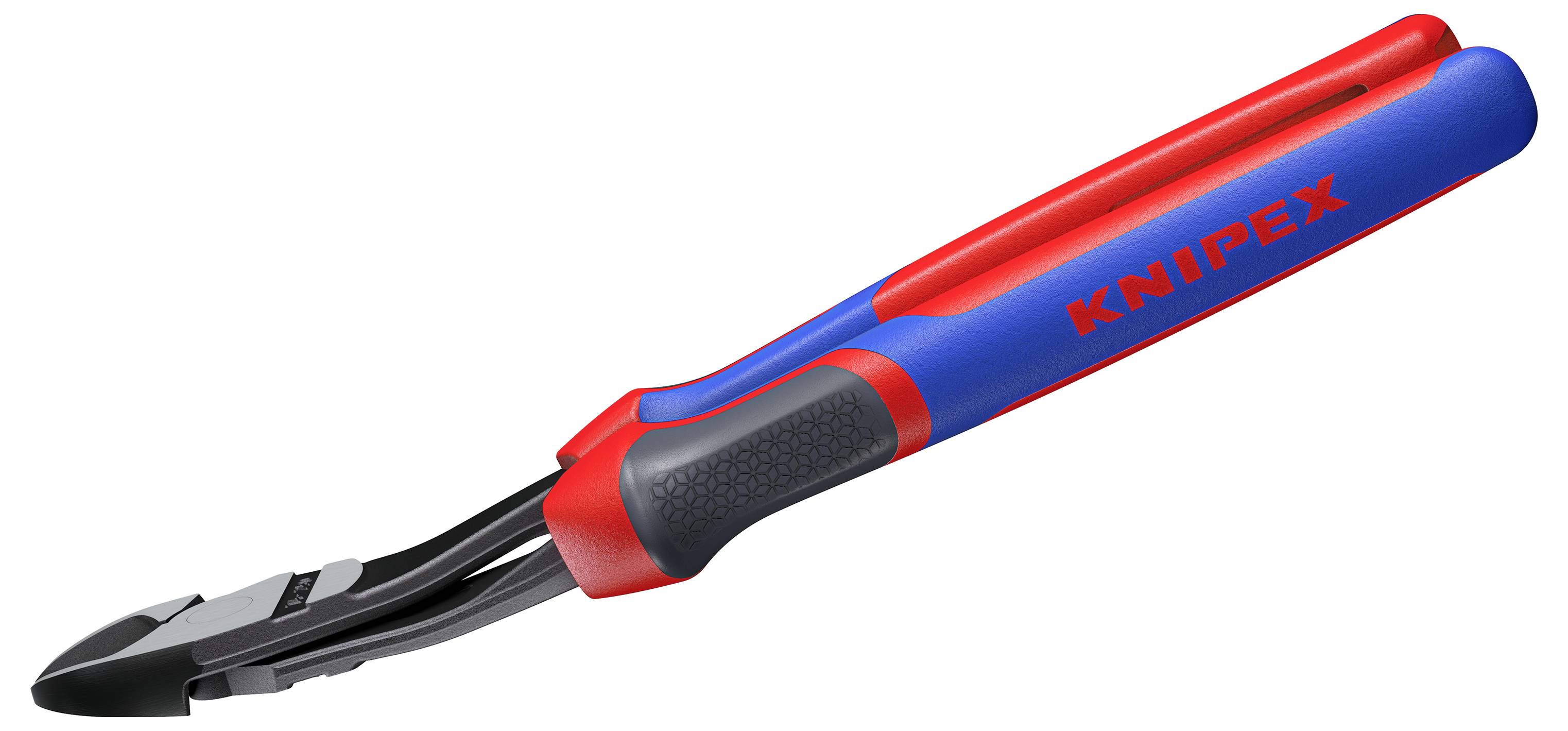

A pair of Knipex diagonal cutting pliers with red and blue rubber grips, designed for cutting wires and cables.

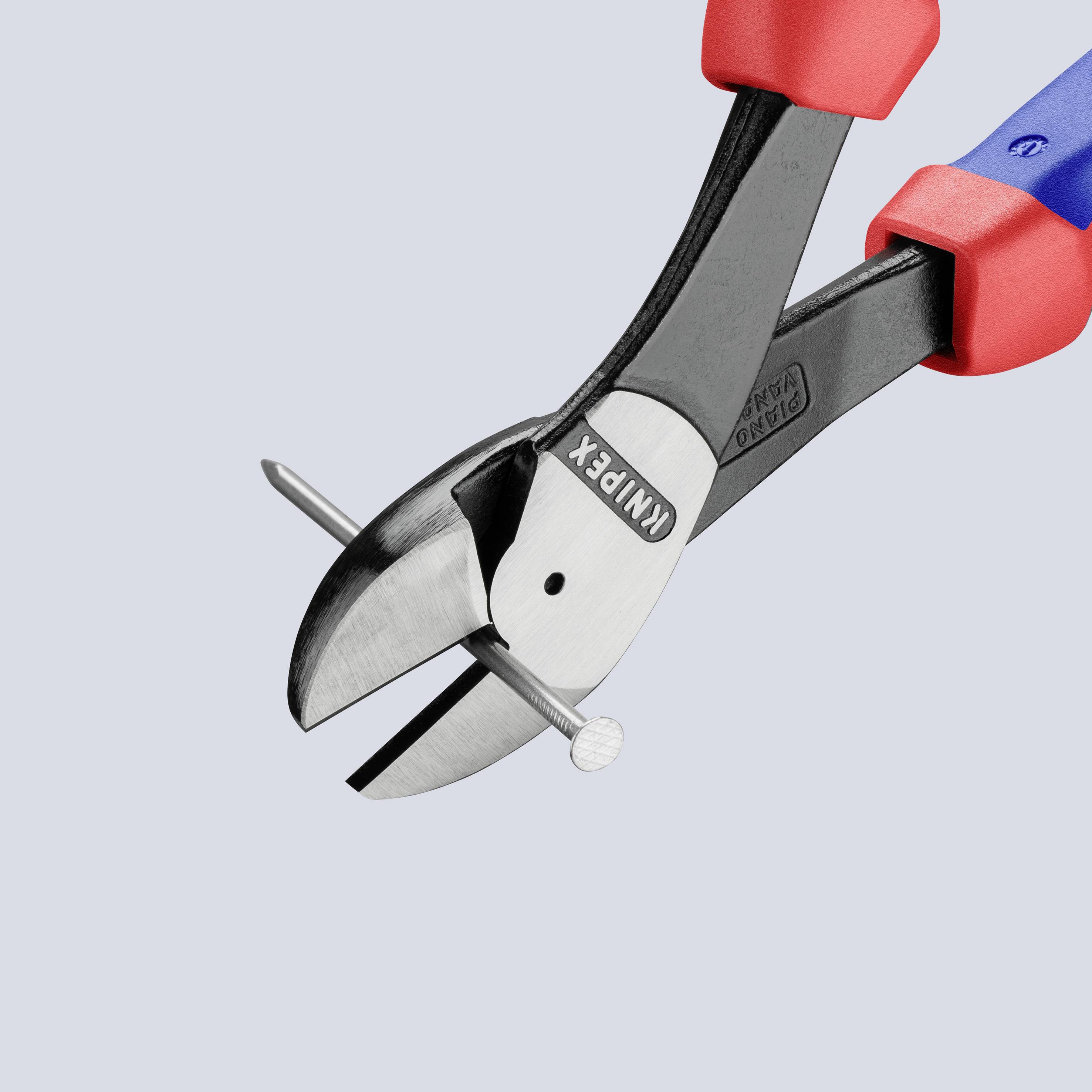

A pair of cutting pliers with red handles is gripping a nail, showcasing its ability to cut. The background is plain and light-colored.

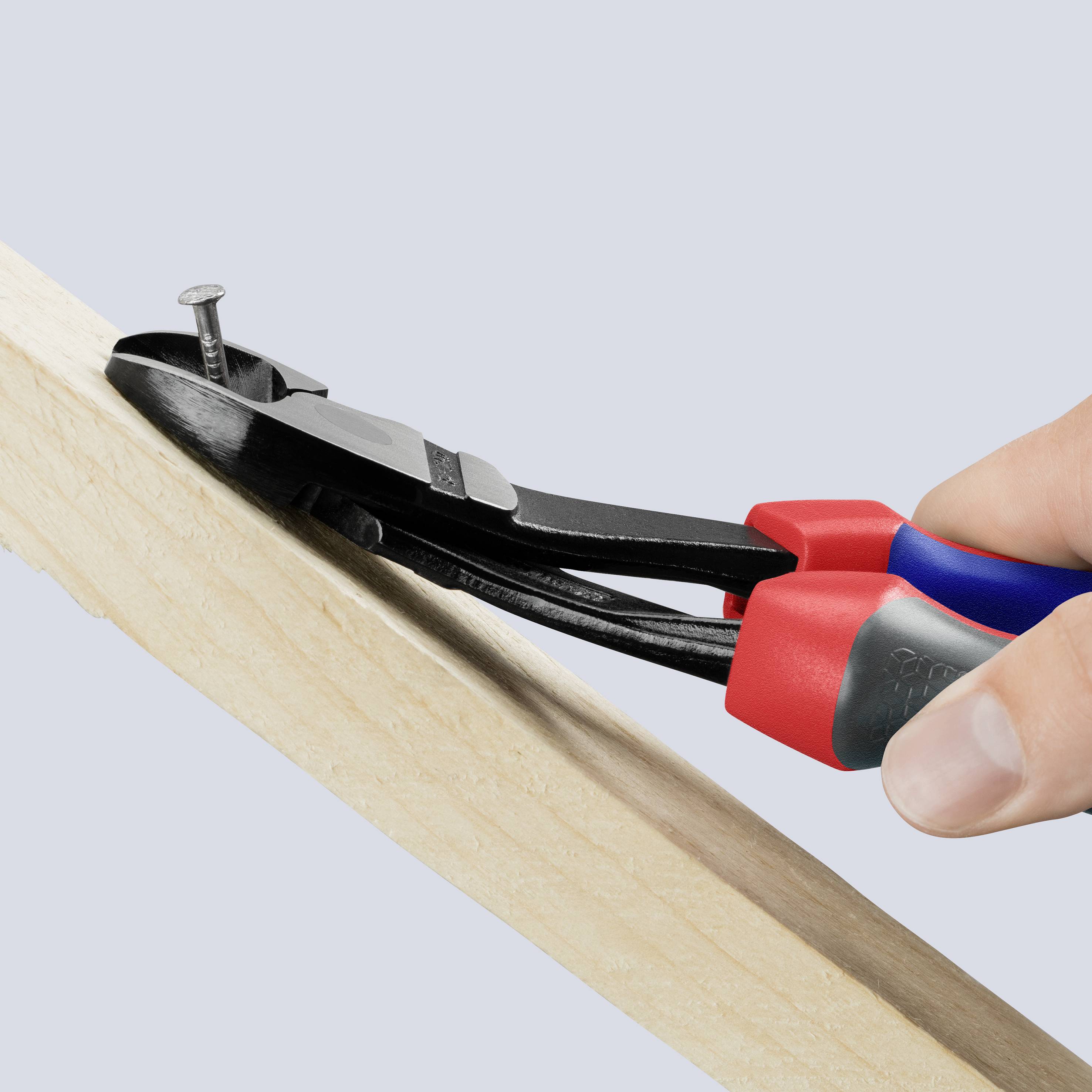

Hand using pliers to pull a nail from a wooden plank.

Pliers cutting a metal chain against a plain background.

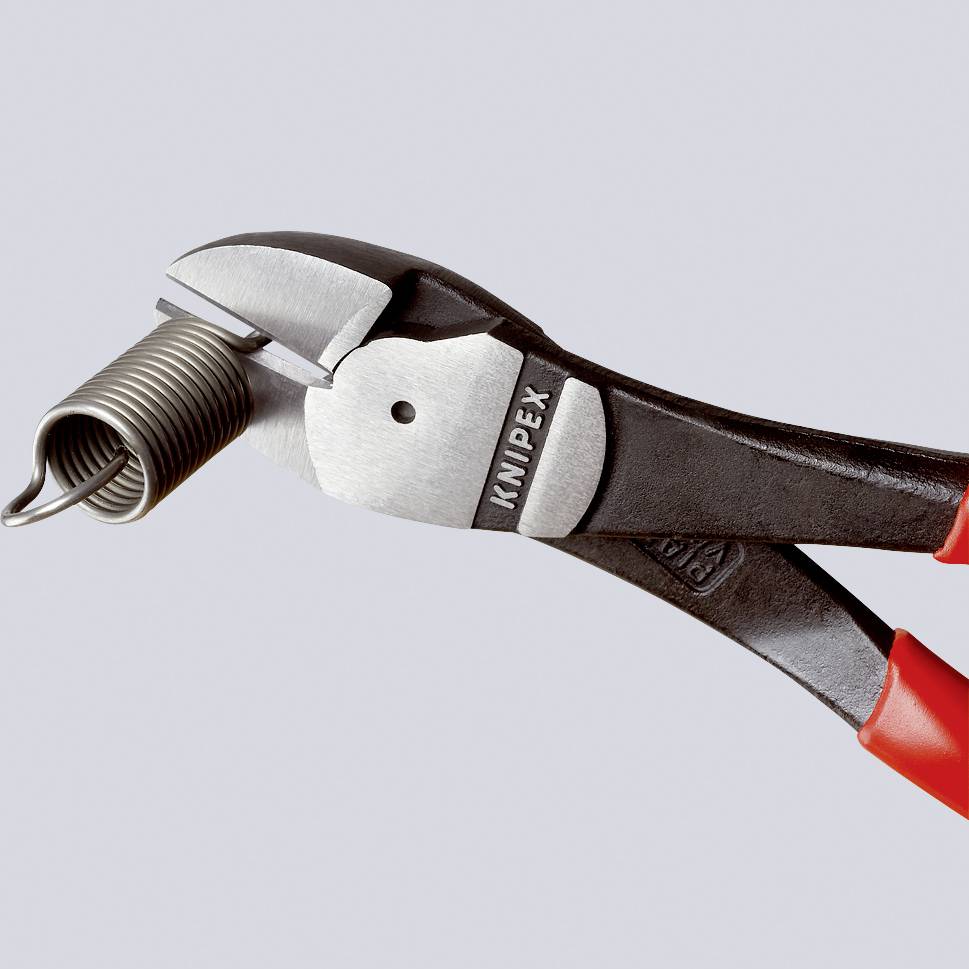

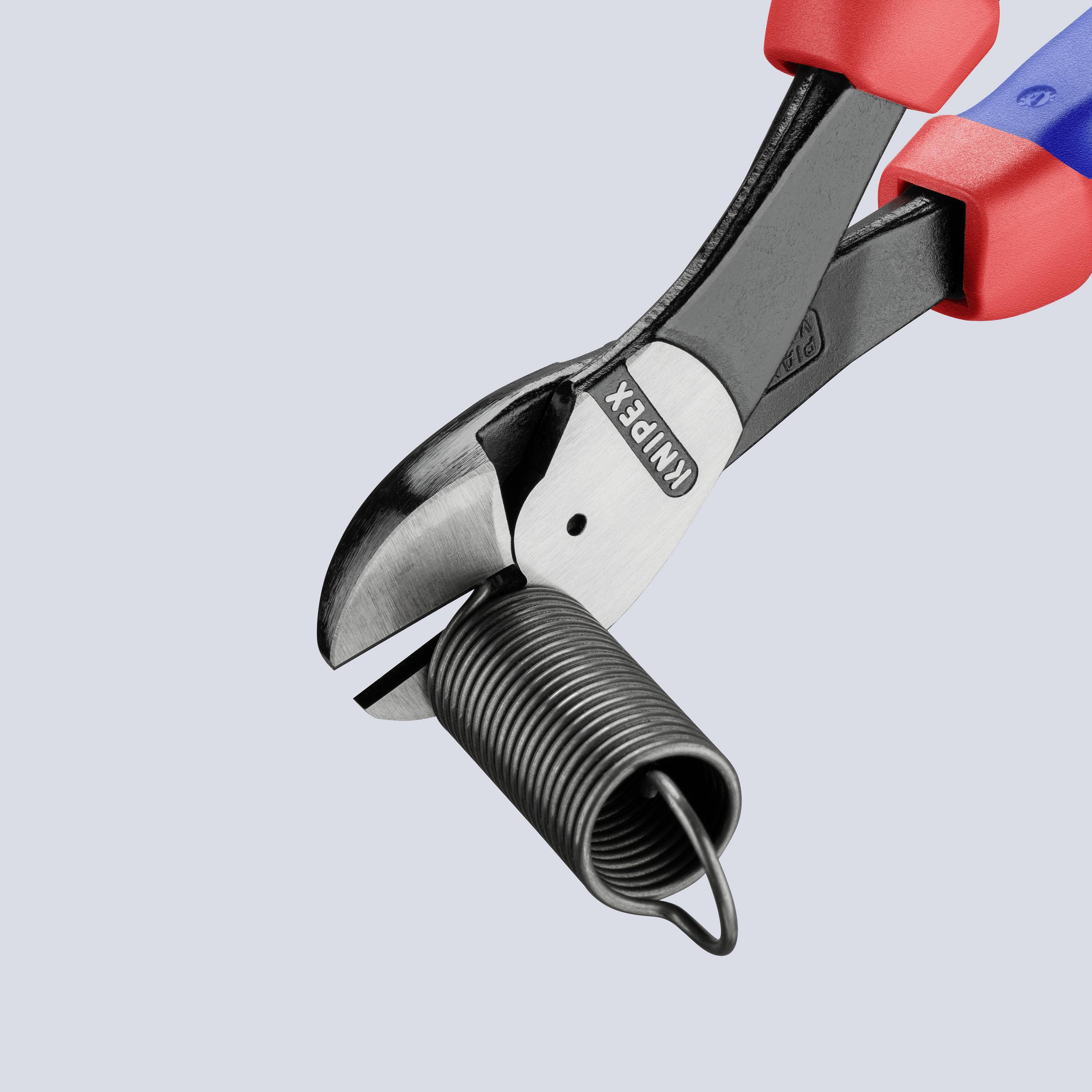

Plier cuts through a metal spring displaying its sharp cutting power; handles are red and ergonomically designed for grip.

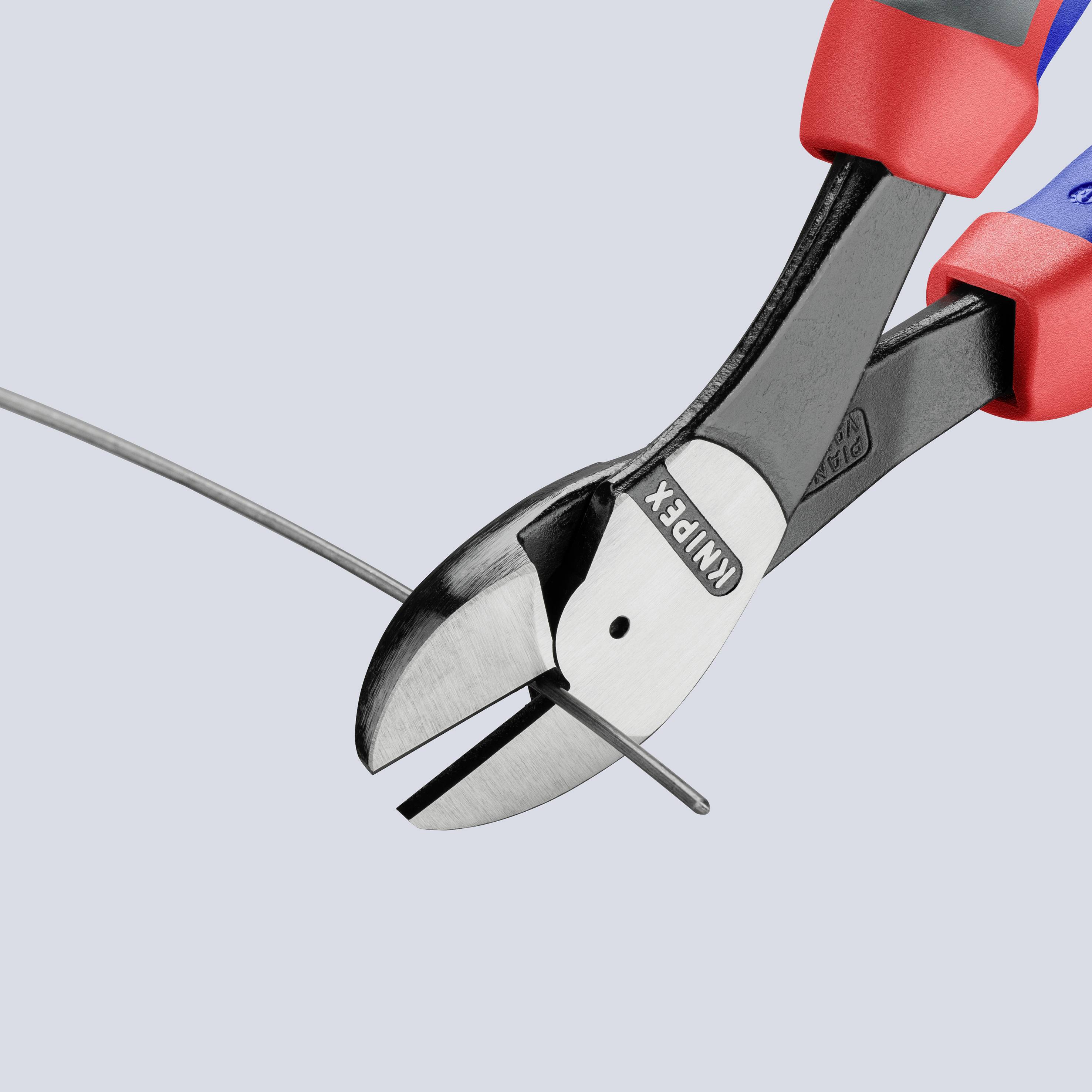

A pair of KNIPEX diagonal pliers cutting through a metal wire, against a plain light gray background.

1/9

Dispatches on Wed, 16 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 32.76 / piece)

€ 32.76

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

High leverage diagonal cutters

For heavy-duty, continuous use
High cutting power with low application of force through optimum matching of cutting angle and transmission ratio
Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC) for all sorts of wire, including piano wire
Chrome-vanadium high speed steel, forged, oil-hardened multi-level
The 25mm long side cutter is suitable for copper wire up to 16mm² and AI contacts up to 35 mm²

Technical specifications

12 ° angle

Product type: Kraft side cutter

Manufacturer part #: 74 22 250

Range of use: Workshop

Length: 250 mm

Material: Chromium-vanadium steel

Material properties: tempered
polishing

Edge hardness: 64 HRC

Wire hardness (max.) medium wire: 4.6 mm

Wire hardness (max.) hard wire: 3.5 mm

Wire hardness piano wire (max.): 3.0 mm

DIN standard: DIN ISO 5749

Width: 51 mm

Weight: 437 g

Features: non-flush type

Type: Power side-cutter

Type: 74 22 250

Standards: DIN ISO 5749

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822295 Knipex 74 22 250 Workshop Kraft side cutter non-flush type 250 mm

Description

The 250 mm long side cutter is suitable for copper wire up to 16mm² and AI contacts up to 35 mm² With forged joint axis for heavy-duty, continuous use. Ideal for all sorts of wire, including piano wire High cutting power with low application of force through optimum matching of cutting angle and transmission ratio Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC Chrome-vanadium high speed steel, forged, oil-hardened multi-level

This text is machine translated.

Features

With forged joint axle for very tough, continuous use
Ideal for all sorts of wire, including piano wire
High cutting performance with minimum effort thanks to optimum co-ordination of the cutting edge angle and transmission ratio
Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
