Buy Knipex Super-Knips 78 03 125 Electrical & precision engineering Print pliers flush-cutting 125 mm

Pliers with red and blue handles; 'Knipex Germany' printed on the blade. Suitable for wire cutting up to max. Cu Ø 1.6 mm, Fe Ø 1.0 mm.

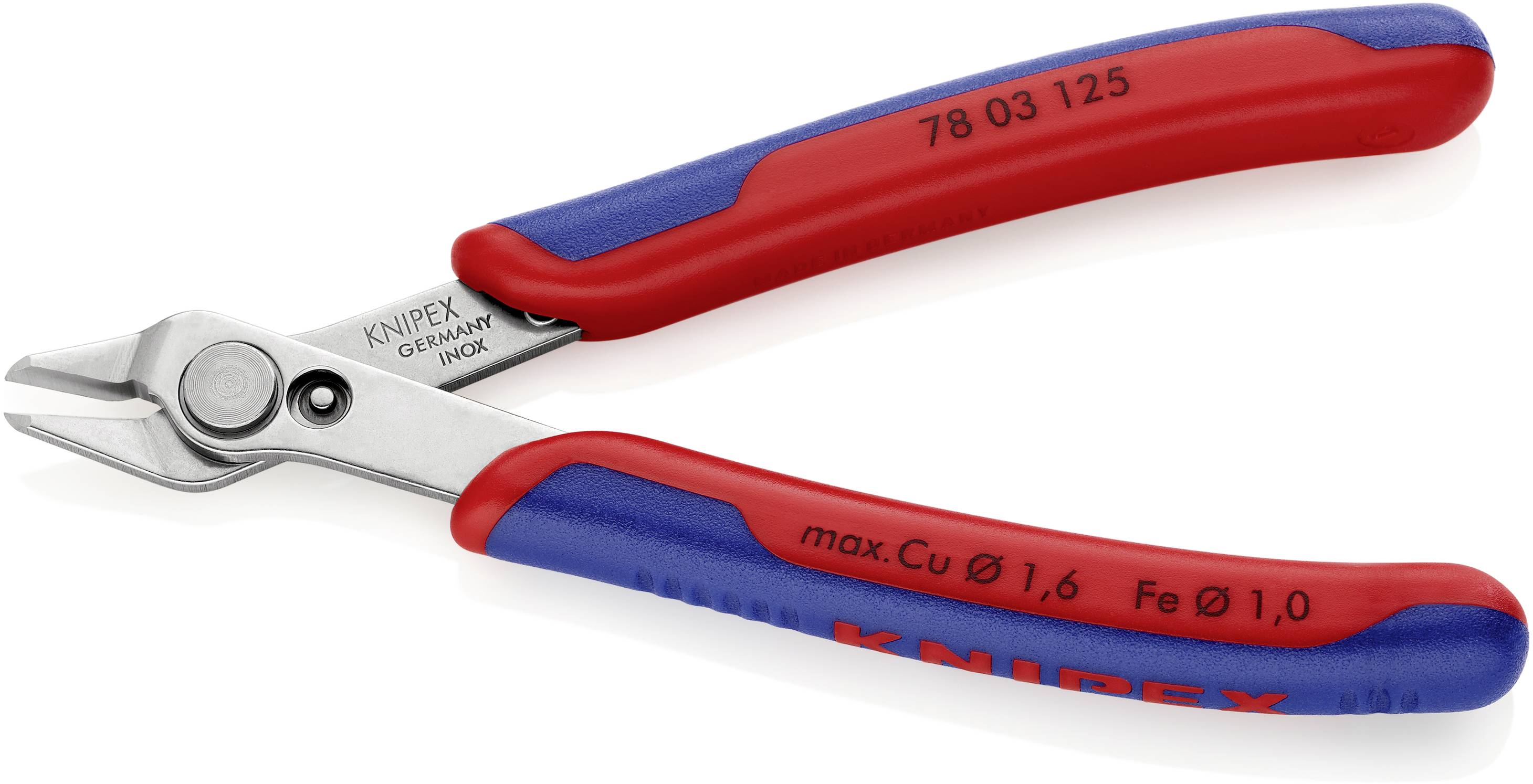

Electronics side cutters by KNIPEX with red and blue handles. Suitable for copper wires up to 1.6 mm and iron wires up to 1.0 mm.

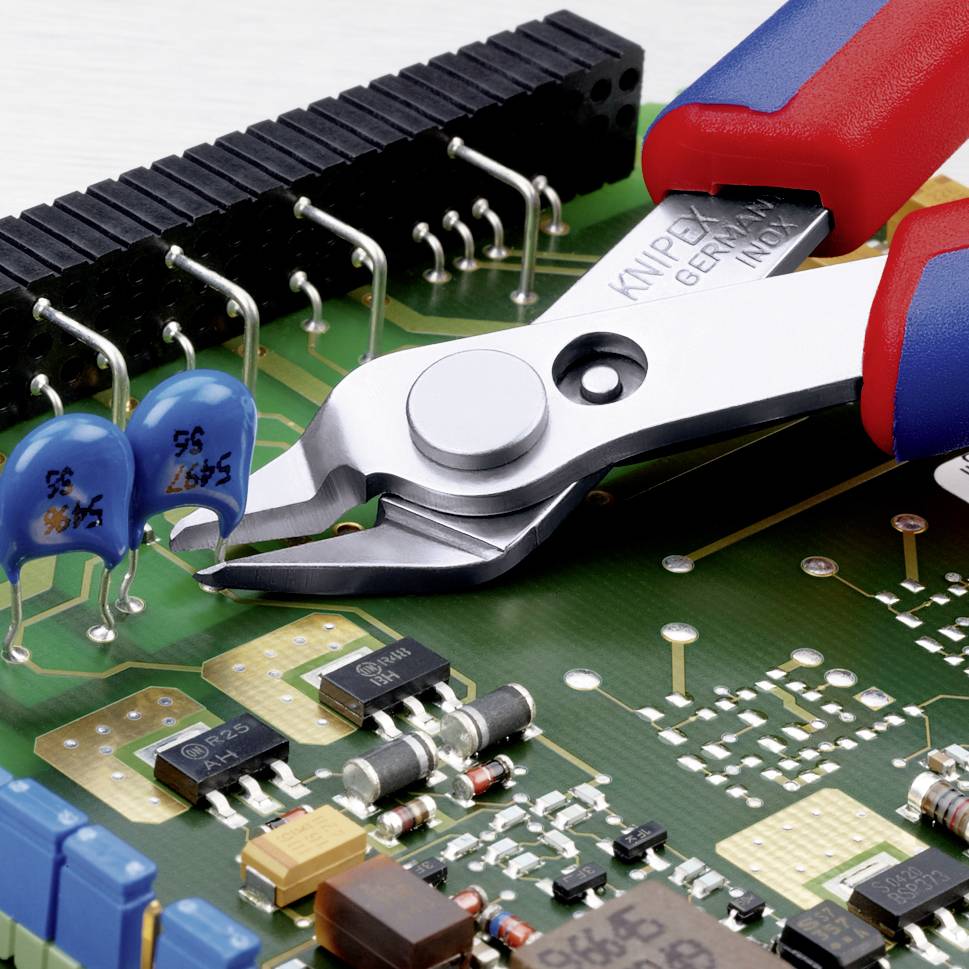

A close-up of a circuit board with electronic components, including blue capacitors and a combination pliers ready to cut.

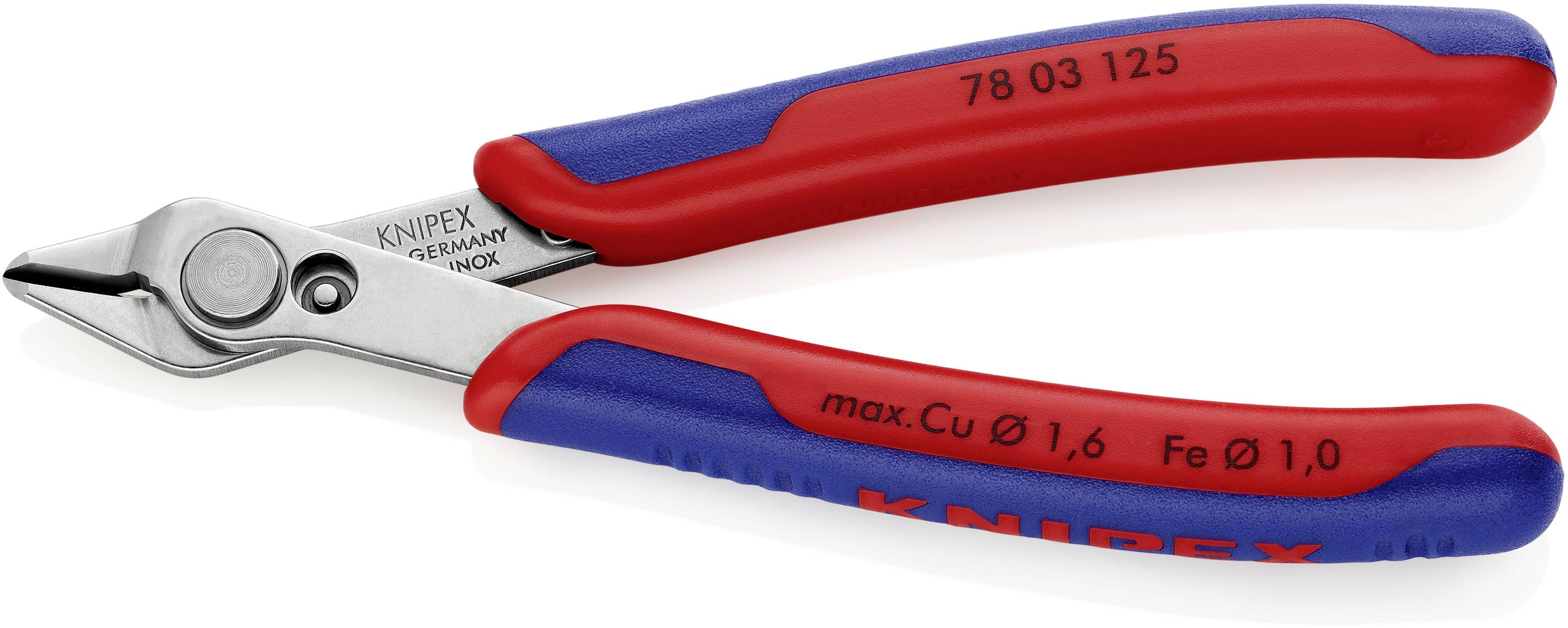

A Knipex side cutting pliers with red and blue handles and stainless steel blades, suitable for cutting copper and iron wire.

1/4

Datasheet (PDF)

Show alternatives

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€

Report legal concerns

Highlights & Details

Electronic Pliers DIN ISO 9654 - Knipex

Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
Ground, very sharp cutting edges without facet
Shear cut with controlled micro cutting edges offset for ultra-precise cutting even thin latest wires and long service life.
Precisely shaped cut tops and adjacent wires of Ø.2 mm
Joint with stainless steel rivet

Technical specifications

Product type: Print pliers

Manufacturer part #: 78 03 125

Range of use: Electrical & precision engineering

Length: 125 mm

Material: Tool steel

Material properties: polishing

Edge hardness: 54 HRC

Wire hardness (max.) soft wire: 1.6 mm

Wire hardness (max.) medium wire: 1 mm

DIN standard: DIN ISO 9654

Width: 60 mm

Weight: 56 g

Features: flush-cutting

Type: Without facet, without wire terminals, straight jaws

Type: 78 03 125

Standards: DIN ISO 9654

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 822895 Knipex Super-Knips 78 03 125 Electrical & precision engineering Print pliers flush-cutting 125 mm

User & Safety Instructions

User & Safety Instructions 822895 Knipex Super-Knips 78 03 125 Electrical & precision engineering Print pliers flush-cutting 125 mm

Description

Cutting hardness approx. 54 HRC. INOX-tool steel. Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Ground, very sharp blades without face. Precisely shaped cut tops and adjacent wires of Ø 0.2 mm. Shear cut with controlled micro cutting edges offset for ultra-precise cutting even thin latest wires and long life. Joint with stainless steel rivet. Extremely soft motion for fatigue-free working With opening spring and opening limit. INOX-tool steel

This text is machine translated.

Features

Separation of adjacent wires starting from 0.2 mm Ø
Play-free joint and extremely light gear for fatigue-free working with opening limitation.
Grip sleeves made of soft, hand-protecting plastic.
Material INOX rust-proof steel.
