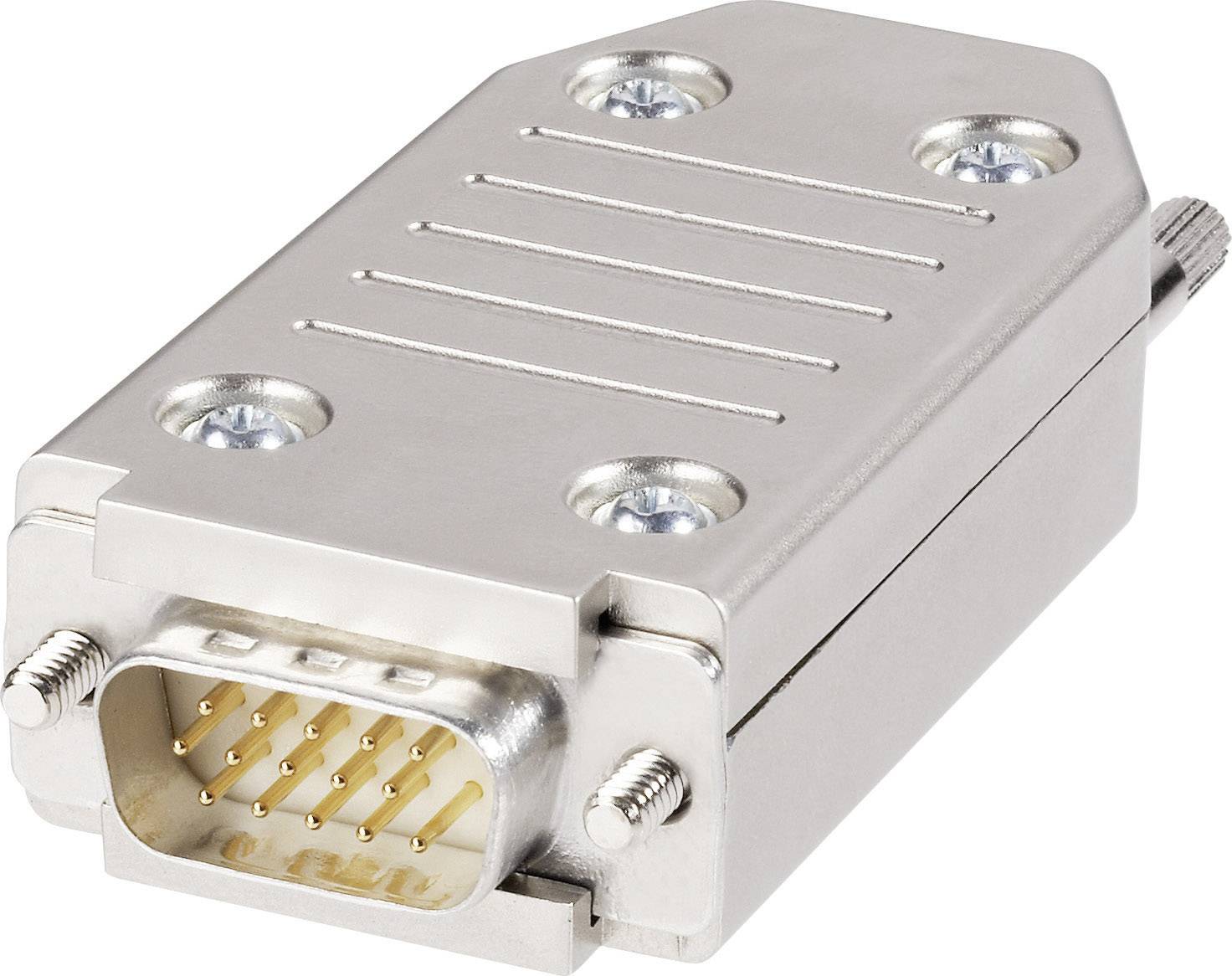

Knorr Tec 10040010 D-SUB plug 180 ° Number of pins: 15 Pull spring 1 pc(s)
Product type
D-SUB plug
Connector type
Plug, straight
Number of pins
15
Connection
Pull spring
No. of rows
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 51.99 / piece)
€ 51.99
incl. VAT
14-day return policy included
Highlights & Details
D-SUB-plug with cage clamp connection
- D-SUB plug
- No. of rows: 3
- Number of pins: 15
Technical specifications
- Screw locking with 2 x knurled screw 4/40 UNC, Cable clip
- Proof voltage: ≤ 100 V
- Current capability 1.2 A
- Flammability class: UL 94 HB.
- Product type
D-SUB plug
- Connector type
Plug, straight
- Number of pins
15
- Connection
Pull spring
- Connection angle
180°
- No. of rows
3
- Content
1 pc(s)
- Manufacturer part #
10040010
- Test voltage
1 KV/mm
- RoHS-compliant
IP20
- Temperature range
-20 to +85 °C
- Type
10040010
- Height
17 mm
- Length
64 mm
- Width
31 mm
- Type
Connector
- Nominal voltage (details)
≤ 100 V
- Pins
15 / 3-row
- Connection
Cage clamps
- Casing
Plastic housing, ABS metallic (EMV-Variante)
Documents & Downloads
Datasheet
Datasheet 736760 Knorr Tec 10040010 D-SUB plug 180 ° Number of pins: 15 Pull spring 1 pc(s)
Description
This D-SUB plugs are easy to mount without special tools and suited for on site packing. Stackable in longitudinal direction in raster The clamp ares for cable sheaths is from 3 to max. 10.5 mm variable. Through cage clamp connection technology is a high contact security even in vibration is ensured.
Scope of delivery
- Plug incl. screw joints material
