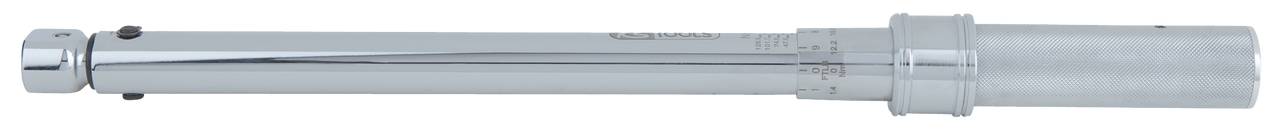

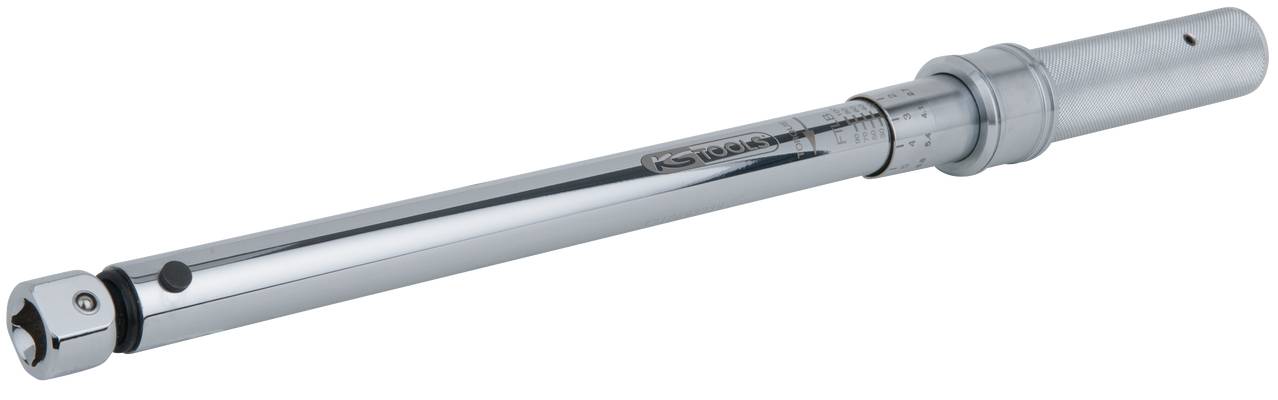

KS Tools 5165061 516.5061 Torque wrench Calibrated to (ISO standards) For bit sets 9 x 12 mm socket square 3 - 15 Nm
EAN:
Part number:
Item no:
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Product type
Torque wrench
- Features
For bit sets
- Downforce
9 x 12 mm socket square
- Torque (min.)
3 Nm
- Torque (max.)
15 Nm
- Trigger accuracy
3 %
- Graduation
0.1 Nm
- Length
197 mm
- DIN standard
DIN EN ISO 6789
- Weight
260 g
- Height
15 mm
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2686793 KS Tools 5165061 516.5061 Torque wrench Calibrated to (ISO standards) For bit sets 9 x 12 mm socket square 3 - 15 Nm
Description
Trigger accuracy: ±3% tolerance of the set scale value and betterAccurate and precise with at least 5,000 load changesFor use in almost all industrial production areasFor controlled right and left-hand pullDouble scale in Nm and lbf-ft or lbf-in divisionIncluding finely divisible Nm and lbf-ft or lbf-in micrometer scale for a fine and precise adjustmentClearly audible and tactile torque triggeringThe torque is set securely by turning the handleSecure locking possibility at handleLong life and high service lifeHighest precision and reliability, even in heavy continuous useWith locking plug-in connection for 9x12 or 14x18 plug-in toolsIndividual serial number for clear product identificationIncludes calibration declaration of conformity to DIN EN ISO 6789:2017(E) – traceable to national normal
