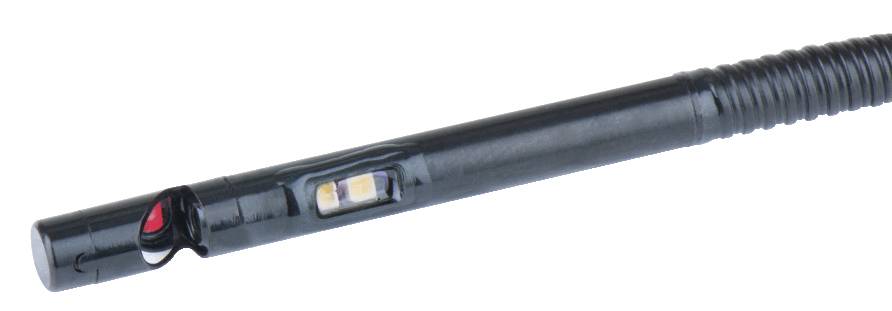

KS Tools 5507352 Endoscope probe Probe diameter 3.9 mm 2 m
EAN:
Part number:
Item no:
Number
Total (€ 390.76 / piece)
€ 390.76
plus VAT.
Only 5 Piece(s) available
Highlights & Details
ULTIMATVision Master 90° camera probe, semi-rigid, Ø3, 9mm, L=2m
Technical specifications
- Weight 250 gCamera resolution: 320 (H) x 240 (V) = 76,800 pixels Camera protection: Prefix made from scratch-resistant sapphire crystal Opening angle: Horizontal 46° - vertical 34° - diagonal 56° Camera protection 2: Stainless steel camera sleeve Light source 4 dimmable white Mini LED Design: Semi-rigid Angle: 90° (angle)Working temperature: 0°C to 75°C. AV-magnification: Up to 15" via cinch Length in m: 2 mResistance2: Oil and petrol resistant probe Resistance: Waterproof up to max. 1m, Brightness 0 ~ 275 LUX/4cm Focused depth of field:1 cm - 6 cm Bending radius: Min. 15 mm Head-Ø in mm: 3.9 mmLens type: Aspherical IP 67 protection Connection: Metal
- Probe length
2 m
- Min. focusing distance
10 mm
- Weight
250 g
- Probe diameter
3.9 mm
- Product type
Endoscope probe
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2700790 KS Tools 5507352 Endoscope probe Probe diameter 3.9 mm 2 m
Description
4 dimmable mini-LED-lampsBending radius: max. 15 mmCan be connected to all UltimaVision Master video scopes
