KS Tools 620.0502 Puller Clamping range (details) 25 - 130 mm No. of hooks 2

Two-legged metal puller with screw mechanism, used for removing stuck parts such as gears or bearings.

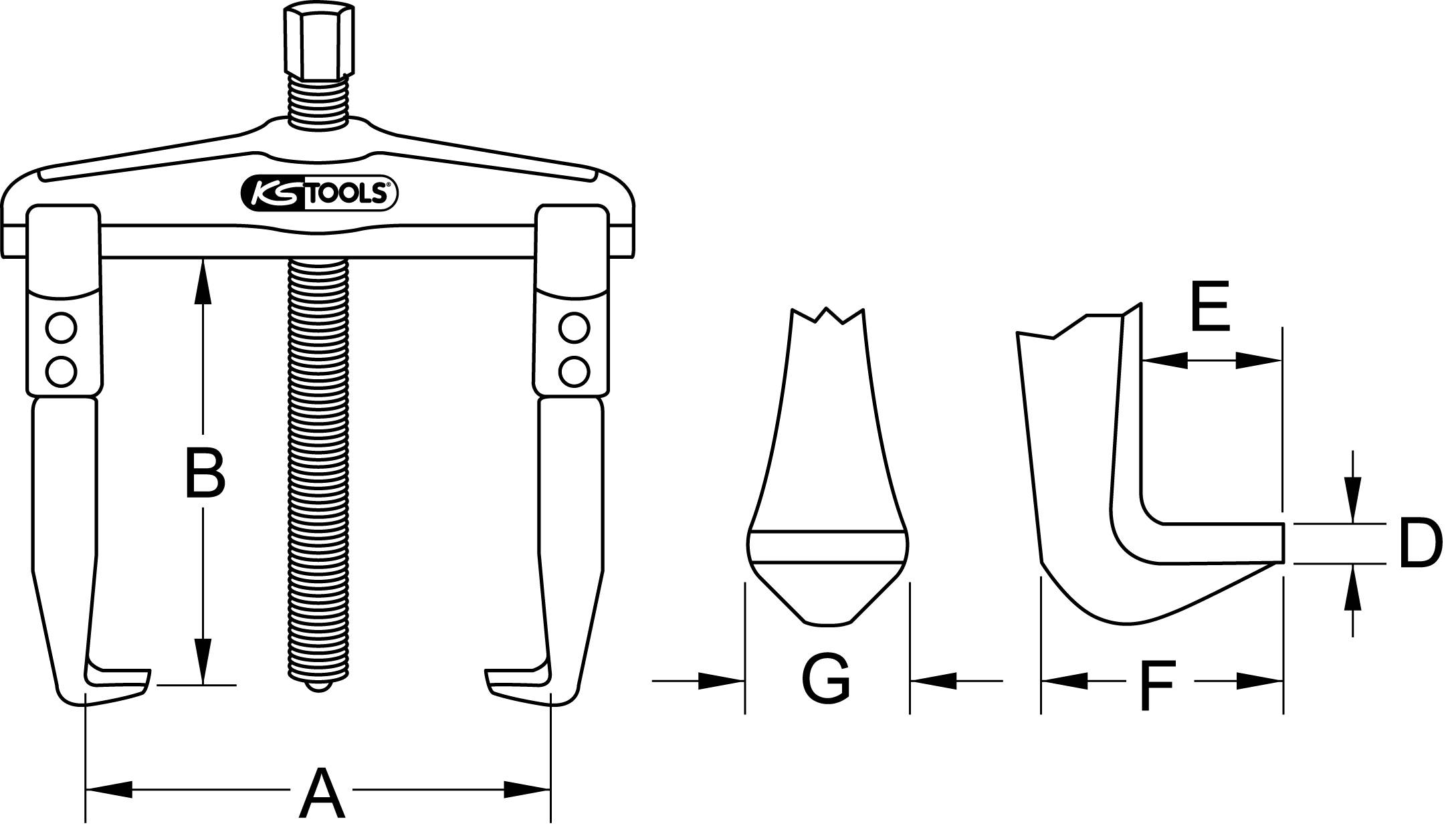

'Two-legged puller with central spindle, adjustable arms, sketch shows dimensions: A, B, D, E, F, G. Brand name at the top.'
1/2
EAN:
Part number:
Item no:
Dispatches on Fri 30 Oct
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 104.99 / piece)
€ 104.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Pull hook width G: 20 mm
  • Pull hook total depth F: 25 mm
  • Pull hook height D 3 mm
  • Pull hook tip depth E: 13 mm
  • Number of pull hooks: With 2 pull-off hooks
  • Hexagon drive in mm: 17 mm
  • Torque max Nm:80 Nm
  • Function attribute 1: Reversible, interior/exterior removal
  • Weight 1700 g
  • Material1: Special tool steel
  • max. Compressive strength KN: 45.0
  • max. Compression force Nm: 80
  • max. Pressure force t: 4.5
  • Quick adjustment: No. nein
  • Clamping depth B in mm 200 mm
  • Span A in mm 25-130 mm
  • Wingspan exterior puller C: 80-180
  • Span up to [mm]: 130 mm
  • Span [mm]: 25 mm
  • Spindle size mm: M14x1.5 x 140
  • Variant items : 620.0501
Clamping range

25 - 130 mm

Tension/pressure capacity

4.5 t

Weight

1700 g

Content

1 pc(s)

Hooks

2

Product type

Puller

Span width (max.)

130 mm

Span depth (max.)

200 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2695325 KS Tools 620.0502 Puller Clamping range (details) 25 - 130 mm No. of hooks 2

Description

It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4"Extremely robust spindle with inductively hardened threadSpecial tool steel
