Kyoritsu KEW 4140 VDE tester VDE standard 0413
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 895.00 / piece)
€ 895.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

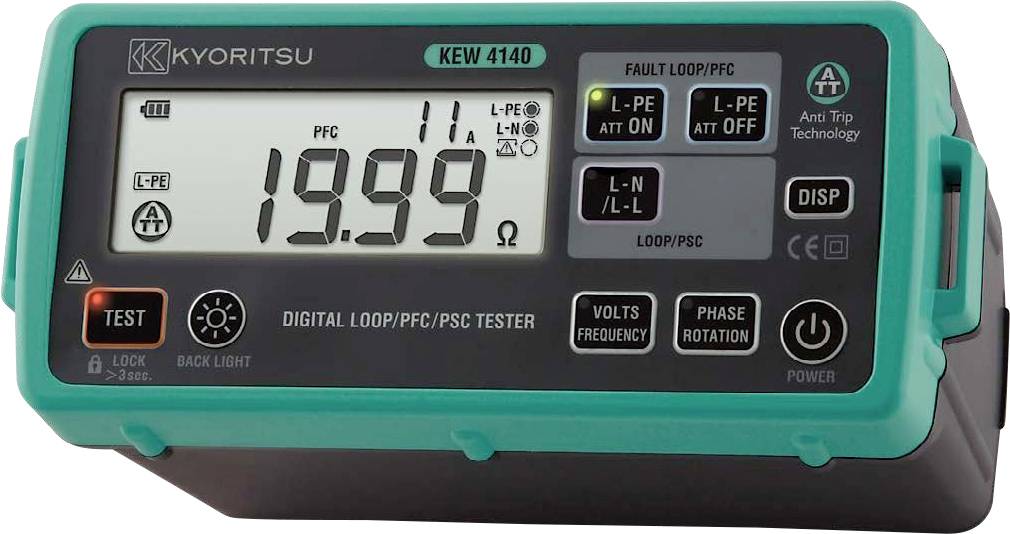

Kyoritsu KEW 4140 digital loop resistance meter
- Loop impedance measurement without triggering of FI-circuit breaker from 30 mA onwards
- Loop impedance up to 2000 Ohm
- Short-circuit current measurement up to 20 kA
- Additional rotating field testing
- Mains voltage
- Net frequency
- Lit display and keys
- Protection Class IP 54 .
- IEC/EN 61557 compliant
Technical specifications
- Anti-Trip Technology (ATT) enables measurements in systems with 30 mA RCDs without trigger
- Automatic voltage testing
- Product type
VDE tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Dim
(L x W x H) 89 x 167 x 185 mm
- Weight
840 g
IP54
- Reading range (VDE)
Loop impedance
- DIN standard
DIN EN 61557
- Display type
Digital (LCD)
- Accuracy
2 %
- Calibration service
Factory calibration included
- Width
167 mm
- Height
185 mm
- Length
89 mm
- Test procedure
manual
- Voltage supply
Battery
- Memory
Yes
- Type
KEW 4140
- VDE standard
0413
- Features
RCD/FI testing
Documents & Downloads
Datasheet
Datasheet 3642378 Kyoritsu KEW 4140 VDE tester VDE standard 0413
User & Safety Instructions
User & Safety Instructions 3642378 Kyoritsu KEW 4140 VDE tester VDE standard 0413
Description
Kyoritsu digital loop resistance meter KEW 4140
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test leads (7218A)
- Hard Case (9156A)
- Carry strap
- Batteries (6x AA)
- User manual
