Kyoritsu KEW 5204 KEW 5204 Lux meter 0.1 - 199900 lx

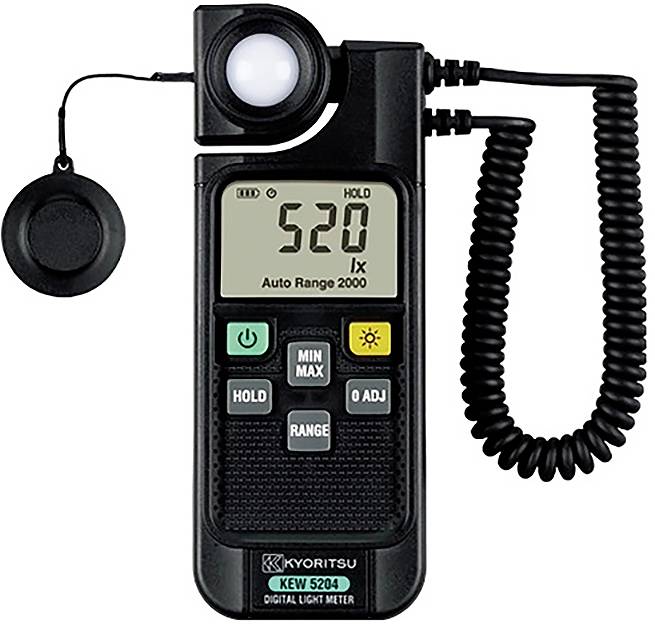

Digital light meter with display showing '520 lx'. It has buttons labeled 'MIN', 'MAX', 'RANGE', and '0 ADJ', plus a detachable sensor.
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 469.00 / piece)
€ 469.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Highlights & Details

Kyoritsu KEW 5204 digital luxmeter

  • 0.0 - 199900 Lux
  • 3 measurement ranges 199.9/1999/19990/199900 lux
  • Accuracy approx. 4%
  • Reaction time: 2.5 seconds

Technical specifications

  • Data hold
  • Auto power-off
  • Removable sensor (flexible working)
  • Hold function
  • Measuring rate: Approx. 2 measurements per second.
  • Units: Switch between Lux (lx) and foot-candle (fc).
  • Kosinu correction: Accurate detection of light from inclined angles of incidence.
  • Standards: Meets the requirements for measuring workplace lighting (DIN quality classes).
Product type

Lux meter

Reading type

Light intensity

Manufacturer's standards (no certificate)

Dim

(L x W x H) 37 x 63 x 170 mm

Display

LCD

Weight

190 g

Calibration service

Factory calibration (ISO certification optional)

Illuminance reading range

0.1 - 199900 lx

Illuminance reading range (max.)

199900 lx

Illuminance reading range (min.)

0.1 lx

Illuminance reading accuracy

4 %

Width

63 mm

Height

170 mm

Length

37 mm

Documents & Downloads

Datasheet

Datasheet 3642385 Kyoritsu KEW 5204 KEW 5204 Lux meter 0.1 - 199900 lx

User & Safety Instructions

User & Safety Instructions 3642385 Kyoritsu KEW 5204 KEW 5204 Lux meter 0.1 - 199900 lx

Description

Kyoritsu Digital Luxmeter KEW 5204

This text is machine translated.

Scope of delivery

  • METER KEW 5204
  • Protection cap for sensor
  • Soft-casing
  • Batteries (2x AAA)
  • User manual
