Kyoritsu KEW 5410 VDE tester VDE standard 0413
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 905.00 / piece)
€ 905.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

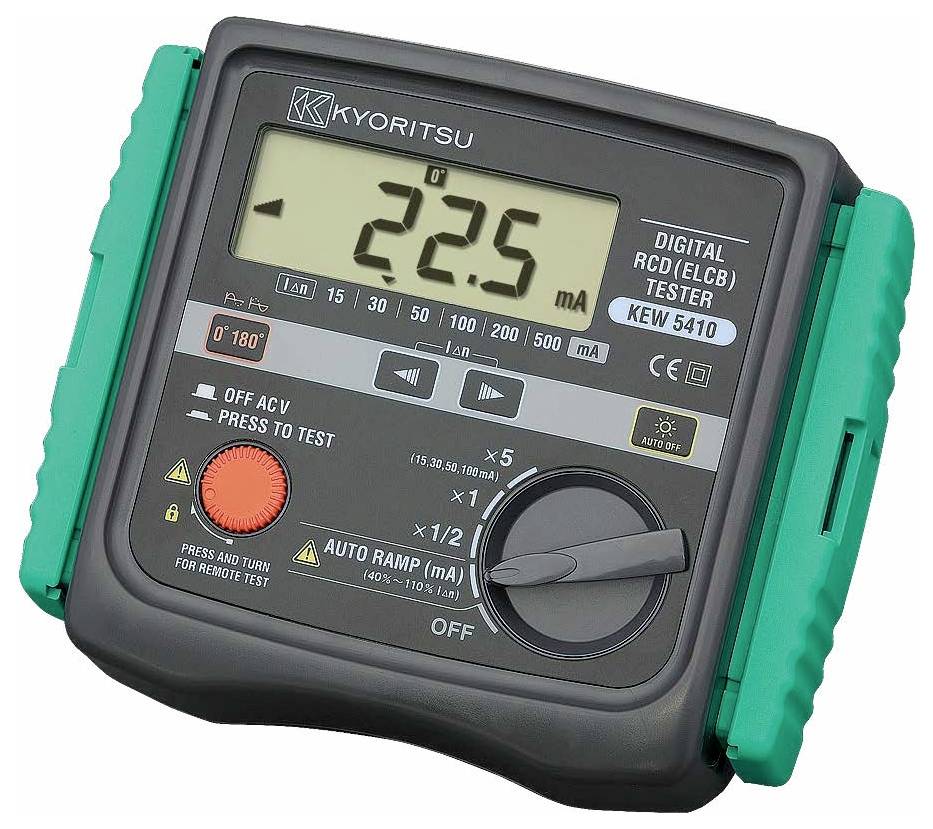

Kyoritsu KEW 5410 RCD tester
- Custom microprocessor for highest accuracy and reliability
- Tests of rated residual operating currents at × 1/2 range
- Measurement of the RCD tripping time in × 1 and × 5 ranges
- Nominal voltage 100V to 400V
- Test current 15mA to 500mA
- Measurement range 80V to 450V
- Dust and waterproof
Technical specifications
- Trip time (0 ms – 2000 ms)
- Trigger current (5mA – 500mA)
- Contact voltage (0V – 100V)
- Voltage (80V – 450V)
- Measurement of RCD Type A and AC
- Remote measurement via TEST button on the plug
- Product type
VDE tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Interfaces
RS232C
- Dim
(L x W x H) 89 x 167 x 186 mm
- Weight
800
IP54
- Reading range (VDE)
Voltage
Current
- DIN standard
DIN EN 61557
- Display type
Digital (LCD)
- Accuracy
1 %
- Calibration service
Factory calibration (ISO certificate optional)
- Width
167 mm
- Height
186 mm
- Length
89 mm
- Test procedure
manual
- Voltage supply
Battery
- Type
KEW 5410
- VDE standard
0413
- Features
RCD/FI testing
Documents & Downloads
Datasheet
Datasheet 3642388 Kyoritsu KEW 5410 VDE tester VDE standard 0413
User & Safety Instructions
User & Safety Instructions 3642388 Kyoritsu KEW 5410 VDE tester VDE standard 0413
Description
Kyoritsu RCD tester KEW 5410
This text is machine translated.
This text is machine translated.
Scope of delivery
- KEW 5410 tester
- Test lead with safety plug (7122B)
- Test lead set with terminals (7121B)
- Carry bag (9147)
- Shoulder strap
- Batteries (8x AA)
- User manual
