Name: LAPP 26103/500 Drag chain cable ÖLFLEX® FD CLASSIC 810 5 G 0.5 mm² Grey 500 m
Brand: LAPP
SKU: 1335981
Availability: InStock

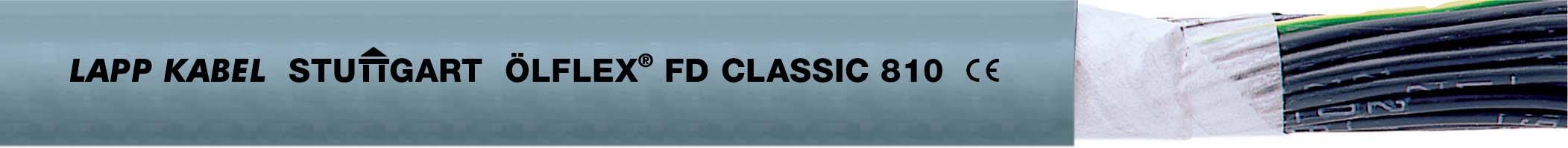

'Grey cable with the inscription LAPP CABLE STUTTGART ÖLFLEX FD CLASSIC 810'. Cable ends with multiple coloured wires visible.

Image similar

Product type

Drag chain cable

No. of leads

5 G

Cross section (each core)

0.5 mm²

Cable features

Suitable for drag chains

Flame-retardant

highly flexible

Cable type

ÖLFLEX® FD CLASSIC 810

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

7 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Packaging units

Number

Set(s)

Total (1 m = € 1.88)

€ 939.00

incl. VAT

Only 7 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ÖLFLEX® -FD CLASSIC 810 PVC Drag-chain Cable

Coded numbers
highly flexible
For travel up to 10m

Technical specifications

Product type: Drag chain cable

Cable type: ÖLFLEX® FD CLASSIC 810

No. of leads: 5 G

Cross section (each core): 0.5 mm²

Cross section: 5 G 0.5 mm²

Cable features: Suitable for drag chains
Flame-retardant
highly flexible

Outside Ø: 6.80 mm

Factory colour: Grey

Content: 500 m

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Packaged: No

Sold per metre: No

Halogen-free: No

Shielded: No

Manufacturer part #: 26103/500

Wire ID code: Black conductors with white numbering (VDE 0293)

Core layout: Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66

Min. temperature range (flexible installation): 0 °C

Max. temperature range (flexible installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Certification marks: {DIN} VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281.

Type: ÖLFLEX CLASSIC FD 810 5G0,5

Cable type: ÖLFLEX® FD Classic 810

Nominal voltage (details): 300/500 V

Bend radius: Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia.

Temperature range: Active: 0 - +70 °C, fixed: -40 - +80 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Cross section (each core)

No. of leads

Content

Outside Ø

LAPP 26103/500 Drag chain cable ÖLFLEX® FD CLASSIC 810 5 G 0.5 mm² Grey 500 m

Item no:1335981

Dispatches on Mon 9 Nov

7 Set(s)Conrad Electronic

This article

0.5 mm²

5 G

500 m

6.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 939.00^*

1 m = € 1.88

LAPP 26100/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 2 x 0.5 mm² Grey Sold per metre

Item no:602305

Fast track dispatch on Fri 6 Nov

146 meterConrad Electronic

0.5 mm²

2 x

Sold per metre

5.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.79^*

LAPP 26101/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 3 G 0.5 mm² Grey Sold per metre

Item no:600055

Fast track dispatch on Fri 6 Nov

271 meterConrad Electronic

0.5 mm²

3 G

Sold per metre

6.20 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

LAPP 26102/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 4 G 0.5 mm² Grey Sold per metre

Item no:600252

Fast track dispatch on Fri 6 Nov

283 meterConrad Electronic

0.5 mm²

4 G

Sold per metre

6.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.79^*

LAPP 26103/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 5 G 0.5 mm² Grey Sold per metre

Item no:602995

Fast track dispatch on Fri 6 Nov

116 meterConrad Electronic

0.5 mm²

5 G

Sold per metre

7.30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.99^*

LAPP 26104/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 7 G 0.5 mm² Grey Sold per metre

Item no:600592

Fast track dispatch on Fri 6 Nov

86 meterConrad Electronic

0.5 mm²

7 G

Sold per metre

8.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

LAPP 26119/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 2 x 0.75 mm² Grey Sold per metre

Item no:600713

Fast track dispatch on Fri 6 Nov

405 meterConrad Electronic

0.75 mm²

2 x

Sold per metre

6.20 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

LAPP 26120/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 3 G 0.75 mm² Grey Sold per metre

Item no:602027

Fast track dispatch on Fri 6 Nov

516 meterConrad Electronic

0.75 mm²

3 G

Sold per metre

6.70 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.79^*

LAPP 26121/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 4 G 0.75 mm² Grey Sold per metre

Item no:600916

Fast track dispatch on Fri 6 Nov

44 meterConrad Electronic

0.75 mm²

4 G

Sold per metre

7.30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.99^*

LAPP 26123/1 Drag chain cable ÖLFLEX® FD CLASSIC 810 7 G 0.75 mm² Grey Sold per metre

Item no:602043

Fast track dispatch on Fri 6 Nov

130 meterConrad Electronic

0.75 mm²

7 G

Sold per metre

9.40 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.99^*

Documents & Downloads

Datasheet

Datasheet 1335981 LAPP 26103/500 Drag chain cable ÖLFLEX® FD CLASSIC 810 5 G 0.5 mm² Grey 500 m

User & Safety Instructions

User & Safety Instructions 1335981 LAPP 26103/500 Drag chain cable ÖLFLEX® FD CLASSIC 810 5 G 0.5 mm² Grey 500 m

Description

For continuously moving applications in the smallest bending radii up to 7.5 x outer diam. In power chains or mobile machine parts. In humid and wet areas. In the open air without UV protection and only in accordance with the temperature range. Application in measurement, control and instrumentation circuits, load circuits of electrical equipment in automation, assembly and handling technology, flow and assembly lines, production lines, machines of all kinds of tiny external diameter and Optimal. therefore, reduced space requirements in the power chain. Designed for a lifespan of at least 5 million cycles of alternating Biegel power chain.
