LAPP 44420037 Bullet connector Plug, straight Series (round connectors): CIRCON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Connection
Soldering
Content
1 pc(s)
Type
44420037
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Highlights & Details

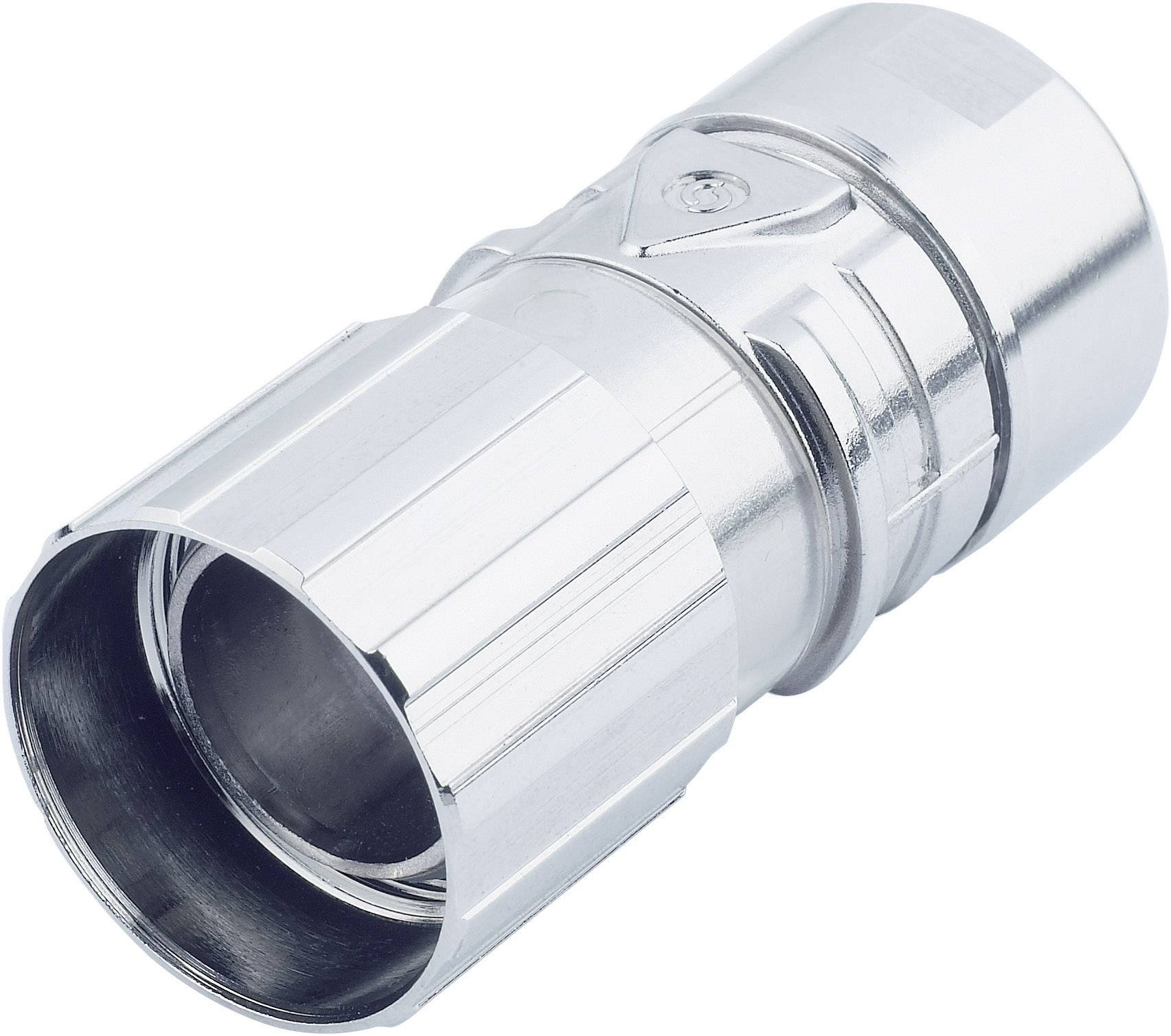

EPIC® CIRCON M23 Plug D6
Technical specifications
- Type
44420037
- Product type
Bullet connector
- Connector type
Plug, straight
- Connection
Soldering
- Content
1 pc(s)
- Cable Ø (max.)
13.5 mm
- Cable Ø up to
7 mm
- Case material
Diecast zinc
- Connection angle
180°
- Manufacturer part #
44420037
- Cable Ø range
7 - 13.5 mm
- RoHS-compliant
Yes
IP68
- Series
CIRCON
- Material (details)
Nickel plated die-cast zinc.
- Type
Cable connector
- Core connector
7 - 13.5 mm
- Type
EPIC® M23 D6
- Thread type
M23
- Connection
-
- Temperature range
-25 to +125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 744602 LAPP 44420037 Bullet connector Plug, straight Series (round connectors): CIRCON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744602 LAPP 44420037 Bullet connector Plug, straight Series (round connectors): CIRCON 1 pc(s)
Information
Information 744602 LAPP 44420037 Bullet connector Plug, straight Series (round connectors): CIRCON 1 pc(s)
Description
Flexible housing; cable connectors with a large clamping area, device connector for installing the inserts from the front and rear side.
