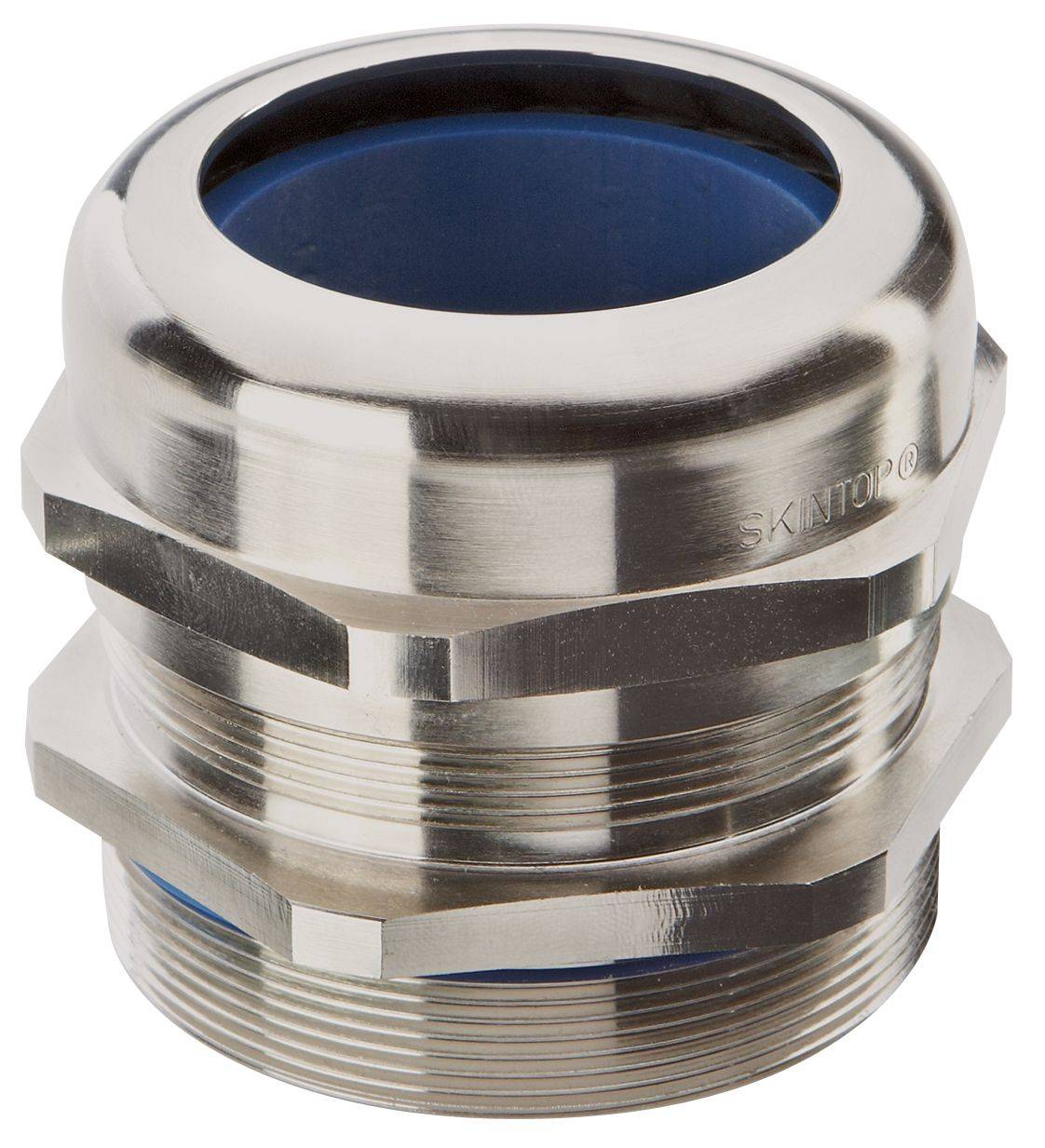

LAPP 53113570 Cable gland M63 Brass Brass 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M63
Material
Brass
Clamp Ø
34 mm
Terminal Ø (max.)
45 mm
Datasheet (PDF)
Total (€ 55.29 / piece)
€ 276.47
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M63
- Material
Brass
- Clamp Ø
34 mm
- Terminal Ø (max.)
45 mm
- Thread length
15 mm
- Length
61.3 mm
- Min. temperature
-70 °C
- Max. temperature
+100 °C
IP68
- Spanner size
67 mm
- Halogen-free
No
- Content
5 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53113570
- Type
SKINTOP® COLD M 63x1,5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1310084 LAPP 53113570 Cable gland M63 Brass Brass 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1310084 LAPP 53113570 Cable gland M63 Brass Brass 5 pc(s)
Description
Increases cold-resistant. Resistance to cold. High mechanical load-carrying capacity. Optimum strain relief. Large, variable clamping ranges.
