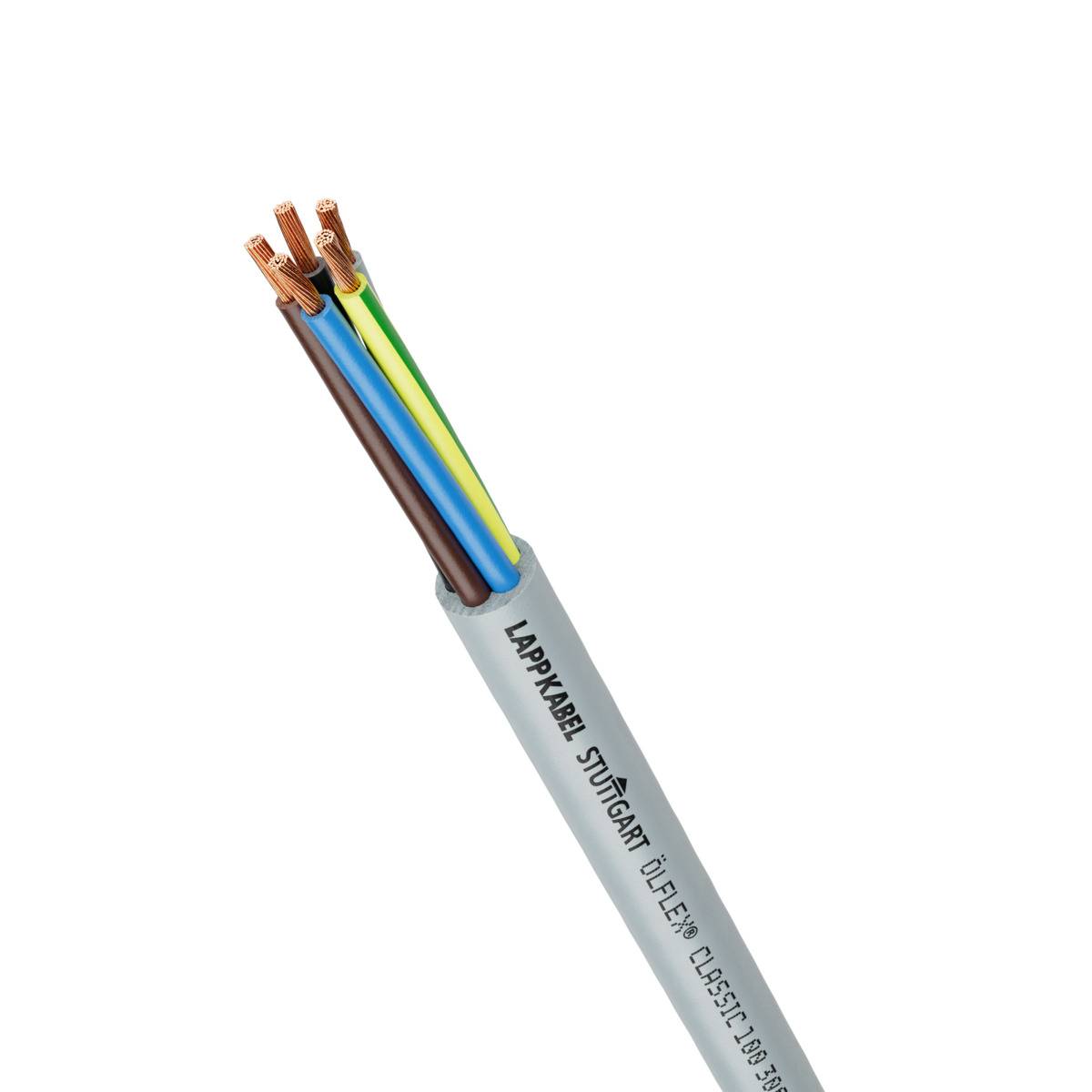

Grey cable with the inscription 'LAPP KABEL STUTTGART ÖLFLEX CLASSIC 100 CE'. Multicoloured wires protrude on the right-hand side.

Grey cable with the inscription 'LAPP KABEL STUTTGART ÖLFLEX CLASSIC 100 CE'. Multicoloured wires protrude on the right-hand side.

Image similar

LAPP

Product type

Control lead

No. of leads

5 G

Cross section (each core)

16 mm²

Cable type

ÖLFLEX® CLASSIC 100

Outside Ø

21.20 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 27.00)

€ 26,995.00

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ÖLFLEX® CLASSIC 100 P PVC-Control cable

Color-coded

Technical specifications

Product type: Control lead

No. of leads: 5 G

Content: 1000 m

Cross section (each core): 16 mm²

Cable features: High flexural strength

Cable type: ÖLFLEX® CLASSIC 100

Outside Ø: 21.20 mm

Packaged: Yes

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 1120819/1000

Factory colour: Grey

Insulation material: PVC

Insulation: Specific contact resistance: > 20 GΩ x cm

Core layout: Finely stranded according to VDE 0295 Class 5/IEC 60228 Cl. 5

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Certification marks: In accordance with: IEC 60227-5; HD 21.5 S3; VDE 0281 Part 5 HD 21.13 S1; VDE 0281 Part 13

Test voltage: 4000 V

Cross section: 5 G 16 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: ÖLFLEX CLASSIC 100 300/500V 5G16

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1500834 LAPP ÖLFLEX® CLASSIC 100 Control lead 5 G 16 mm² Grey 1120819/1000 1000 m

User & Safety Instructions

User & Safety Instructions 1500834 LAPP ÖLFLEX® CLASSIC 100 Control lead 5 G 16 mm² Grey 1120819/1000 1000 m

Description

Connection and control cable especially under industrial ambient conditions. Mainly in dry, moist or wet rooms at normal mechanical load. In the open only under consideration of the temperature range and UV protection. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations.
Plant engineering, machine engineering, heating and air-conditioning technology, power plant technology.
Optimised, small outer-Ø and this reduced space requirement. High insulation safety through 4000 kV test voltage. Largely resistant to acids, alkali and certain oils at room temperature.

This text is machine translated.

Description

Connection and control cable especially under industrial ambient conditions. Mainly in dry, moist or wet rooms at normal mechanical load. In the open only under consideration of the temperature range and UV protection. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations.
Plant engineering, machine engineering, heating and air-conditioning technology, power plant technology.
Optimised, small outer-Ø and this reduced space requirement. High insulation safety through 4000 kV test voltage. Largely resistant to acids, alkali and certain oils at room temperature.

This text is machine translated.
