Leak detector testo 515 Ex -Kombi Flammable gases, Cooling agent External sensor
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,029.41 / piece)
€ 1,029.41
plus VAT.
14-day return policy included
Highlights & Details

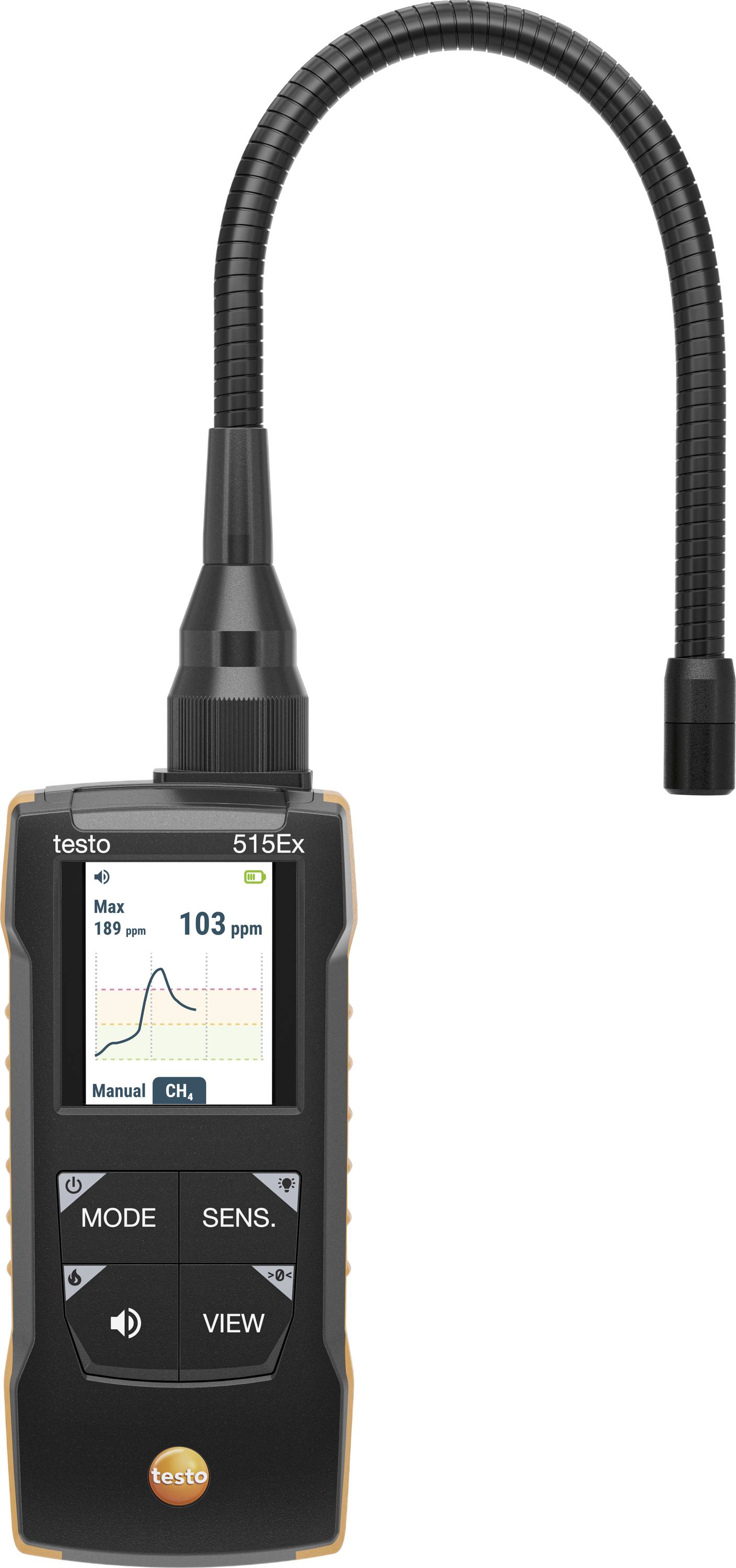

515 testo 515 Ex - Combi leak detector
- High sensitivity: Detects leakage rates down to 1 g/a
- Fast: Advanced blower extraction for fast response and recovery time of and 2 sec.
- 2-in-1: Detection of refrigerants and flammable gases
- Measurement parameters: Ppm, Vol. %, %LEL
- Comfortable: Leak detection with the help of a flexible and robust gooseneck
- Simple and safe: Selectable color display modes (numeric, column, trend curve) for an intuitive leak analysis
- Zero setting: Automatic zero setting for fast and accurate location Manual zero setting option for individual adjustment
Technical specifications
- Product type
Leak detector
- Reading range
0.0001 - 1.0 %
- Unit of measurement
Flammable gases
Cooling agent
- Features
External sensor
- Weight
291 g
- Reading range (max.)
1.0 %
- Reading range (min.)
0.0001 %
- Width
60 mm
- Height
37 mm
- Length
132 mm
Documents & Downloads
Datasheet
Datasheet 3787101 Leak detector testo 515 Ex -Kombi Flammable gases, Cooling agent External sensor
User & Safety Instructions
User & Safety Instructions 3787101 Leak detector testo 515 Ex -Kombi Flammable gases, Cooling agent External sensor
Description
The testo 515 Ex combines fast and reliable performance with user-friendly design. Leak rates up to 1 g/a can be detected. This ensures both high sensitivity and long-term sensor stability. An advanced fan extraction system provides reaction and
Recovery times of less than 2 seconds to allow quick leak detection. The flexible gooseneck provides for a safe and reliable detection even in narrow or difficult to access areas. Selectable display modes with color chart and trend curve display provide clear monitoring of leakage and high precision localization. Exchangeable sensors enable a 2-in-1 detection of refrigerants and flammable gases. The ATEX certification ensures safe and reliable operation in hazardous areas.
This text is machine translated.
Recovery times of less than 2 seconds to allow quick leak detection. The flexible gooseneck provides for a safe and reliable detection even in narrow or difficult to access areas. Selectable display modes with color chart and trend curve display provide clear monitoring of leakage and high precision localization. Exchangeable sensors enable a 2-in-1 detection of refrigerants and flammable gases. The ATEX certification ensures safe and reliable operation in hazardous areas.
This text is machine translated.
Scope of delivery
- testo 515 Ex - combined leak detector for flammable gases and coolants
- 1 x Gas sensor

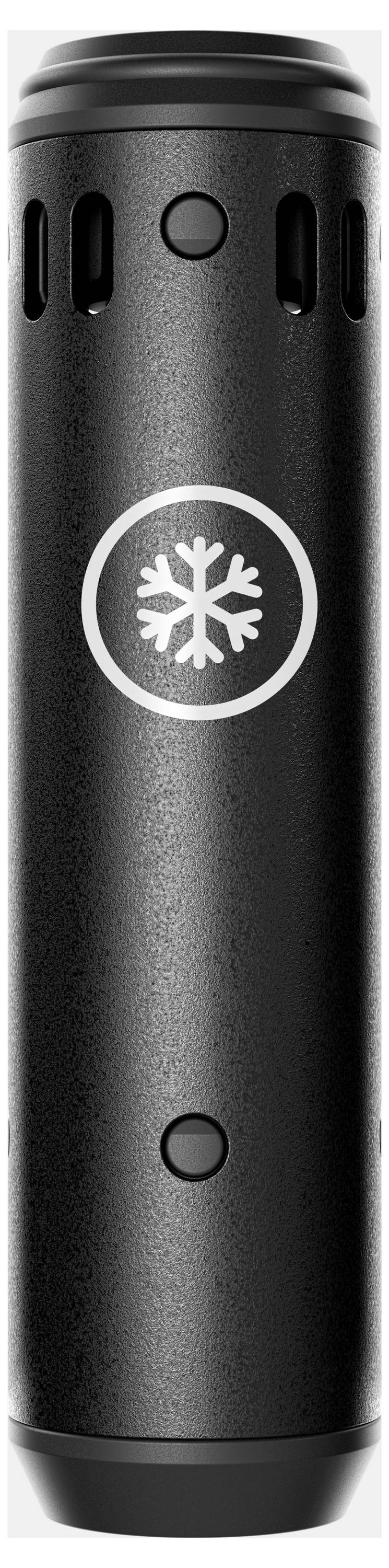

- 1 x Refrigerant sensor
- Transport bag
- 3x filter
- Protective cover
- USB-C cable
