Name: Lian Li UNI FAN TL Series PC fan White (W x H x D) 124 x 120 x 28 mm incl. LED lighting
Brand: Lian Li
SKU: 3046107
Availability: SoldOut

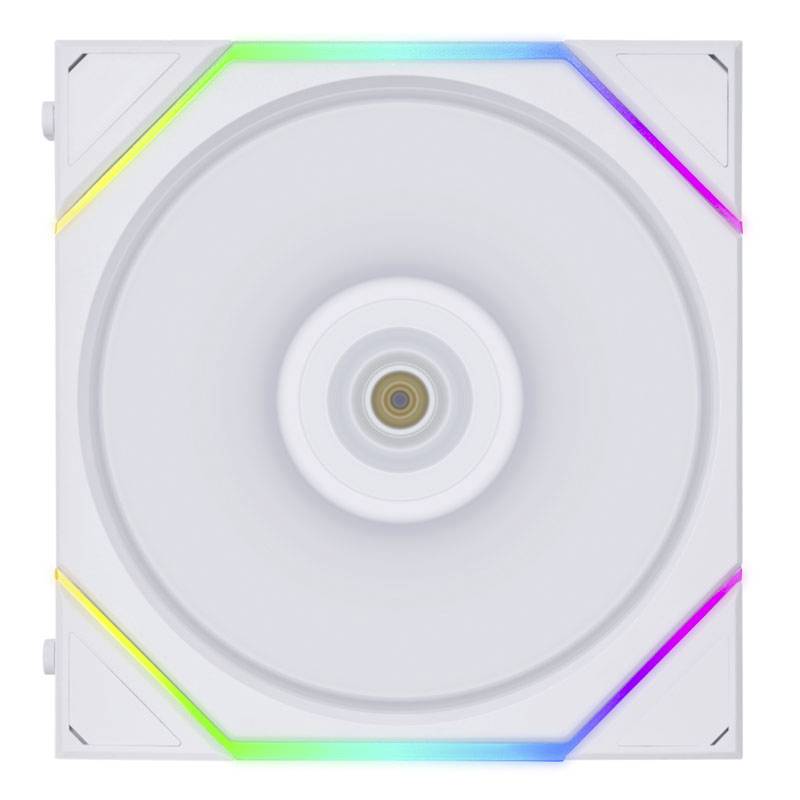

A square computer fan with RGB lighting at the corners, showing a central rotor and a minimalist design.

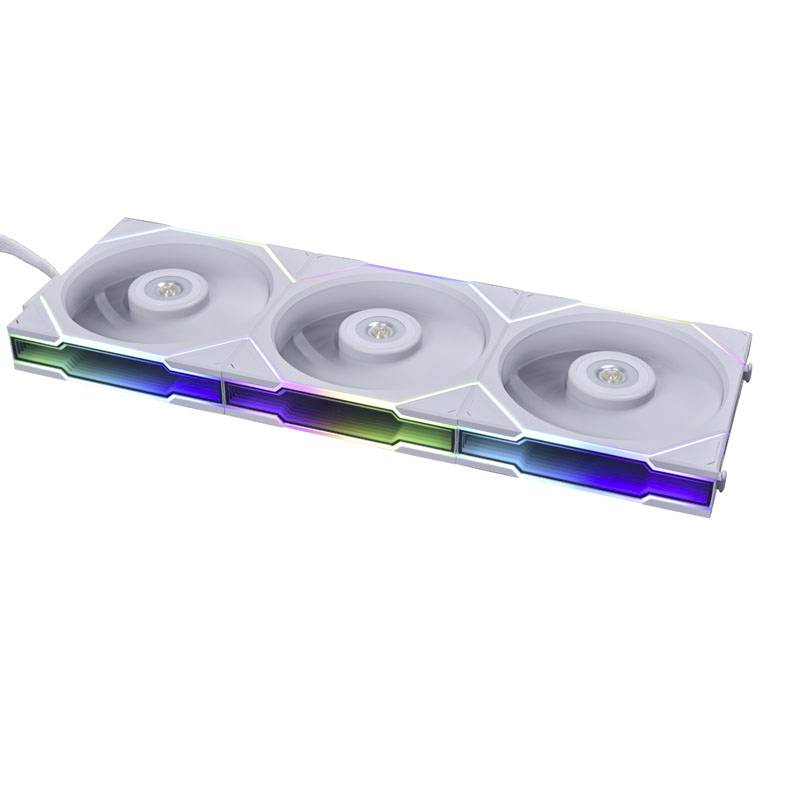

Triple fan module with LED lighting, displays colourful light effects. Suitable for cooling computer cases.

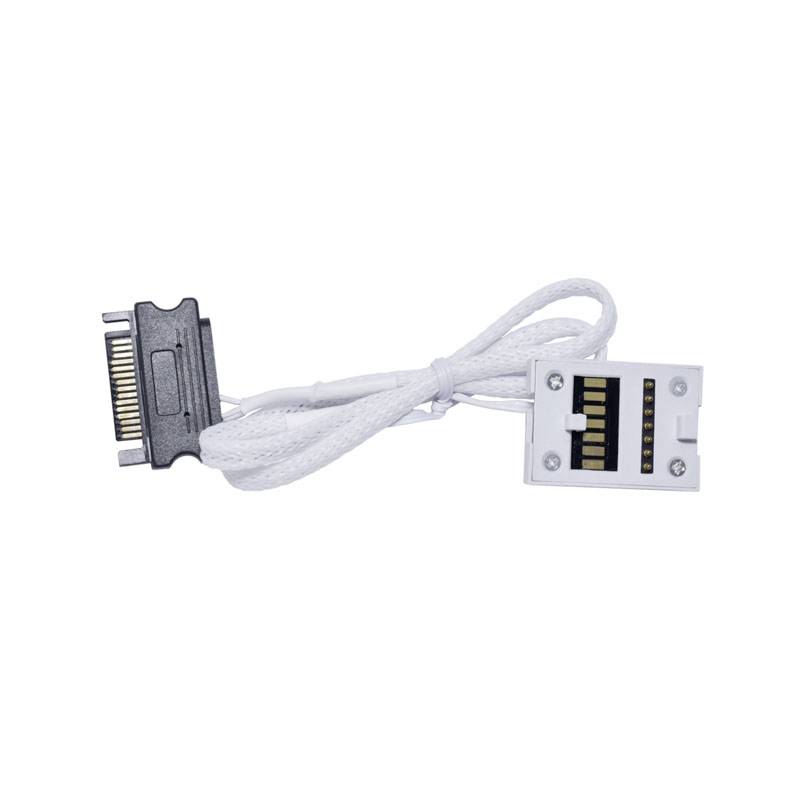

A white power cable with a plug connector and a black plug. The plug shows many small, golden contact points.

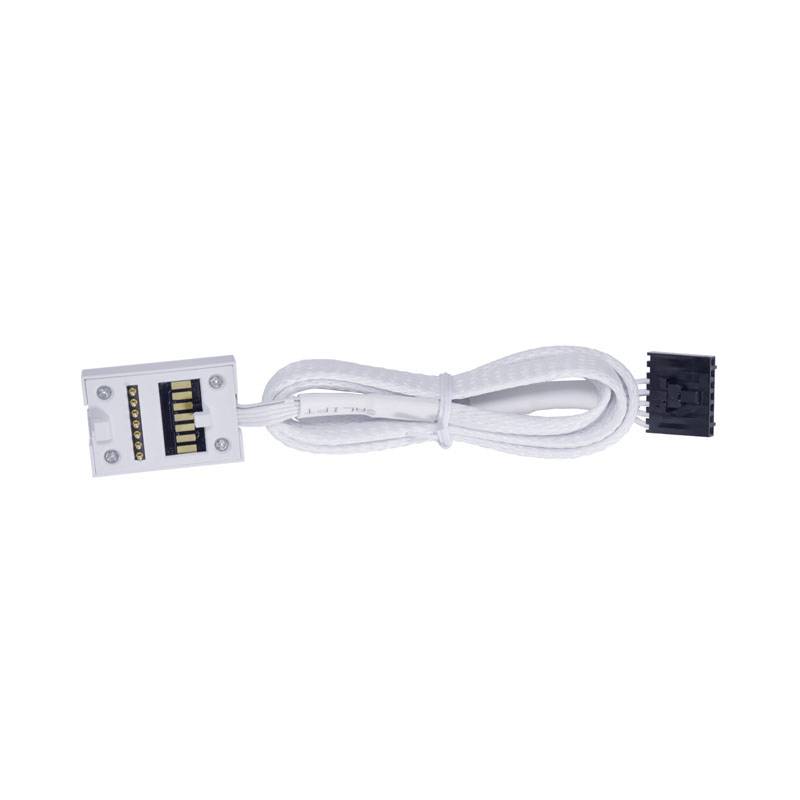

White cable with a plug and a rectangular connector, possibly for a technical device or a specific hardware connection.

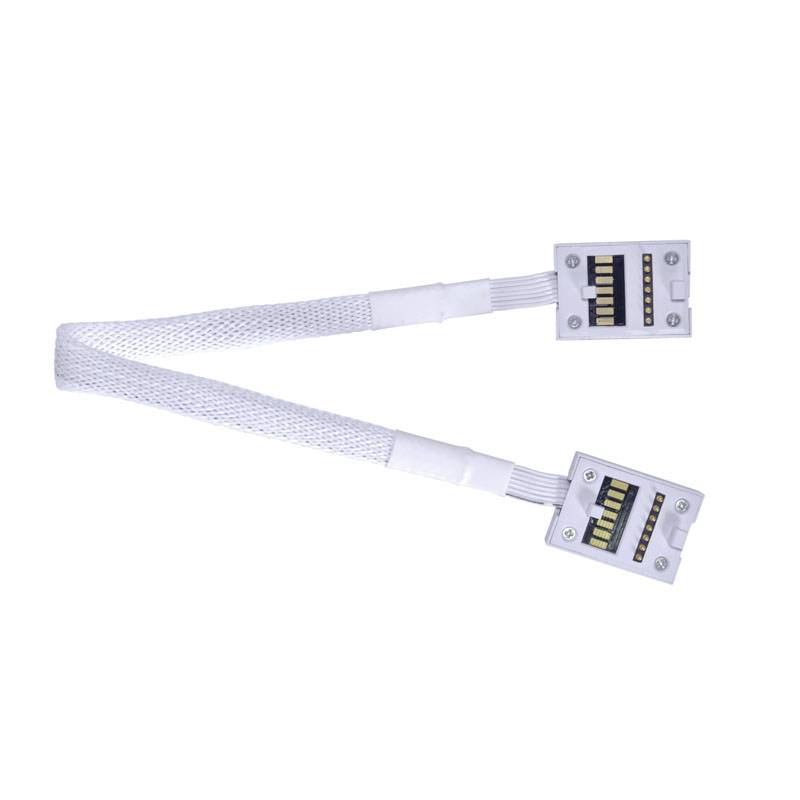

A white electric cable with two connectors at its ends. Each connector has multiple golden contacts.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 34.99 / piece)

€ 34.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Lian Li UNI FAN TL Series PC fan

120 mm PWM fan in white
Convenient plug-in system and improved daisy-chaining for less mess
32 digitally addressable RGB LEDs
Speed and illumination via Lian Li L-Connect 3 software controllable
Max. 2,600 rpm speed at 33 dB(A)
153.1 m³/h max. Delivery volume and max. 3.97 mmH2O static pressure
Rubber pads to decouple interfering vibrations

Technical specifications

Bearings: Hydrodynamic plain bearing
Speed 0 2,600 rpm
Volume: Max. 33 dB(A)
Flow rate: Max. 153.1 m³/h.
Static pressure: Max. 3.97 mmH2O
Voltage: 12 V
Start voltage 5 V
Power consumption 5.8 W
Lighting 26 digitally addressable RGB LEDs
7-pin combined PWM and ARGB connection

Product type: PC fan

Fan size: 120 mm

Noise emission (max.): 33 dBa

Noise emission: 30.1 dBa - 40 dBa

Air discharge: 153.1 m³/h

Rotational speed (max.): 2600 U/min

Type of bearing: Plain bearing

Connection: 7-pin

Factory colour: White

Weight: 325 g/m²

Features: incl. LED lighting

Width: 124 mm

Height: 120 mm

Depth: 28 mm

Dim: (W x H x D) 124 x 120 x 28 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3046107 Lian Li UNI FAN TL Series PC fan White (W x H x D) 124 x 120 x 28 mm incl. LED lighting

Description

Lian Li UNI FAN TL Series PWM fans to complement your setup
The Lian Li UNI FAN TL Series are fans, which fit perfectly into your setup. The PWM fan is installed on the same plug system that frees the gaming PCs from unnecessary cable mess. Lian Li impresses with regards to cooling performance and delivers new standards with breath-taking RGB lighting.

Connection system for seamless fan clusters
The installation of the Lian Li UNI FAN TL Series follows the clever concept of the other fans from Lian Li: The fans are fitted with contact points and are connected with each other by means of a practical plug-in system. Several fans can be connected together into a cluster and conveniently connected to the controller with just one cable. This improved Daisy chain system saves you time, nerves and eliminates tangled cables. The pin contacts forward current as well as PWM and ARGB signals.

Revised plug system of the Lian Li UNI FAN TL Series
The plug-in system introduced with the UNI FAN SL and AL series has been further improved with the Lian Li UNI FAN TL Series. Firstly, the connector system has been designed in such a way that the connector plug can be removed. This prevents possible collisions with connections at the radiator and ensures a clean look at the same time

In addition, the cable module connector has been removed and the cable can now be connected directly to the fan instead. The connection is recessed into the frame flat, so there is more space available for use of radiators.

The commonly separated power and ARGB signal cables have been combined into a 7-pin cable. You can connect these cables directly to the controller. Up to four fans in a cluster can be supplied with one cable. With the appropriate extension cable you can connect up to 16 fans - also six of the LCD version - to one of the two ports of the controller and control via L-Connect 3 software. The controller Lian Li 12TL is supplied with the pack of 3. It is also available separately.

Note: The connections of the Lian Li UNI FAN TL Series are not compatible with the SL and AL series!

Lian Li UNI FAN TL Series: Impressive performance values
The intake fans operate relatively quietly under full load at a maximum of 33 dB(A). The low distance between the fan blades and the frame and the thus reduced friction permits higher speeds with the same power consumption and thus linked a significantly increased air throughput and excellent performance values. Cool temperatures are also favored by the increased height of 28 millimeters.

With L-Connect 3 software you can also activate the start/stop mode for your Lian Li UNI FAN TL Series. If your components are below a temperature you specify (maximum 50 degrees), the fans will remain off. In addition, it is possible to create an optimized fan curve for speed and temperature via L-Connect 3.

Optimised concept for lighting and look
Lian Li has considerably improved the fans. For example, the side LED tape lights with a distance of 0.7 millimeters as compared to 3 and 5.6 millimeters in the previous generation show a clearly reduced distance between the individual fans. This creates seamless transitions between the illuminated areas and fan clusters of cross-effects are amplified. Lian Li has revised the rubber pad design and added additional slots. The unusual RGB light, which also illuminates the infinity mirror on two sides, is thereby more noticeable.

This text is machine translated.

Hints

Note: This fan requires a Lian Li 12TL fan controller. The fan offered here can be used as an extension to the corresponding 3-pack containing the controller. The Lian Li 12TL fan controller is also available separately. A direct connection to the mainboard is not possible.
