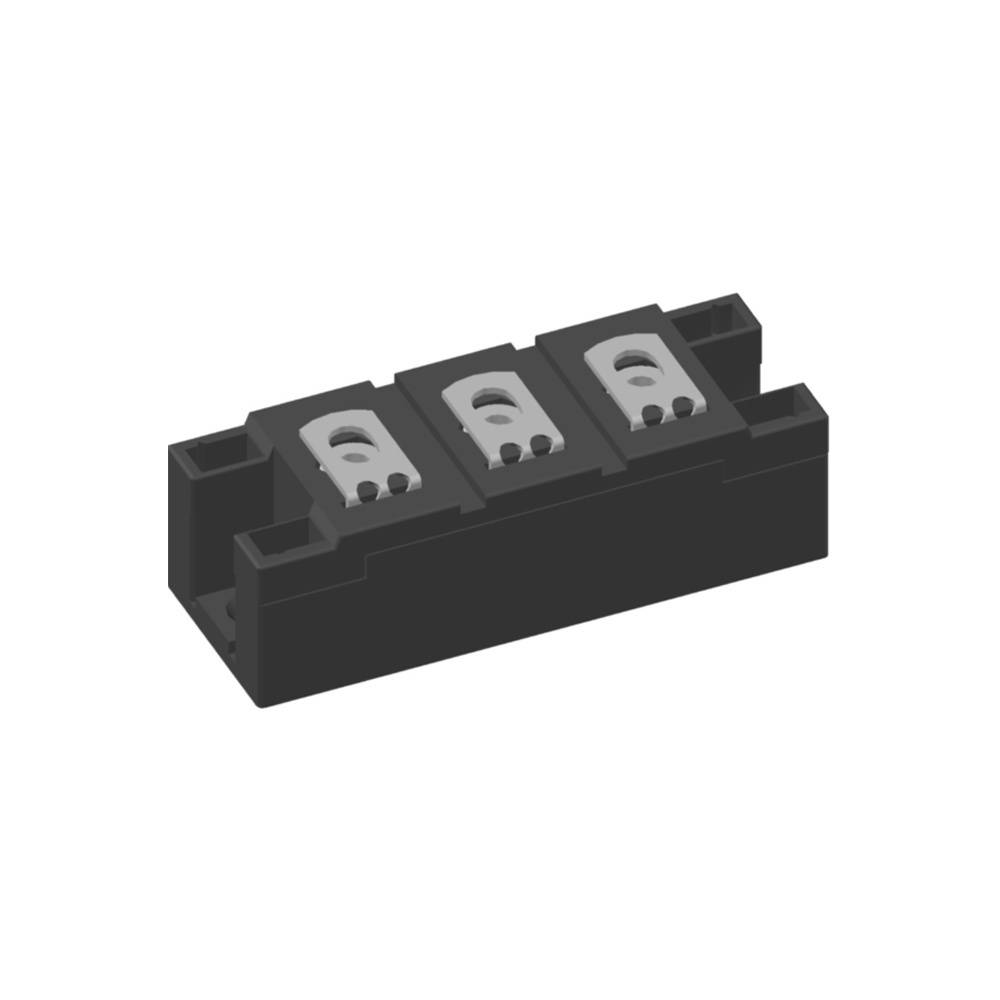

Black, rectangular electronic component with three metallic terminal connections on the top surface.

Black, rectangular electronic component with three metallic terminal connections on the top surface.

Packaging type

Bulk

Enclosure

Y4 M6

Reverse voltage U(R)

1200 V

Product type

ESD diode

Type

MDD172-12N1

Littelfuse

Fast track dispatch on Fri, 11 Sep

6 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 189.07 / piece)

€ 189.07

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Technical specifications

Package type Y4-M6
Maximum repetitive blocking voltage (V) 1200 V
Case temperature 100 °C
Maximum virtual junction temperature: 150 °C.
Thermal resistance (junction-case) (K/W): 0.21 K/W.
Average continuous current rating 190 A
Slope resistance for Power loss calculation: 0.8 mΩ
Thermal resistance caeseatsink KW:0.08 K/W.
Threshold voltage for Power loss calculation 0.8 V
Max reverse recovery current 6600 A

Packaging type: Bulk

Type: MDD172-12N1

Enclosure: Y4 M6

Manufacturer: Littelfuse

Reverse voltage U(R): 1200 V

Operating temperature (max.): 150 °C

Product type: ESD diode
