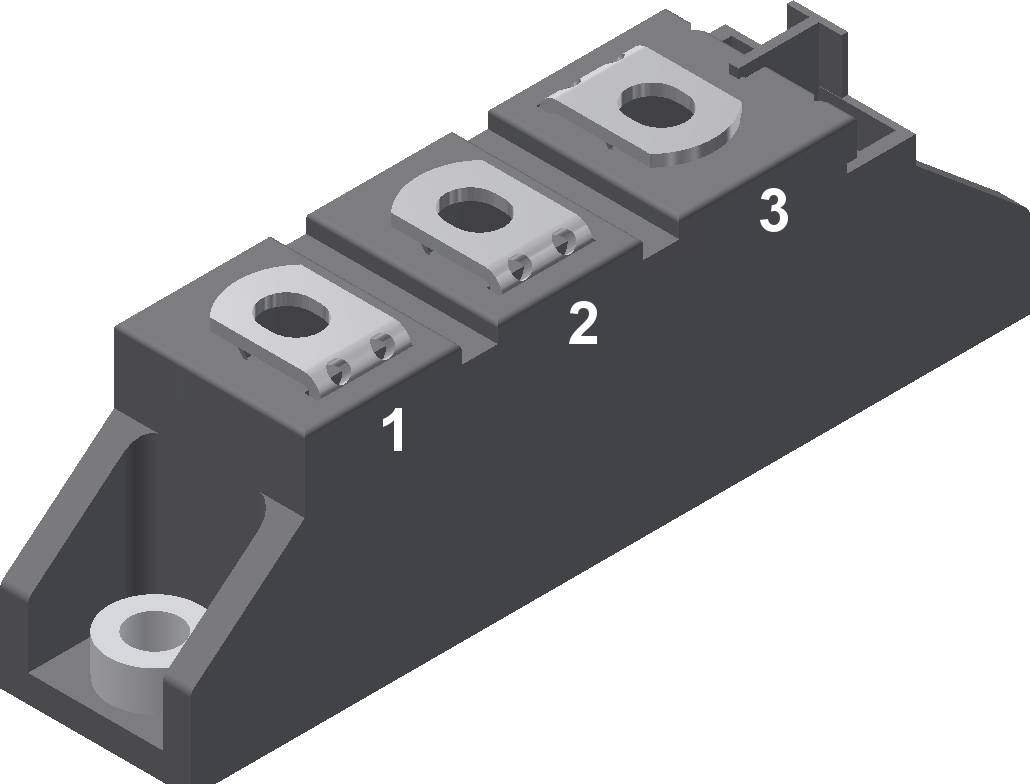

Littelfuse Fast diode MEA75-12DA TO 240AA 1200 V Bulk
Packaging type
Bulk
Product type
Fast diode
Enclosure
TO 240AA
Reverse voltage U(R)
1200 V
Type
MEA75-12DA
EAN:
Part number:
Item no:
Number
Minimum order quantity: 36
Multiple: 36
Total (€ 24.99 / piece)
€ 24.99
incl. VAT
14-day return policy included
Technical specifications
- Package type TO-240AA
- Maximum repetitive blocking voltage (V) 1200 V
- Case temperature 75 °C
- Maximum virtual junction temperature: 150 °C.
- Thermal resistance (junction-case) (K/W): 0.45 K/W.
- Average continuous current rating 75 A
- Maximum surge current (A) 1200 A
- Thermal resistance caeseatsink KW:0.1 K/W.
- IRM 25 A
- Maximum rate of rise in current over time: 400 A/µs
- trr type ns: 140 ns
- Packaging type
Bulk
- Type
MEA75-12DA
- Product type
Fast diode
- Enclosure
TO 240AA
- Manufacturer
Littelfuse
- Reverse voltage U(R)
1200 V
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2961226 Littelfuse Fast diode MEA75-12DA TO 240AA 1200 V Bulk
