LogiLink PHC0300 MC4-Set PV plug
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
5
7% = € 0.18
€ 2.58
10
9% = € 0.26
€ 2.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
14-day return policy included
Highlights & Details

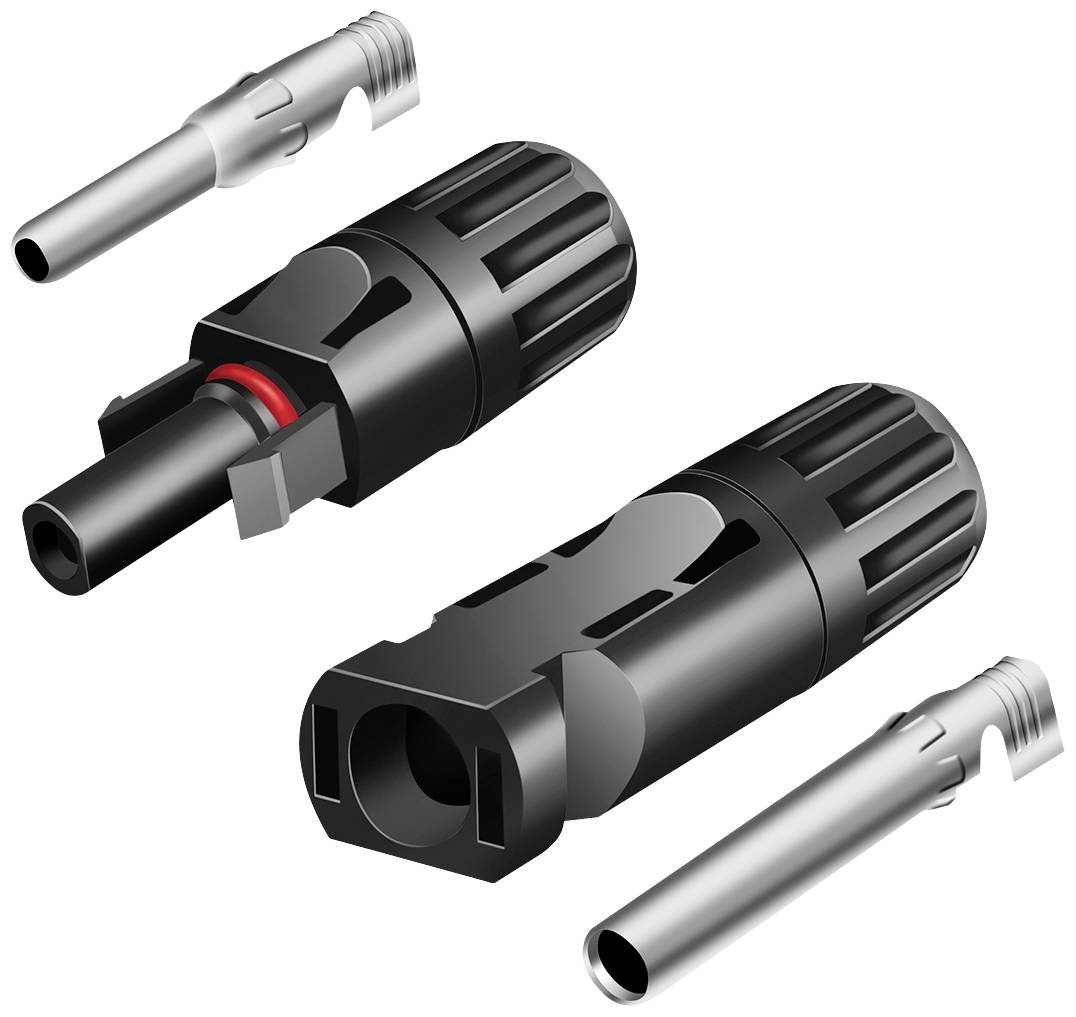

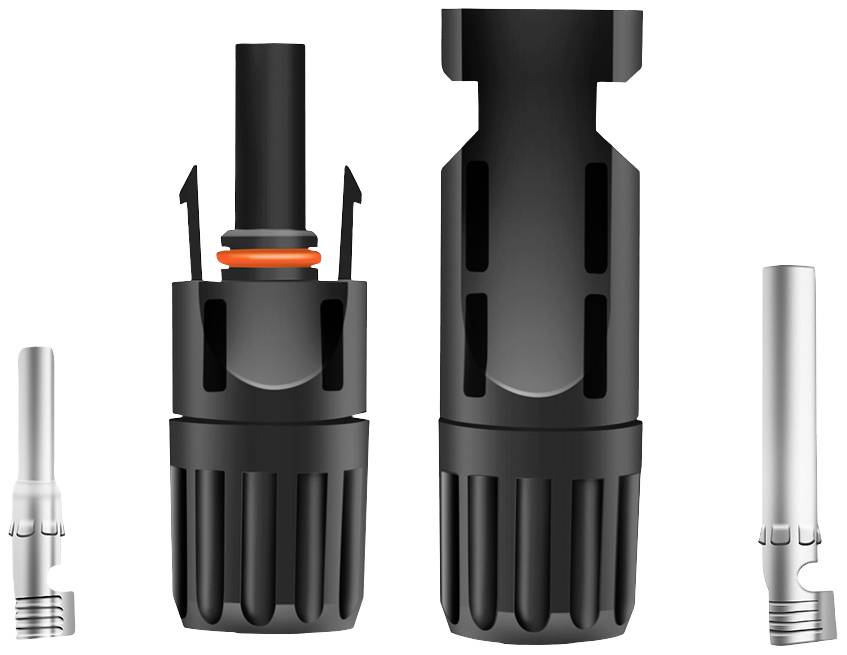

Solar Plug-Set, MC4 St/Bu, for 2.5, 4 & 6 mm2 Solar cable
- 2-pcs set
- Complies with IEC 62852:2015
- Operating temperature range: -40°C to 85°C.
- Suitable for cables with a wire cross-section from 2.5 to 6 mm²
Technical specifications
- Connector 1: MC4 (plug)
- Connector 2: MC4 (socket)
- Set of 2, TÜV certified
- Complies with IEC 62852:2015

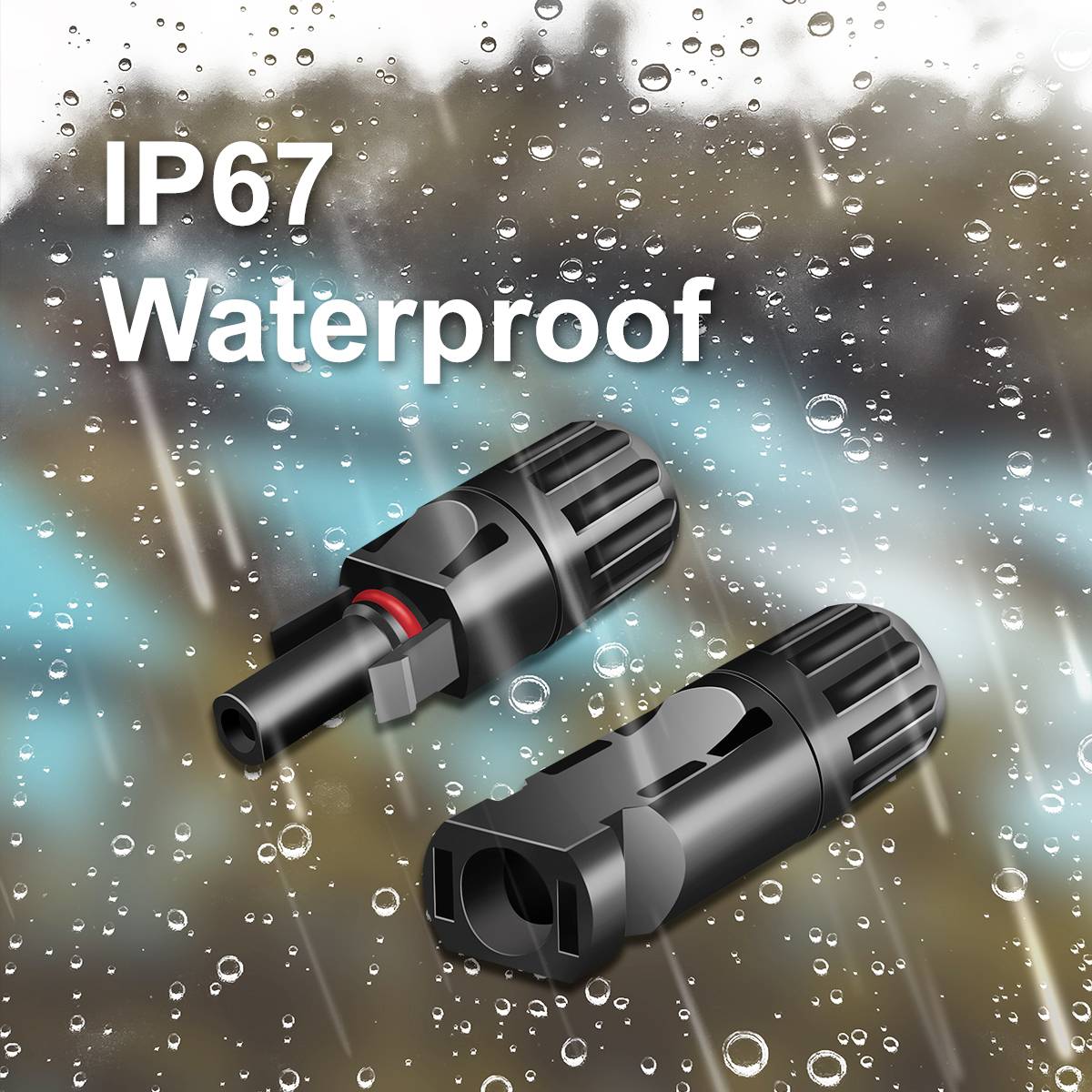

- Protection type IP67 ; Fire classification: UL94V-0
- Rated voltage: 1000 V ; Rated current: 30 A (DC)
- Operating temperature range: -40°C to 85°C.
- Suitable for cables with a wire cross-section from 2.5 to 6 mm²
- Complies with safety class II.
- Plastic housing
- Product type
PV plug
- Factory colour
Black
- Version
Adapter
- Connection type
Connector
Cable
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2992063 LogiLink PHC0300 MC4-Set PV plug
User & Safety Instructions
User & Safety Instructions 2992063 LogiLink PHC0300 MC4-Set PV plug
Description
Simple and proven connection of solar cables in photovoltaic systems (solar modules, solar cells to inverters). Whether at heat, cold, wet or dirt, the ideal plug connector. Sleek design, high current carrying capacity, low forward resistance, high mechanical strength, easy to install UV, ozone and weather-resistant. The solar plugs are designed for fixed installation.
