Lumitronix LED array Blue (L x W x H) 25 x 24.50 x 2.30 mm
EAN:
Part number:
Item no:
Product type
LED array
Factory colour
Blue
Dim
(L x W x H) 25 x 24.50 x 2.30 mm
Height
2.30 mm
Length
25 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.72
10
8% = € 0.06
€ 0.66
25
11% = € 0.08
€ 0.64
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.72 / piece)
€ 0.72
plus VAT.
14-day return policy included
Highlights & Details
ConextPlay, socket
- Dimmable
Technical specifications
- Life> 60000 h
- Factory colour
Blue
- Dim
(L x W x H) 25 x 24.50 x 2.30 mm
- Height
2.30 mm
- Length
25 mm
- Width
24.50 mm
- Forward current I(F)
20 mA
- Forward voltage U(F)
5 V
- Radiation angle
120°
- LEDs
1
- RoHS-compliant
Yes
- Product type
LED array
Documents & Downloads
Datasheet
Datasheet 1693073 Lumitronix LED array Blue (L x W x H) 25 x 24.50 x 2.30 mm
User & Safety Instructions
User & Safety Instructions 1693073 Lumitronix LED array Blue (L x W x H) 25 x 24.50 x 2.30 mm
Information
Information 1693073 Lumitronix LED array Blue (L x W x H) 25 x 24.50 x 2.30 mm
Description
LUMITRONIX ® with the new patented conext connection system a real innovation for the connection of LED modules. Thanks to the puzzle form the module can be easily without connector, disconnect and connect together again in a new form. The new conext-system takes place in three new LUMITRONIX® products application. The ConextMatrix LED modules are available in five different forms, which opens up many possibilities for free light fields and a wide range of applications. ConextPlay is for backlighting, model making, or just the playful learning and experimentation has been developed.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
ConextPlay:

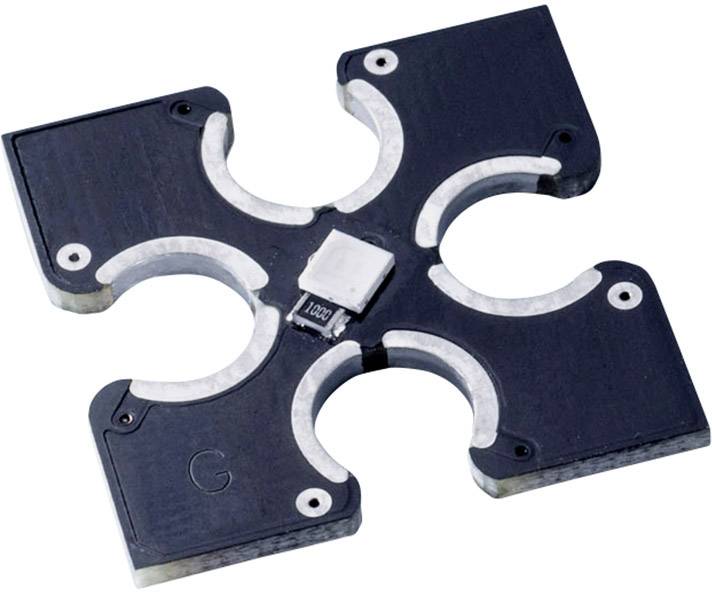

Even in ConextPlay LED modules, thanks to the new, patented system that connect - as the name says - a child's play. The ConextPlay LED modules are each equipped with an LED of nichia -757 series. The circuit board material is black and it is available in four different light colors: red, green, blue and warm white with a color temperature of 2700 Kelvin. There can be up to 150 modules per feed. The modules have a very low constant voltage of 5 volts. Possible applications are back lighting, modeling or just the playful learning and experimentation.
This text is machine translated.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
ConextPlay:
Even in ConextPlay LED modules, thanks to the new, patented system that connect - as the name says - a child's play. The ConextPlay LED modules are each equipped with an LED of nichia -757 series. The circuit board material is black and it is available in four different light colors: red, green, blue and warm white with a color temperature of 2700 Kelvin. There can be up to 150 modules per feed. The modules have a very low constant voltage of 5 volts. Possible applications are back lighting, modeling or just the playful learning and experimentation.
This text is machine translated.
