Name: Lumitronix LED array Warm white (L x W x H) 30.10 x 25 x 4.80 mm
Brand: Lumitronix
SKU: 1693069
Availability: InStock

A small, electronic module with a USB port and multiple components, used for electronic applications or prototyping.

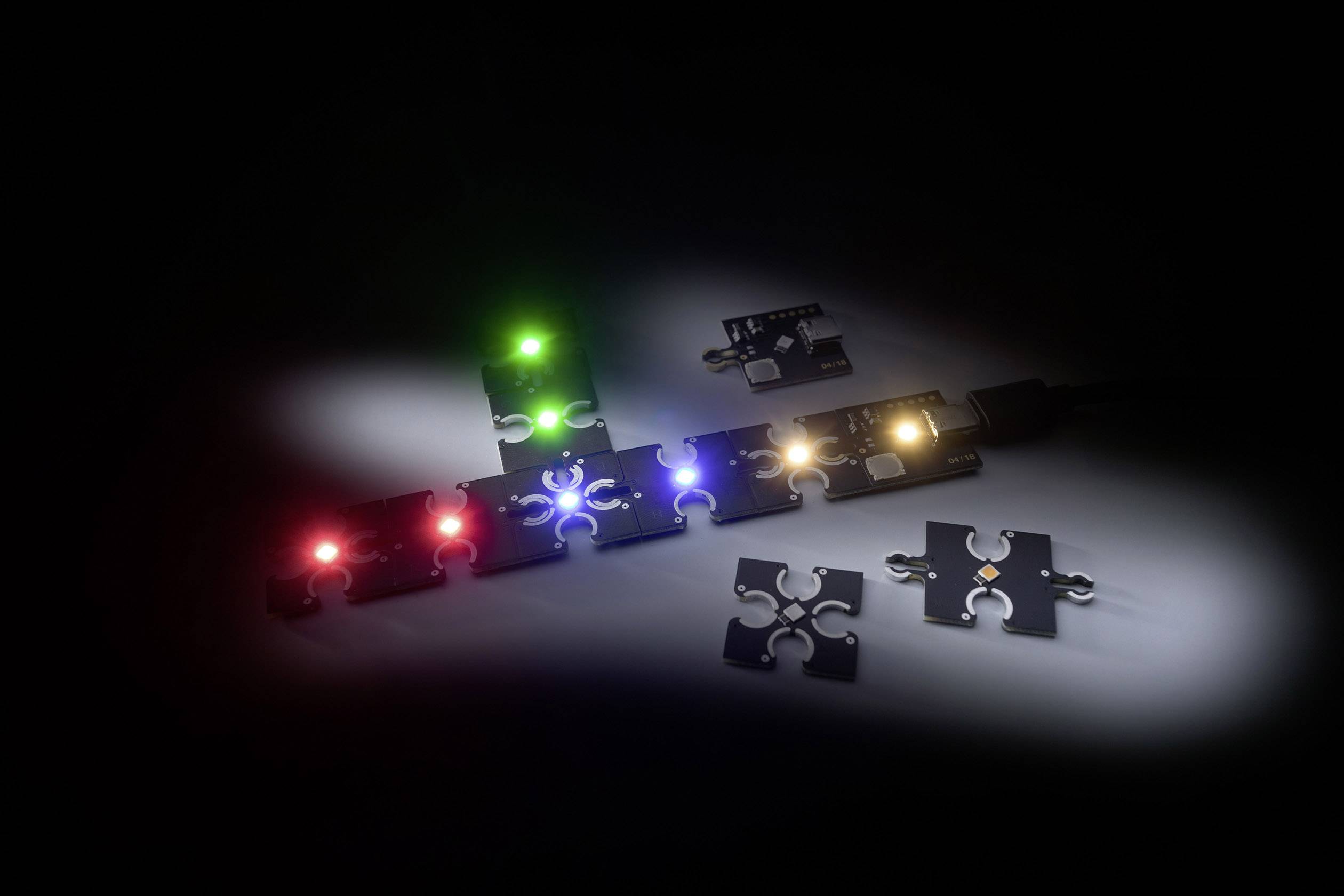

A puzzle of illuminated, electronic components on a dark background. Each part glows in a different colour: Red, Green, Blue, Yellow.

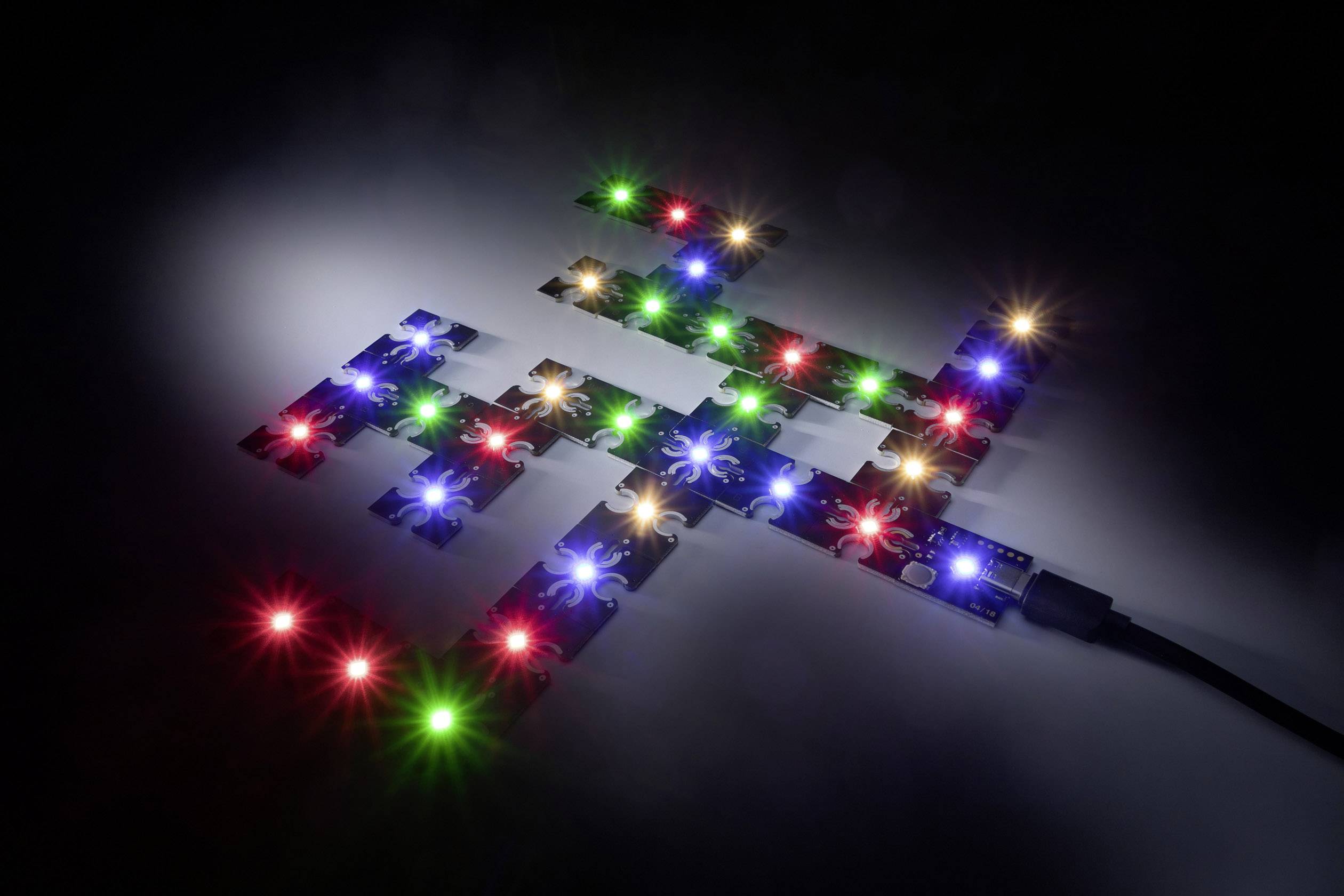

A dimly lit LED board displays a pattern of coloured lights in red, green, and blue, interconnected with each other.

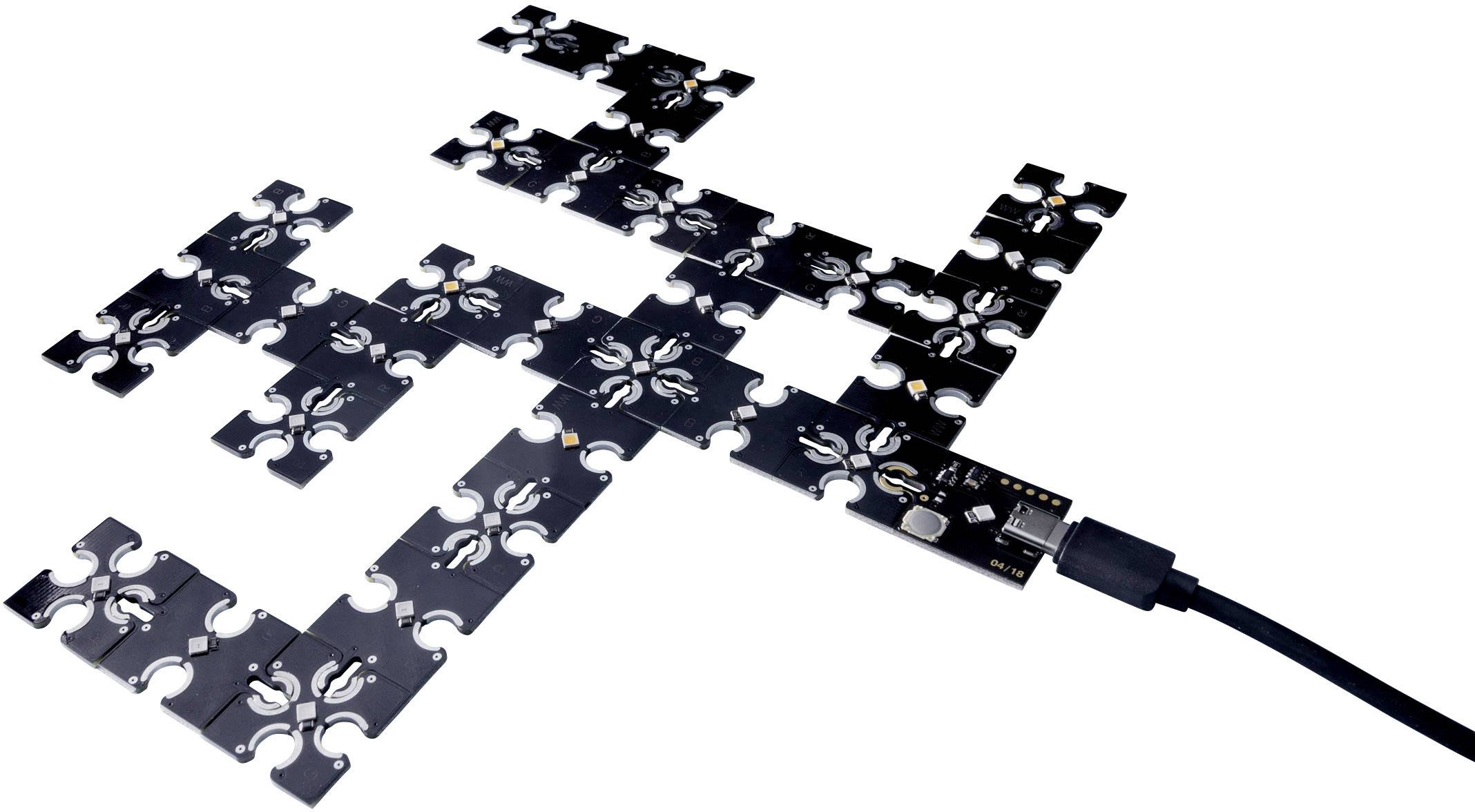

Modular electronic system comprising interconnected printed circuit board tiles with USB cable.

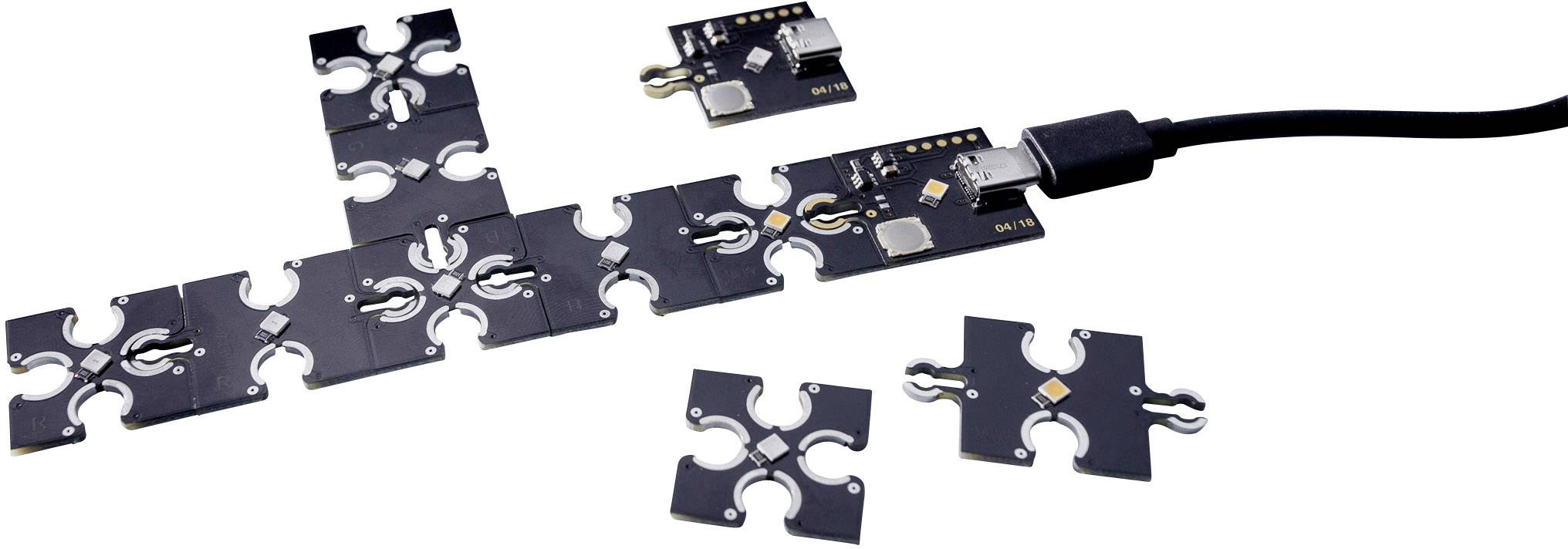

Several black circuit boards with USB ports are interconnected. Some are lying loose nearby to extend the connection.

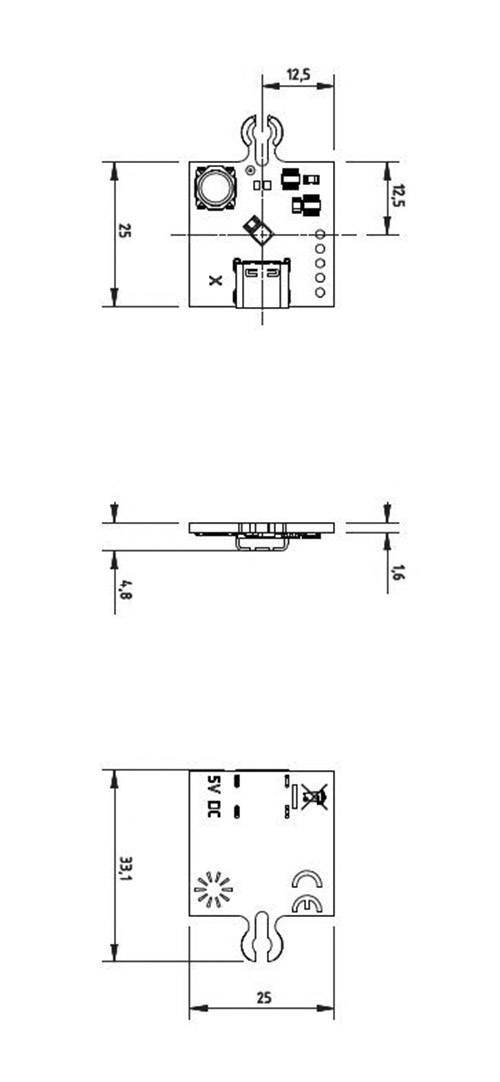

Technical drawing of an electronic component with dimensions. Top: 12.5 mm x 12.5 mm. Bottom: 25 mm width, 14.1 mm height.

1/6

Product type

LED array

Factory colour

Warm white

Dim

(L x W x H) 30.10 x 25 x 4.80 mm

Radiation angle

120 °

LEDs

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

45 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9.99 / piece)

€ 9.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

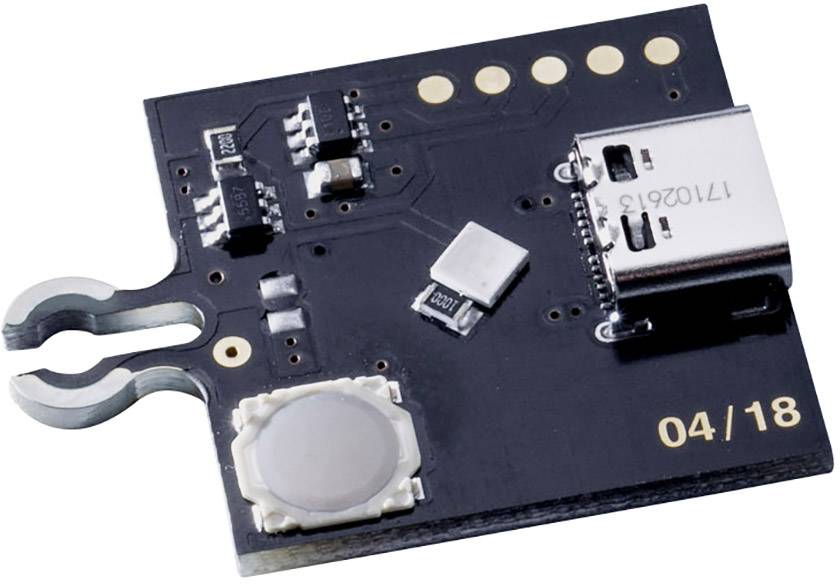

ConextPlay, feed module

Dimmable

Technical specifications

Life> 60000 h

Factory colour: Warm white

Product type: LED array

Dim: (L x W x H) 30.10 x 25 x 4.80 mm

Radiation angle: 120°

LEDs: 1

Forward voltage U(F): 5 V

Forward current I(F): 20 mA

Width: 25 mm

Height: 4.80 mm

Length: 30.10 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1693069 Lumitronix LED array Warm white (L x W x H) 30.10 x 25 x 4.80 mm

Information

Information 1693069 Lumitronix LED array Warm white (L x W x H) 30.10 x 25 x 4.80 mm

Description

LUMITRONIX ® with the new patented conext connection system a real innovation for the connection of LED modules. Thanks to the puzzle form the module can be easily without connector, disconnect and connect together again in a new form. The new conext-system takes place in three new LUMITRONIX® products application. The ConextMatrix LED modules are available in five different forms, which opens up many possibilities for free light fields and a wide range of applications. ConextPlay is for backlighting, model making, or just the playful learning and experimentation has been developed.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
ConextPlay:
Even in ConextPlay LED modules, thanks to the new, patented system that connect - as the name says - a child's play. The ConextPlay LED modules are each equipped with an LED of nichia -757 series. The circuit board material is black and it is available in four different light colors: red, green, blue and warm white with a color temperature of 2700 Kelvin. There can be up to 150 modules per feed. The modules have a very low constant voltage of 5 volts. Possible applications are back lighting, modeling or just the playful learning and experimentation.

This text is machine translated.
