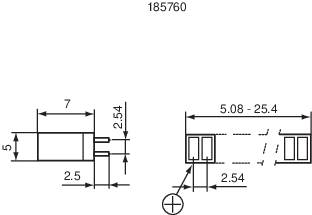

Technical drawing of a plug with dimensions: 7 mm length, 5 mm height, 2.5 mm width. Pin spacing 2.54 mm.

1/2

Collection

Signal Construct

Our service for you

Datasheet (PDF)

European union

Fast track dispatch on Mon, 14 Sep

214 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€ 4.61

plus VAT.

Report legal concerns

Technical specifications

Factory colour: Red

Type: ZAQS0807

Dim: (L x W x H) 20 x 7 x 4 mm

Height: 4 mm

Length: 20 mm

Width: 7 mm

CS: 2.54 mm

Forward current I(F): 20 mA

Forward voltage U(F): 2 V

Light intensity I(V): 3.7 mcd

Radiation angle: 104°

LEDs: 8

RoHS-compliant: Yes

Product type: LED linear array

Documents & Downloads

Datasheet

European union

Datasheet 185760 Signal Construct ZAQS0807 LED linear array 8x Red (L x W x H) 20 x 7 x 4 mm

Description

This LED row module which can be stacked on end-to-end on all sides has been optimised in terms of spache requirements and height.
