A black, rectangular infrared sensor with a red dome on one side, standing vertically, with two connection pins at the bottom.

Image similar

A black, rectangular infrared sensor with a red dome on one side, standing vertically, with two connection pins at the bottom.

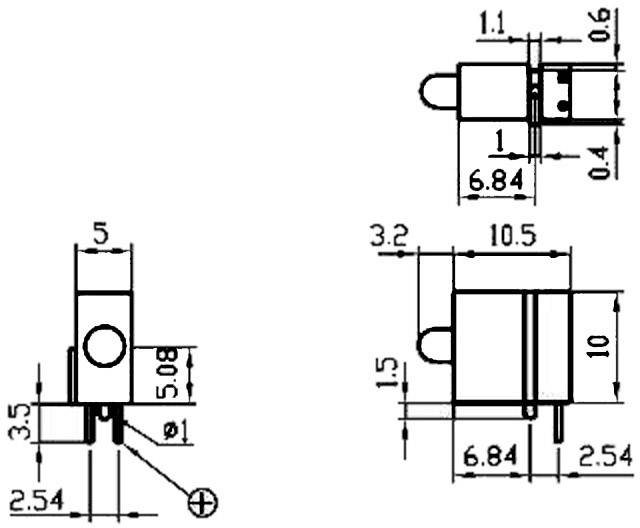

Technical drawing of an electrical component with precise measurements in millimetres, showing side and front elevations.

1/2

Image similar

Signal Construct

Our service for you

Datasheet (PDF)

English

229 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.72 / piece)

€

Report legal concerns

Highlights & Details

LED module

Technical specifications

Factory colour: Green

Type: DVCD12

Case colour: Black

Dim: (W x H x D) 6 x 10 x 10 mm

Depth: 10 mm

Height: 10 mm

Width: 6 mm

Wavelength: 570 nm

Casing: 3 mm

Type (LEDs): Diffused
Tinted

CS: 5.08 mm

LEDs: 1

RoHS-compliant: Yes

Product type: LED component

Documents & Downloads

Datasheet

English

Datasheet 150747 Signal Construct DVCD12 LED component 1x Green (W x H x D) 6 x 10 x 10 mm

Description

For soldering into PCBs, with additional fixing pin for mechanical stability. Can be connected in series.
