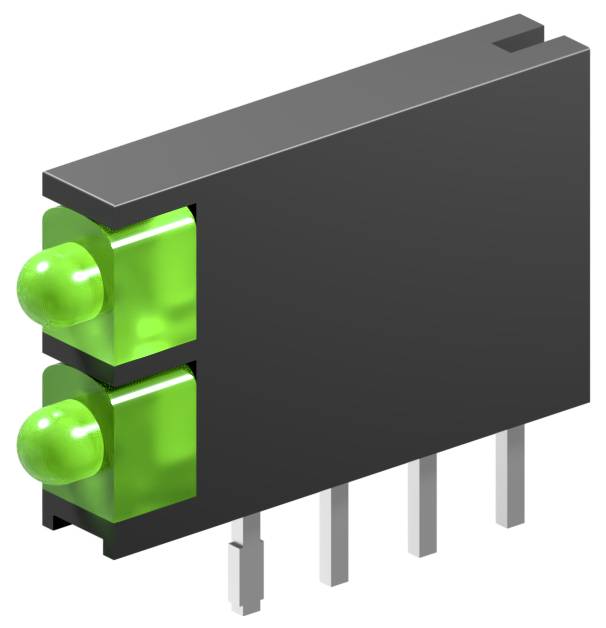

Kingbright LED casing (CBI - Circuit Board Indicator) LED component Green (Ø x H) 1.8 mm x 4.7 mm Bulk
Part number:
Item no:
Packaging type
Bulk
CS
2.54 mm
Product type
LED component
Factory colour
Green
Type
LED casing (CBI - Circuit Board Indicator)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€ 1.08
plus VAT.
14 days return policy included
Highlights & Details
CBI (Circuit Board Indicator) with 2x 1.8mm LED green
- Double LED holder: Integrates two 3 mm (T-1) LEDs in a compact, black plastic case for easy PCB mounting.
- High efficiency: Green LEDs based on gallium phosphate (GAP) provide a bright, reliable signal with low power consumption.
- Through-hole mounting (THT): Standardized grid dimensions for the stable mounting directly on the board.
- Rugged design: Black nylon (UL 94V-0) housing provides high contrast and protects LED legs from short-circuits.
Our service for you
Technical specifications
- Gallium phosphate (GAP)
- Housing material: Nylon 66 (UL 94V-0)
- Operating temperature: -40 °C to +85 °C
- Mounting type: Through-hole mounting (THT)
- Factory colour
Green
- Packaging type
Bulk
- Type
LED casing (CBI - Circuit Board Indicator)
- Case colour
Black
- Dim
(Ø x H) 1.8 mm x 4.7 mm
- (Ø)
1.8 mm
- Height
4.7 mm
- Length
11.6 mm
- Width
5.08 mm
- Wavelength
568 nm
- Casing
1.8 mm
- CS
2.54 mm
- Forward current I(F)
25 mA
- Forward voltage U(F)
2.2 V
- Light intensity I(V)
10 mcd
- Radiation angle
70°
- LEDs
2 x
- RoHS-compliant
Yes
- Product type
LED component
Documents & Downloads
Datasheet
Datasheet 3825271 Kingbright LED casing (CBI - Circuit Board Indicator) LED component Green (Ø x H) 1.8 mm x 4.7 mm Bulk
User & Safety Instructions
User & Safety Instructions 3825271 Kingbright LED casing (CBI - Circuit Board Indicator) LED component Green (Ø x H) 1.8 mm x 4.7 mm Bulk
Description
CBI (Circuit Board Indicator) with 2x 1.8mm LED green with green diffuse lenses for PCB mounting for signaling
This text is machine translated.
This text is machine translated.
Scope of delivery
- Kingbright L-4060VH/2GD LED-element (with 2× 3 mm LEDs green in the holder)
