Name: Lumitronix LED array Warm white (L x W x H) 25 x 24.50 x 2.30 mm
Brand: Lumitronix
SKU: 1693076
Availability: InStock

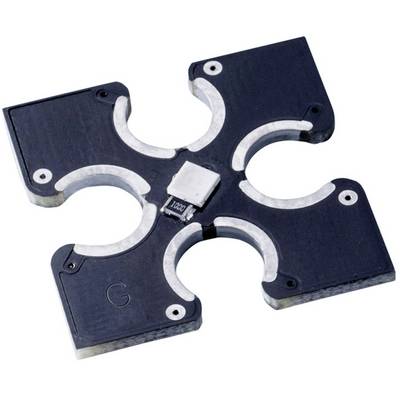

A black square metal plate with rounded corners and a central white chip, surrounded by four curved metal strips.

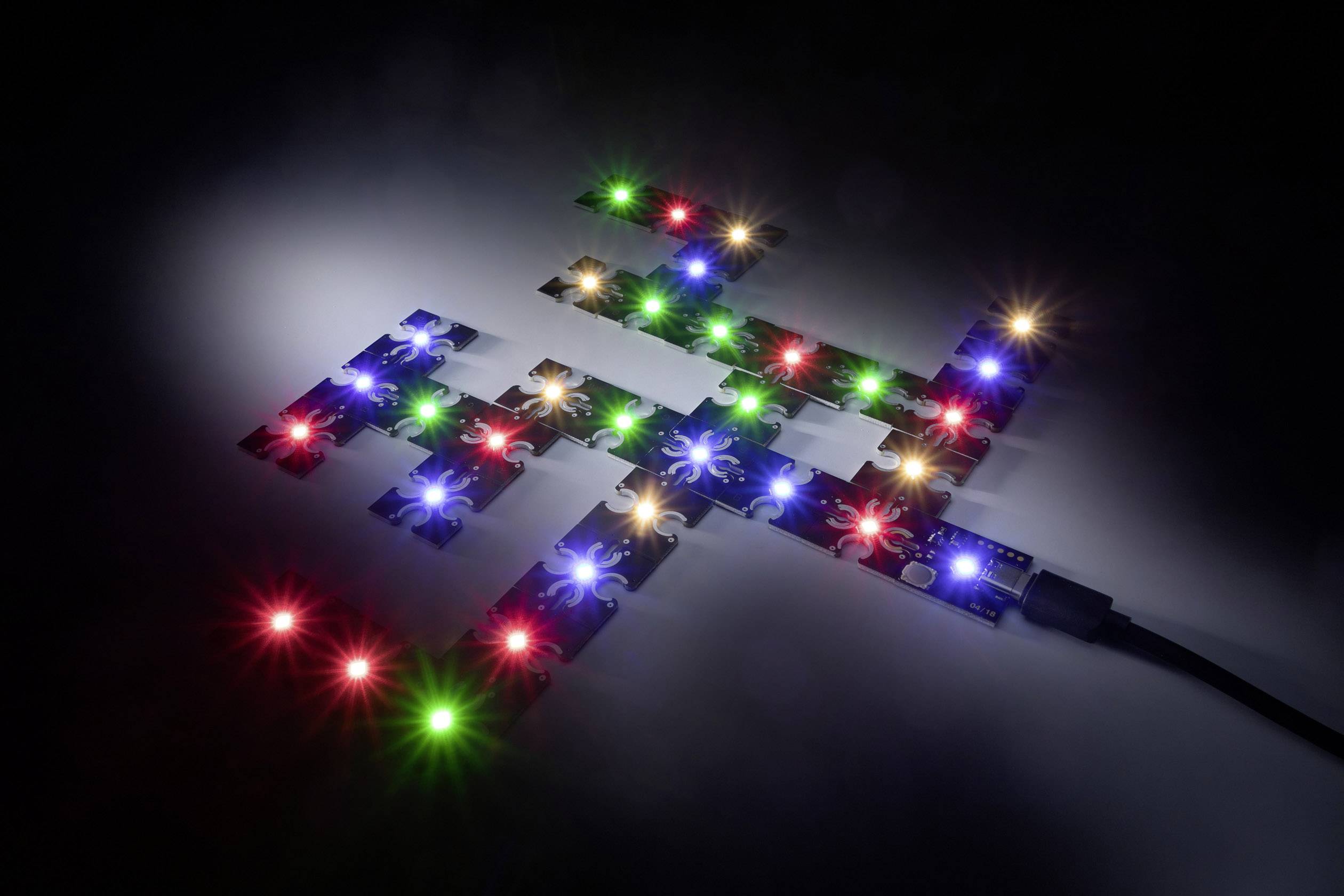

A luminous LED installation in the shape of a hashtag (#) with various colours (red, green, blue, white) against a dark background.

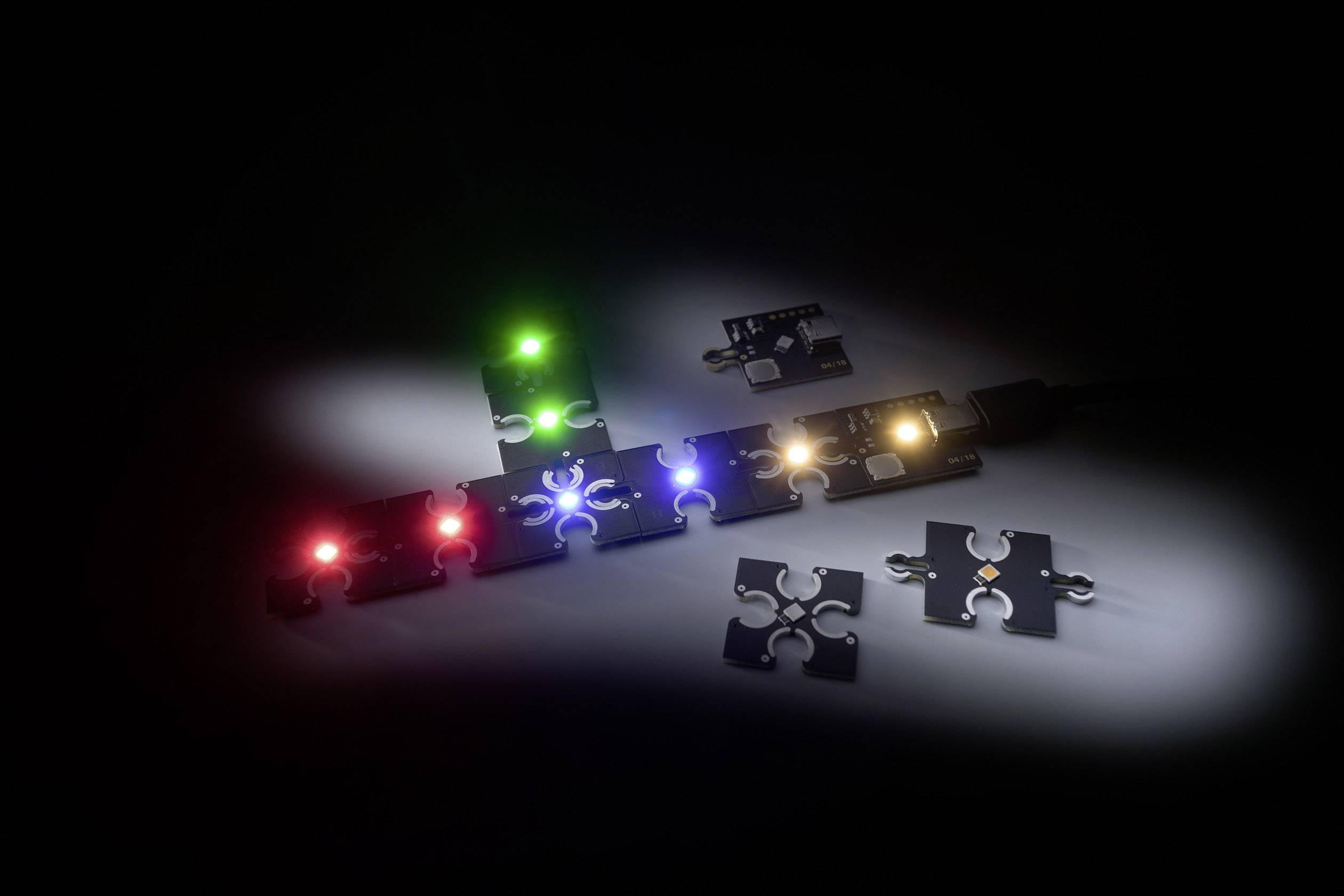

Various illuminated LED puzzle pieces arranged in darkness, with red, green, blue, and yellow lights, against a black background.

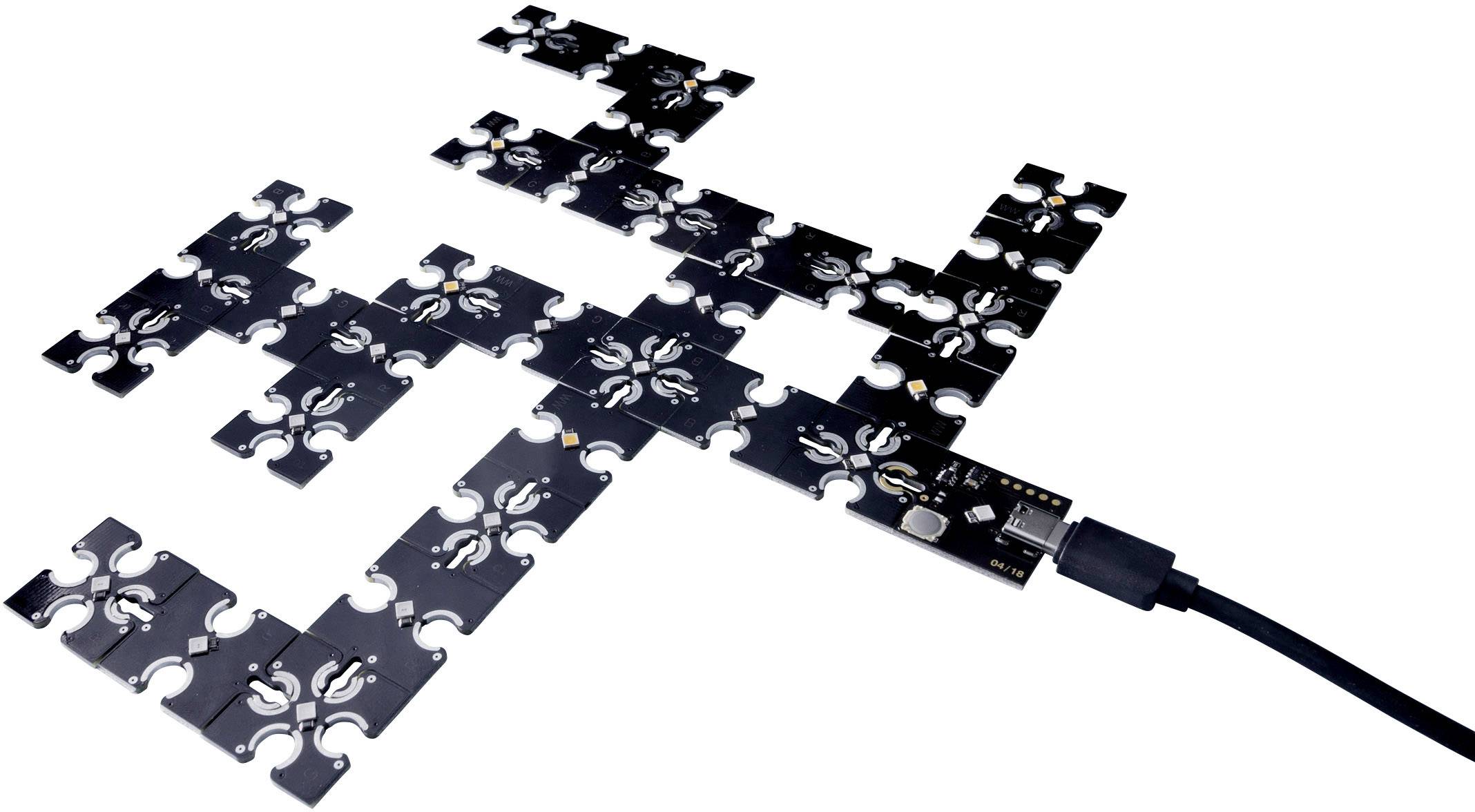

A configuration of electronic circuit boards in a puzzle-like form with USB connectivity, representing a modular electronic system.

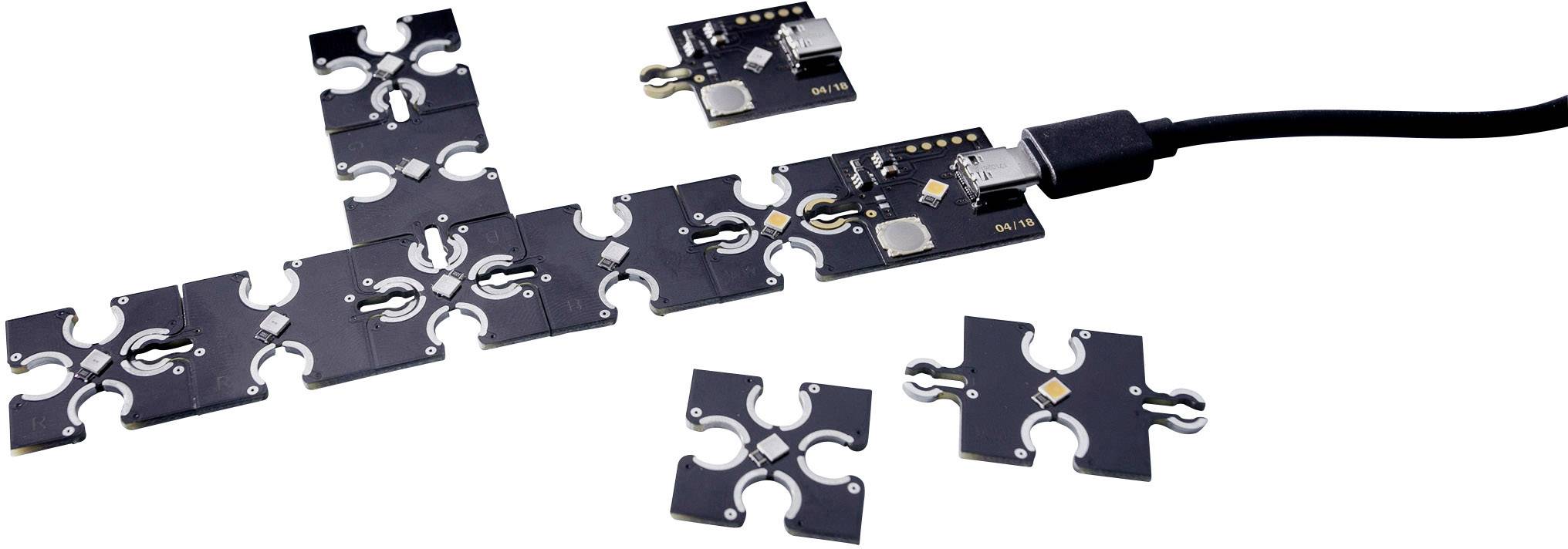

Several black electronic boards connected like puzzle pieces, one connected with a USB cable. It demonstrates the modular construction of circuits.

1/6

Product type

LED array

Factory colour

Warm white

Dim

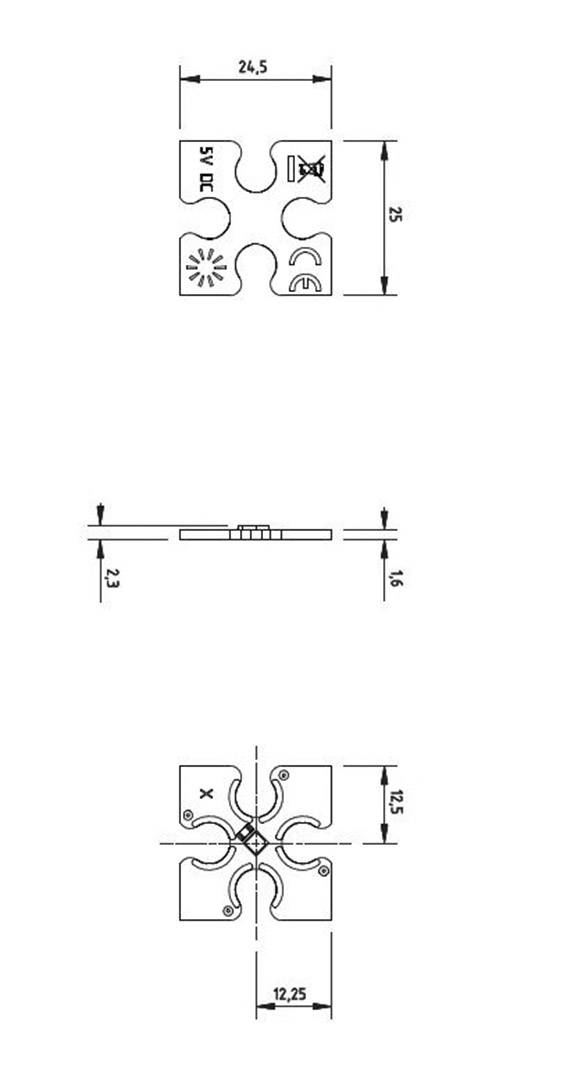

(L x W x H) 25 x 24.50 x 2.30 mm

Radiation angle

120 °

LEDs

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

40 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.79 / piece)

€ 1.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ConextPlay, socket

Dimmable

Technical specifications

Life> 60000 h

Factory colour: Warm white

Product type: LED array

Dim: (L x W x H) 25 x 24.50 x 2.30 mm

Radiation angle: 120°

LEDs: 1

Forward voltage U(F): 5 V

Forward current I(F): 20 mA

Width: 24.50 mm

Height: 2.30 mm

Length: 25 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1693076 Lumitronix LED array Warm white (L x W x H) 25 x 24.50 x 2.30 mm

User & Safety Instructions

User & Safety Instructions 1693076 Lumitronix LED array Warm white (L x W x H) 25 x 24.50 x 2.30 mm

Information

Information 1693076 Lumitronix LED array Warm white (L x W x H) 25 x 24.50 x 2.30 mm

Description

LUMITRONIX ® with the new patented conext connection system a real innovation for the connection of LED modules. Thanks to the puzzle form the module can be easily without connector, disconnect and connect together again in a new form. The new conext-system takes place in three new LUMITRONIX® products application. The ConextMatrix LED modules are available in five different forms, which opens up many possibilities for free light fields and a wide range of applications. ConextPlay is for backlighting, model making, or just the playful learning and experimentation has been developed.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
ConextPlay:
Even in ConextPlay LED modules, thanks to the new, patented system that connect - as the name says - a child's play. The ConextPlay LED modules are each equipped with an LED of nichia -757 series. The circuit board material is black and it is available in four different light colors: red, green, blue and warm white with a color temperature of 2700 Kelvin. There can be up to 150 modules per feed. The modules have a very low constant voltage of 5 volts. Possible applications are back lighting, modeling or just the playful learning and experimentation.
