Black, round mounting adapter with an open lid, suitable for accommodating a cable or connector.

Black, round mounting adapter with an open lid, suitable for accommodating a cable or connector.

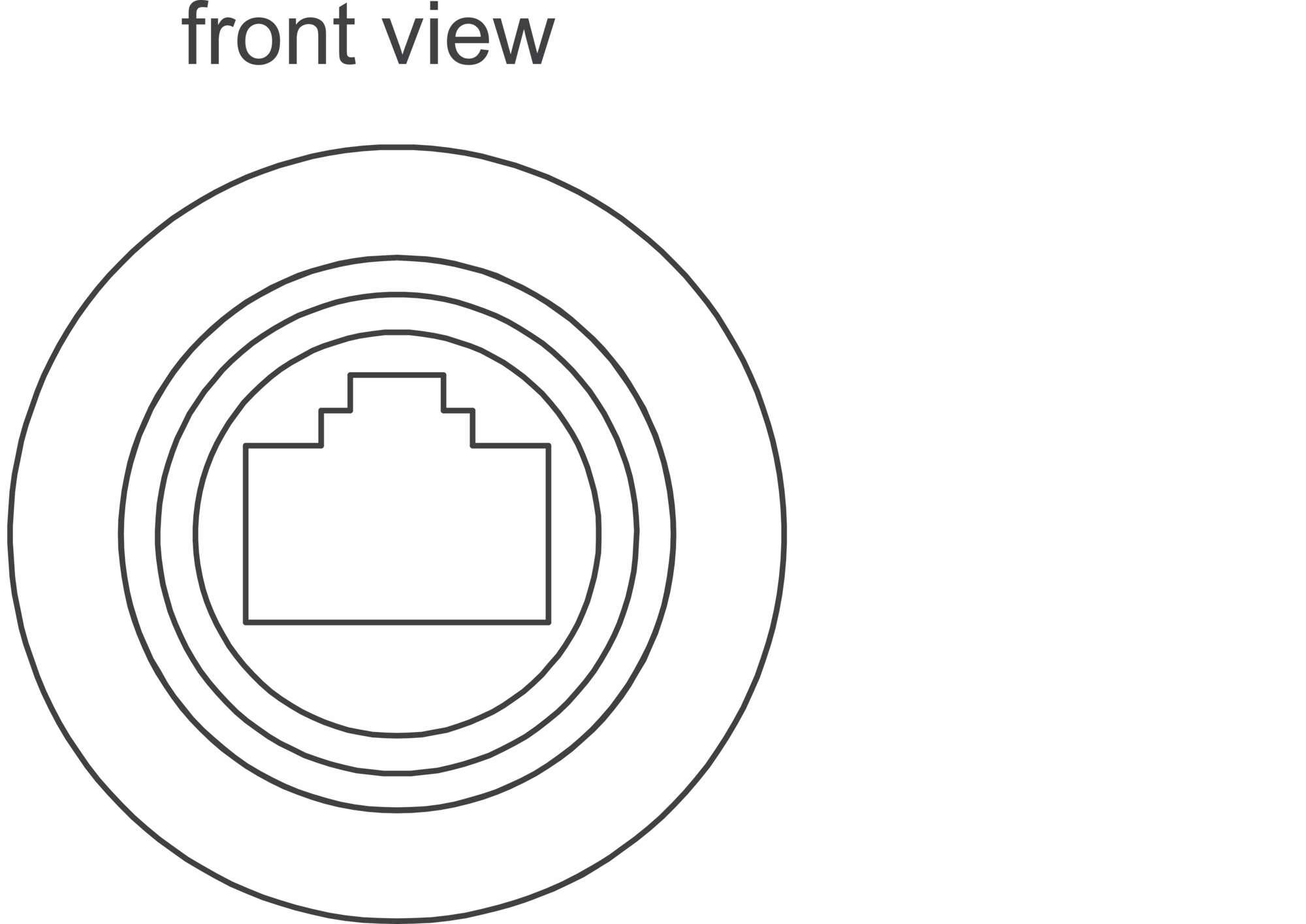

Drawing of an RJ-45 socket in top view with three concentric circles around it.

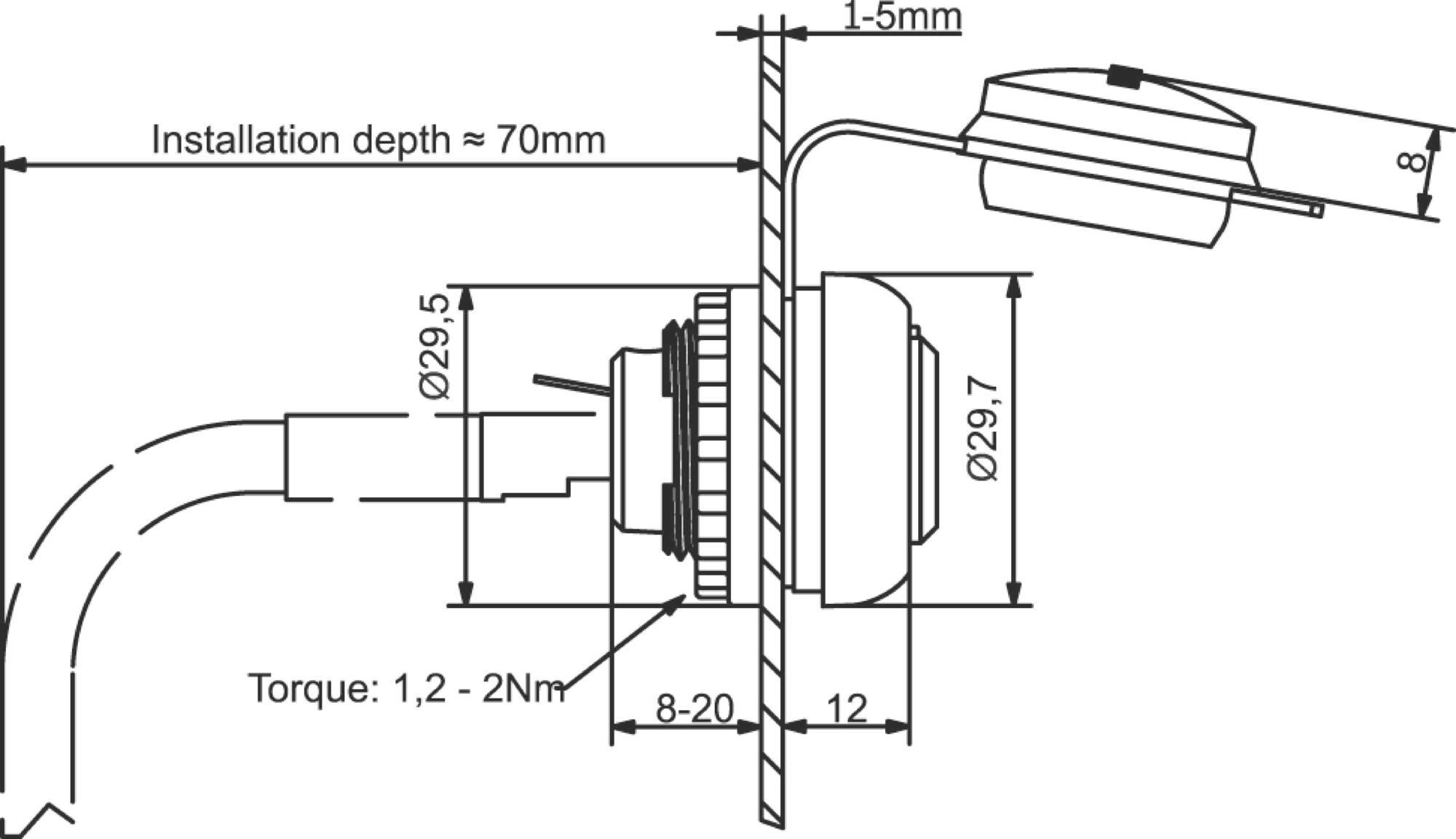

Technical drawing of an electronic component. Shows dimensions such as 'Installation depth ≈ 70 mm' and 'Torque: 1.2–2 Nm'.

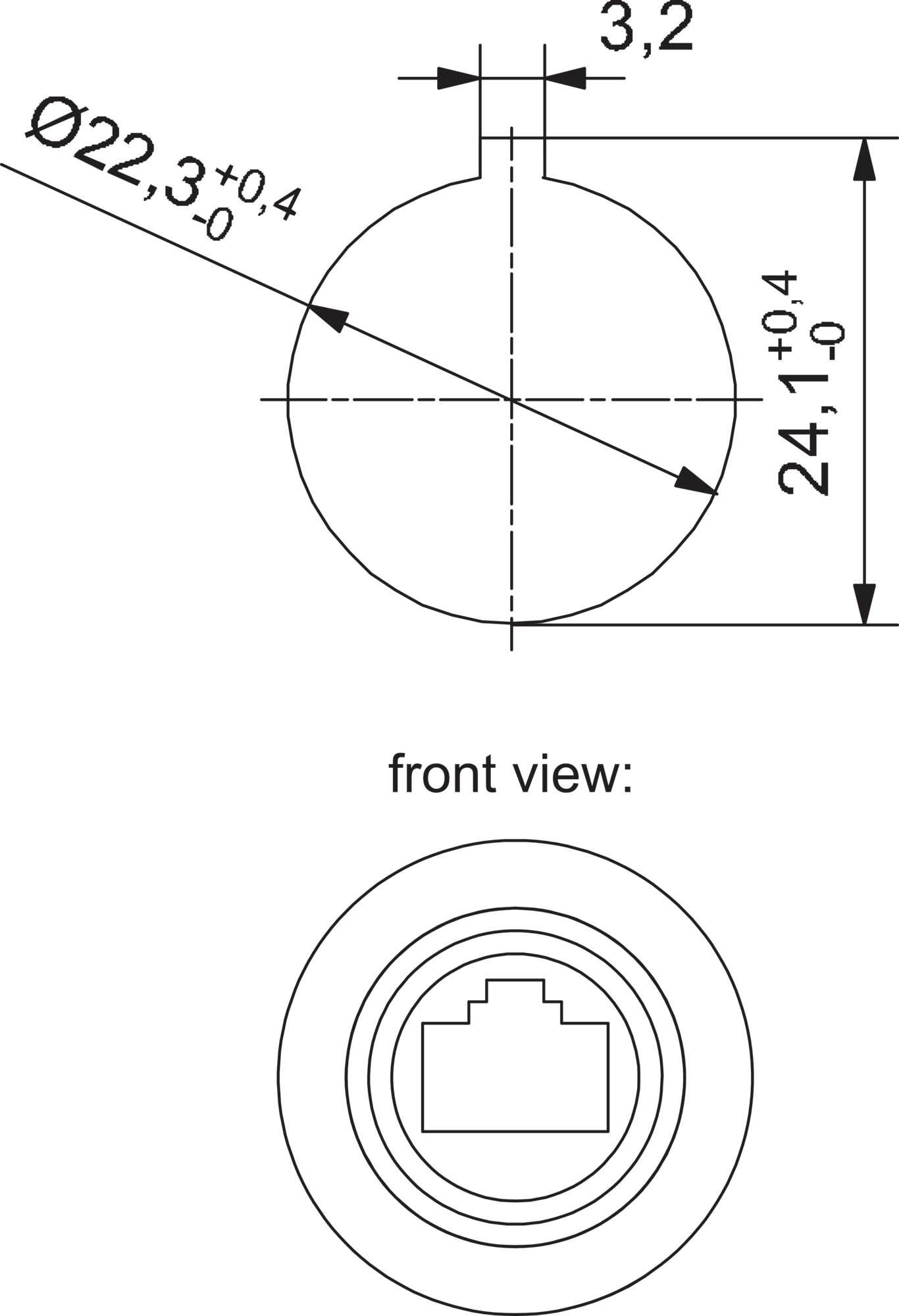

Technical drawing of a round plug with front view and dimensions: diameter 22.3 mm, height 24 mm. Top view shows connection.

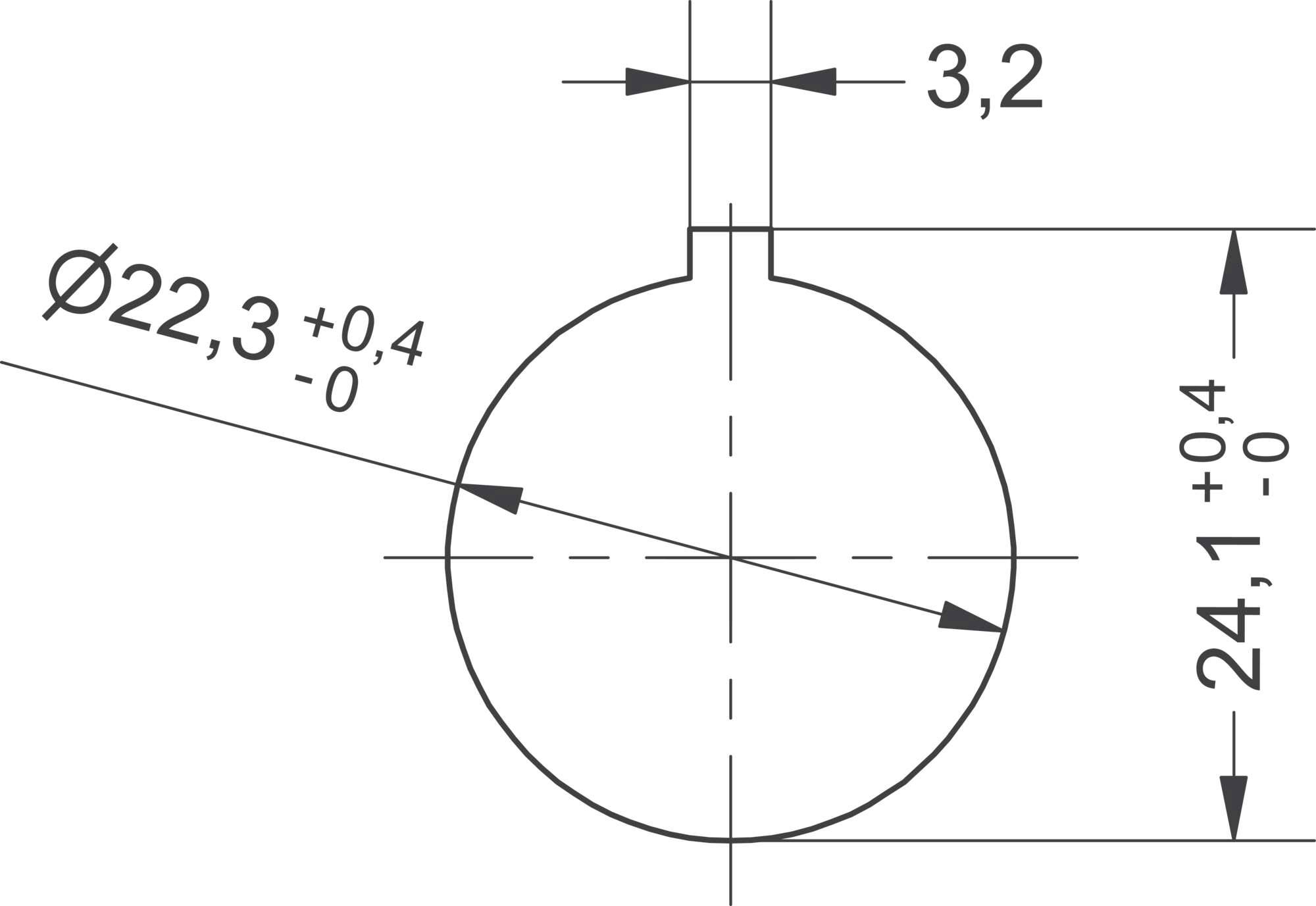

Lütze 492075 Sensor/actuator data cable RJ45 flange No. of pins (RJ): 8P8C 1 pc(s)-4

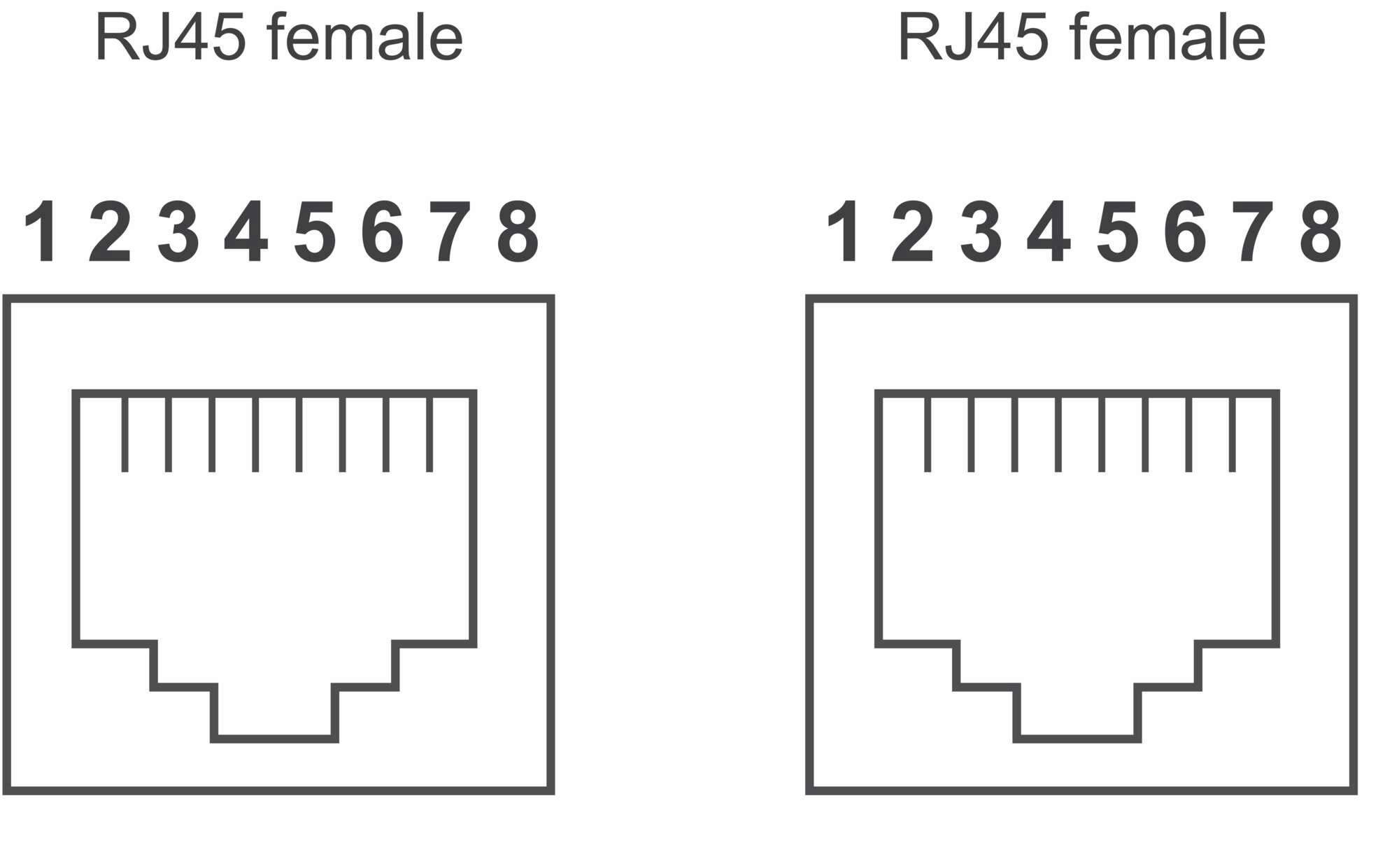

RJ45 female sockets with numbered pins 1 to 8, representing cable connections.

Diagram of a knitting pattern with eight stitches per row. Rows are labelled 'RS 1 2 3 4 5 6 7 8 RS'. Symbols show stitch bindings.

1/7

Product type

Sensor/actuator data cable

Connector type

RJ45 flange

Connector standard

RJ45

Connection side A

RJ45

Connection side B

RJ45

Datasheet (PDF)

Lütze

Fast track dispatch on Wed, 5 Aug

291 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

Report legal concerns

Technical specifications

Type: 492075

Product type: Sensor/actuator data cable

Connector type: RJ45 flange

Connector standard: RJ45

Connection side A: RJ45

Connection side B: RJ45

No. of pins: 8P8C

Nominal voltage: 24 V AC

Nominal current: 1.50 A

Nominal current - rounded value: 1.5 A

Bore Ø: 22.5 mm

Contact material: CuSn, gold plated

: IP65

Min. temperature: -25 °C

Max. temperature: +70 °C

Seal type: Bayonet

Manufacturer part #: 492075

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 409424 Lütze 492075 Sensor/actuator data cable RJ45 flange No. of pins (RJ): 8P8C 1 pc(s)
