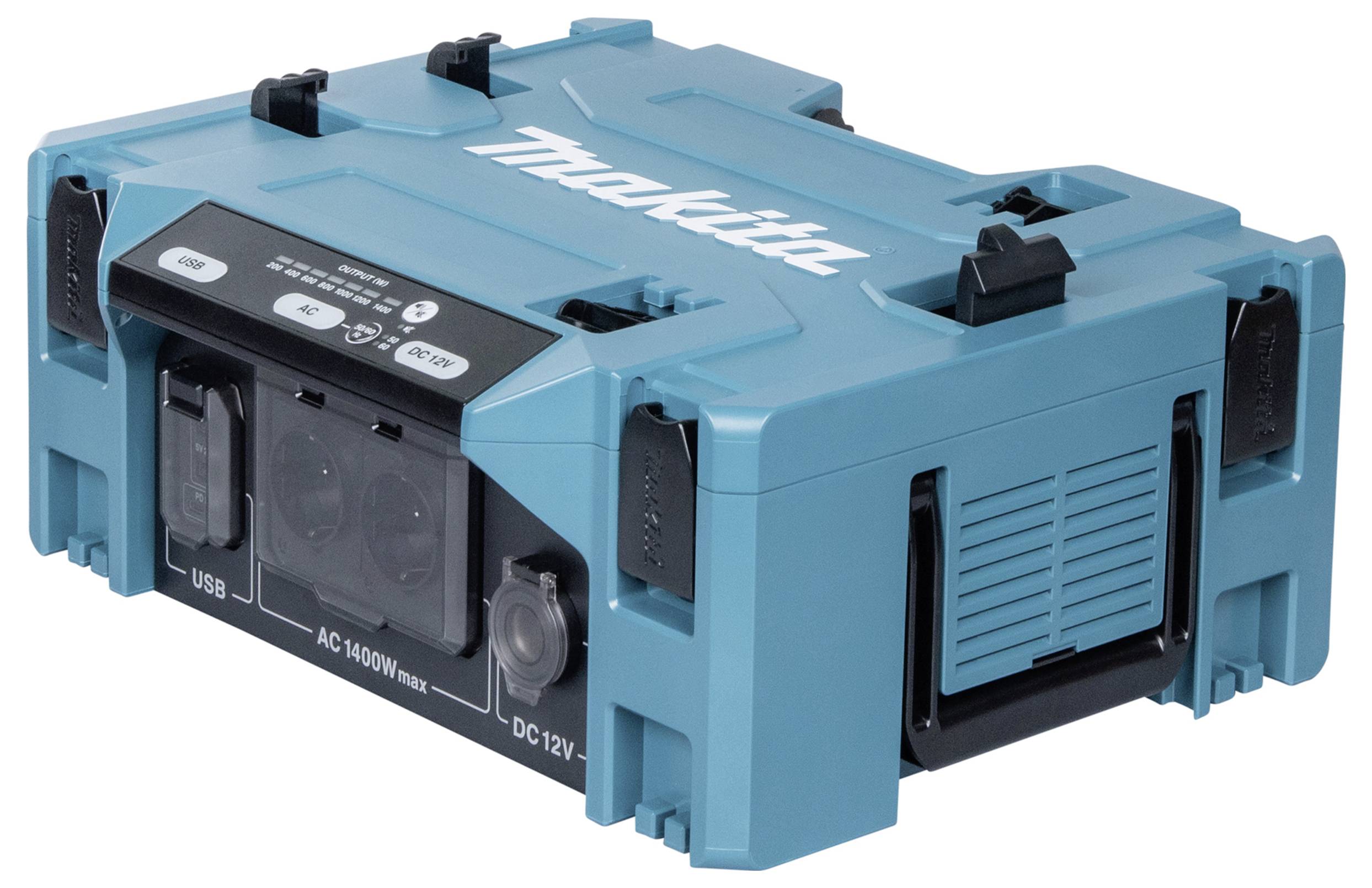

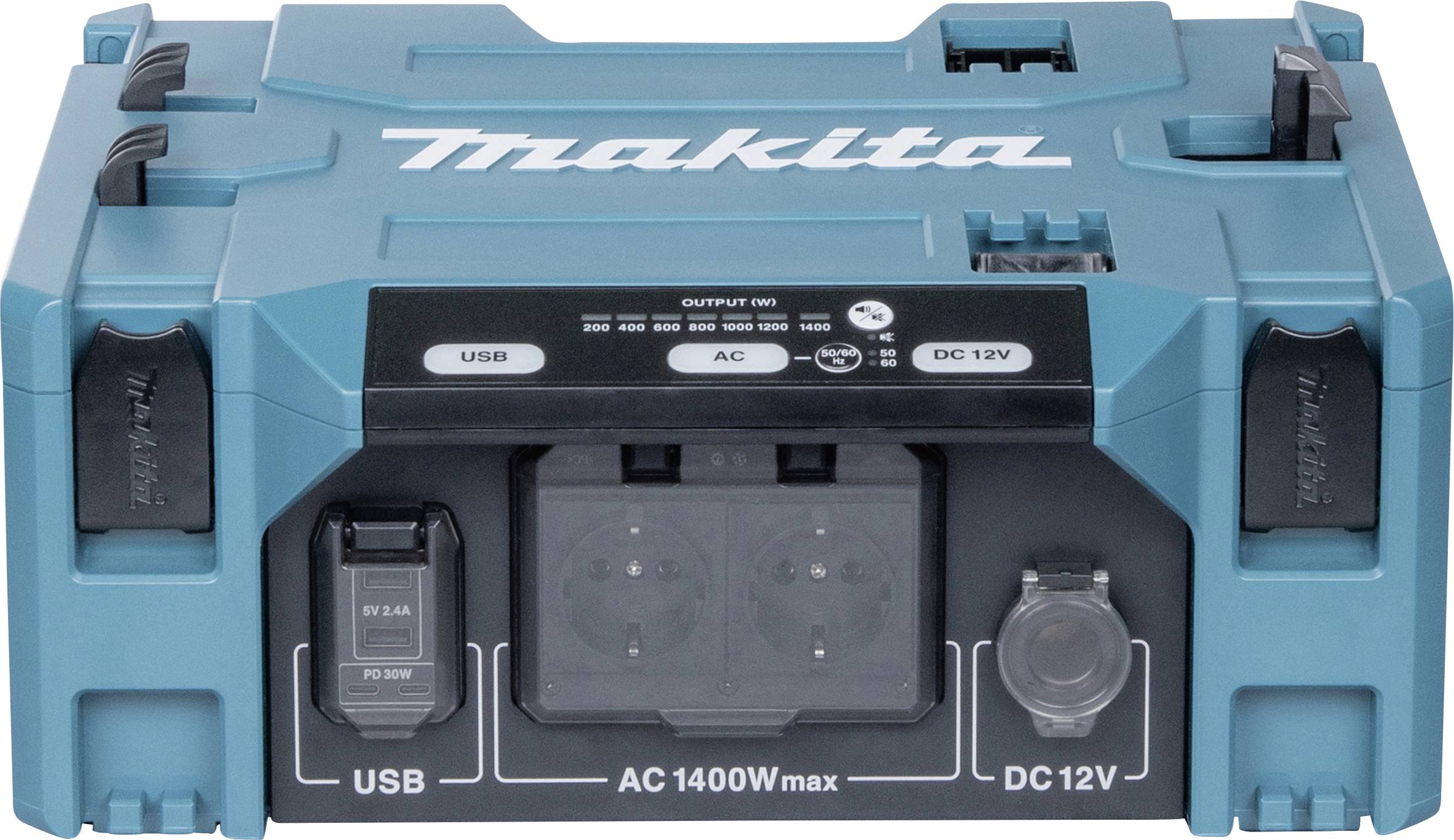

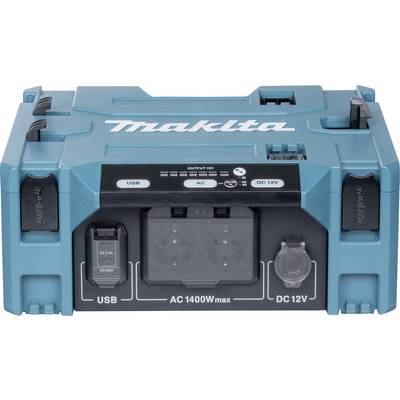

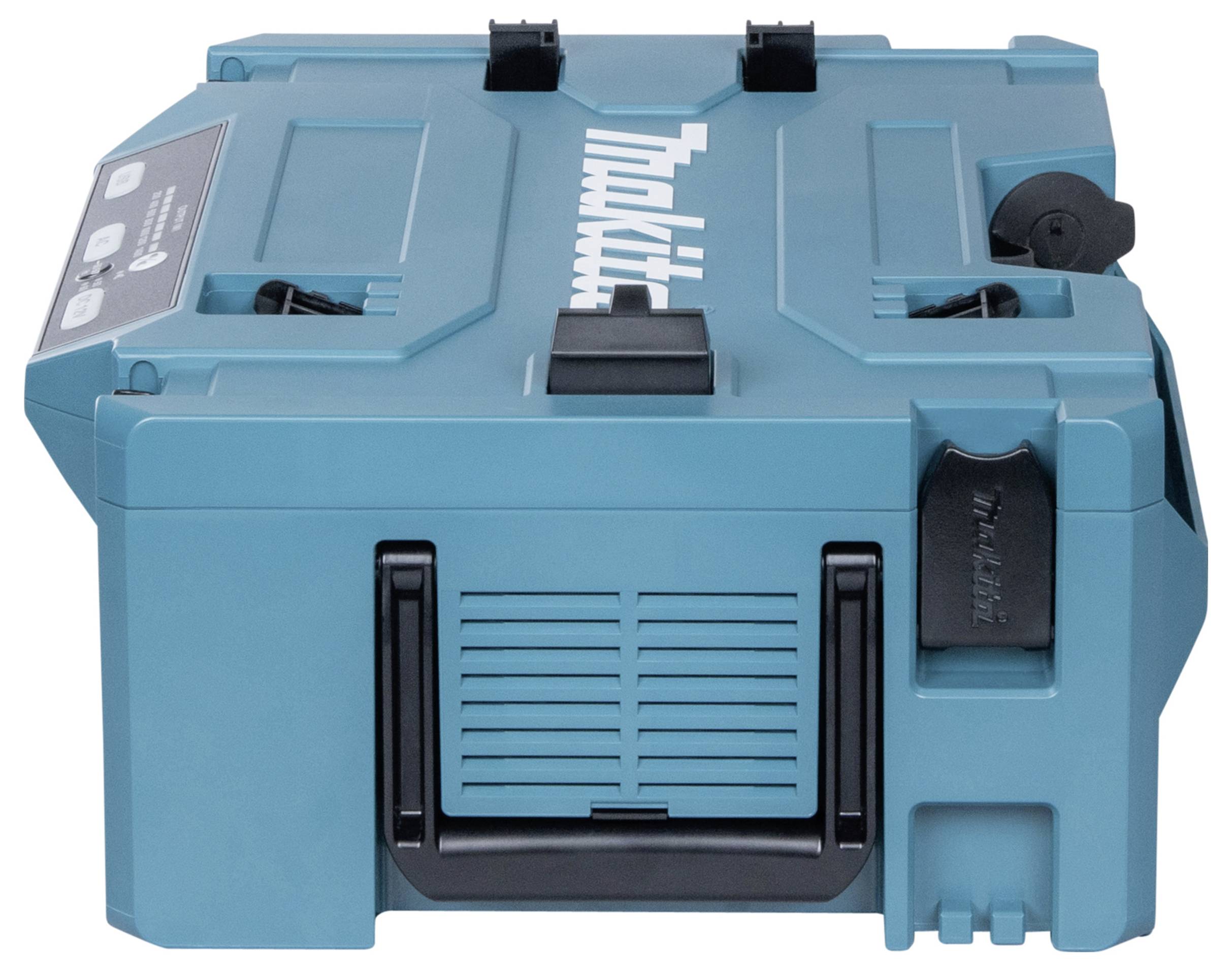

Name: Makita BAC01 Current converter BAC01 w/o battery
Brand: Makita
SKU: 3435213
Availability: BackOrder

Makita BAC01 Current converter BAC01 w/o battery-0

Makita BAC01 Current converter BAC01 w/o battery-1

Makita BAC01 Current converter BAC01 w/o battery-2

1/3

EAN:

Part number:

Item no:

Dispatches on Wed 28 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 615.00 / piece)

€ 615.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Makita current transformer MAKPAC BAC01

Max. peak power 2,800 W
Max. Continuous output 1,400 W
Two 230 V AC outputs (50 / 60 Hz switchable) with pure sine wave
Specially designed for AC motors and sensitive devices
Four USB outputs (2x Type A 2.4 A, 2x Type C USB-PD 30 W)
12 V output (corresponds to vehicle's on-board socket, 10 A)
Can be connected to MAKPAC cases
Battery backpack is fixed at the top

Technical specifications

Product type: Current converter

Operating voltage: 36 V

Dim: (L x W x H) 395 x 345 x 163 mm

Features: w/o battery

Weight: 7.3 kg

Width: 345 mm

Height: 163 mm

Length: 395 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3435213 Makita BAC01 Current converter BAC01 w/o battery

Description

Mobile current transformer converts the energy (from PDC01, PDC1200A01 or PDC1500) into 230 VAC.
Ideal for operating mains-operated tools and chargers as well as all other devices with power cables in areas where there is no 230V power supply. PDC1200A01 or PDC01 are used as direct current sources. These can be fixed to the current transformer.
Double insulation provides greater safety.
1,400 W • 230 V • 12 V
