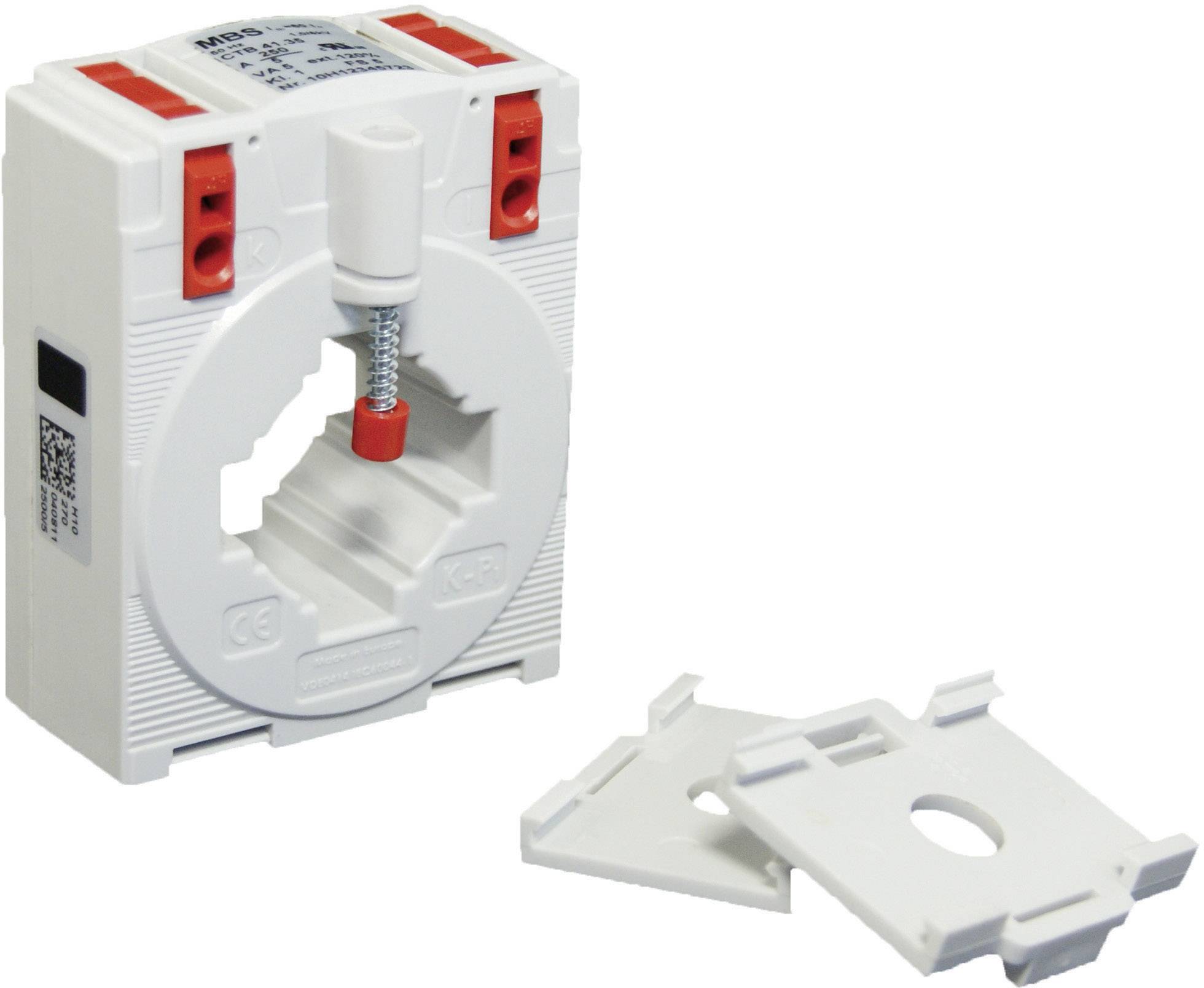

MBS CTB 41.35 125/5A 2,5VA Kl.1 50-0053 Current transformer Primary current 125 A Secondary current 5 A Line feed-throug
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 45.99 / piece)
€ 45.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Current transformers CTB 41.35
- Line feed-through diameter 32 mm
Technical specifications
- Product type
Current transformer
- Fitting type
Flip mount
- Primary current
125 A
- Secondary current
5 A
2.5 VA
- Line feed-through diameter
32 mm
- Accuracy class
1
- Type
CTB 41.35 125/5A 2,5VA Kl.1
- Dim
(W x H x D) 70 x 91 x 52 mm
- Line feed-through (W)
10 mm
- Line feed-through (H x W)
40 x 10 mm
- Line feed-through (H)
40 mm
- Width
70 mm
- Height
91 mm
- Depth
52 mm
- Mounting type
Snap-on mounting
- Connection
Cage-clamps
Documents & Downloads
Datasheet
Datasheet 127076 MBS CTB 41.35 125/5A 2,5VA Kl.1 50-0053 Current transformer Primary current 125 A Secondary current 5 A Line feed-throug
User & Safety Instructions
User & Safety Instructions 127076 MBS CTB 41.35 125/5A 2,5VA Kl.1 50-0053 Current transformer Primary current 125 A Secondary current 5 A Line feed-throug
Description
Current transformer with screwless connection technology-spring-loaded terminal.
Innovative time-saving connection option (front or top) for high and flexible conductors with and without wire end sleeves for max. 4 mm².
This text is machine translated.
Innovative time-saving connection option (front or top) for high and flexible conductors with and without wire end sleeves for max. 4 mm².
This text is machine translated.
Features
- Vibration-proof and vibration-proof
- Maintenance-free, gas-tight connection
- High current strength
- High mechanical forces
- Low-voltage current transformer for maximum operating voltages of up to 1.0 kV
- Use in 690 V networks possible
- Long-lasting, with 120% of the primary rated current can be overloaded.
