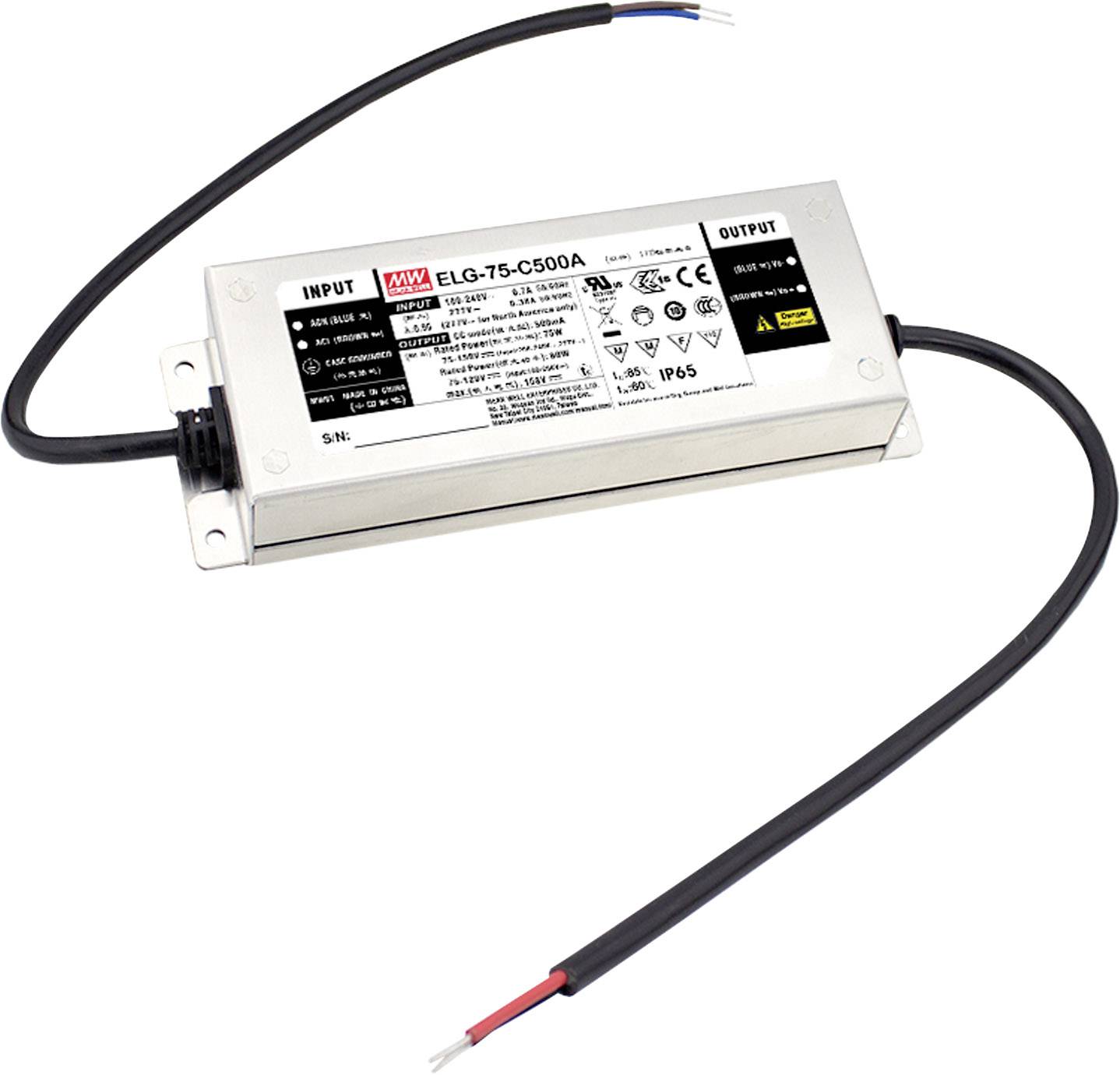

MEAN WELL ELG-75-C500B-3Y LED driver Constant current 75 W 500 mA 75 - 150 V DC 3-in-1 dimmer, dimmable, Suitable for fl
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 39.99 / piece)
€ 39.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
ELG-75-C500B-3Y
- Constant current
- 75 - 150 V DC
- 500 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 180 x 63 x 35.5 mm
- Factory colour
Metal
- Output voltage (max.)
150 V DC
- Output voltage (min.)
75 V DC
- Test mark
CB, MM, UL, ENEC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Operating voltage
230 V AC
115 V AC
- LED driver features
3-in-1 dimmer
dimmable
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
Surge protection
Overvoltage
IP67
- Connection
Open end cable
- Max. power
75 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
800 g
- Power range
75 W (max)
- Type
Pulsed
- Width
63 mm
- Height
35.5 mm
- Length
180 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2176602 MEAN WELL ELG-75-C500B-3Y LED driver Constant current 75 W 500 mA 75 - 150 V DC 3-in-1 dimmer, dimmable, Suitable for fl
User & Safety Instructions
User & Safety Instructions 2176602 MEAN WELL ELG-75-C500B-3Y LED driver Constant current 75 W 500 mA 75 - 150 V DC 3-in-1 dimmer, dimmable, Suitable for fl
Warranty Terms
Warranty Terms 2176602 MEAN WELL ELG-75-C500B-3Y LED driver Constant current 75 W 500 mA 75 - 150 V DC 3-in-1 dimmer, dimmable, Suitable for fl
Description
With the ELG series of MEAN WELL we perform for you LED power supplies in the program, which is characterized by its variety. In addition to the known versions CV + CC (constant voltage and constant power) and cc as an analogue dimmable and non-dimmable design is also a DA-variant is available, which can be controlled via the Dali-Bus. With a setup time of less than 500 ms and a stand-by consumption of less than 0.5W fulfill the power supplies of the series ELG also in September 2016 Eco-design directive 2009/125/EC. intensified limit
This text is machine translated.
This text is machine translated.
Features
- IP67
- Dimming via running control cable, 3 in 1 dimming function (0...10 V DC, PWM, 100k ohm potentiometer)
- In the primary cable running protective conductor
- Constant current
- Independent operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
- Suitable for LED lighting applications
- SELV compliant
- Corresponds to 6 kV surge immunity level
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
