Name: MEAN WELL HBG-200-48A LED driver Constant voltage, Constant current 196.8 W 2.46 - 4.1 A 48 V DC Outdoor, PFC circuit, a
Brand: MEAN WELL
SKU: 2176594
Availability: InStock

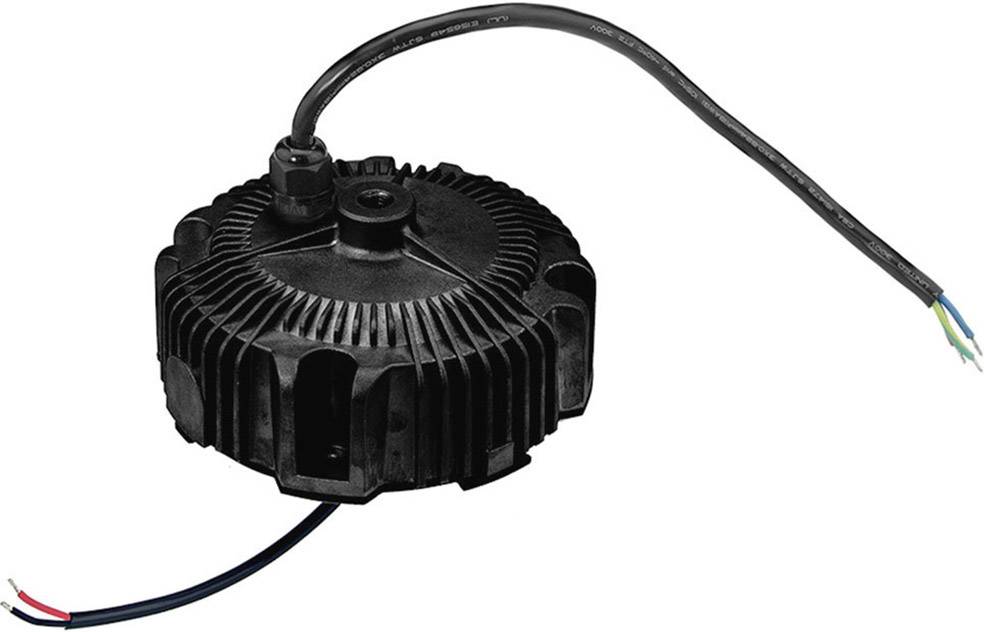

Black, round electrical device with cooling fins and power cables, possibly part of an LED driver.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

HBG-200-48A

Constant voltage, Constant current
48 V DC
2.46 - 4.1 A

Technical specifications

Product type: LED driver

Type: Constant voltage
Constant current

Dim: (L x W x H) 152 x 152 x 66.5 mm

Factory colour: Black

Output voltage (max.): 48 V DC

Output voltage (min.): 48 V DC

Test mark: CB, UL, ENEC, SELV

Max. output current: 4.1 A

Output current (max.) - rounded: 4.1 A

Operating voltage: 230 V AC

Protection class: I

LED driver features: Outdoor
PFC circuit
adjustable
Surge protection
Overvoltage

: IP65

Connection: Open end cable

Max. power: 196.8 W

No. of outputs: 1 x

No. of inputs: 1 x

Output current (min.): 2.46 A

Input voltage (max.): 305 V AC
431 V DC

Min. input voltage: 90 V AC
127 V DC

Weight: 1530 g

Power (min.): 196.8 W

Power range: 196.8 up to 196.8 W

Type: Pulsed

Width: 152 mm

Height: 66.5 mm

Length: 152 mm

Max. temperature: +85 °C

Min. temperature: -40 °C

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Operating voltage

Max. power

IP rating

LED driver features

Output current (max.) - rounded

Output voltage (max.)

MEAN WELL HBG-200-48A LED driver Constant voltage, Constant current 196.8 W 2.46 - 4.1 A 48 V DC Outdoor, PFC circuit, adjustable, Surge protection, Overvoltage 1 pc(s)

Item no:2176594

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

This article

230 V AC

196.8 W

IP65

Outdoor

4.1 A

48 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

MEAN WELL HBG-200-36 LED driver Constant voltage, Constant current 198 W 5.5 A 36 V DC not dimmable, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113530

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

230 V AC

198 W

IP67

not dimmable

5.5 A

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

MEAN WELL HBG-200-48 LED driver Constant voltage, Constant current 196.8 W 4.1 A 48 V DC not dimmable, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113613

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

230 V AC

196.8 W

IP67

not dimmable

4.1 A

48 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

MEAN WELL HBG-200-36B LED driver Constant voltage, Constant current 198 W 5.5 A 36 V DC dimmable, 3-in-1 dimmer, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113408

Unavailable

Conrad Electronic

230 V AC

198 W

IP67

dimmable

5.5 A

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

MEAN WELL HBG-200-36DA LED driver Constant voltage, Constant current 198 W 5.5 A 36 V DC dimmable, DALI, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113468

Unavailable

Conrad Electronic

230 V AC

198 W

IP67

dimmable

5.5 A

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

MEAN WELL HBG-200-48DA LED driver Constant voltage, Constant current 196.8 W 4.1 A 48 V DC dimmable, DALI, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113619

Currently not available

Conrad Electronic

230 V AC

196.8 W

IP67

dimmable

4.1 A

48 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

MEAN WELL HBG-200-60 LED driver Constant voltage, Constant current 198 W 3.3 A 60 V DC not dimmable, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113407

Unavailable

Conrad Electronic

230 V AC

198 W

IP67

not dimmable

3.3 A

60 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

MEAN WELL HBG-200-60B LED driver Constant voltage, Constant current 198 W 3.3 A 60 V DC dimmable, 3-in-1 dimmer, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113490

Unavailable

Conrad Electronic

230 V AC

198 W

IP67

dimmable

3.3 A

60 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

MEAN WELL HBG-200-60DA LED driver Constant voltage, Constant current 198 W 3.3 A 60 V DC dimmable, DALI, PFC circuit, Surge protection, Overvoltage, Outdoor 1 pc(s)

Item no:2113491

Unavailable

Conrad Electronic

230 V AC

198 W

IP67

dimmable

3.3 A

60 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Documents & Downloads

Datasheet

Datasheet 2176594 MEAN WELL HBG-200-48A LED driver Constant voltage, Constant current 196.8 W 2.46 - 4.1 A 48 V DC Outdoor, PFC circuit, a

User & Safety Instructions

User & Safety Instructions 2176594 MEAN WELL HBG-200-48A LED driver Constant voltage, Constant current 196.8 W 2.46 - 4.1 A 48 V DC Outdoor, PFC circuit, a

Warranty Terms

Warranty Terms 2176594 MEAN WELL HBG-200-48A LED driver Constant voltage, Constant current 196.8 W 2.46 - 4.1 A 48 V DC Outdoor, PFC circuit, a

Features

IP65
Constant current adjustable via internal potentiometer
Independent operating device
Round shape, shed aluminum housing
Universal input
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
Built-in PFC circuit

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
