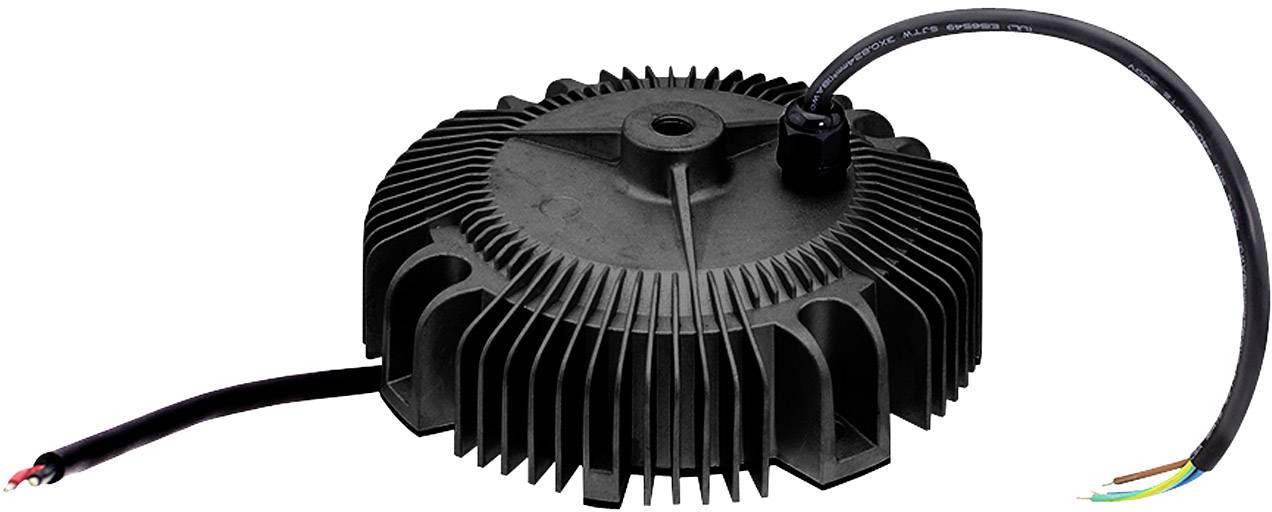

Image similar
MEAN WELL HBG-240-36B LED driver, LED transformer Constant voltage, Constant current 240 W 6.7 A 21.6 - 36 V DC dimmable
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 95.99 / piece)
€ 95.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
LED-switching power supply
- Constant voltage, Constant current
- 21.6 - 36 V DC
- 6.7 A
Technical specifications
- Protection class: IP67
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 69 x 162 x 162 mm
- Output voltage (max.)
36 V DC
- Output voltage (min.)
21.6 V DC
- Max. output current
6.7 A
- Output current (max.) - rounded
6.7 A
- Operating voltage
115 V AC
230 V AC
- Protection class
I
- LED driver features
dimmable
PFC circuit
Surge protection
Approved for use on furniture
IP67
- Connection
Open end cable
- Max. power
240 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Weight
2.1 kg
- Power range
240 W (max)
- Type
Synchronised
- Width
162 mm
- Height
162 mm
- Length
69 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1293646 MEAN WELL HBG-240-36B LED driver, LED transformer Constant voltage, Constant current 240 W 6.7 A 21.6 - 36 V DC dimmable
User & Safety Instructions
User & Safety Instructions 1293646 MEAN WELL HBG-240-36B LED driver, LED transformer Constant voltage, Constant current 240 W 6.7 A 21.6 - 36 V DC dimmable
Information
Information 1293646 MEAN WELL HBG-240-36B LED driver, LED transformer Constant voltage, Constant current 240 W 6.7 A 21.6 - 36 V DC dimmable
Warranty Terms
Warranty Terms 1293646 MEAN WELL HBG-240-36B LED driver, LED transformer Constant voltage, Constant current 240 W 6.7 A 21.6 - 36 V DC dimmable
Description
Circular shape, fully potted aluminium enclosure, IP65, IP67 · Universal input · Overload protection, current limiting, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Suitable for LED lighting and moving sign applications · For high bay/low bay lighting, stage light · HBG-240-_A: Adjustable output current with internal potentiometer · HBG-240-_B: Adjustable output current through output cable
Features
- Round shape, shed aluminum housing
- Universal input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- For LED lighting applications
- For LED-halls and industrial lamps, stage lighting
- Adjustable current limitation by control cable for external potentiometer, PWM or 1-10 V/DC.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
