Name: MEAN WELL HLG-320H-24AB LED driver Constant voltage 320.16 W 6.67 - 13.34 A 21 - 26 V DC dimmable, 3-in-1 dimmer, adjust
Brand: MEAN WELL
SKU: 2113566
Availability: InStock

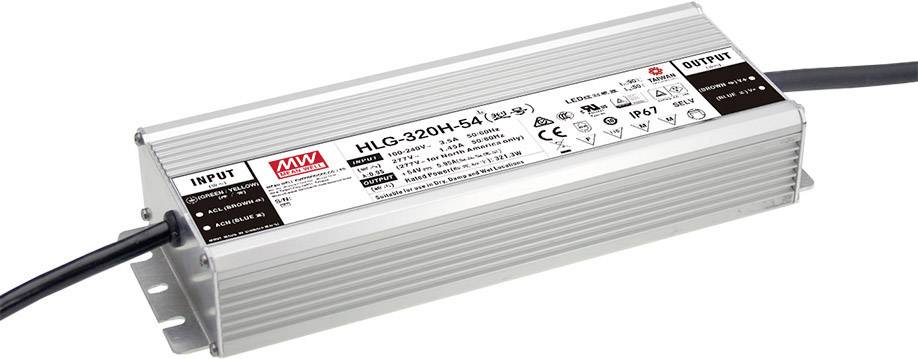

LED driver by Mean Well, Model HLG-320H-54. Aluminium enclosure with input and output cables. Used for powering LED lighting.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LED switching power supply for indoor and outdoor applications

Constant voltage
21 - 26 V DC
6.67 - 13.34 A

Technical specifications

Product type: LED driver

Type: Constant voltage

Dim: (L x W x H) 252 x 90 x 43.8 mm

Factory colour: Metal

Output voltage (max.): 26 V DC

Output voltage (min.): 21 V DC

Test mark: MM, SELV, UL, TÜV, CB

Max. output current: 13.34 A

Output current (max.) - rounded: 13.34 A

Operating voltage: 230 V AC
115 V AC

Protection class: I

LED driver features: dimmable
3-in-1 dimmer
adjustable
PFC circuit
Outdoor
Surge protection
Overvoltage
Suitable for flammable surfaces
Approved for use on furniture

: IP65

Connection: Open end cable

Max. power: 320.16 W

No. of outputs: 1 x

No. of inputs: 1 x

Output current (min.): 6.67 A

Input voltage (max.): 305 V AC
431 V DC

Min. input voltage: 90 V AC
127 V DC

Weight: 1880 g

Power range: 320.16 W (max)

Type: Pulsed

Width: 90 mm

Height: 43.8 mm

Length: 252 mm

Max. temperature: +90 °C

Min. temperature: -40 °C

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Type

Operating voltage

Max. power

IP rating

LED driver features

Output current (max.) - rounded

Product type

Output voltage (max.)

Output voltage (min.)

MEAN WELL HLG-100H-20A LED driver, LED transformer Constant voltage, Constant current 96 W 4.8 A 20 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293596

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

Constant voltage

115 V AC

96 W

IP65

PFC circuit

4.8 A

LED driver

20 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-100H-24A LED driver, LED transformer Constant voltage, Constant current 96 W 4 A 24 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1297411

Fast track dispatch on Thu 15 Oct

219 Piece(s)Conrad Electronic

Constant voltage

115 V AC

96 W

IP65

PFC circuit

4 A

LED driver

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-100H-30A LED driver, LED transformer Constant voltage, Constant current 96 W 3.2 A 30 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293598

Dispatches on Mon 19 Oct

7 Piece(s)Conrad Electronic

Constant voltage

115 V AC

96 W

IP65

PFC circuit

3.2 A

LED driver

30 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-100H-36A LED driver, LED transformer Constant voltage, Constant current 95 W 2.65 A 36 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293593

Dispatches on Mon 19 Oct

34 Piece(s)Conrad Electronic

Constant voltage

115 V AC

95 W

IP65

PFC circuit

2.65 A

LED driver

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-100H-42A LED driver, LED transformer Constant voltage, Constant current 95 W 2.23 A 42 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293594

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

Constant voltage

115 V AC

95 W

IP65

PFC circuit

2.23 A

LED driver

42 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-100H-48A LED driver, LED transformer Constant voltage, Constant current 96 W 2 A 48 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293600

Dispatches on Mon 19 Oct

16 Piece(s)Conrad Electronic

Constant voltage

115 V AC

96 W

IP65

PFC circuit

2 A

LED driver

48 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-100H-54A LED driver, LED transformer Constant voltage, Constant current 95 W 1.77 A 54 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293595

Dispatches on Mon 19 Oct

9 Piece(s)Conrad Electronic

Constant voltage

115 V AC

95 W

IP65

PFC circuit

1.77 A

LED driver

54 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

MEAN WELL HLG-120H-12A LED driver, LED transformer Constant voltage, Constant current 120 W 10 A 12 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1297396

Fast track dispatch on Thu 15 Oct

40 Piece(s)Conrad Electronic

Constant voltage

115 V AC

120 W

IP65

PFC circuit

10 A

LED driver

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

MEAN WELL HLG-120H-12AB LED driver Constant voltage 120 W 5 - 10 A 10.8 - 13.5 V DC dimmable, 3-in-1 dimmer, adjustable, PFC circuit, Outdoor, Surge protection, Overvoltage, Suitable for flammable surfaces, Approved for use on furniture 1 pc(s)

Item no:2113423

Dispatches on Mon 19 Oct

9 Piece(s)Conrad Electronic

Constant voltage

230 V AC

120 W

IP65

dimmable

10 A

LED driver

13.5 V DC

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

MEAN WELL HLG-120H-15A LED driver, LED transformer Constant voltage, Constant current 120 W 8 A 15 V DC PFC circuit, Surge protection, adjustable 1 pc(s)

Item no:1293493

Dispatches on Mon 19 Oct

23 Piece(s)Conrad Electronic

Constant voltage

115 V AC

120 W

IP65

PFC circuit

8 A

LED driver

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

Documents & Downloads

Datasheet

Datasheet 2113566 MEAN WELL HLG-320H-24AB LED driver Constant voltage 320.16 W 6.67 - 13.34 A 21 - 26 V DC dimmable, 3-in-1 dimmer, adjust

User & Safety Instructions

User & Safety Instructions 2113566 MEAN WELL HLG-320H-24AB LED driver Constant voltage 320.16 W 6.67 - 13.34 A 21 - 26 V DC dimmable, 3-in-1 dimmer, adjust

Warranty Terms

Warranty Terms 2113566 MEAN WELL HLG-320H-24AB LED driver Constant voltage 320.16 W 6.67 - 13.34 A 21 - 26 V DC dimmable, 3-in-1 dimmer, adjust

Features

Constant voltage
Wide-range input
Metal housing
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, overvoltage, overheating
Built-in PFC circuit
SELV compliant
Safety Standards: EN 61347-1, EN 61347-2-13 and other
Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3, EN61547 and other
IP65, output voltage and current limit can be set via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (1...10 V DC, PWM, 100k ohm potentiometer)

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.

Description

Features

Constant voltage
Wide-range input
Metal housing
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, overvoltage, overheating
Built-in PFC circuit
SELV compliant
Safety Standards: EN 61347-1, EN 61347-2-13 and other
Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3, EN61547 and other
IP65, output voltage and current limit can be set via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (1...10 V DC, PWM, 100k ohm potentiometer)
