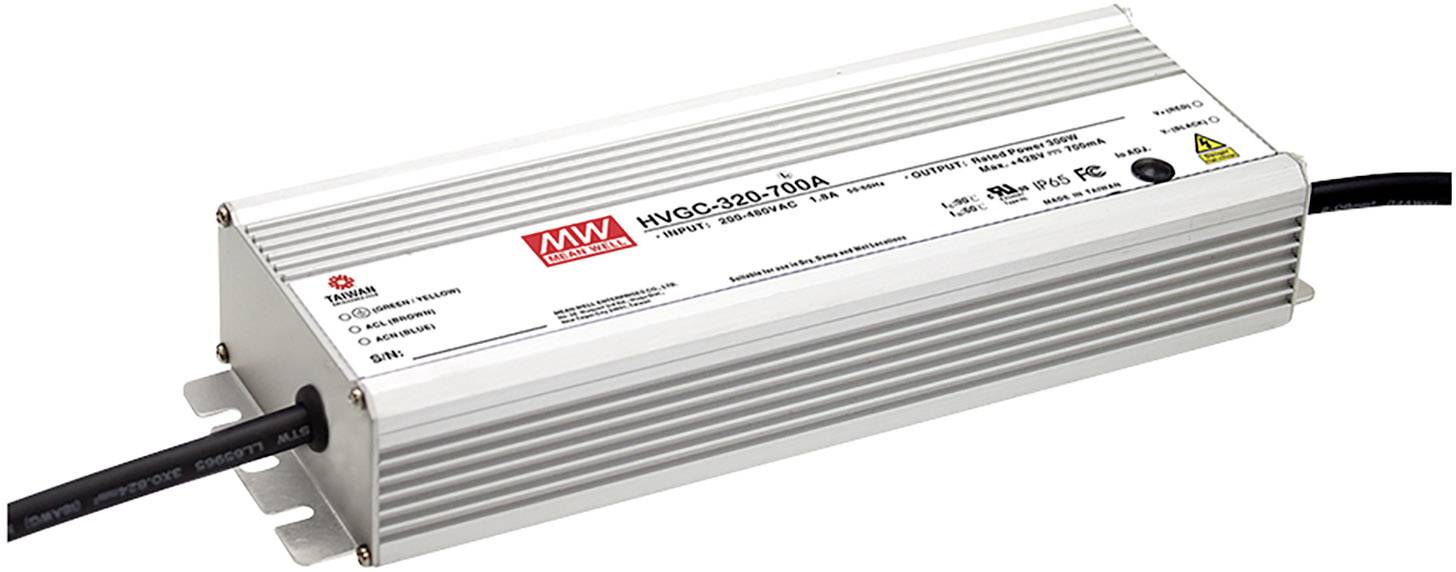

MEAN WELL HVGC-320-700AB LED driver Constant current 300 W 350 - 700 mA 214 - 428 V DC adjustable, dimmable, 3-in-1 dimm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 139.99 / piece)
€ 139.99
incl. VAT
14-day return policy included
Highlights & Details
HVGC-320-700AB
- Constant current
- 214 - 428 V DC
- 350 - 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 262 x 90 x 43.8 mm
- Factory colour
Metal
- Output voltage (max.)
428 V DC
- Output voltage (min.)
214 V DC
- Test mark
UL, ENEC, MM
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Operating voltage
230 V AC
- Protection class
I
- LED driver features
adjustable
dimmable
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
Surge protection
Overvoltage
IP65
- Connection
Open end cable
- Max. power
300 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
350 mA
- Input voltage (max.)
528 V AC
747 V DC
- Min. input voltage
180 V AC
254 V DC
- Inputs
1
- Weight
2000 g
- Power range
300 W (max)
- Type
Pulsed
- Width
90 mm
- Height
43.8 mm
- Length
262 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2113590 MEAN WELL HVGC-320-700AB LED driver Constant current 300 W 350 - 700 mA 214 - 428 V DC adjustable, dimmable, 3-in-1 dimm
User & Safety Instructions
User & Safety Instructions 2113590 MEAN WELL HVGC-320-700AB LED driver Constant current 300 W 350 - 700 mA 214 - 428 V DC adjustable, dimmable, 3-in-1 dimm
Warranty Terms
Warranty Terms 2113590 MEAN WELL HVGC-320-700AB LED driver Constant current 300 W 350 - 700 mA 214 - 428 V DC adjustable, dimmable, 3-in-1 dimm
Description
Features
- IP65
- Current limit adjustable via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (1...10 V DC, PWM, 100k ohm potentiometer)
- Constant current
- Independent operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
