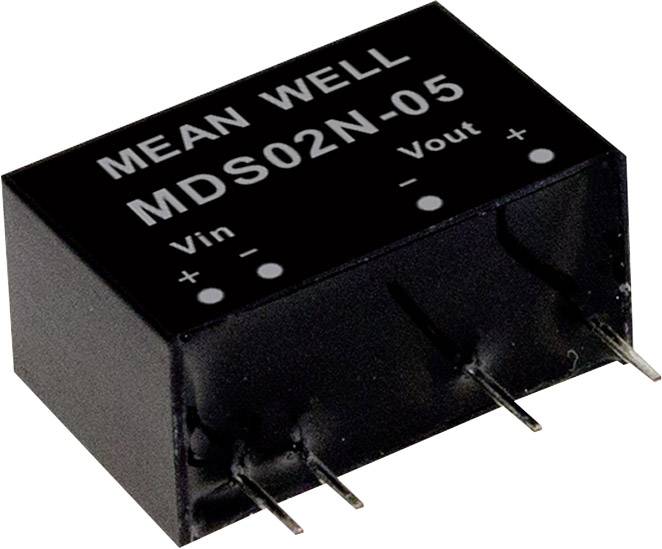

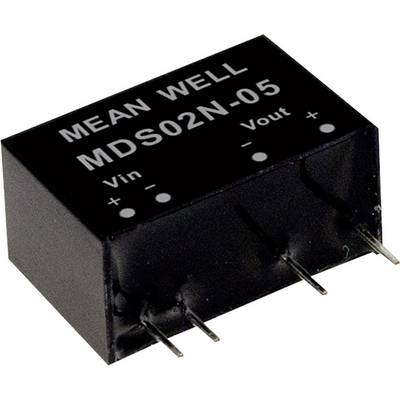

MEAN WELL MDS02N-05 DC/DC converter (module) 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 9.24 / piece)
€
Highlights & Details
MEANWELL DC/DC converter modules series MDS 02 SIP/SIL7 Case Single Output Input voltage ratio: 1:1 Power: 2 W Unregulated Medical
- SIP7/SIL7-casing
- Input/output insulation 6000 V DC or 4200 V DC (reinforced insulation)
- Medical Safety Approved (1x MOP/2x MOP) (ANSI/AAMI IT 60601-1)
- Low patient leakage (below 2 µA)
- Efficiency up to 85%
- Short-circuit-proof (max. 3 s)
- Low Cost
Technical specifications
- Type
MDS02N-05
- Min. input voltage
21.6 V DC
- Input voltage (max.)
26.4 V DC
- No. of outputs
1 x
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
80 %
2 W
- Insulation voltage
6000 V DC
4200 V DC
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 19.5 x 9.8 x 12.5 mm
- Height
12.5 mm
- Length
19.5 mm
- Width
9.8 mm
- RoHS-compliant
- Content
1 pc(s)
- Output current (min.)
40 mA
- Output voltage (max.)
5 V DC
- Weight
4.2 g
- Product type
DC/DC converter (module)
Documents & Downloads
Datasheet
Datasheet 2143405 MEAN WELL MDS02N-05 DC/DC converter (module) 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2143405 MEAN WELL MDS02N-05 DC/DC converter (module) 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2143405 MEAN WELL MDS02N-05 DC/DC converter (module) 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
In response to increasing demands in the domestic care and medical market presents mean corrugated medical DC/DC converter MDS 02 and mdd 02. These two brand new series offer you: SIP standard pin assignment, an extremely wide operating temperature range from -40 to +85 °C without performance reduction, 6KVDC or 4,2KVAC I/O insulation and extremely low leakage currents of below 2 μA. They are compliant with international medical safety regulations and comply with ANSI/AAMI IT 60601-1 (1x/2x MOOP). This means the MOP DC/DC converter MDS 02 and mdd 02 ideally suited for medical devices such as oxygen monitors, medical wagon and oral care devices.
This text is machine translated.
This text is machine translated.
Features
- SIP7/SIL7-casing
- Input/output insulation 6000 V DC or 4200 V DC (reinforced insulation)
- Medical Safety Approved (1x MOP/2x MOP) (ANSI/AAMI IT 60601-1)
- Low patient leakage (below 2 µA)
- Efficiency up to 85%
- Short-circuit-proof (max. 3 s)
