Name: MEAN WELL SBTN01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143517
Price: 7.99 EUR
Availability: SoldOut

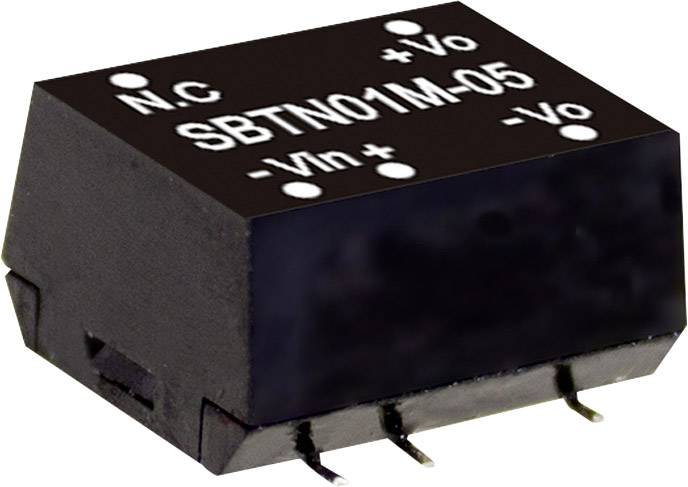

Electronic voltage converter with the inscription 'SBTN01M-05', terminals for input and output, compact black housing.

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL SMD DC/DC converter modules series SBTN01 SMD Case Single Output Input voltage ratio: 1:1 Power: 1 W Unregulated

SMD housing
For direct PCB mounting
Input/output insulation 1500 V
According to EN 55032 Class A transmitted without additional components
Efficiency up to 84%
Circuit breaker
Low Cost

Technical specifications

Product type: DC/DC converter (module)

Type: SBTN01N-12

Min. input voltage: 21.6 V DC

Input voltage (max.): 26.4 V DC

No. of outputs: 1 x

Max. output current: 84 mA

Output current (max.) - rounded: 84 mA

Efficiency (max.): 79 %

: 1 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 12.9 x 10.9 x 7.1 mm

Height: 7.1 mm

Length: 12.9 mm

Width: 10.9 mm

RoHS-compliant: Yes

Output voltage (max.): 12 V DC

Output current (min.): 8.4 mA

Weight: 1.1 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2143517 MEAN WELL SBTN01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143517 MEAN WELL SBTN01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143517 MEAN WELL SBTN01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Description

MEAN CORRUGATED has its program on SMD DC/DC converters to the new unregulated 1W series SBTN01. In comparison to the previous series SBT01, the new series of SBTN01 over a larger range of operating temperature from -40 to +90 °C, a higher I/O insulation (1.5 kVDC) and a higher degree of efficiency of up to 84%. The pinout is identical. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.
