Buy MEAN WELL SCW20B-12 DC/DC converter (module) 1.666 A 20 W No. of outputs: 1 x Content 1 pc(s)

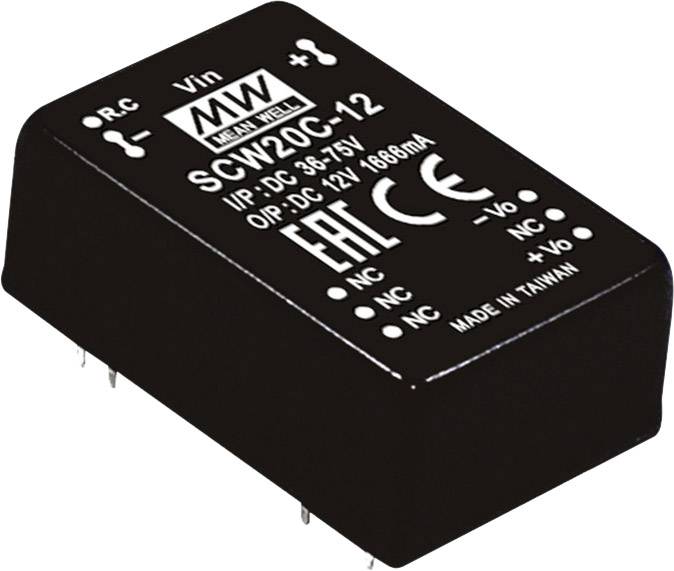

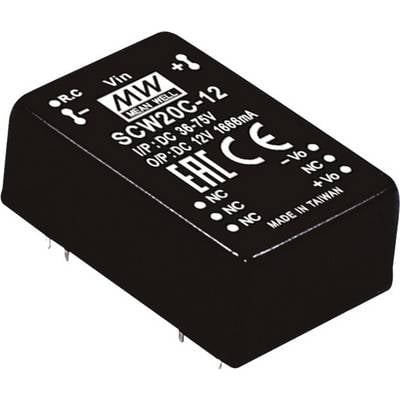

A rectangular, black electronic component, marked with 'Mean Well', model 'SCW20C-12'. Input: DC 36-75V; Output: DC 12V, 1680mA. Made in Taiwan. CE and EAC marks.

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 23.52 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series SCW 20 DIP 24/DIL 24 Case Single Output Input voltage ratio: 2:1 Power: 20 W regulated

In the DIP 24/DIL 24-housing
For direct PCB mounting
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously) and overload
Efficiency up to 89%
Remote control for on/off
According to EN 55032 Class A transmitted without additional components

Technical specifications

Product type: DC/DC converter (module)

Type: SCW20B-12

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Max. output current: 1.666 A

Output current (max.) - rounded: 1.67 A

Efficiency (max.): 87 %

: 20 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +80 °C

Dim: (L x W x H) 31.8 x 20.3 x 12.2 mm

Height: 12.2 mm

Length: 31.8 mm

Width: 20.3 mm

Output voltage (max.): 12 V DC

Weight: 18.5 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143331 MEAN WELL SCW20B-12 DC/DC converter (module) 1.666 A 20 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143331 MEAN WELL SCW20B-12 DC/DC converter (module) 1.666 A 20 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143331 MEAN WELL SCW20B-12 DC/DC converter (module) 1.666 A 20 W No. of outputs: 1 x Content 1 pc(s)

Description

MEAN CORRUGATED represents the new DC/DC converter the SCW20-series with single output as a supplement to the previous series SCW03/SCWN03 (3W), SCW 05 (5W), SCW 08 (8W) and SCW 12 (12 W). This Series extends the output power of the SCW family to up to 20 watts. The whole of the SCW family is in accordance with the DIP24-standard housing with the same terminal assignments. In situations in which the end system requires a higher performance, the SCW 20 the SCW models with lower power directly without having to replace the PCB layout must be re-designed.
The mean corrugated series SCW20 offers the highest power density of all DIP24 DC/DC converters, currently available in the market. In addition, MEAN WELL the only manufacturer with a 20W option in the DIP24 casing. With functions like a wide input range of 2:1, a very wide operating temperature range (-40 °C to + 80 °C) and 1500 V DC I/O isolation is the SCW 20 is best suited for applications with distributed power architecture, IoT, electric motors, wireless networks, industrial control systems and communications systems.

This text is machine translated.
