Name: MEAN WELL SFTN01N-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143395
Price: 5.99 EUR
Availability: InStock

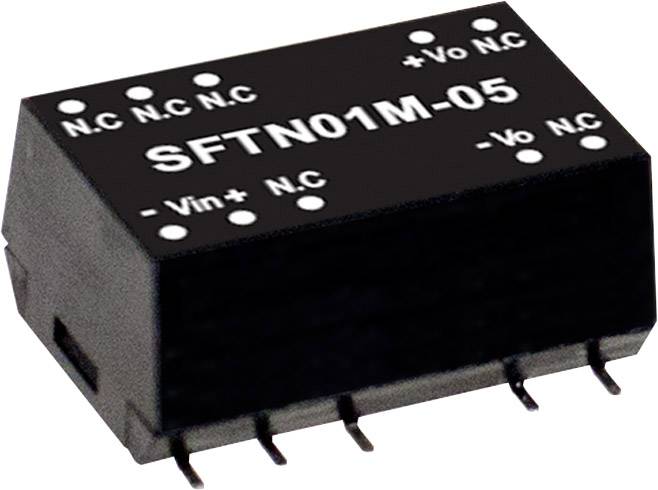

An electronic component, marked with 'SFTN01M-05', with six connection pins at the bottom. Labels: '+Vo', '-Vo', '+Vin', '-Vin', 'N.C.'.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL SMD DC/DC converter modules series sftn 01 SMD Case Single Output Input voltage ratio: 1:1 Power: 1 W non-rule

SMD housing
For direct PCB mounting
Input/output insulation 3000 V DC
Conforms to the EN 55032 Class B without additional components
Efficiency up to 82%
Circuit breaker
Low Cost

Technical specifications

Product type: DC/DC converter (module)

Type: SFTN01N-05

Min. input voltage: 21.6 V DC

Input voltage (max.): 26.4 V DC

No. of outputs: 1 x

Max. output current: 200 mA

Output current (max.) - rounded: 200 mA

Efficiency (max.): 77 %

: 1 W

Insulation voltage: 3000 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 15.24 x 10.9 x 7.1 mm

Height: 7.1 mm

Length: 15.24 mm

Width: 10.9 mm

RoHS-compliant: Yes

Output voltage (max.): 5 V DC

Output current (min.): 20 mA

Weight: 1.2 g

Content: 1 pc(s)

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2143395 MEAN WELL SFTN01N-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143395 MEAN WELL SFTN01N-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143395 MEAN WELL SFTN01N-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Description

MEAN CORRUGATED has its program of converters the unregulated 1W SMD DC/DC converter with single output expanded. In comparison to the converters of the last generation SFT01, the new series sftn 01 a larger operating temperature range (-40 to +90 °C) and a higher degree of efficiency (up to 83%). In addition, the pin assignment for the new series sftn 01 identical to the original SFT01 converters, so that a redesign of the circuit board layouts is necessary in order to use the new converter. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architectures.
