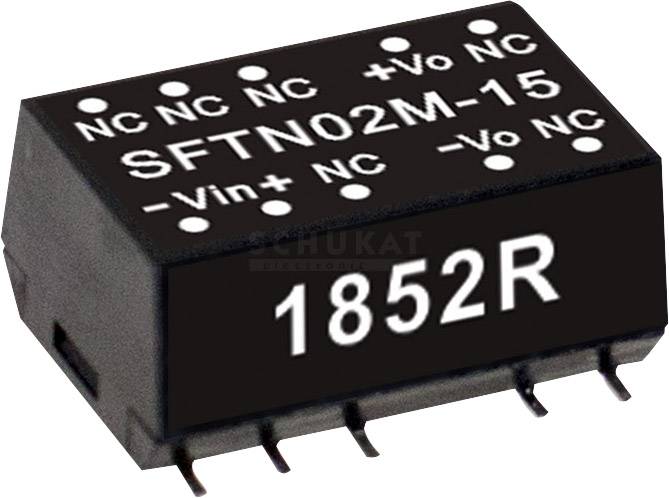

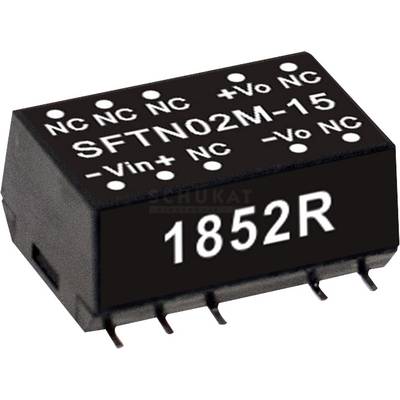

MEAN WELL SFTN02N-12 DC/DC converter (module) 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€
Only 2 Piece(s) available
Highlights & Details
MEANWELL SMD DC/DC converter modules series sftn 02 SMD Case Single Output Input voltage ratio: 1:1 Power: 2 W Unregulated
- SMD housing
- For direct PCB mounting
- Input/output insulation 3000 V DC
- Conforms to the EN 55032 - Class A without additional components
- Efficiency up to 82%
- Circuit breaker
- Low Cost
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter (module)
- Type
SFTN02N-12
- Min. input voltage
21.6 V DC
- Input voltage (max.)
26.4 V DC
- No. of outputs
1 x
- Max. output current
167 mA
- Output current (max.) - rounded
167 mA
- Efficiency (max.)
79 %
2 W
- Insulation voltage
3000 V DC
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+100 °C
- Dim
(L x W x H) 15.24 x 10.9 x 7.1 mm
- Height
7.1 mm
- Length
15.24 mm
- Width
10.9 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V DC
- Output current (min.)
33 mA
- Weight
1.2 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2143510 MEAN WELL SFTN02N-12 DC/DC converter (module) 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2143510 MEAN WELL SFTN02N-12 DC/DC converter (module) 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2143510 MEAN WELL SFTN02N-12 DC/DC converter (module) 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
Features
- SMD housing
- For direct PCB mounting
- Input/output insulation 3000 V DC
- Efficiency up to 82%
- Circuit breaker
