Name: MEAN WELL XLG-25-AB LED driver Constant power 25 W 250 mA - 1.05 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-
Brand: MEAN WELL
SKU: 2108169
Availability: InStock

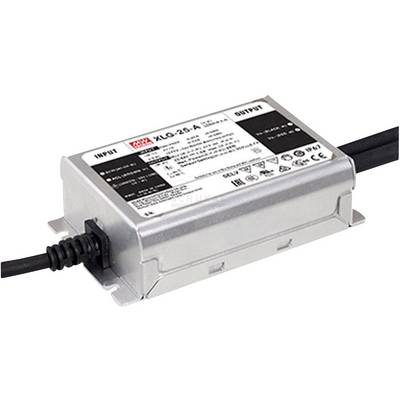

Electronic power supply with print 'MEAN WELL XLG-25-A'. Connection cable on both sides. CE and RoHS certified.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

XLG-25-AB

Constant power
22 - 54 V DC
250 mA - 1.05 A

Technical specifications

Product type: LED driver

Type: Constant power

Dim: (L x W x H) 105 x 63 x 30 mm

Factory colour: Metal

Output voltage (max.): 54 V DC

Output voltage (min.): 22 V DC

Test mark: CB, MM, SELV, UL, ENEC

Max. output current: 1.05 A

Output current (max.) - rounded: 1.05 A

Operating voltage: 230 V AC
115 V AC

LED driver features: PFC circuit
adjustable
dimmable
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
Surge protection
Overvoltage

: IP67

Connection: Open end cable

Max. power: 25 W

No. of outputs: 1 x

No. of inputs: 1 x

Output current (min.): 250 mA

Input voltage (max.): 305 V AC

Min. input voltage: 90 V AC

Weight: 410 g

Power range: 25 W (max)

Type: Pulsed

Width: 63 mm

Height: 30 mm

Length: 105 mm

Max. temperature: +85 °C

Min. temperature: -40 °C

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

LED driver features

Output current (max.) - rounded

Type

Output voltage (max.)

Max. power

Output voltage (min.)

MEAN WELL XLG-25-AB LED driver Constant power 25 W 250 mA - 1.05 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-1 dimmer, Suitable for flammable surfaces, Approved for use on furniture, Outdoor, Surge protection, Overvoltage 1 pc(s)

Item no:2108169

Fast track dispatch on Wed 4 Nov

3 Piece(s)Conrad Electronic

This article

PFC circuit

1.05 A

Constant power

54 V DC

25 W

22 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

MEAN WELL XLG-25-A LED driver Constant power 25 W 250 mA - 1.05 A 22 - 54 V DC PFC circuit, adjustable, not dimmable, Suitable for flammable surfaces, Approved for use on furniture, Outdoor, Surge protection, Overvoltage 1 pc(s)

Item no:2108171

Fast track dispatch on Wed 4 Nov

12 Piece(s)Conrad Electronic

PFC circuit

1.05 A

Constant power

54 V DC

25 W

22 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

MEAN WELL XLG-50-A LED driver Constant power 50 W 530 mA - 2.1 A 22 - 54 V DC PFC circuit, adjustable, not dimmable, Suitable for flammable surfaces, Approved for use on furniture, Outdoor, Surge protection, Overvoltage 1 pc(s)

Item no:2108170

Available soon

Conrad Electronic

PFC circuit

2.1 A

Constant power

54 V DC

50 W

22 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL XLG-50-AB LED driver Constant power 50 W 530 mA - 2.1 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-1 dimmer, Suitable for flammable surfaces, Approved for use on furniture, Outdoor, Surge protection, Overvoltage 1 pc(s)

Item no:2108168

Fast track dispatch on Wed 4 Nov

117 Piece(s)Conrad Electronic

PFC circuit

2.1 A

Constant power

54 V DC

50 W

22 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

MEAN WELL XLG-75-12-A LED driver Constant voltage, Constant current 60 W 2500 - 5000 mA 12 V DC PFC circuit, adjustable, Surge protection, Overvoltage, Approved for use on furniture, Suitable for flammable surfaces, Outdoor 1 pc(s)

Item no:2143316

Fast track dispatch on Wed 4 Nov

61 Piece(s)Conrad Electronic

PFC circuit

5 A

Constant voltage

12 V DC

60 W

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL XLG-75-24-A LED driver Constant voltage, Constant current 74.4 W 1550 - 3100 mA 24 V DC PFC circuit, adjustable, Surge protection, Overvoltage, Approved for use on furniture, Suitable for flammable surfaces, Outdoor 1 pc(s)

Item no:2143303

Fast track dispatch on Wed 4 Nov

27 Piece(s)Conrad Electronic

PFC circuit

3.1 A

Constant voltage

24 V DC

74.4 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

MEAN WELL XLG-75-H-A LED driver Constant power 75 W 1300 - 2100 mA 27 - 56 V DC PFC circuit, adjustable, Surge protection, Overvoltage, Approved for use on furniture, Suitable for flammable surfaces, Outdoor 1 pc(s)

Item no:2143304

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

PFC circuit

2.1 A

Constant power

56 V DC

75 W

27 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

MEAN WELL XLG-75-L-A LED driver Constant power 75 W 350 - 1050 mA 53 - 107 V DC PFC circuit, adjustable, Surge protection, Overvoltage, Approved for use on furniture, Suitable for flammable surfaces, Outdoor 1 pc(s)

Item no:2143306

Fast track dispatch on Wed 4 Nov

20 Piece(s)Conrad Electronic

PFC circuit

1.05 A

Constant power

107 V DC

75 W

53 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

MEAN WELL XLG-75-L-AB LED driver Constant power 75 W 350 - 1050 mA 53 - 107 V DC dimmable, 3-in-1 dimmer, adjustable, PFC circuit, Approved for use on furniture, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:2143317

Dispatches on Thu 5 Nov

24 Piece(s)Conrad Electronic

dimmable

1.05 A

Constant power

107 V DC

75 W

53 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

MEAN WELL XLG-75-H-AB LED driver Constant power 75 W 1300 - 2100 mA 27 - 56 V DC dimmable, 3-in-1 dimmer, adjustable, PFC circuit, Approved for use on furniture, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:2143305

Unavailable

Conrad Electronic

dimmable

2.1 A

Constant power

56 V DC

75 W

27 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

Documents & Downloads

Datasheet

Datasheet 2108169 MEAN WELL XLG-25-AB LED driver Constant power 25 W 250 mA - 1.05 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-

User & Safety Instructions

User & Safety Instructions 2108169 MEAN WELL XLG-25-AB LED driver Constant power 25 W 250 mA - 1.05 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-

Warranty Terms

Warranty Terms 2108169 MEAN WELL XLG-25-AB LED driver Constant power 25 W 250 mA - 1.05 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-

Features

Constant power
Independent operating device
Wide-range input
Metal housing
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, overvoltage, overheating
Built-in PFC circuit
Low idle power
SELV compliant
Safety Standards: EN 61347-1, EN 61347-2-13, EN 62384, and more
Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3, EN61547 and other
Surge immunity level 6 kV
IP67, current limit can be set via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (0...10 V DC, 10 V PWM, potentiometer)

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.

Description

Features

Constant power
Independent operating device
Wide-range input
Metal housing
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, overvoltage, overheating
Built-in PFC circuit
Low idle power
SELV compliant
Safety Standards: EN 61347-1, EN 61347-2-13, EN 62384, and more
Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3, EN61547 and other
Surge immunity level 6 kV
IP67, current limit can be set via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (0...10 V DC, 10 V PWM, potentiometer)
