Megger MPAC208 Pro Kit Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

'Megger' insulation testing kit in a case, containing a digital display device, connectivity cables, probe, and accessories for electrical testing.

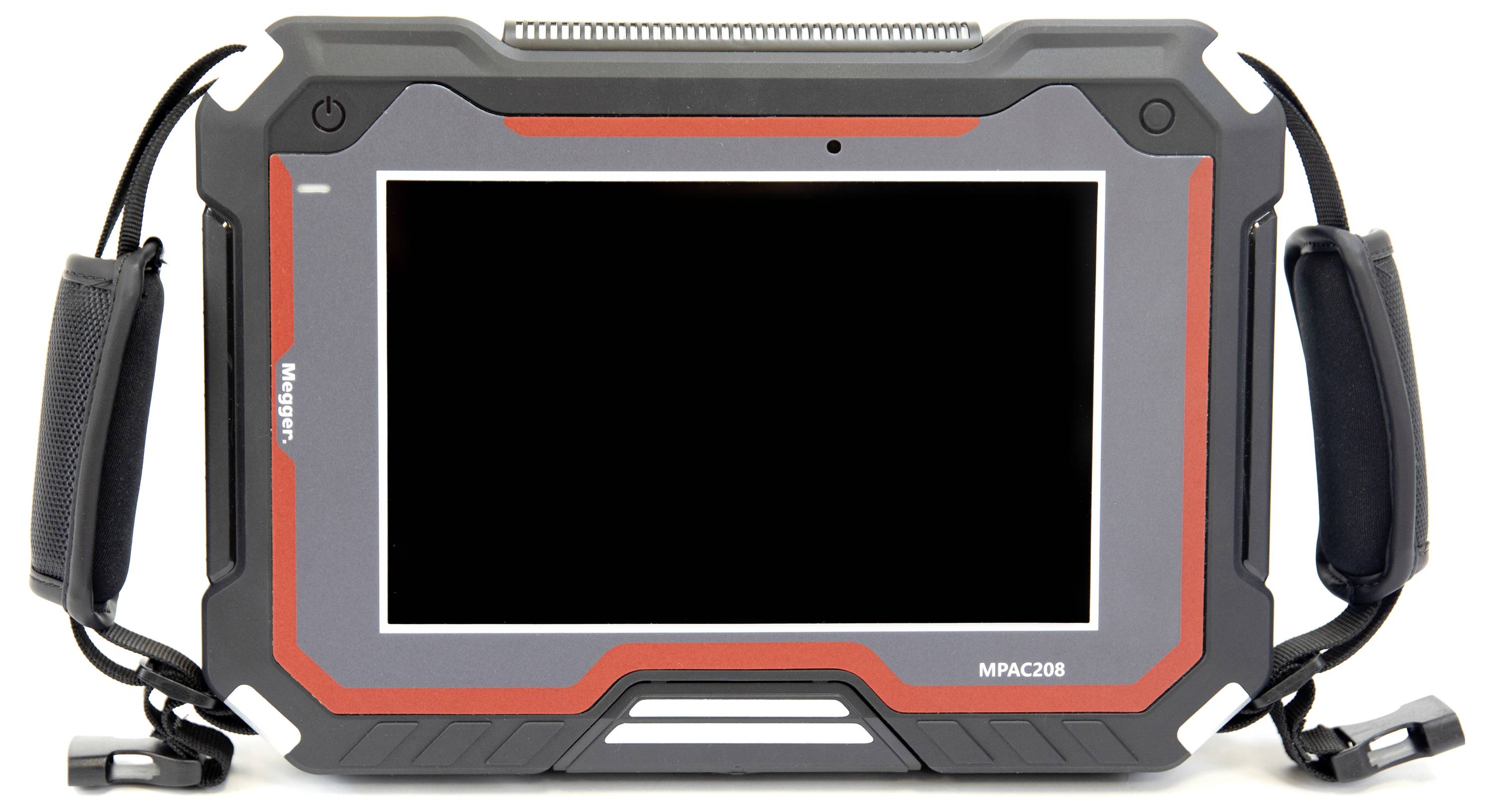

'Tough, rugged tablet device with protective casing and carrying straps, front view. Model name MPAC208 visible on the lower right.'

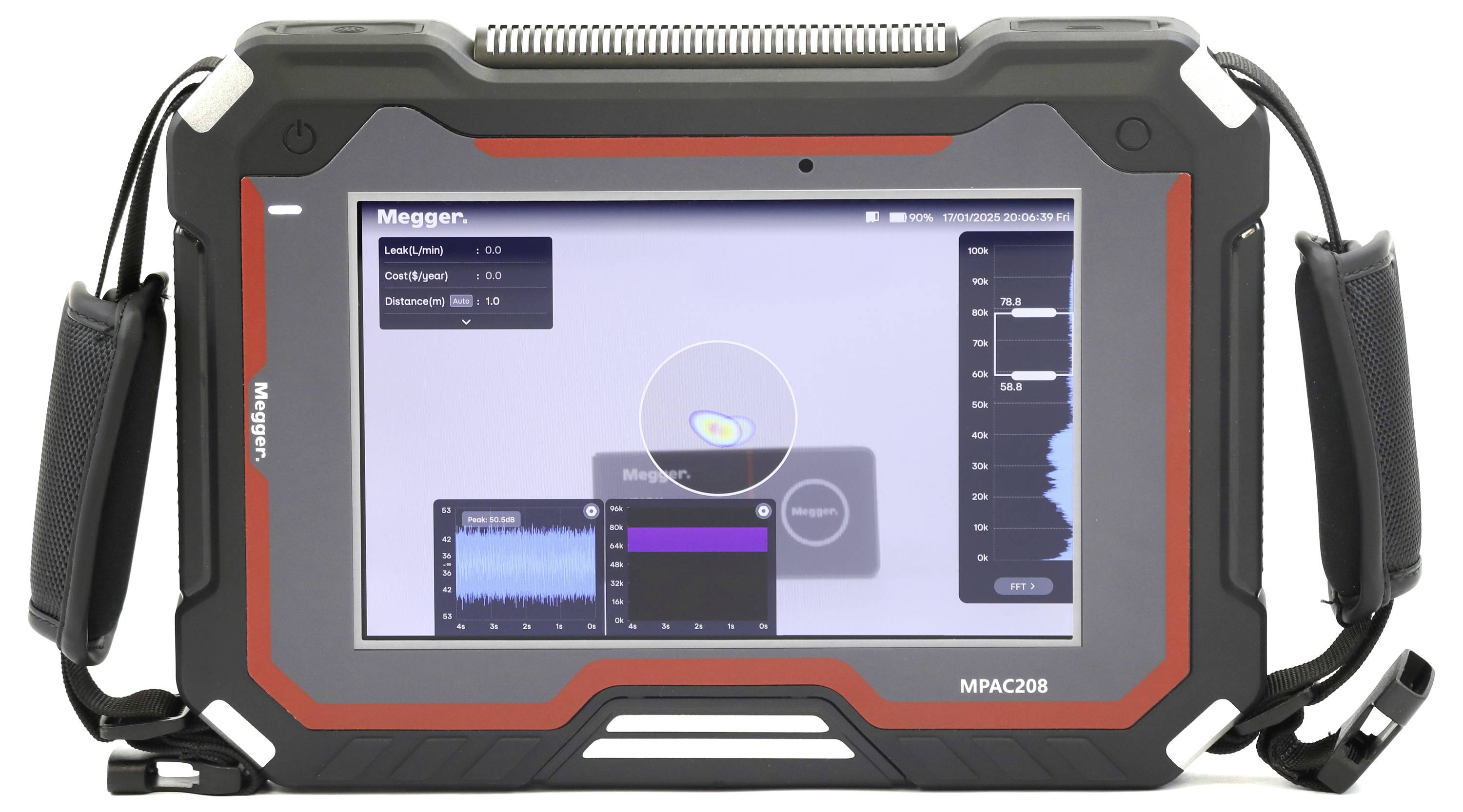

A rugged handheld device displaying data graphs with a focus on power analysis results. Heavy-duty design with side handles.

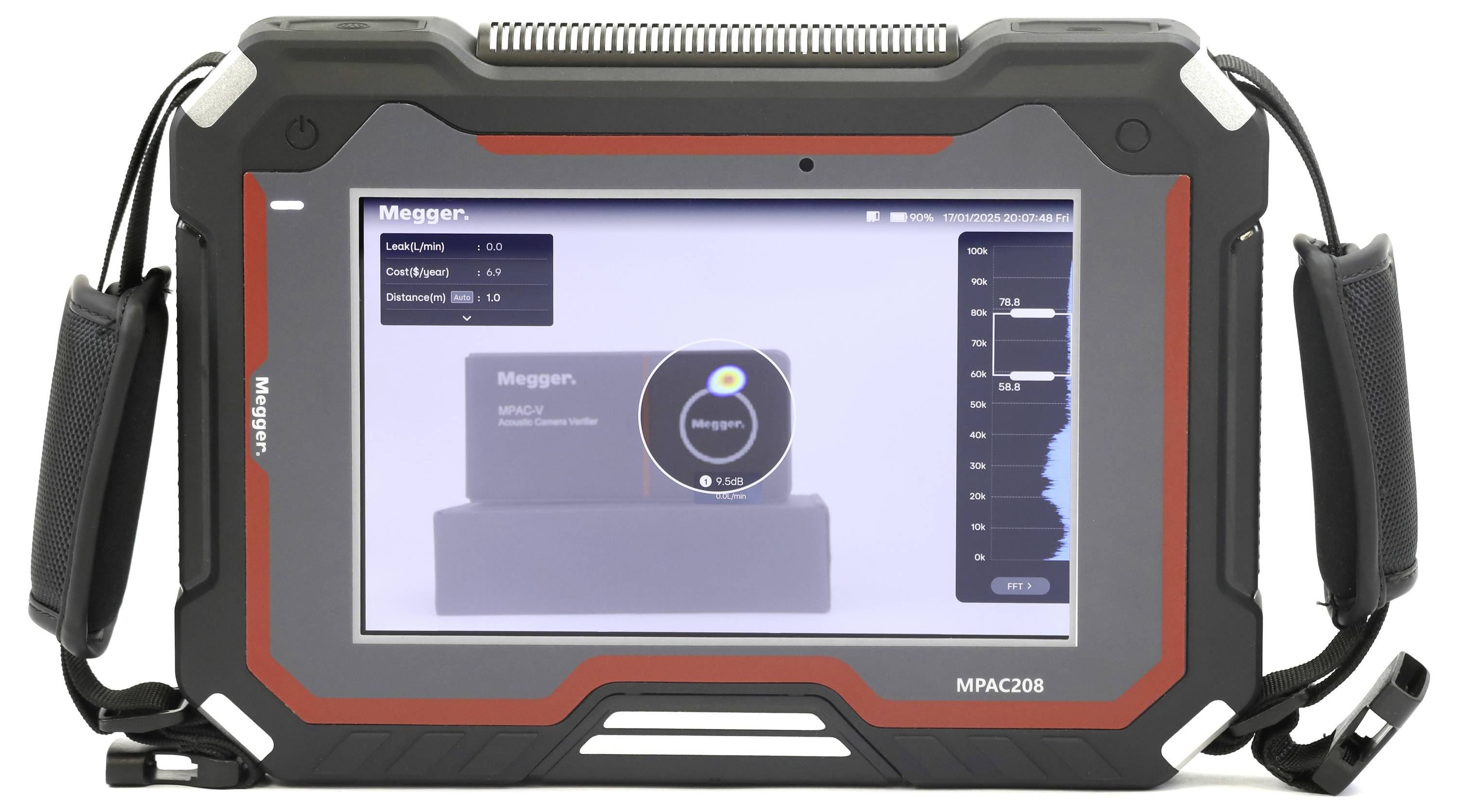

A rugged handheld device displays electrical measurement data on its screen, including lead resistance and conductance values.

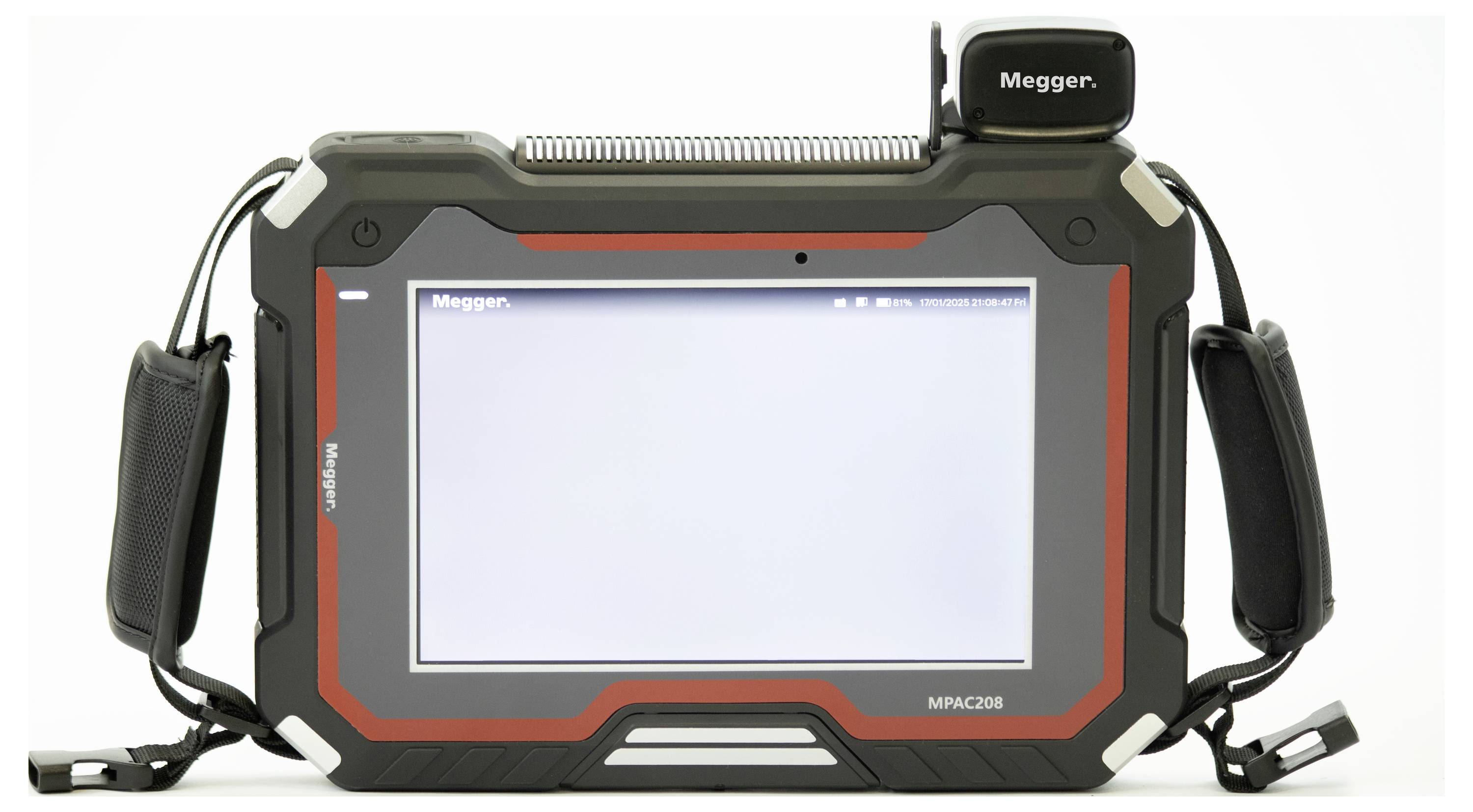

Handheld device with a screen, labeled 'Megger', used for testing and diagnostics, featuring a rugged design with side grips.

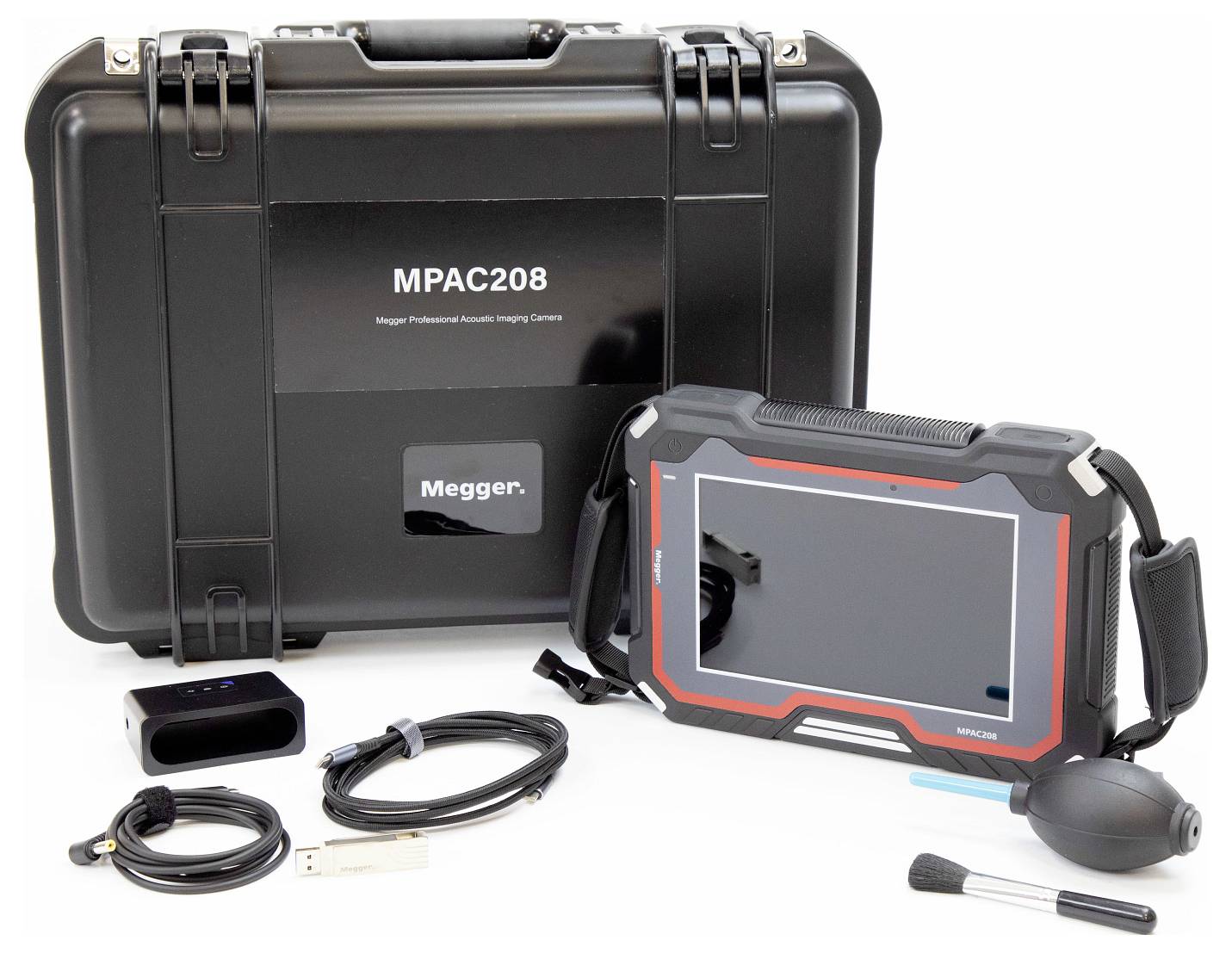

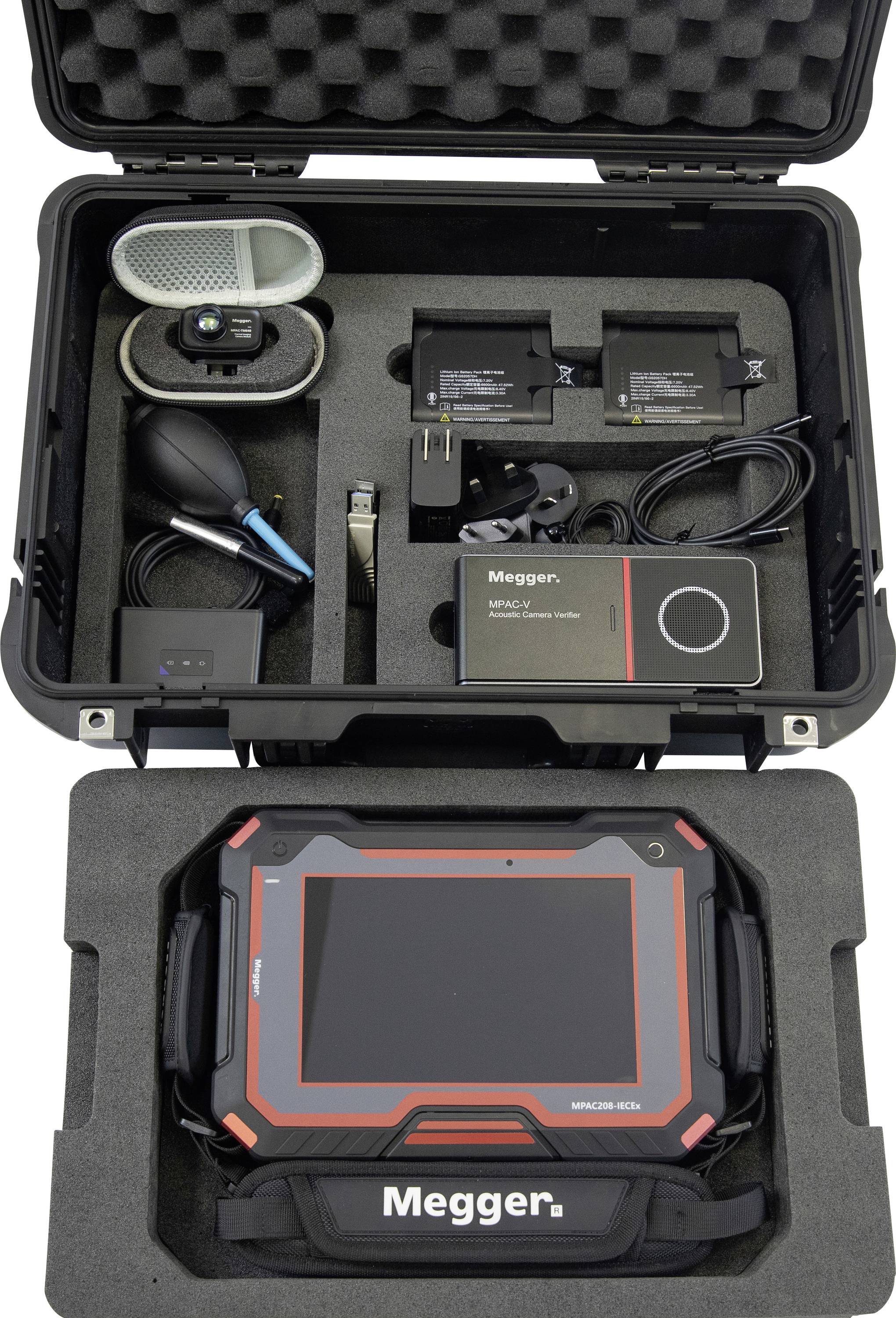

'Megger Professional Acoustic Imaging Camera MPAC208' kit with a black protective case, tablet, cables, USB, and accessories.

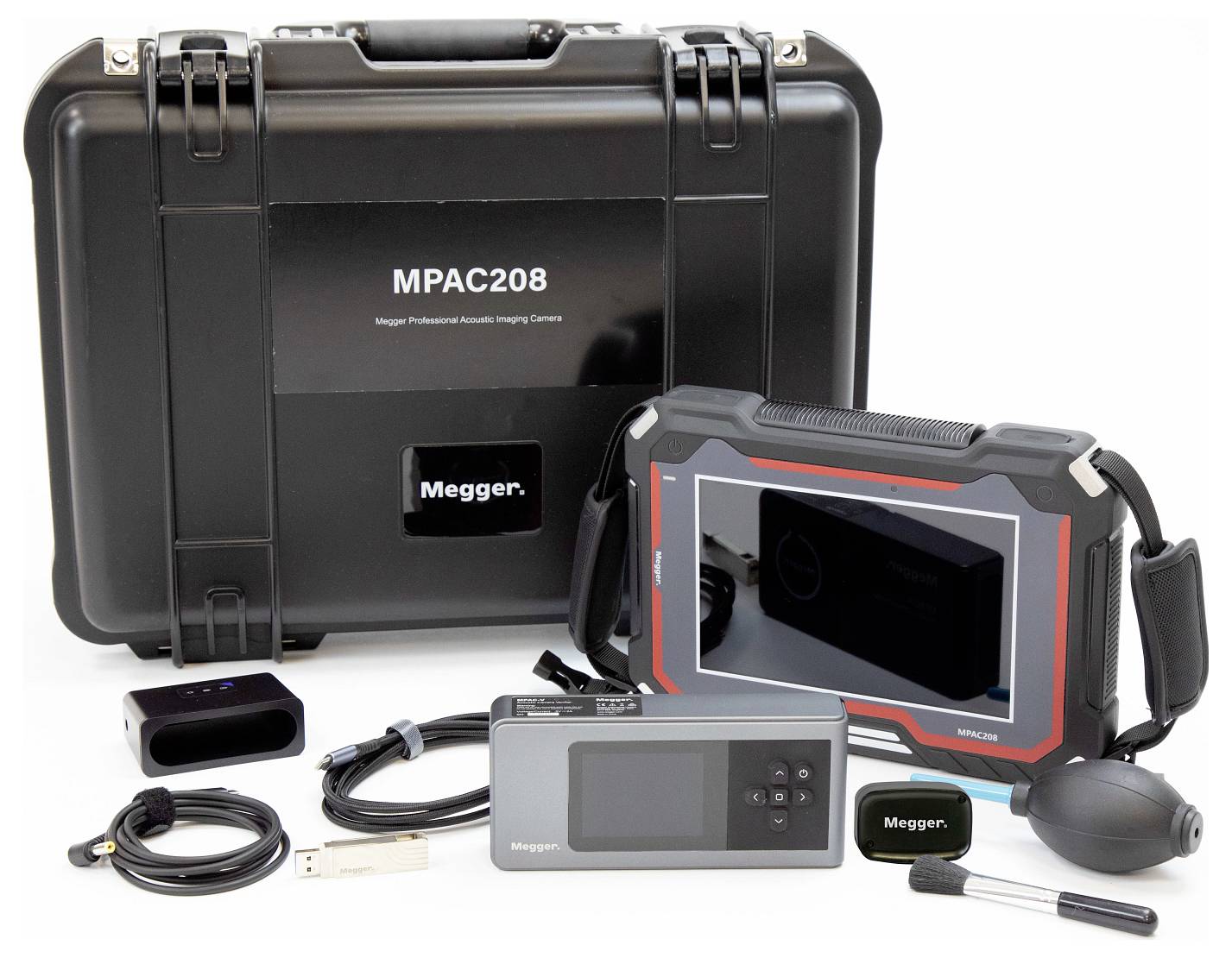

'MPAC208 Megger Professional Acoustic Imaging Camera' kit including display, control unit, cables, and accessories in a case.

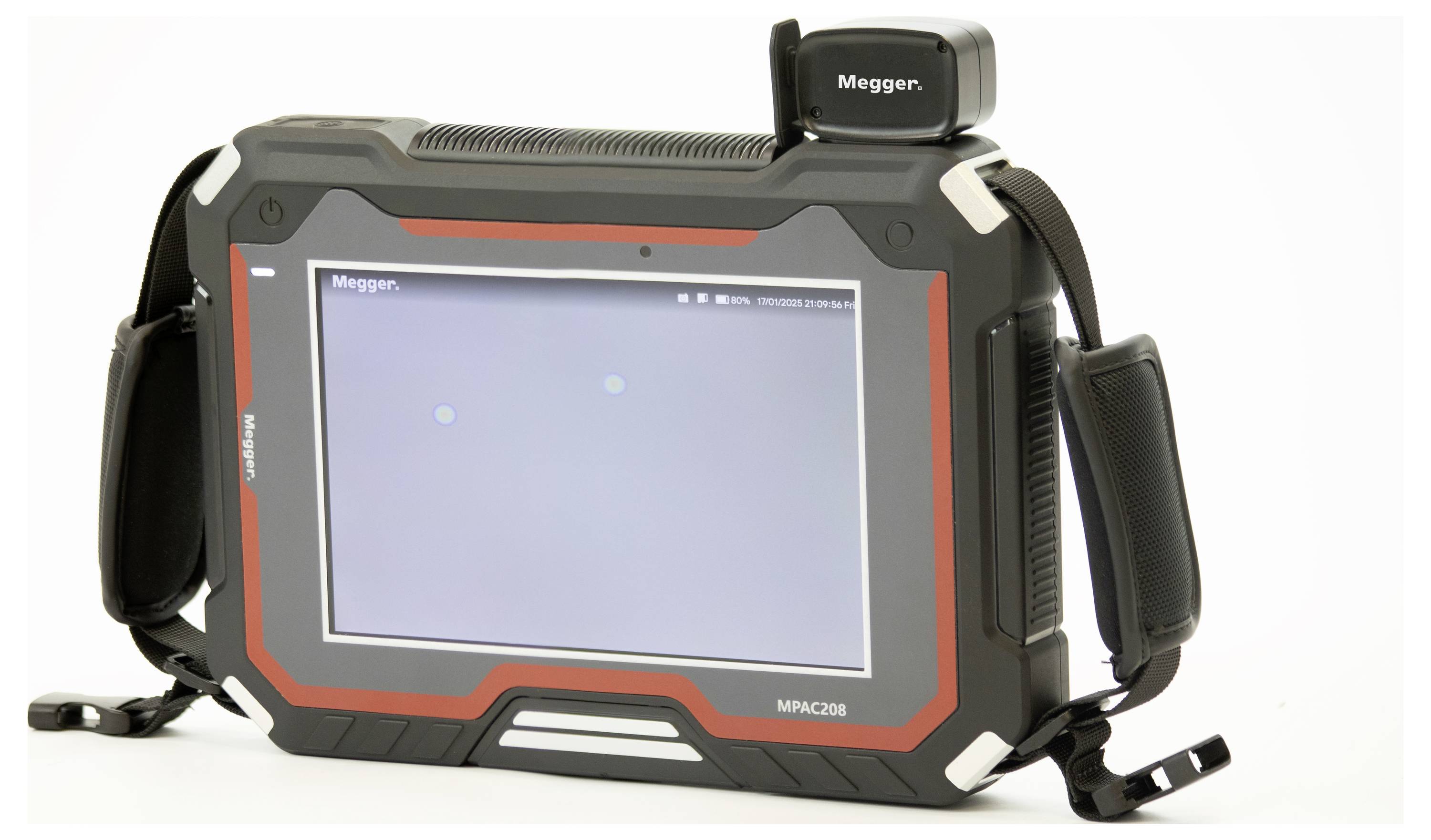

'Portable electrical diagnostic instrument with a touchscreen display, labeled Megger MPRT, used for testing and calibrating equipment.'

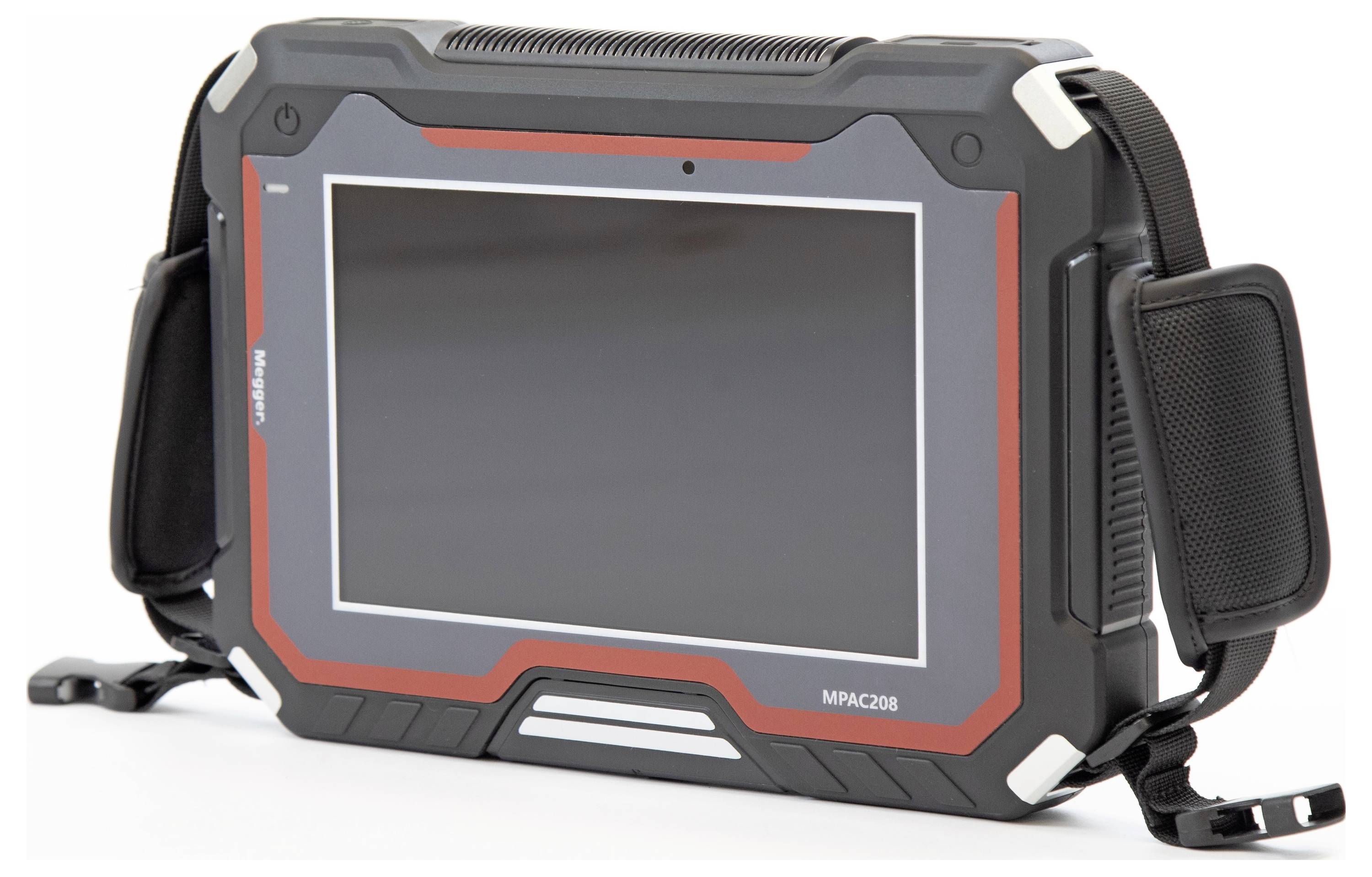

Rugged black and red tablet with a protective case and handle straps, designed for durable outdoor or industrial use.

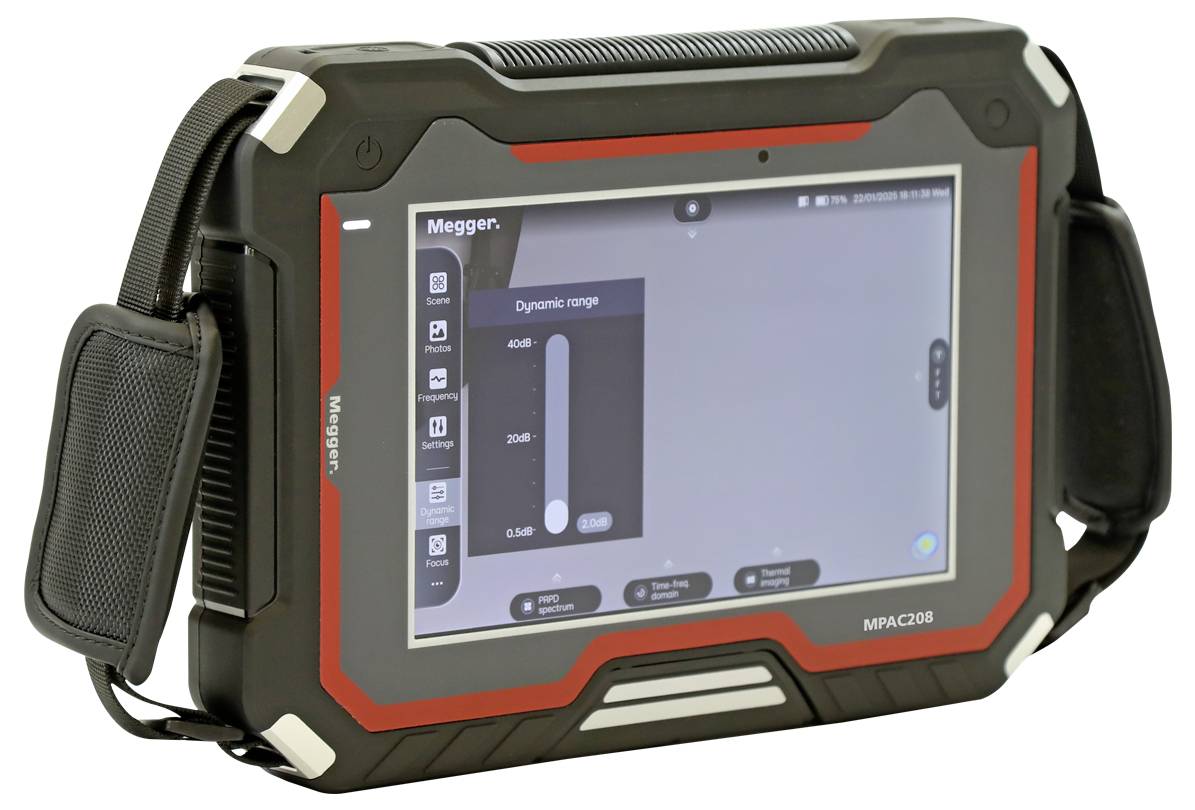

'Portable electronic device with a touchscreen displaying a menu labeled 'Dynamic range'. The device has a rugged black and red casing.'

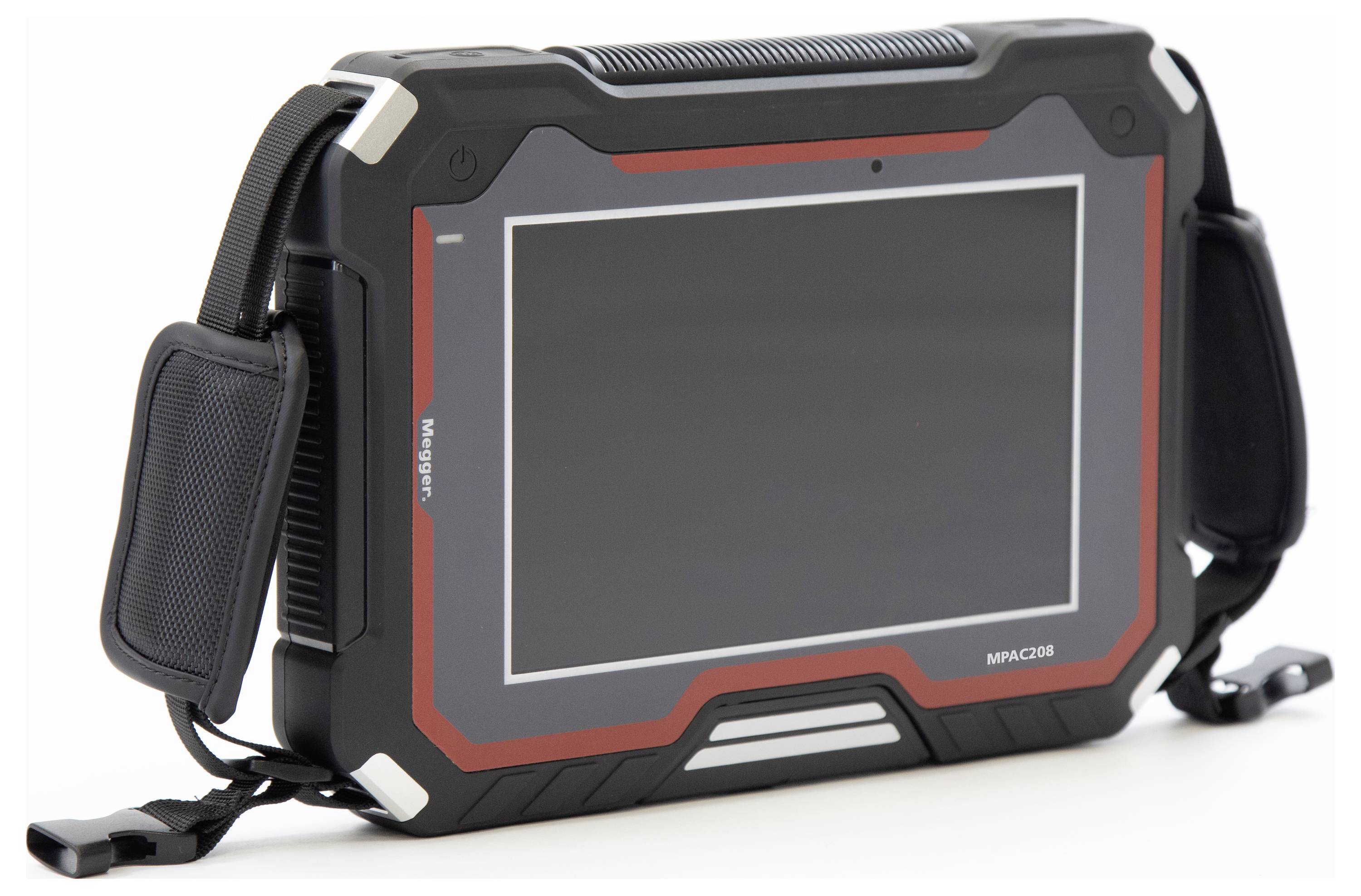

A rugged tablet with a black and red casing, designed for tough environments, featuring a screen and side handles for portability.

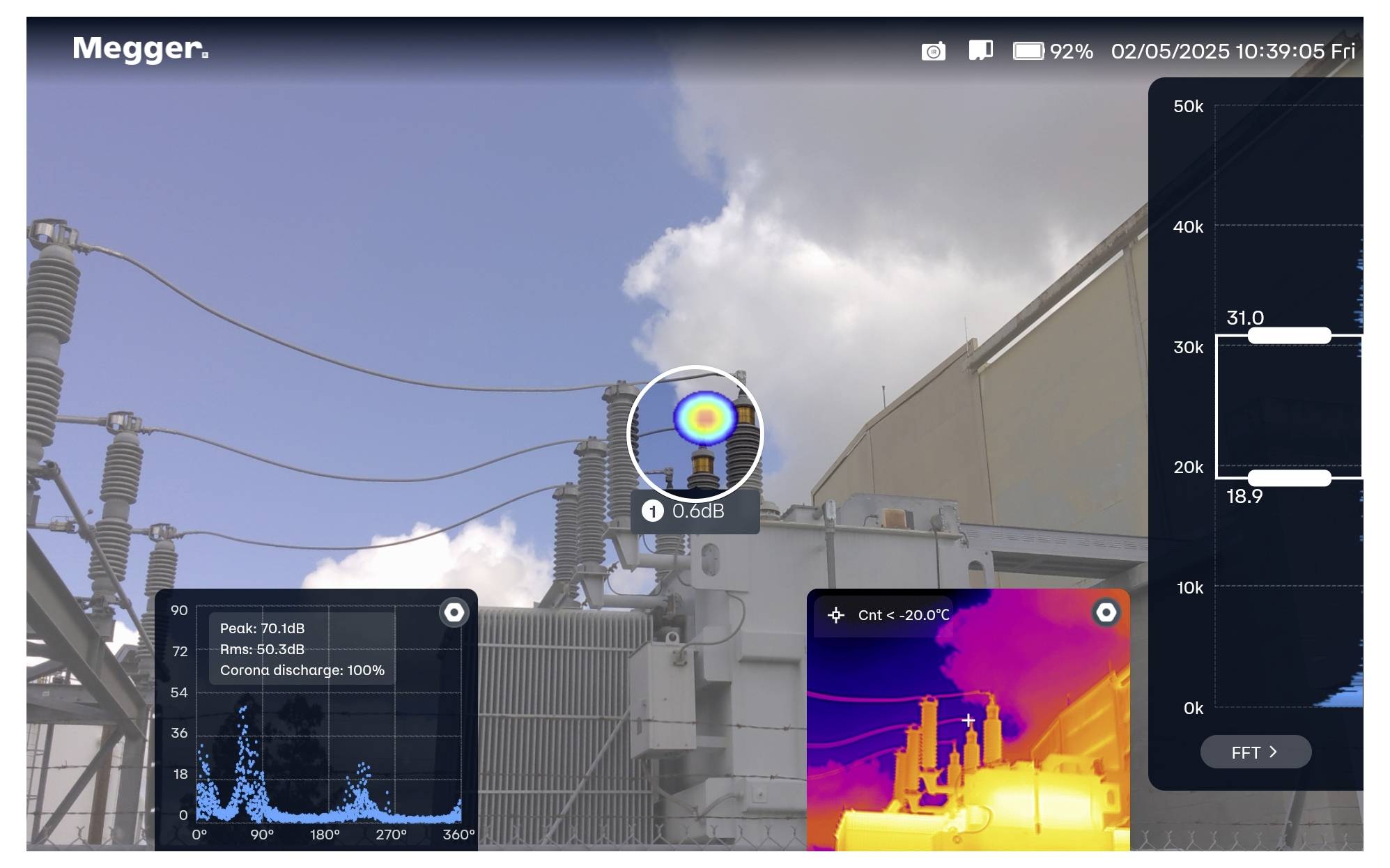

A technician uses a diagnostic device on power lines for corona discharge analysis, with data displays showing peak and discharge percentage.

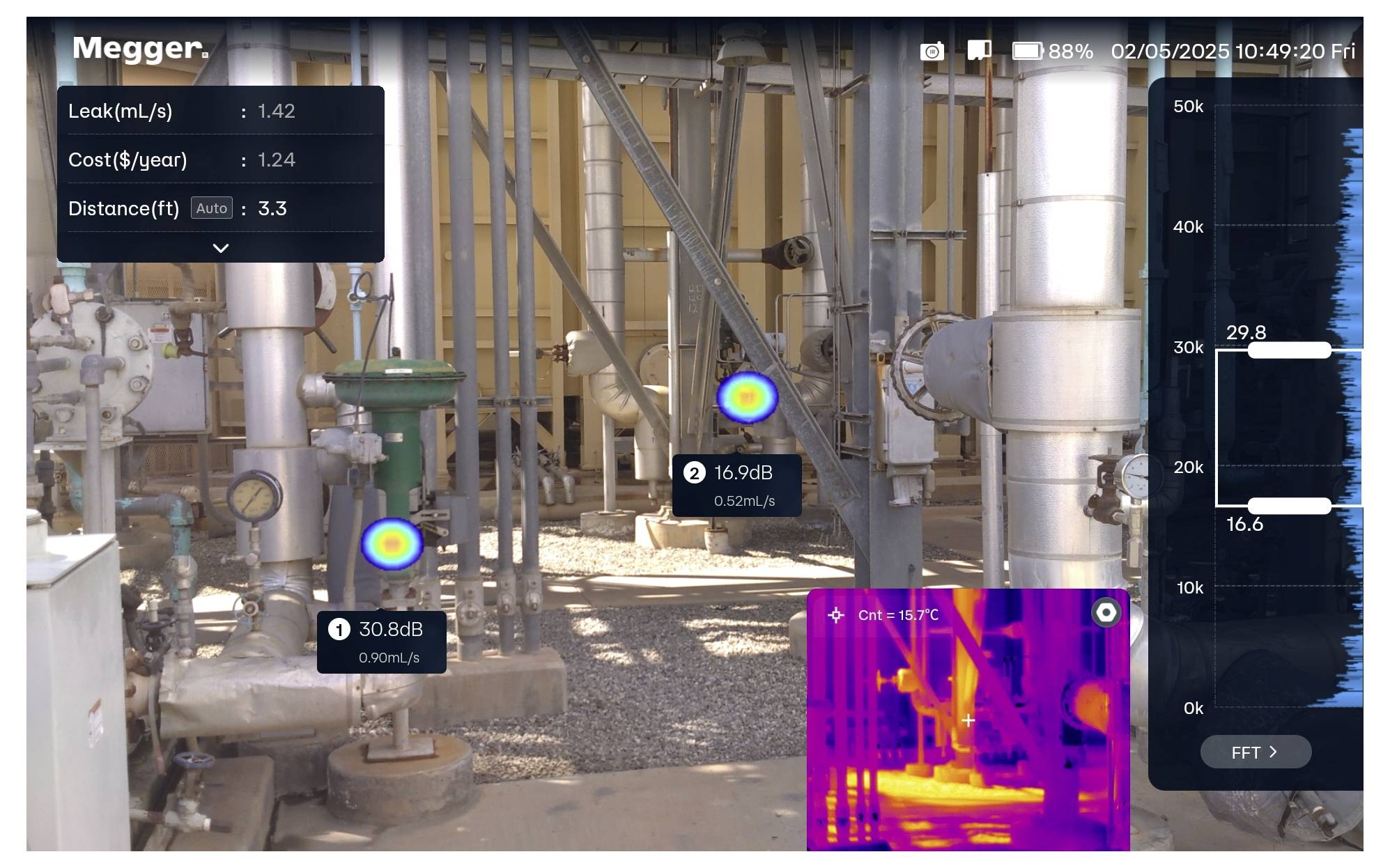

'Image showing an industrial setting with infrared data analysis. Labels indicate leak detection of 1.42 mL/h and cost/savings info. Thermal imaging is displayed.'

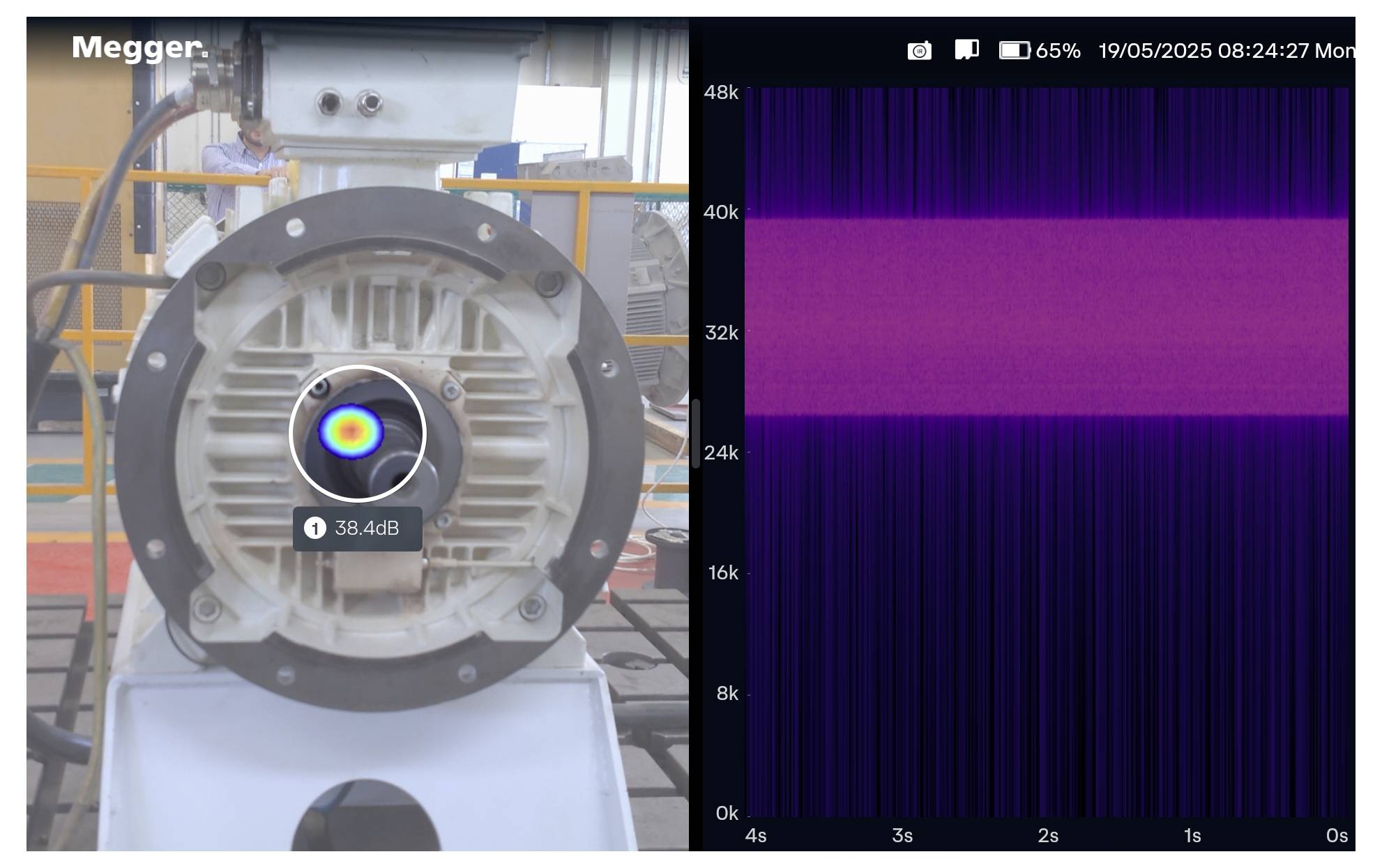

An electric motor is shown with a sound intensity reading of 38.44 dB. A corresponding sound profile graph on the right displays frequency data.

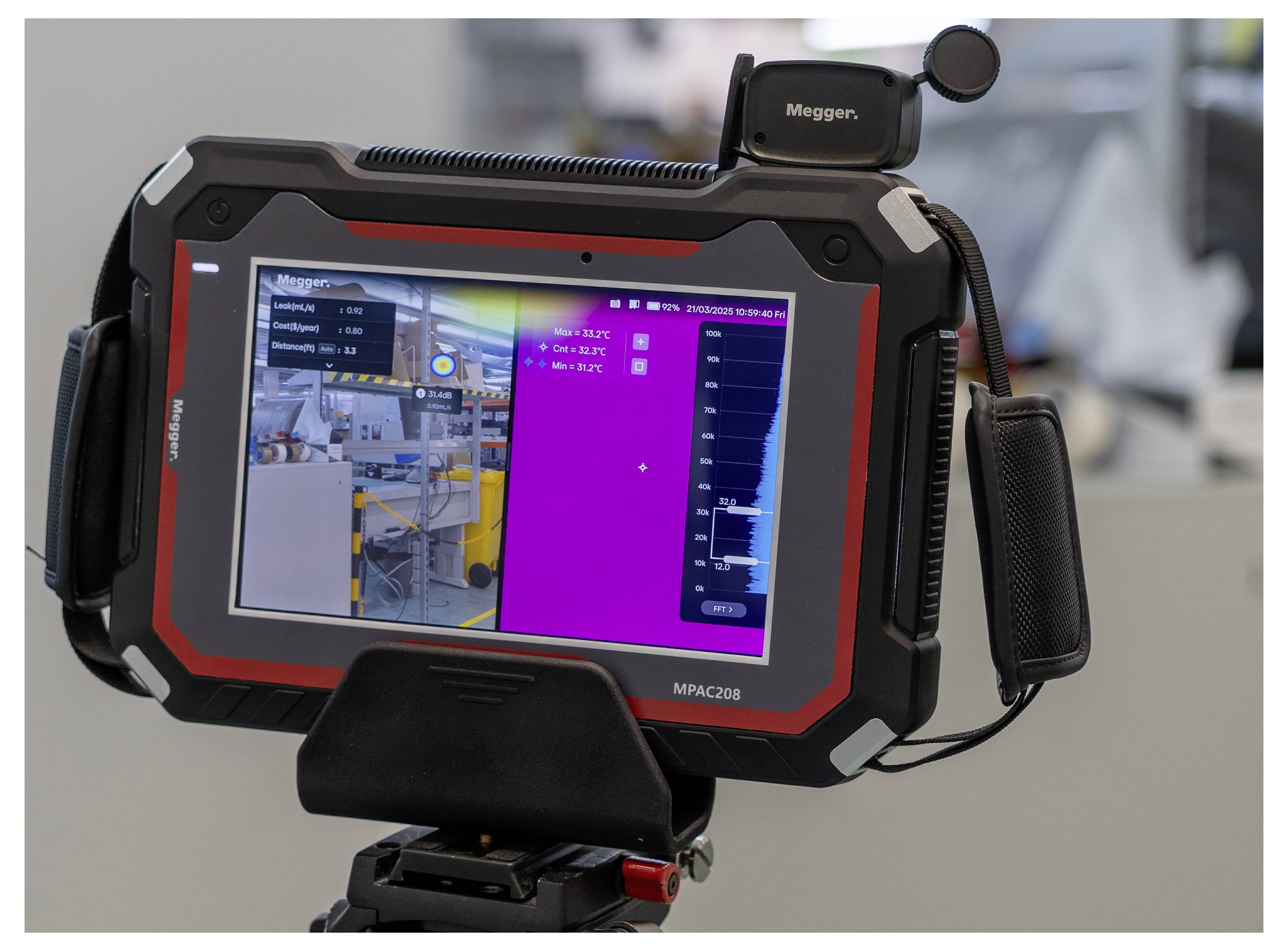

A tablet device showing a live image of an industrial workspace corner with measurement data displayed on the right side of the screen.

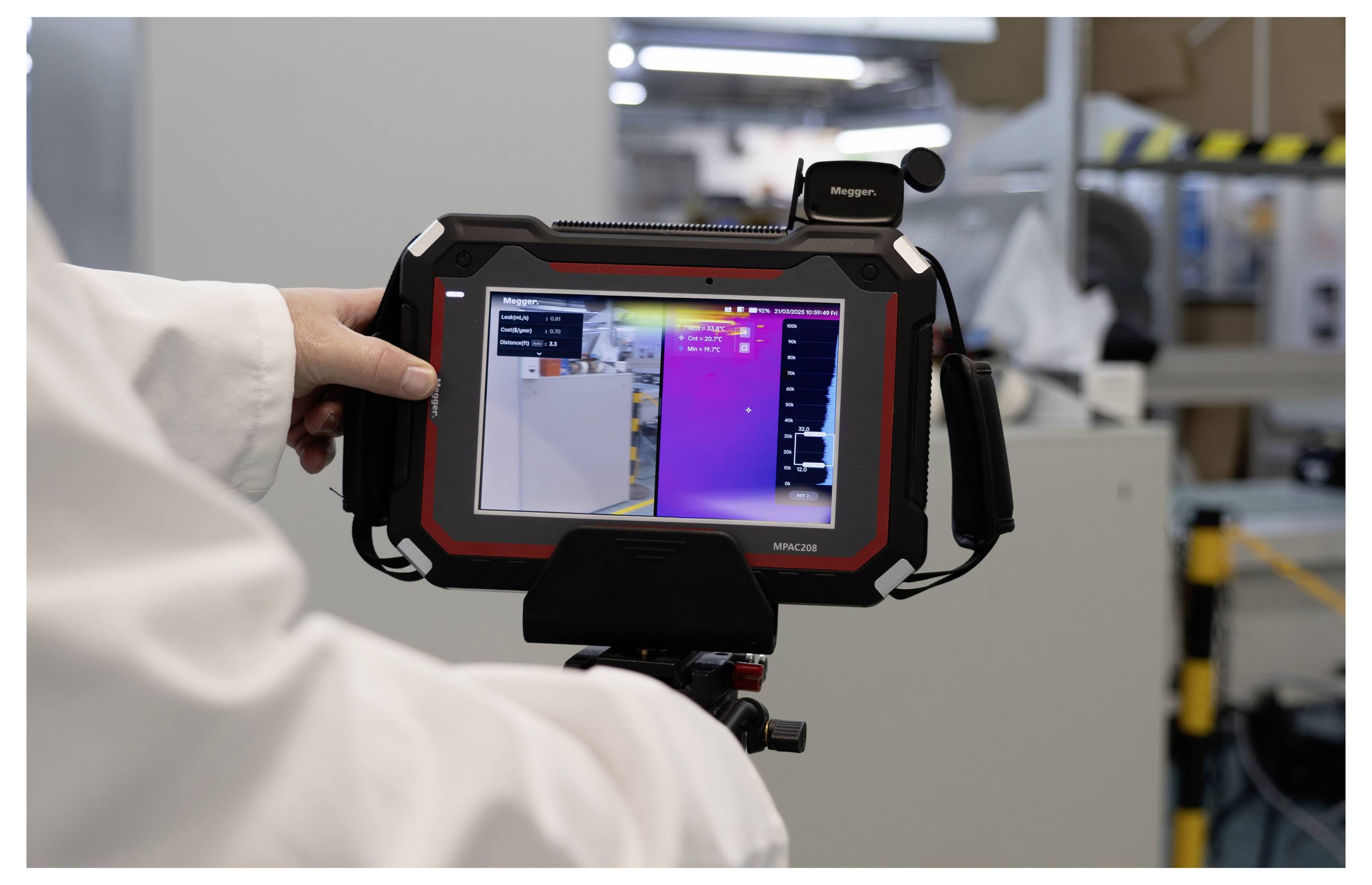

A person in a lab coat holds a thermal imaging device showing a color-coded heat map on the screen, used for monitoring equipment temperature.

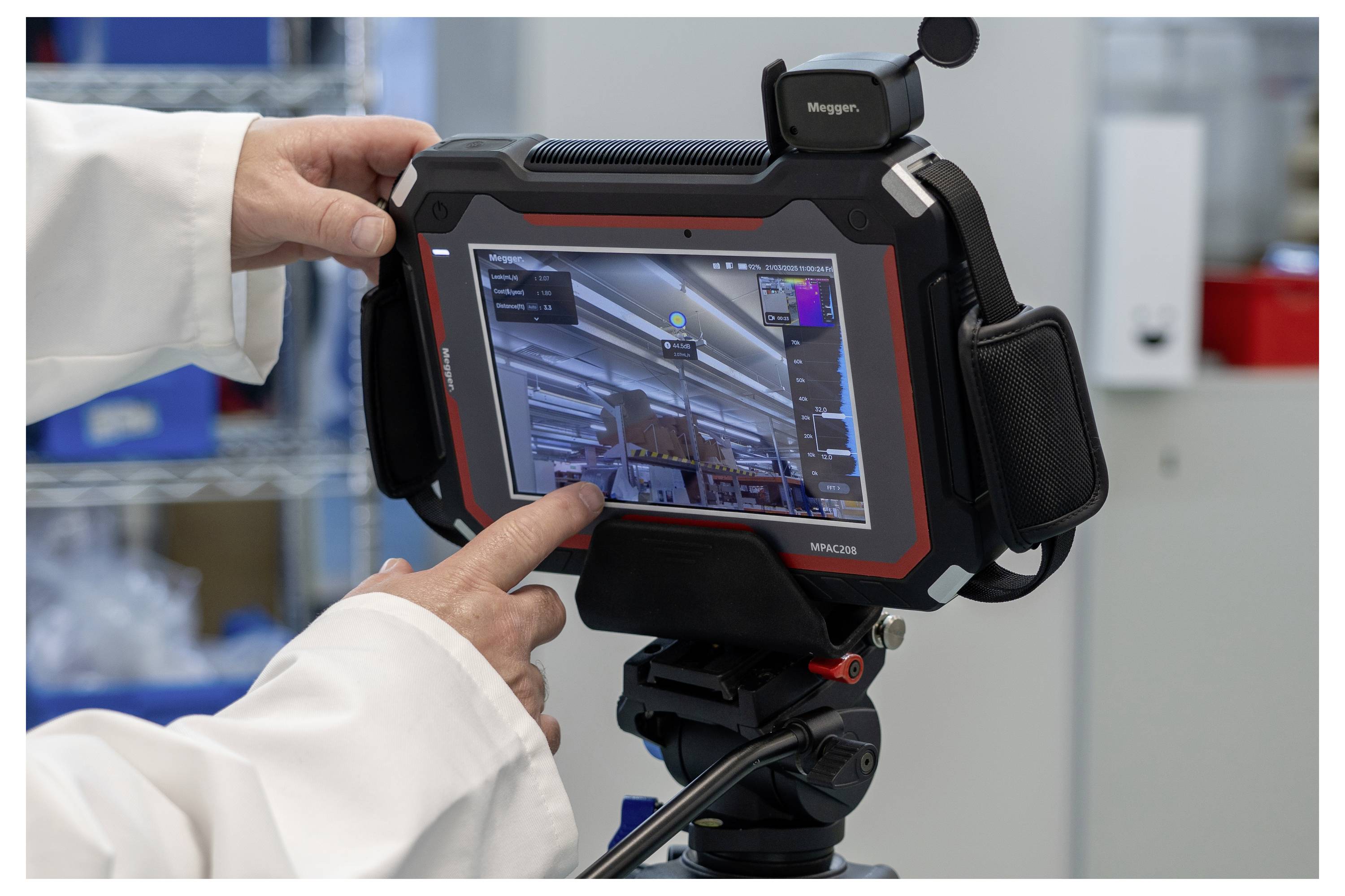

'Person using a handheld device with a screen showing a technical interface, possibly for inspection or diagnostics in a lab setting.'

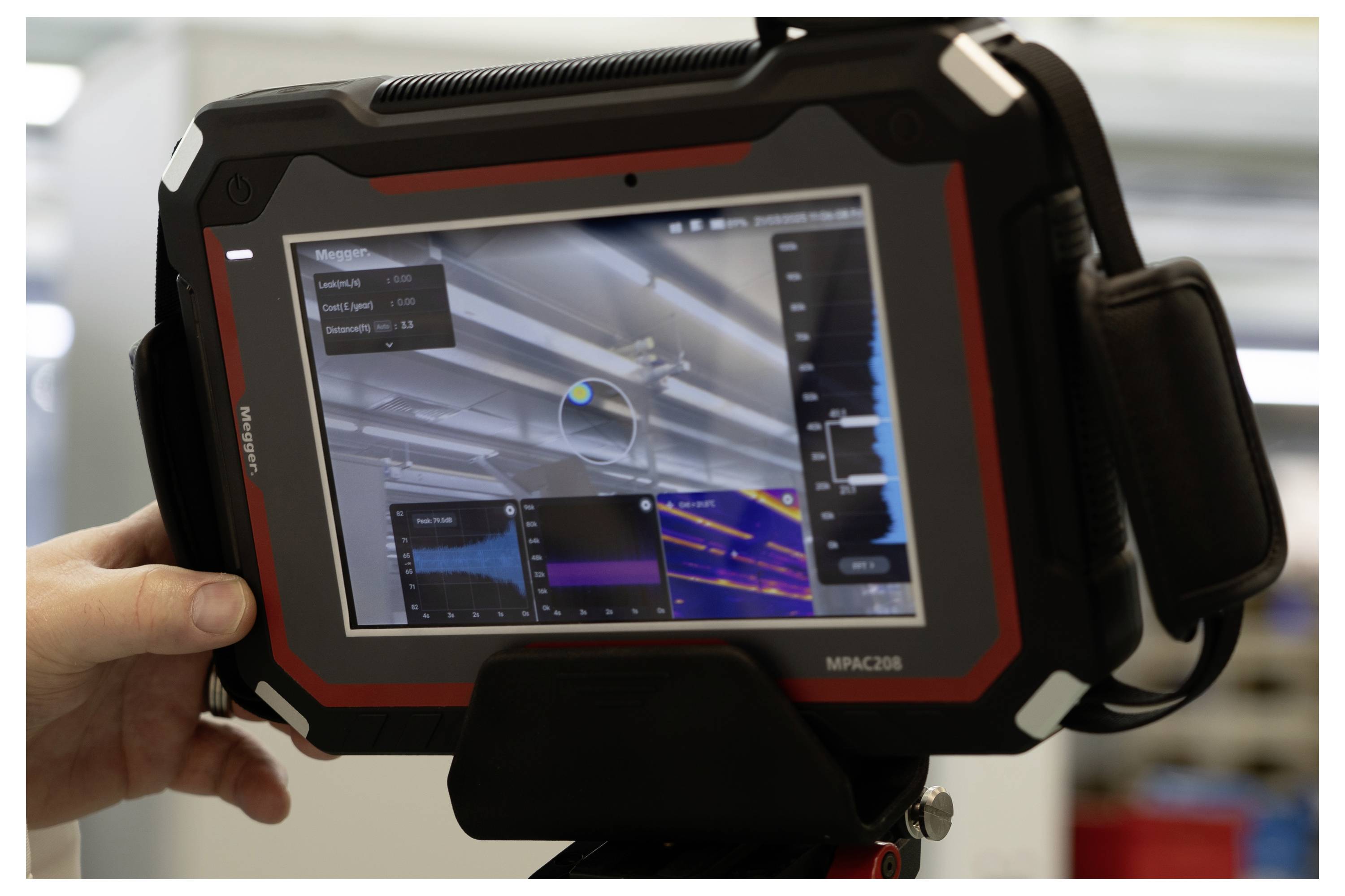

Hand holding an industrial tablet displaying complex data charts and a color-coded diagnostic interface, used for equipment analysis.

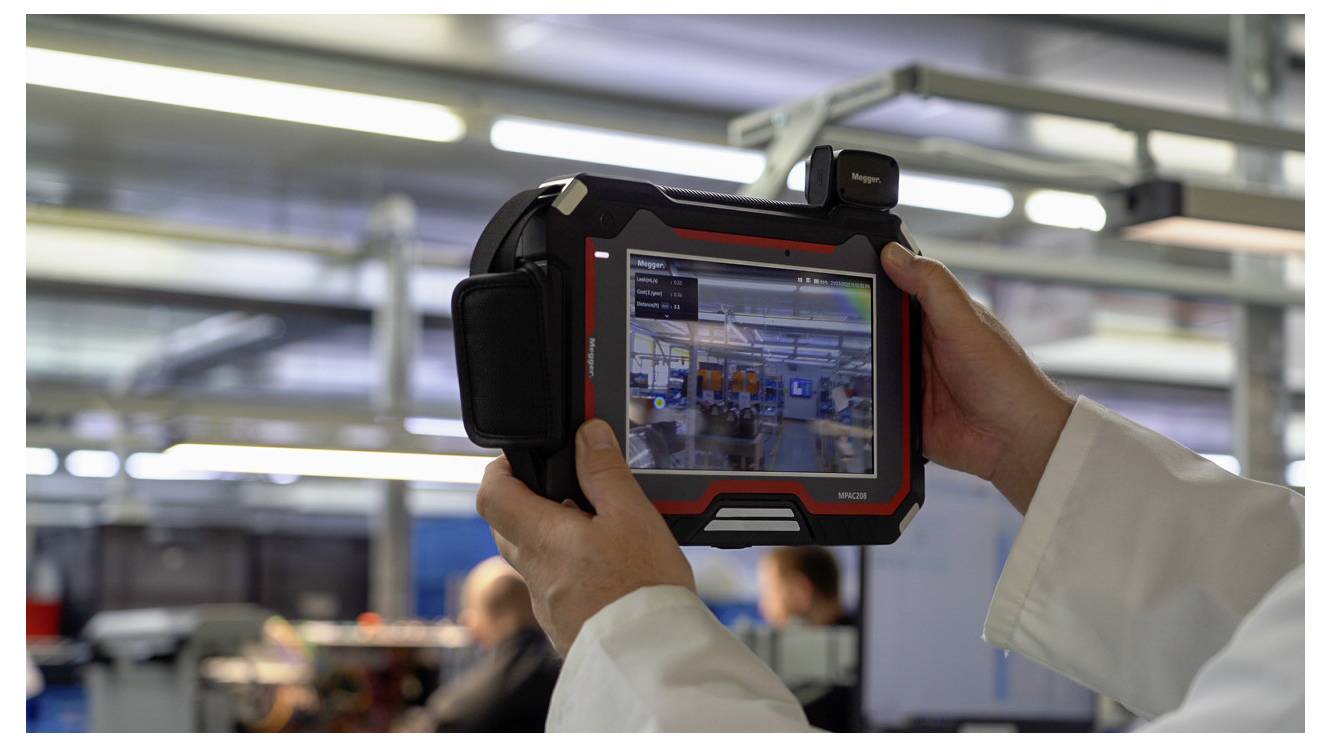

Person in lab coat holds a tablet device displaying a digital interface, capturing a live image of a manufacturing facility interior.

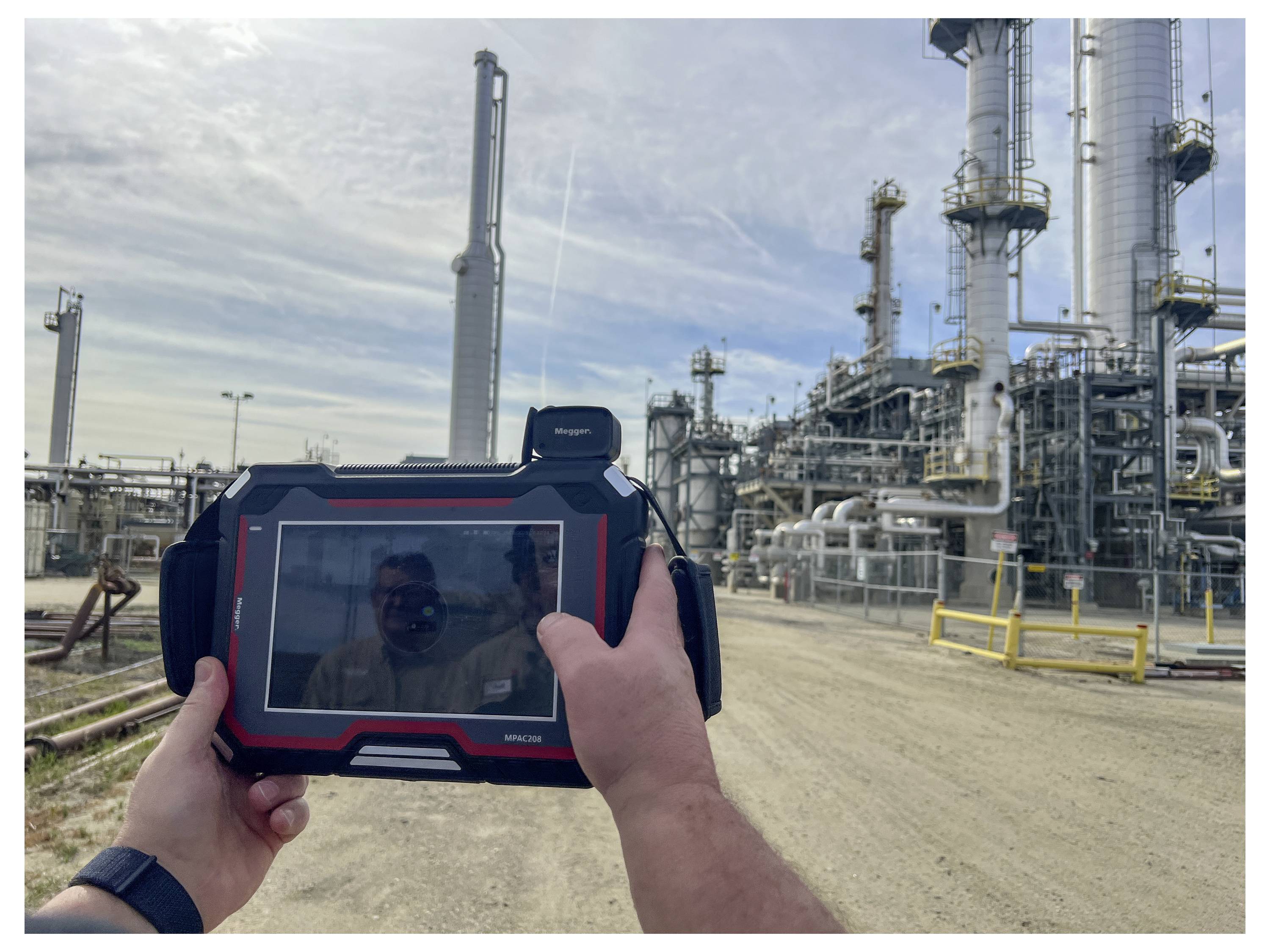

A person holds a tablet with a visible industrial plant in the background, capturing the facility's image and possibly monitoring data.

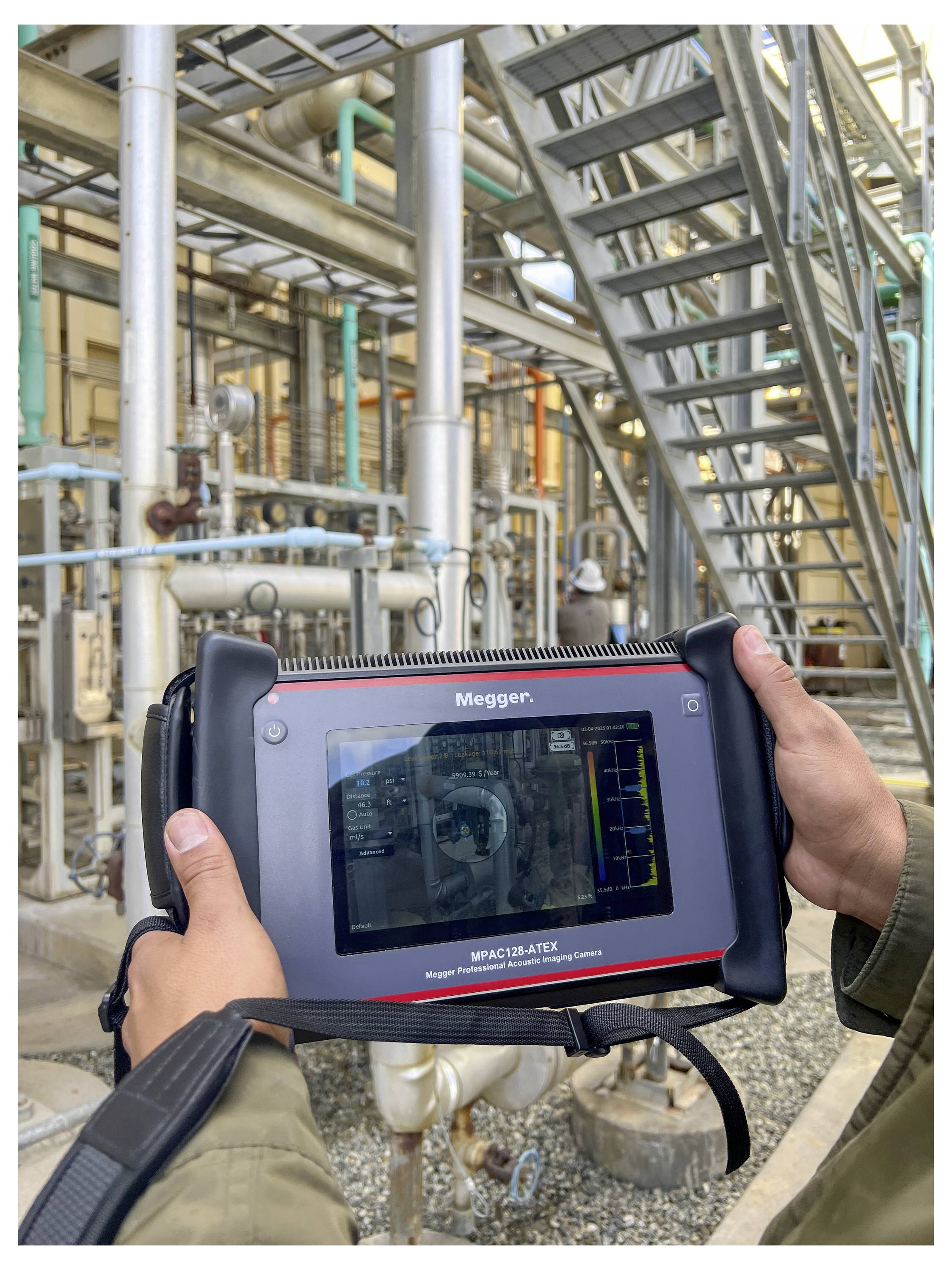

A person holds a diagnostic device with a screen displaying technical data, used for assessing industrial equipment, amidst complex piping.
1/21
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 25,149.00 / piece)
€ 25,149.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

MPAC208 Pro Kit with MPAC208 acoustic camera

  • Precise leakage detection
  • Extended electrical inspection
  • Detection of mechanical faults
  • Leakage Rate Assessment with Quantification
  • Noise suppression with focus function
  • Optional thermography modules
  • Visualisation via acoustic spectrograms
  • Time range diagram
  • Software for acoustic analysis
  • Field upgradeable firmware
  • Guidance with SoundScan™
  • Conversion of ultrasound into audible tones

Technical specifications

  • Leakage rate quantification
  • PRPD charts for TE
  • 6x digital zoom
  • 8" (700 Nit) touchscreen
  • 10h battery life (2 batteries)
Reading range

-20 to 550 °C

Product type

Acoustic camera

Unit of measurement

Temperature

SPL

Reading range

0.3 - 200 m

Accuracy

3 %

Dim

(L x W x H) 270 x 190 x 51 mm

Resolution

1920 x 1200 p

Weight

1.4 kg

Reading range (max.)

200 m

Reading range (min.)

0.3 m

Width

190 mm

Height

51 mm

Length

270 mm

IP54

Power supply (details)

7.2 V

Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3639741 Megger MPAC208 Pro Kit Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

Datasheet 3639741 Megger MPAC208 Pro Kit Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3639741 Megger MPAC208 Pro Kit Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

Description

The Megger MPAC208 professional acoustic imaging camera is a state-of-the-art diagnostic tool for detecting and analyzing ultrasound patterns that enables fast and reliable identification of gas leaks, mechanical defects and electrical partial discharges in a variety of industrial environments. With advanced functions for localizing and processing noise, this device optimizes the work processes during maintenance and enhances the safety.

This text is machine translated.

Features

  • MEMS microphone array with 208 channels
  • 100 kHz bandwidth
  • Detection range up to 200 m
  • Optical resolution of the camera 13 MP
  • 8 inch touch-screen
  • 10 hours battery life (2 x 5 hours battery sets)
  • Gas leak, TE and mechanical modes
  • Optional thermography modules

Scope of delivery

  • Acoustic imaging camera MPAC208
  • MPAC-V Verifier / ultrasonic generator
  • Thermo module MPAC-TM640 (640 x 512 pixels)
  • 2x intelligent battery set including charging station
  • Carrying case, headphones and shoulder strap
  • 64 GB microSD-Card including card reader and USB-Stick
  • Analysis software for acoustic and thermal data
