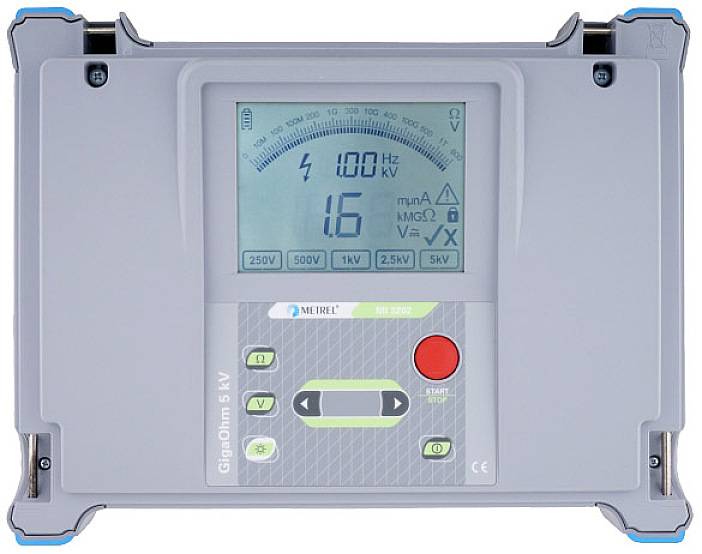

Metrel MI 3202 Insulation tester
EAN:
Part number:
Item no:
Number
Total (€ 2,625.00 / piece)
€ 2,625.00
incl. VAT
14-day return policy included
Highlights & Details
GigaOhm 5 kV
- Measuring range 1 ohm; Five test photovoltaic up to 5 kV; Large LCD screen with backlight; Applications in industry and power distribution.
Technical specifications
- Product type
Insulation tester
- Reading type
Insulation resistance
AC voltage
Frequency
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 31 x 25 x 13 cm
- Weight
3 kg
- Display type
LCD
- Reading category
CAT IV 600 V
- Width
25 cm
- Height
13 cm
- Length
31 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2542967 Metrel MI 3202 Insulation tester
Description
The MI 3202 GigaOhm 5 kV offers a fast and accurate testing of the insulation resistance. Five test voltages up to 5 kV and 1 TΩ resistance measuring range cover most of the use in the industrial and power distribution area. The large backlit analogueue/digital LCD display provides easy reading of test results. The meter is housed in a rugged carrying case that allows it to be used in adverse conditions.
This text is machine translated.
This text is machine translated.
Features
- Measurement functionsInsulation resistance measurementVoltage measurementFrequency measurementMeasurement range up to 1 TΩ.Analogueue scale and digital LCD: The measurement results are displayed both digitally and analogueously.Quick setup: Quick and easy selection of the test voltage (250 V; 500 V; 1 kV; 2.5 kV; 5 kV).Quick check: 5 mA power supply for fast charging of capacitive load.Test lead terminal: For eliminating potential surface leakage currents.Automatic discharge of the test specimen after the test.Safety: Overvoltage protection CAT IV / 600 V.Easy to read: Large, bright LCD with backlight.Built-in battery charger and batteries: The meter has a built-in charger. One set of NiMH batteries is included.High-quality accessories: This meter comes with standard shielded test leads.Portable: Lightweight design (3kg) with carrying handle and shoulder strap.
Scope of delivery
- Instrument GigaOhm 5 kVCarrying case for accessoriesPower cable;Shielded test lead set for 10 kV, 2 m (black, red)Alligator clip set for 10 kV (black, red)Test lead with alligator clip, 2 m (green)6 x 1.2 V NiMH batteriesManual "Modern insulation testing" on CDUser manual
