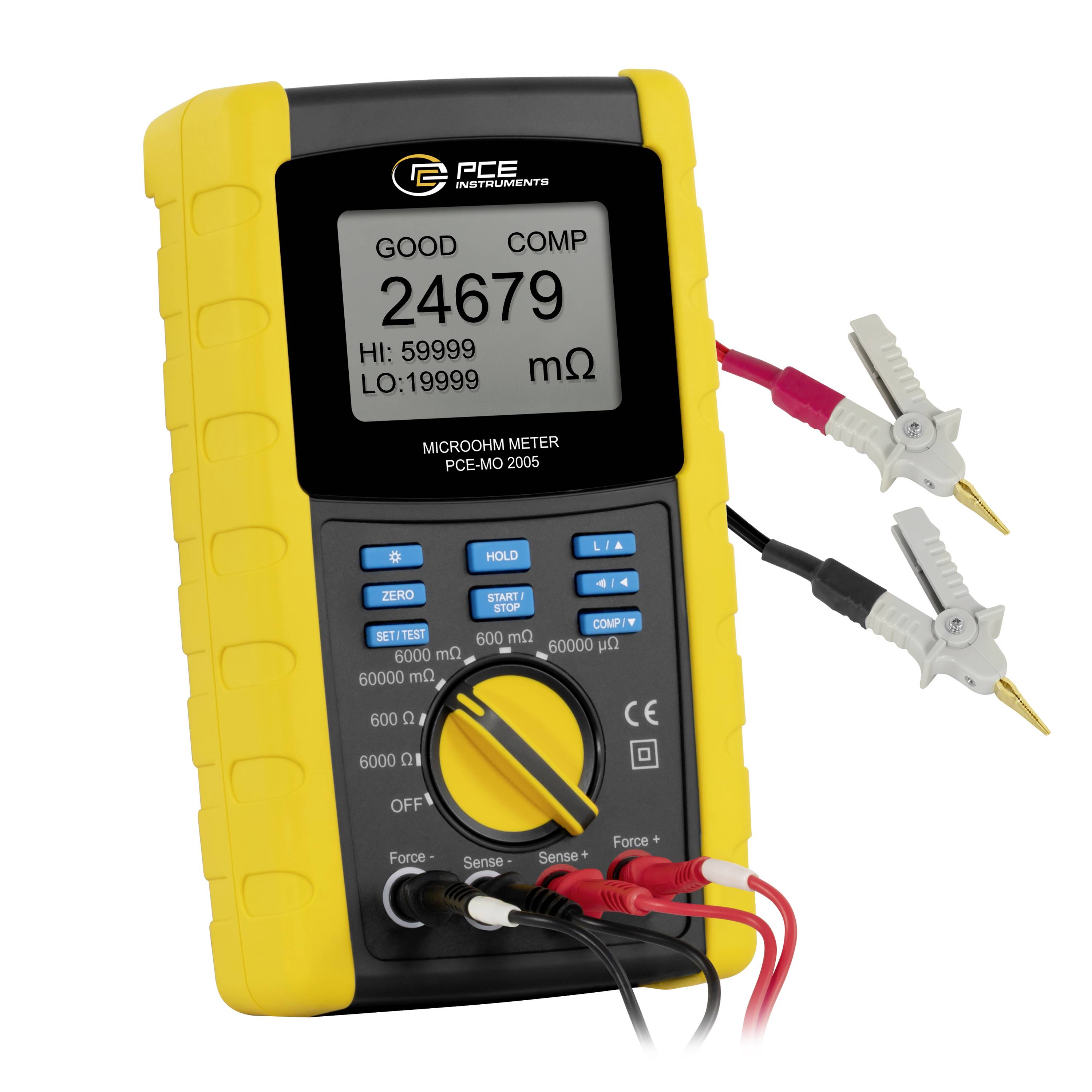

Portable PCE micro-ohm meter with probe clips attached, displaying a resistance reading of 24679 mΩ and 'GOOD' status.

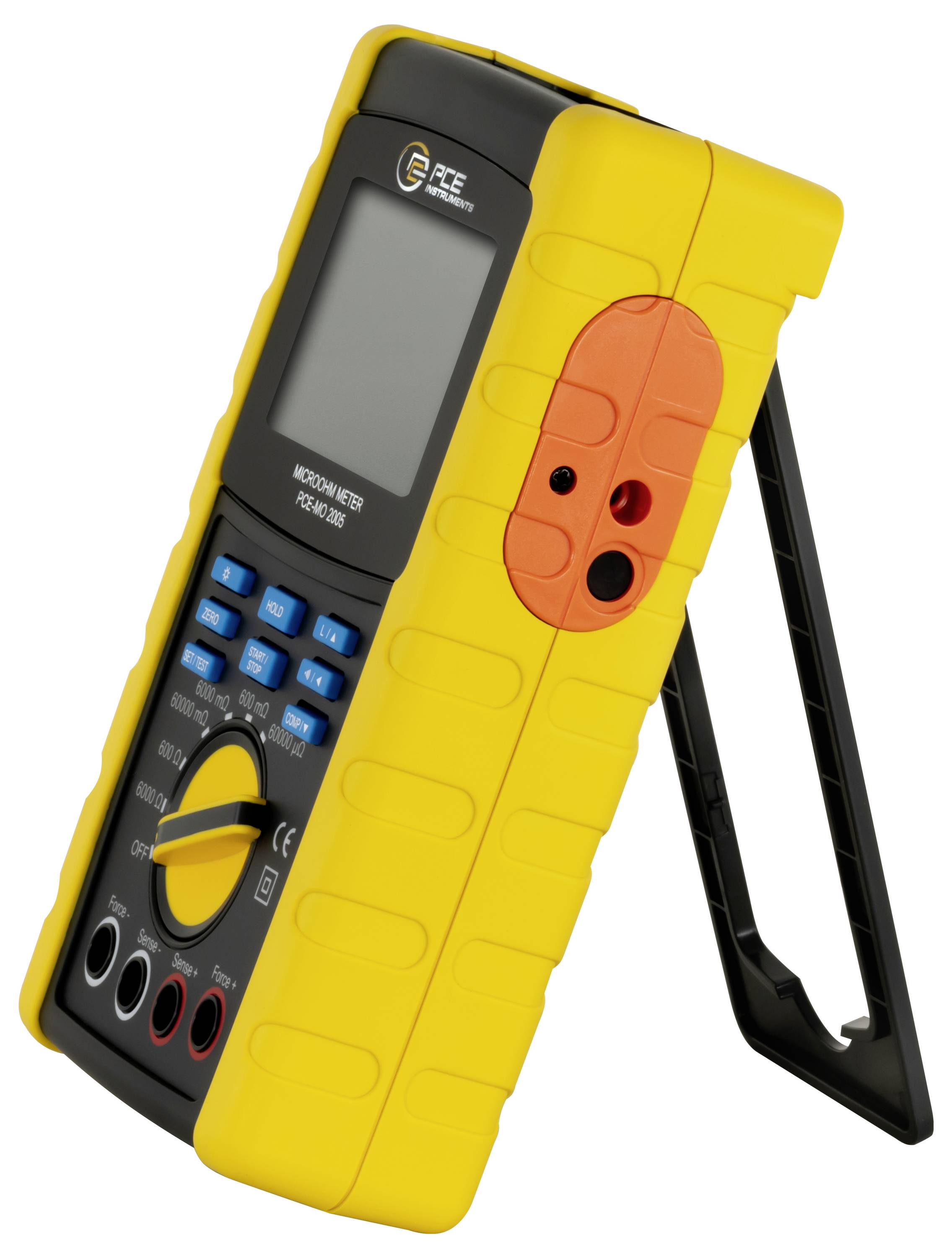

Yellow handheld digital multimeter with screen, keypad, test ports, and a black stand, shown on a white background.

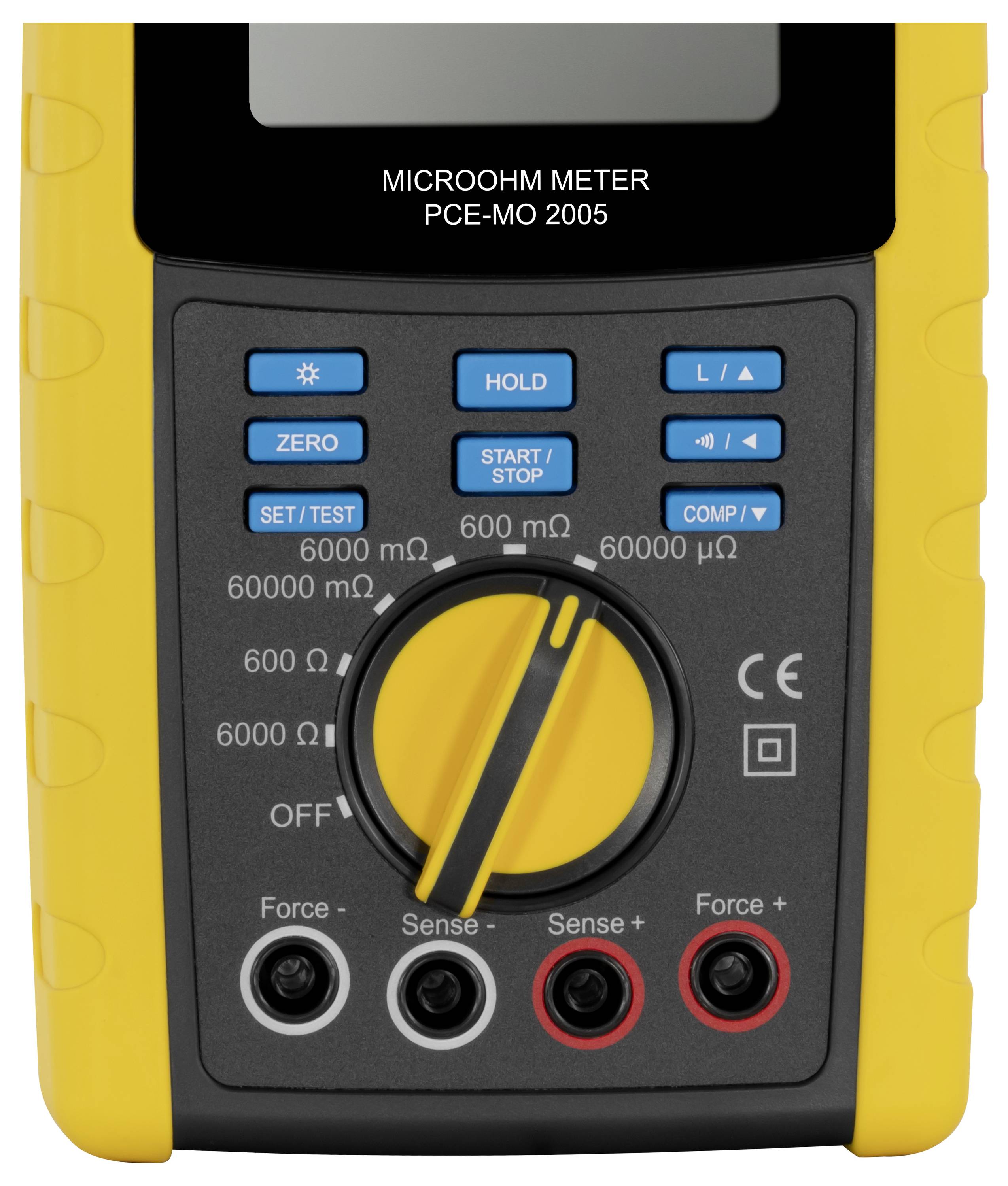

Digital micro-ohmmeter labeled 'MICROHM METER PCE-MO 2005' with a central selector dial and four front test terminals for resistance measurements.<br>

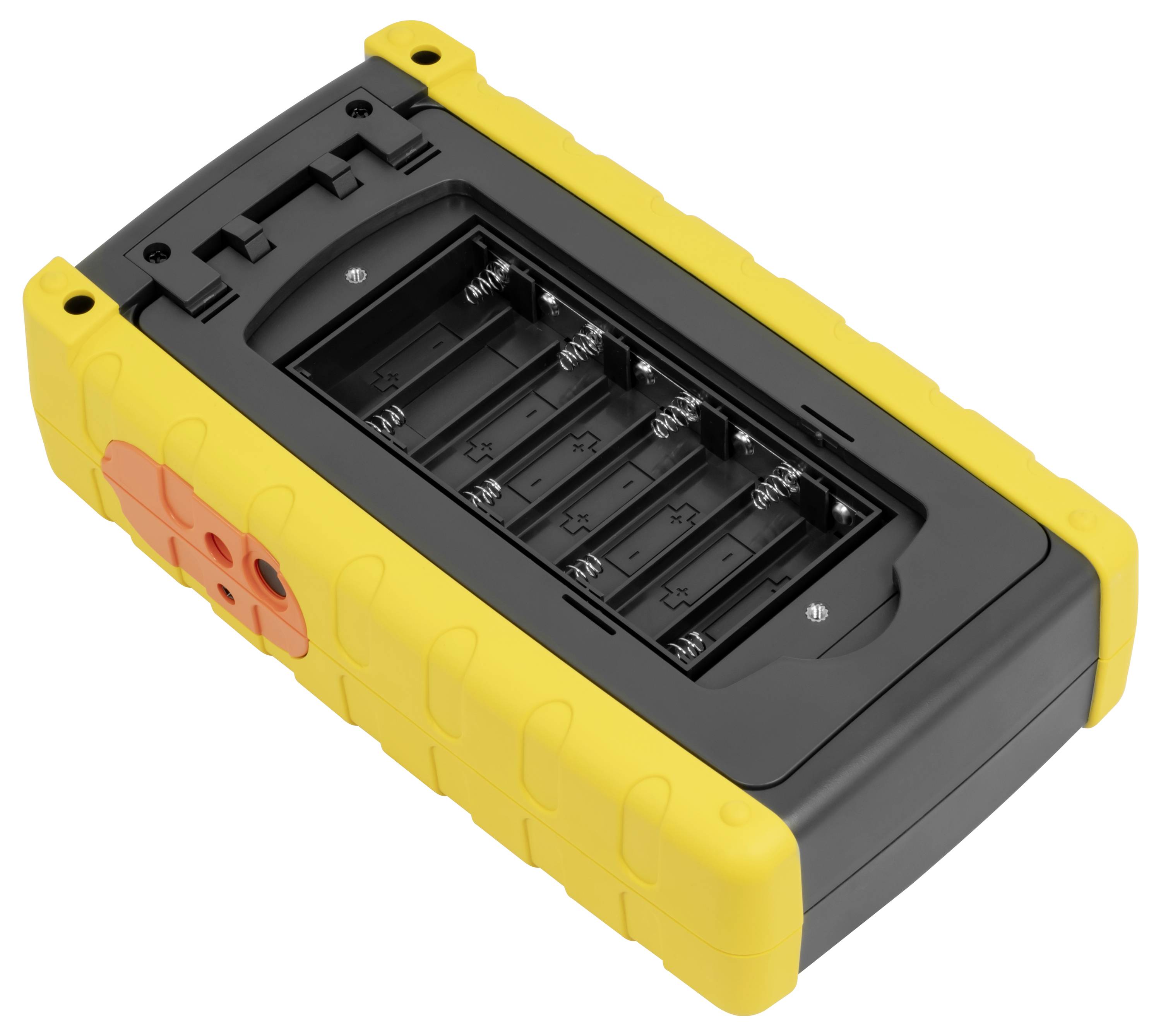

Yellow and black portable battery holder with four empty AA/AAA slots and metal springs, shown on a white background.

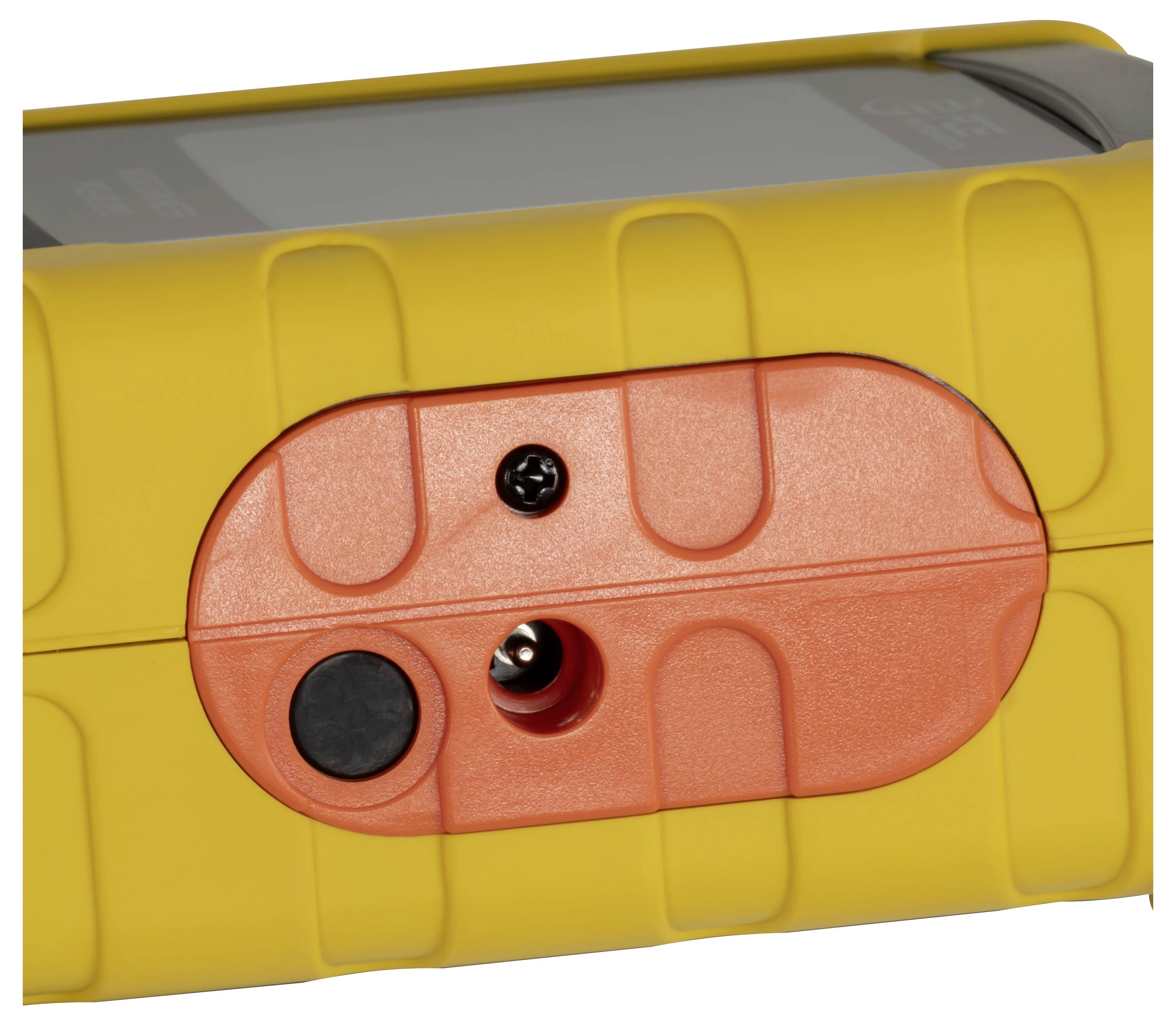

Close-up of a yellow device with an orange oval panel, showing a black button and a central screw or connector port.

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 810.92 / piece)

€ 810.92

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-MO 2005

6 selectable measurement ranges
4-conductor measurement method
3.3 inch LCD
Operating mode: Resistance or inductance
Test current 10 A max. in the range 60000 µΩ
Adjustable limit values
Calculating the cable length
Integrated surge protection
Current and battery mode

Technical specifications

Resistance
Measuring range 0 ... 60000 µΩ
Resolution 1 µΩ
Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
Resistance
Measuring range 60000 µΩ ... 600 mΩ
Resolution 10 µΩ
Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
Resistance
Measuring range 600 ... 6000 mΩ
Resolution 100 µΩ
Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
Resistance
Measuring range 6000 ... 60000 mΩ
Resolution 1000 µΩ
Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
Resistance
Measuring range 60000 mΩ ... 600 Ω
Resolution 10 mΩ
Accuracy ±0.25 % from MW. 25 digits (@ 23 ±5 °C)
Resistance
Measuring range 600 ... 6000 Ω
Resolution 100 mΩ
Accuracy ±0.75 % from MW. +3 digits (@ 23 ±5 °C)
General Technical Data
Measuring functions HOLD
Display type LCD with lighting
Display size 3.3 inches
Interface RS232
Standard(s) EN 61010-1, EN 61325-1
Measuring method 4-conductor method for mΩ measurement
Test current 10 A: 60000 µΩ, 1 A: 600 mΩ, 100 mA: 6000 mΩ, 10 mA: 60000 Ω, 1 mA: 600 µA, 100 Ω: 6000 mΩ
Fuse(s) 10 A / 250 V
Menu language English (US), English (GB)
Protection class (device) IP30
Power supply 100 ... 240 V AC 47/63 Hz
Socket type Safety plug
Battery 8 x 1.5 V AA battery , carbon zinc
Capacity 1200 mAh
Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
Dimensions ( L x W x H ) 220 x 125 x 64 mm
Weighs 777 g.

Reading range - resistance: 600 ... 6000 Ω

Interfaces: 1x RS 232

: IP30

Power supply (details): 1.5 V

Dim: (L x W x H) 220 x 125 x 64 mm

Weight: 777 g

Height: 64 mm

Length: 220 mm

Width: 125 mm

: Manufacturer's standards (no certificate)

Display type: Digital (LCD)

Reading type: Resistance

Product type: Ohmmeter

Documents & Downloads

Datasheet

Datasheet 3369089 PCE Instruments PCE-MO 2005 Ohmmeter

User & Safety Instructions

User & Safety Instructions 3369089 PCE Instruments PCE-MO 2005 Ohmmeter

Description

The Ohmmeter with a measuring range from 0 µΩ to 6000 Ω measures precisely the smallest resistances and is used for checking critical connections in electronics and electrical engineering. The Ohmmeter offers 6 selectable measurement ranges, uses the 4-lead measurement method and can measure both resistance and inductance. The device delivers a maximum test current of 10 A in the range of 60000 µΩ and has test currents of 10 A, 1 A, 100 mA, 10 mA and 1 mA. The 3.3 inch LCD display has a switchable backlight, which switches off automatically after 30 seconds in order to save battery power.

In addition, the ohmmeter has a comparison function, which enables a fast pass/fail display and accelerates the evaluation of the test results. The cable length can be calculated by entering the resistance per meter, WAS provides precise results in cable length determination. The built-in surge protector protects the device from damage caused by high voltages, while the option for battery or mains operation offers flexibility when using. These functions make the ohmmeter a versatile and convenient tool for a variety of applications.
