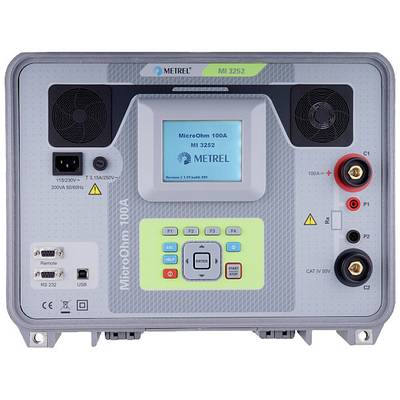

Metrel MI 3252 Ohmmeter
EAN:
Part number:
Item no:
Number
Total (€ 5,037.82 / piece)
€ 5,037.82
plus VAT.
Technical specifications
Manufacturer's standards (no certificate)
- Product type
Ohmmeter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2536354 Metrel MI 3252 Ohmmeter
Description
The MI 3252 MicroOhm 100A is a portable resistance measuring device for measuring the low contact resistance of circuit breakers, switches and busbars with test currents from 100 mA to 100 A. The four-wire method (Kelvin method) ensures very accurate measurement results (0.25%) thanks to the removal of the test lead resistance. The device can be operated with mains voltage as well as with an internal rechargeable battery. The PC software HVLink PRO is supplied as standard and enables the download, analysis and export of the results as well as the printing of test reports.
This text is machine translated.
This text is machine translated.
Features
- Accurate measurements: 1 nΩ best resolution with an accuracy of 0.25%.Bar graph display: Resistance bar graph on the display.Battery operation: Unit provides 100A measurements for up to 10 minutes when powered exclusively from the internal battery.Safety: It is protected against external voltages in case of connection errors. Its protection category is CAT IV, 50 V and it automatically records passages in the circuit.Individual and continuous measurement modes.User-defined limits: User-defined limits can be configured for the good/bad evaluation of the measurement results.Portable: Lightweight and rugged (lighter than 12 kg) carrying case with handle makes it easy to carry.High protection class: IP 64.Memory: The device has an integrated memory for up to 1000 measurement results.Downloads: The download of the measurement results is possible via RS232 or USB cable directly to the PC with the software HVLink PRO.
Scope of delivery
- Test device MI 3252 MicroOhm 100ATest lead 5 m, 25 mm2, 2 piecesPotential test lead, 5 m, 2 pieces (red, black)Test probes, 2 pieces (red, black)Alligator clips, 2 pieces (red, black)Power cable;Large carrying case for measuring accessoriesPC-SW HVLink PRO with USB- and RS232-cableUser manualCalibration certificate of the first calibrationWarranty statement
Hints
Supplied with German license.
