VOLTCRAFT R-1000 Micro ohmmeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 226.05 / piece)
€ 226.05
plus VAT.
Highlights & Details

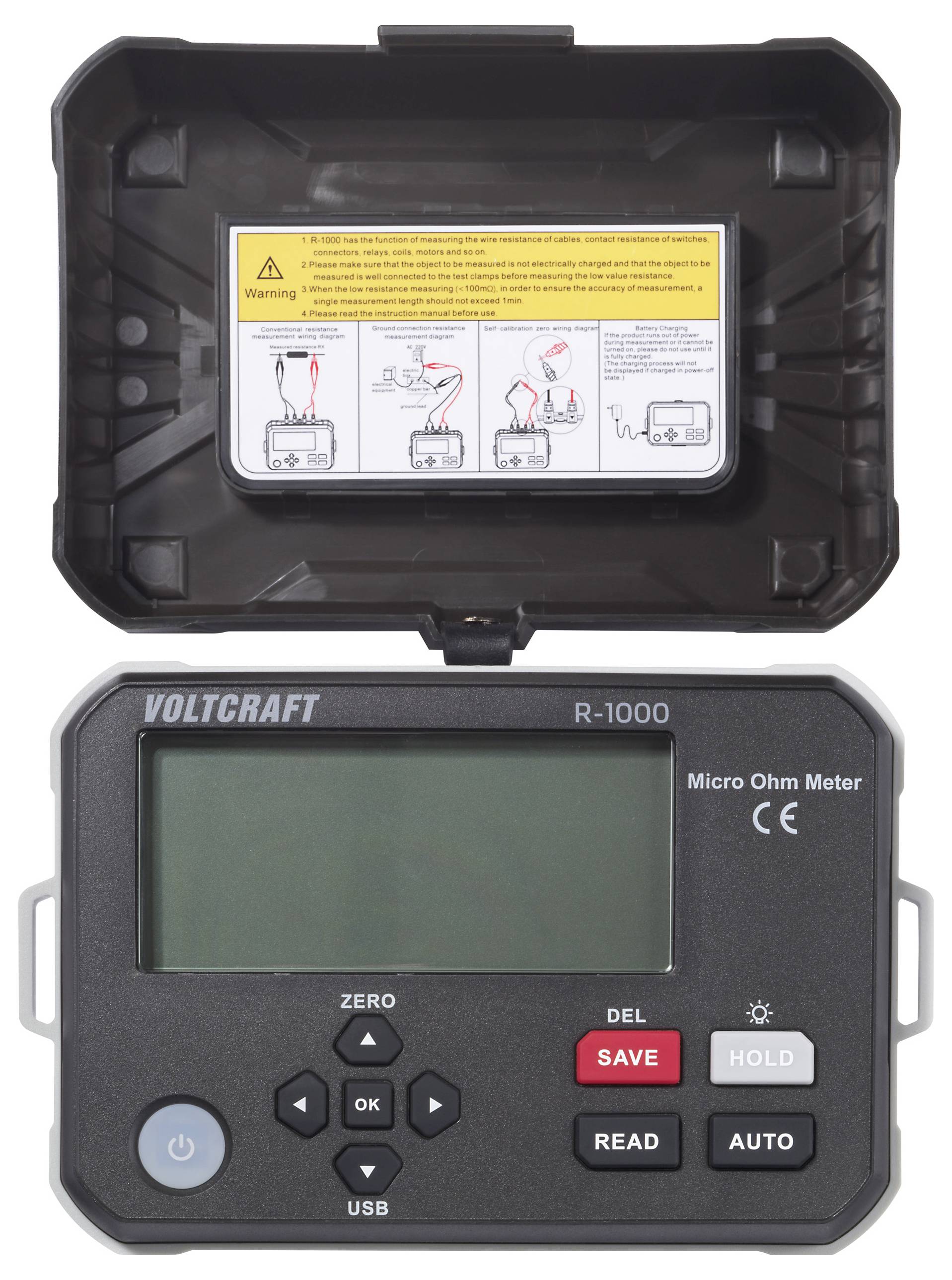

VOLTCRAFT R-1000 Micro Ohmmeter
- Reading range: 1 µΩ - 300.0 kΩ

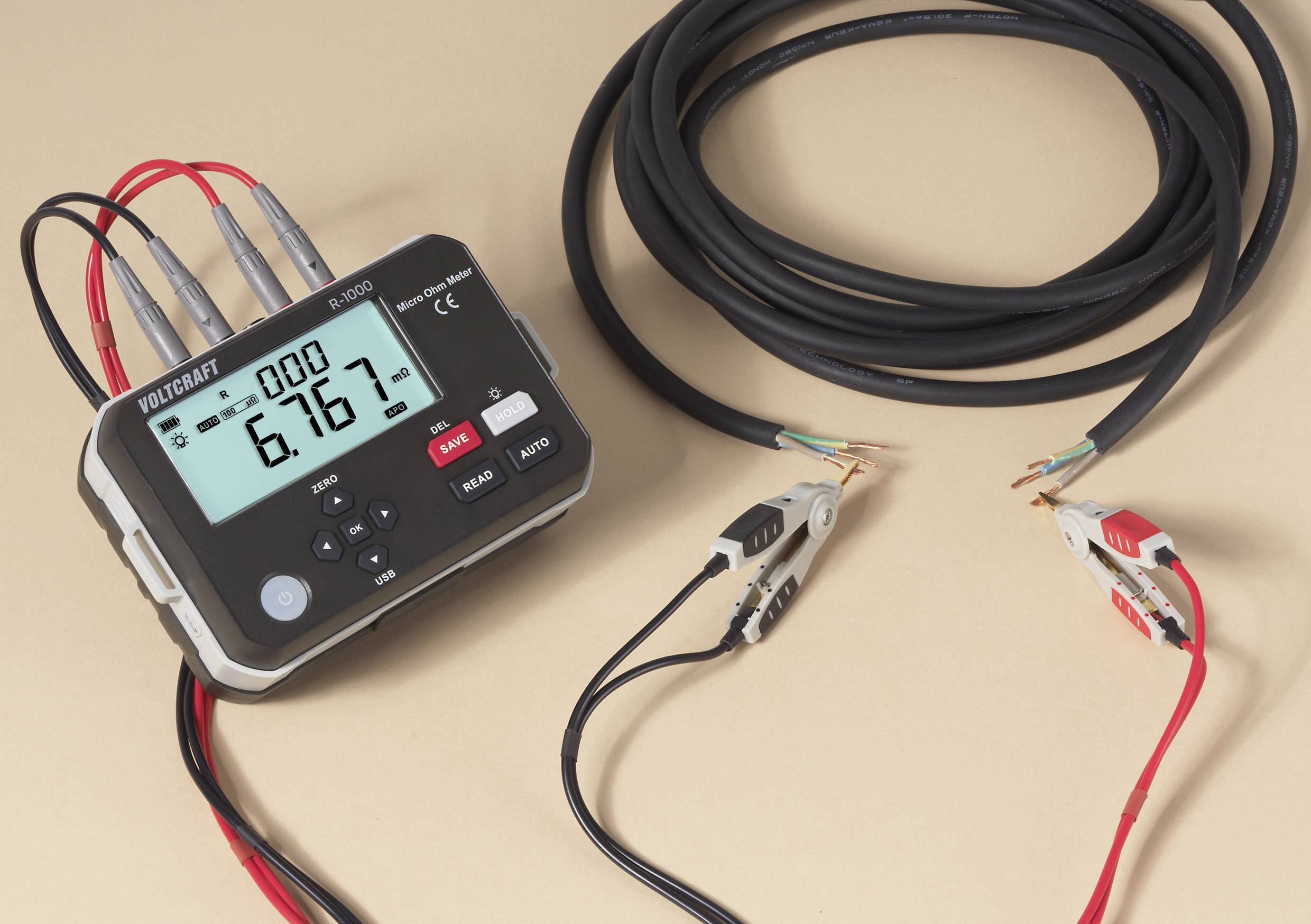

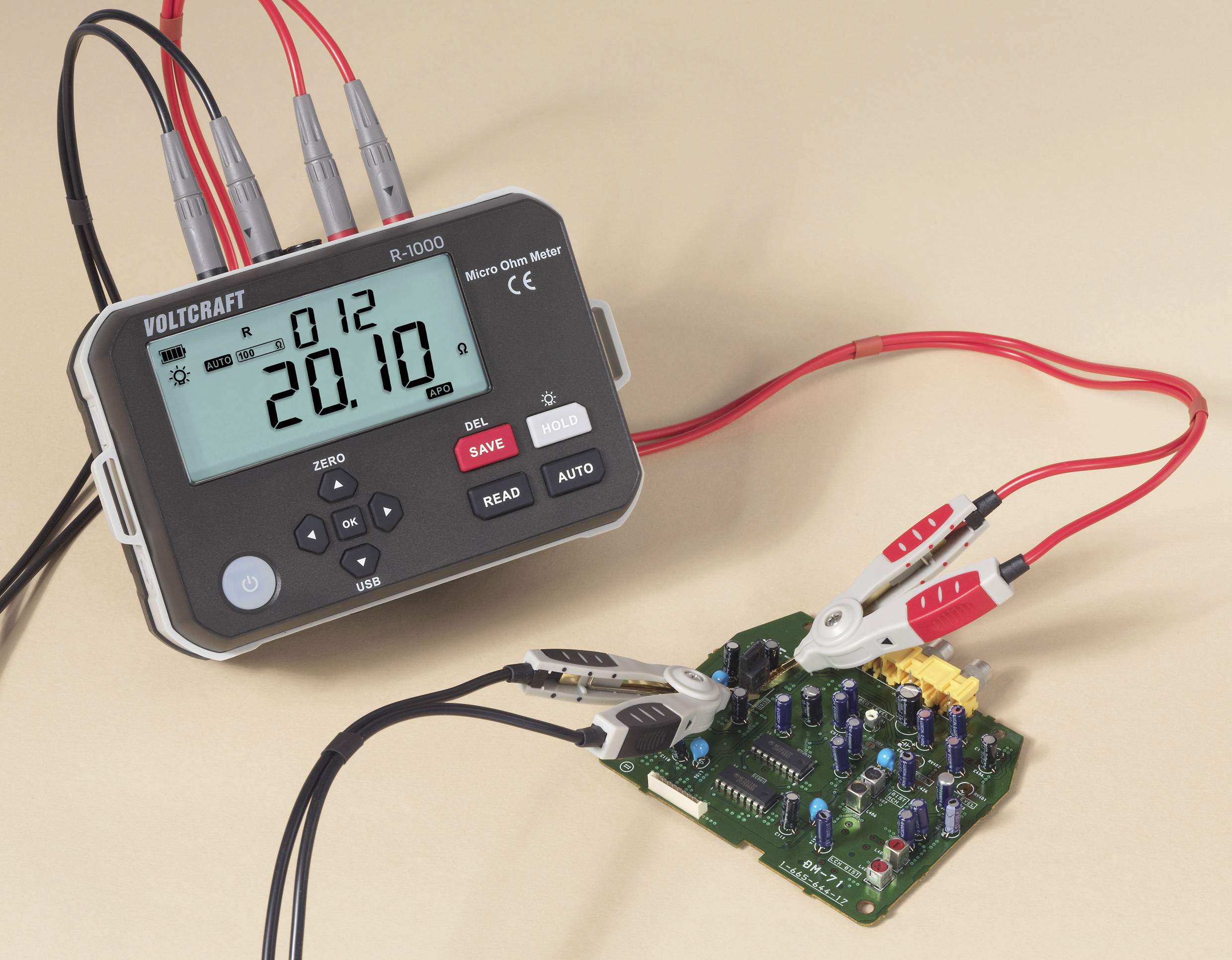

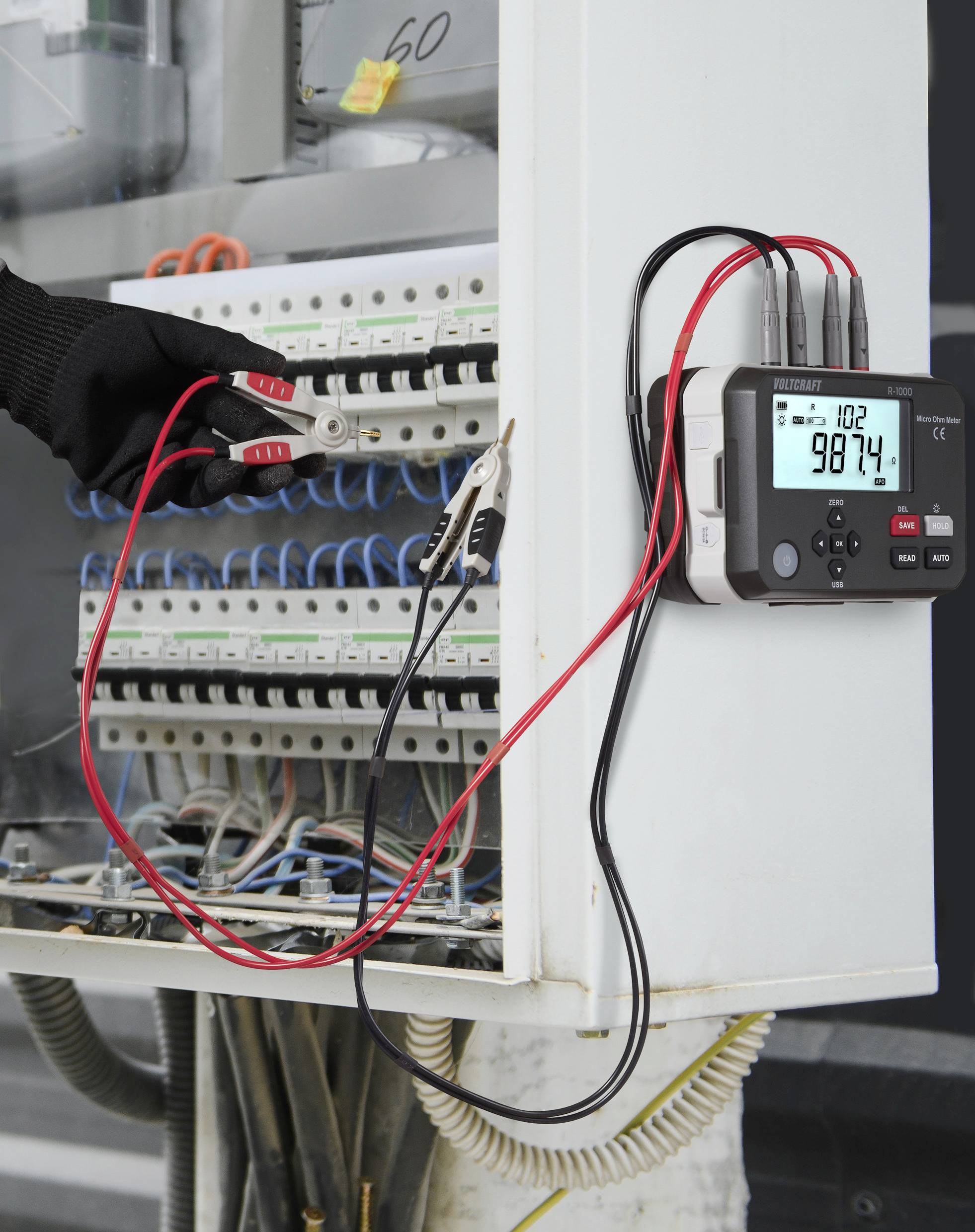

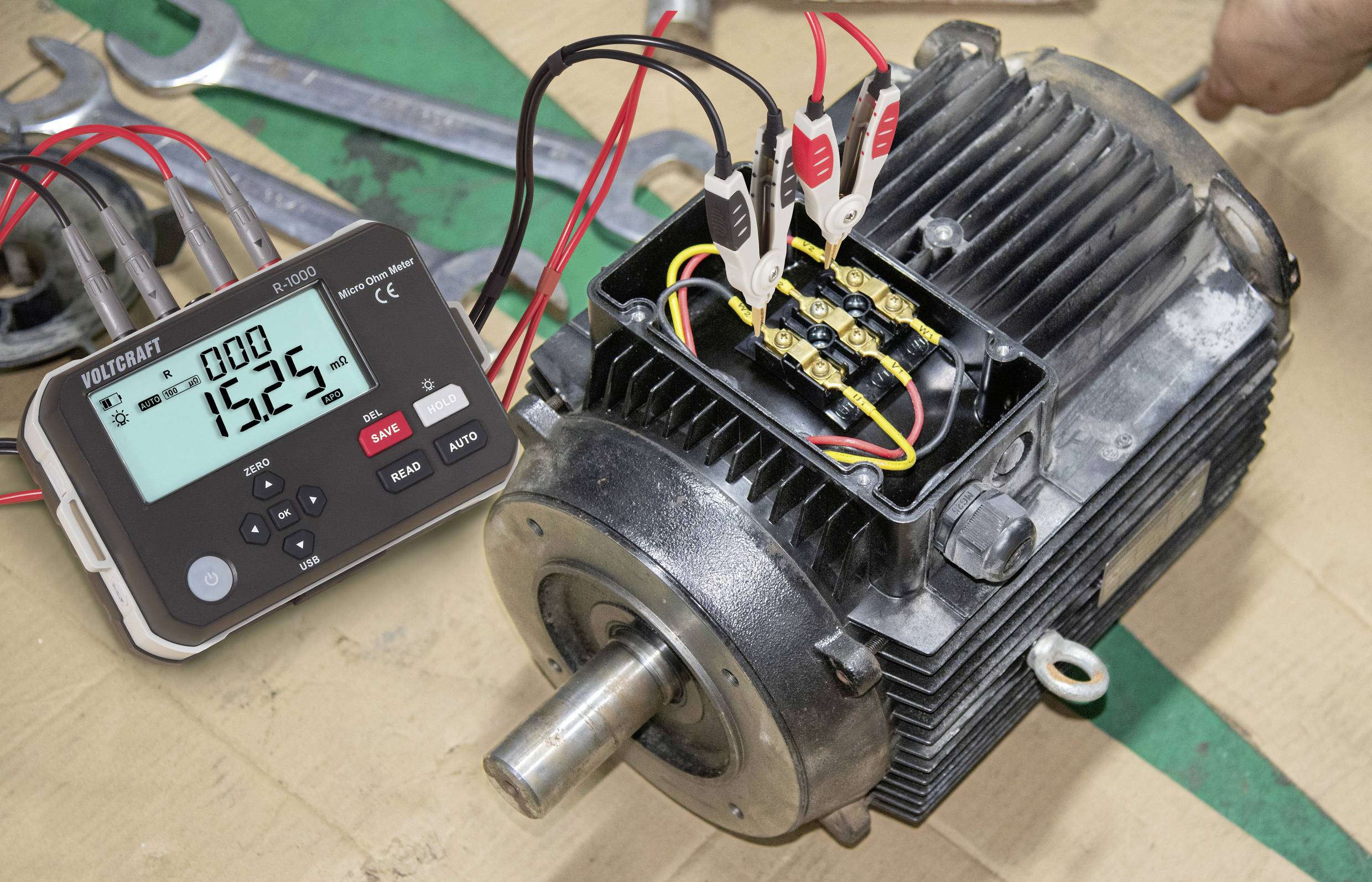

- Measures the resistance of wires, switches, connectors, contractors, fuses, coils and transformers

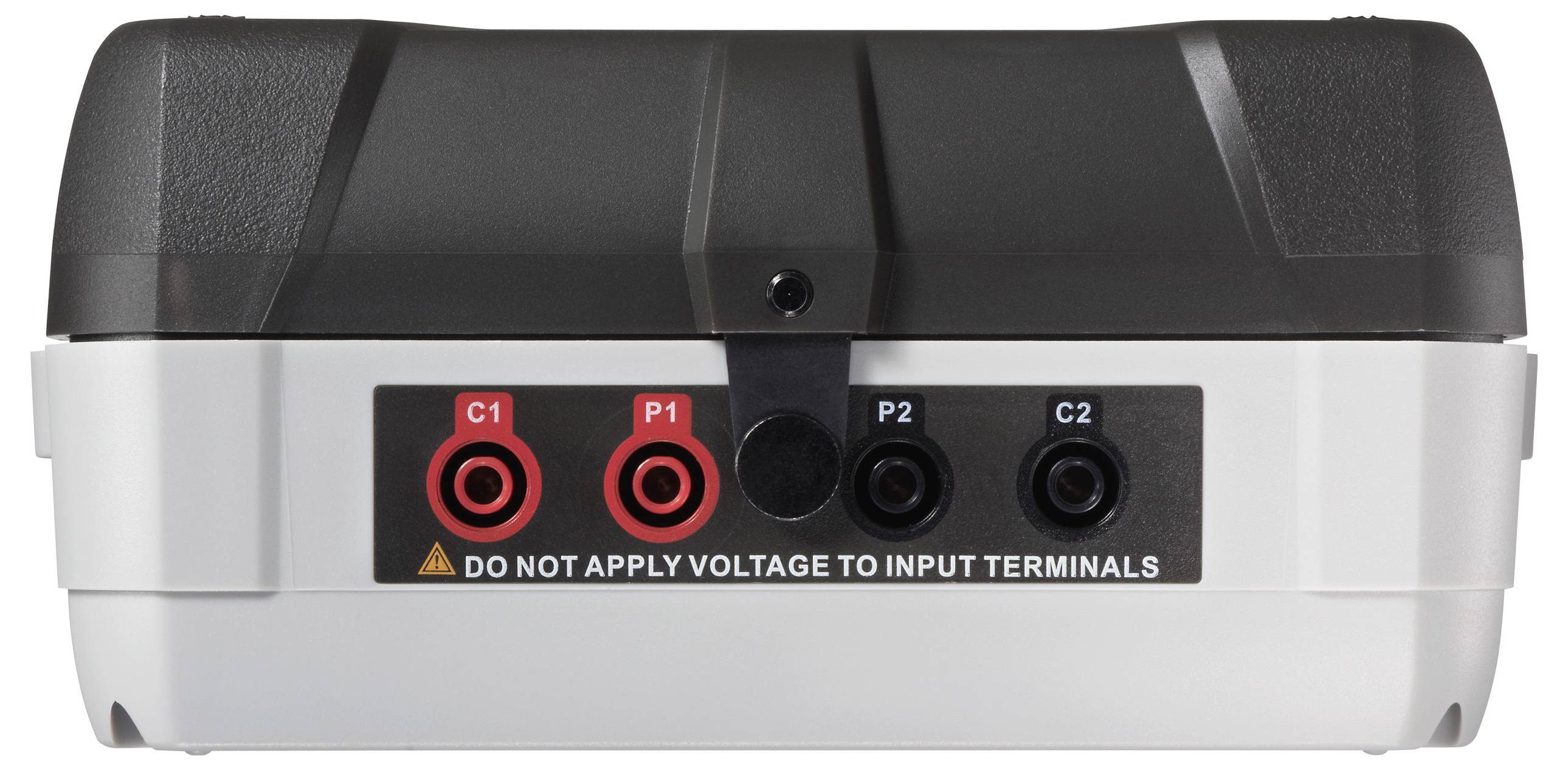

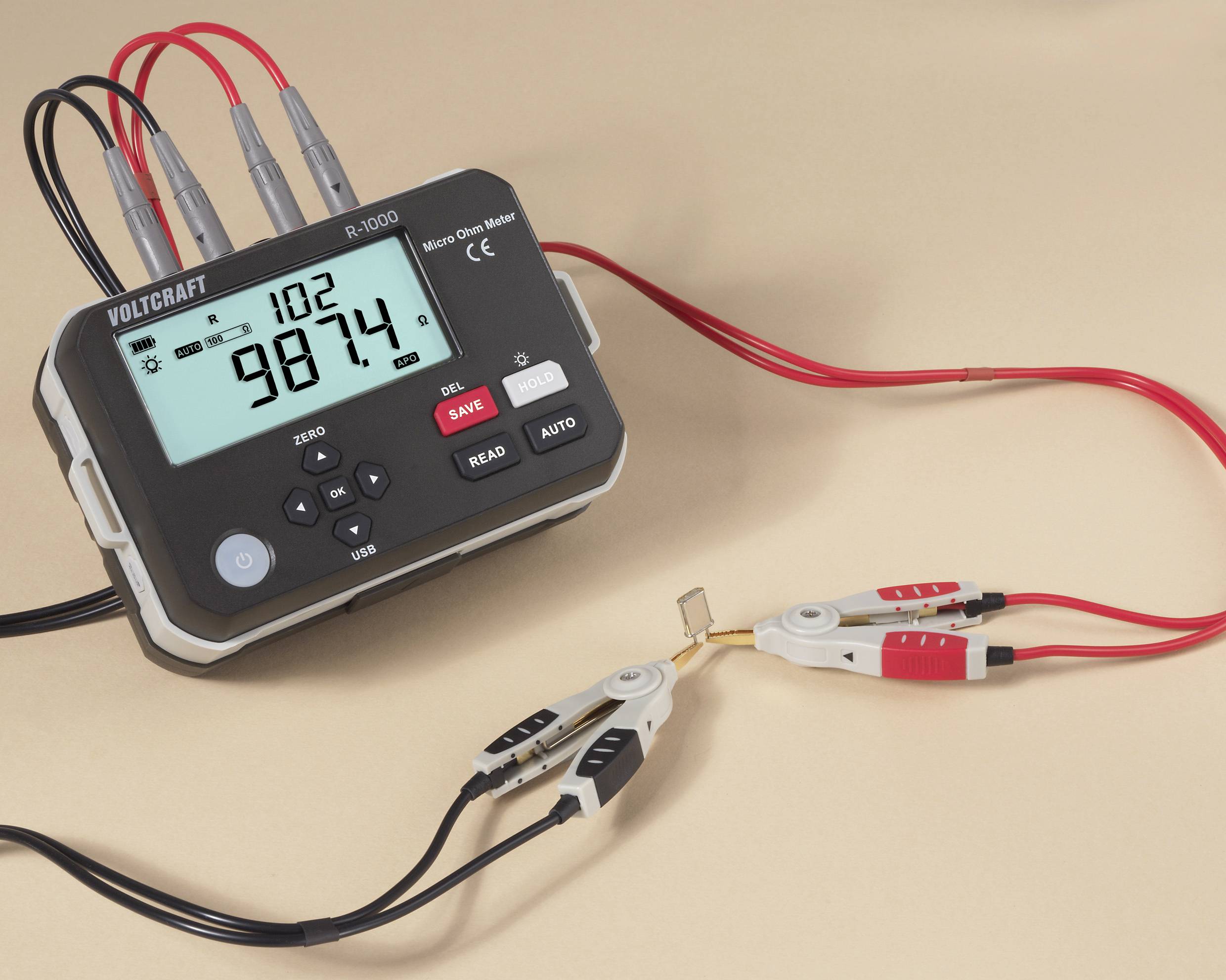

- 4-wire measurement
- Measurement speed: 2 times/s

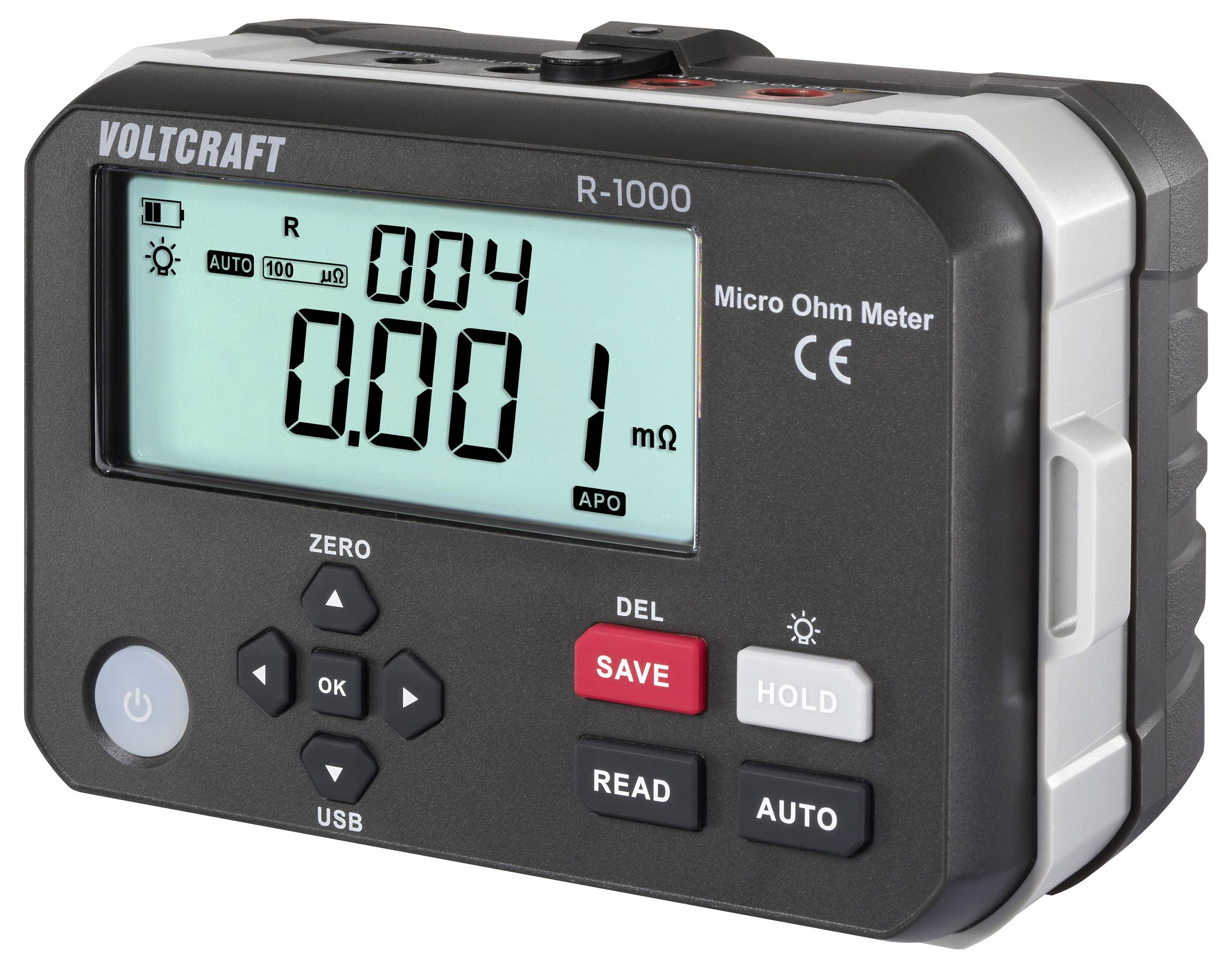

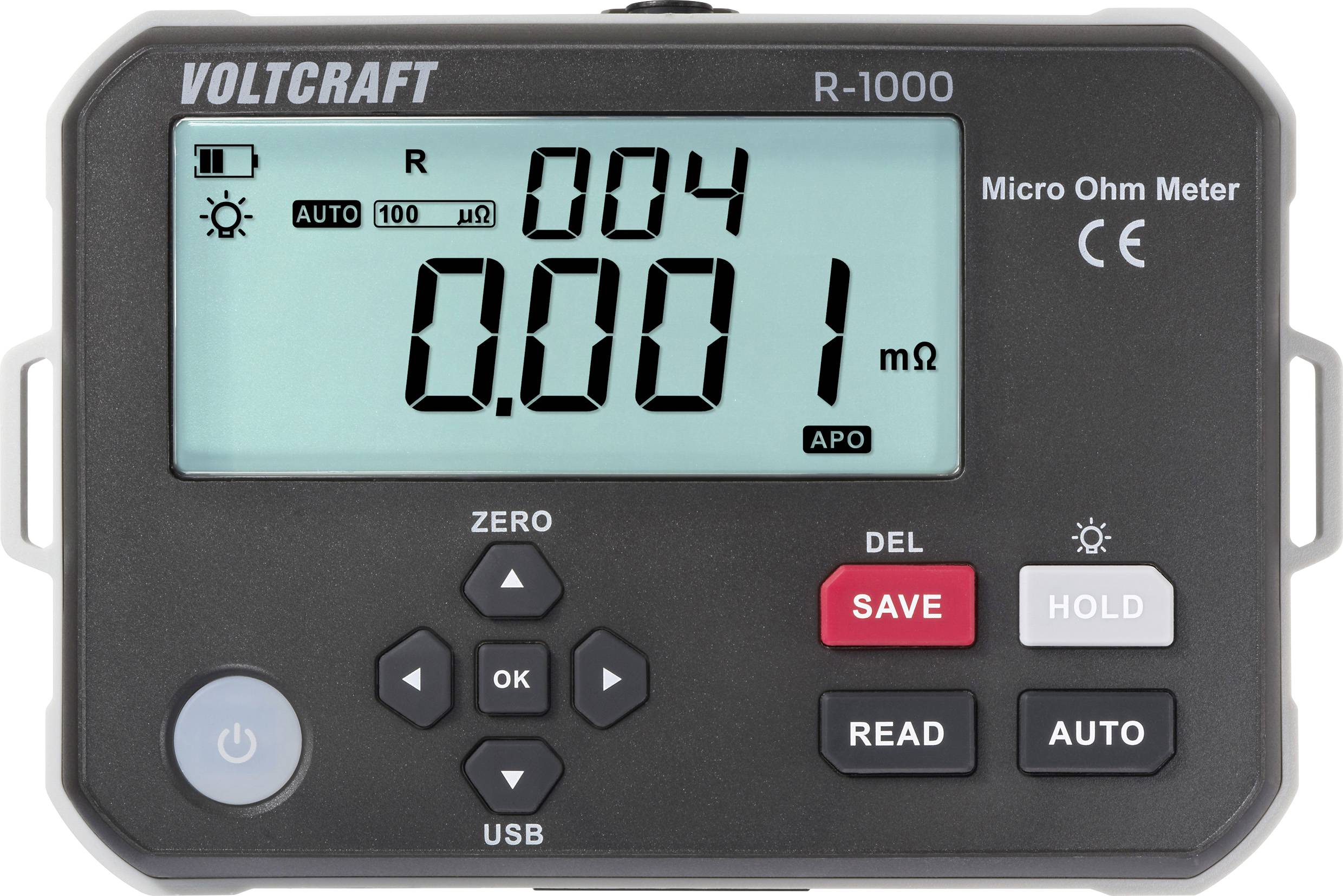

- Large display: 102 x 50 mm
- Measurement current: ≤1A
Technical specifications
- - Large LCD display with backlight
- - Auto shutdown, longer standby time
- - Compact design, easy to carry and operate
- - Measurement current ≤1A
- - Measuring the resistance of all kinds of wires, switches, connector, contactors, fuses, coils, transformer
- - Four-wire method
- - Test current ≤1A
- - Open circuit voltage ≤4.2V
- - Input protection ≤36V AC/DC
- - Power consumption: measurement power: ≤8W
- - Measurement speed: about 2 times/s

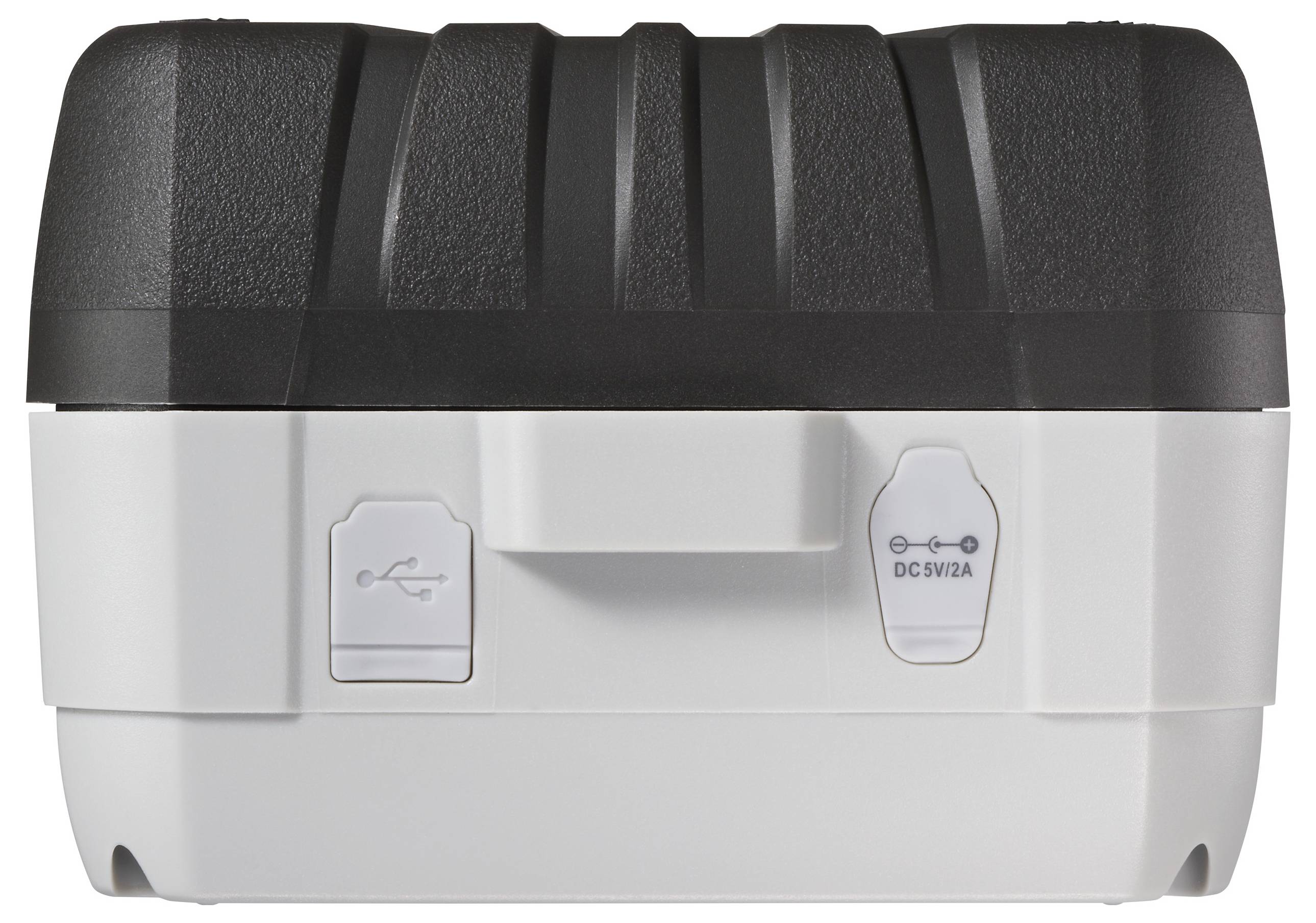

- - Type-C USB port for data communication
- - Data storage: 500 sets
- - OL display
- - Data reading function

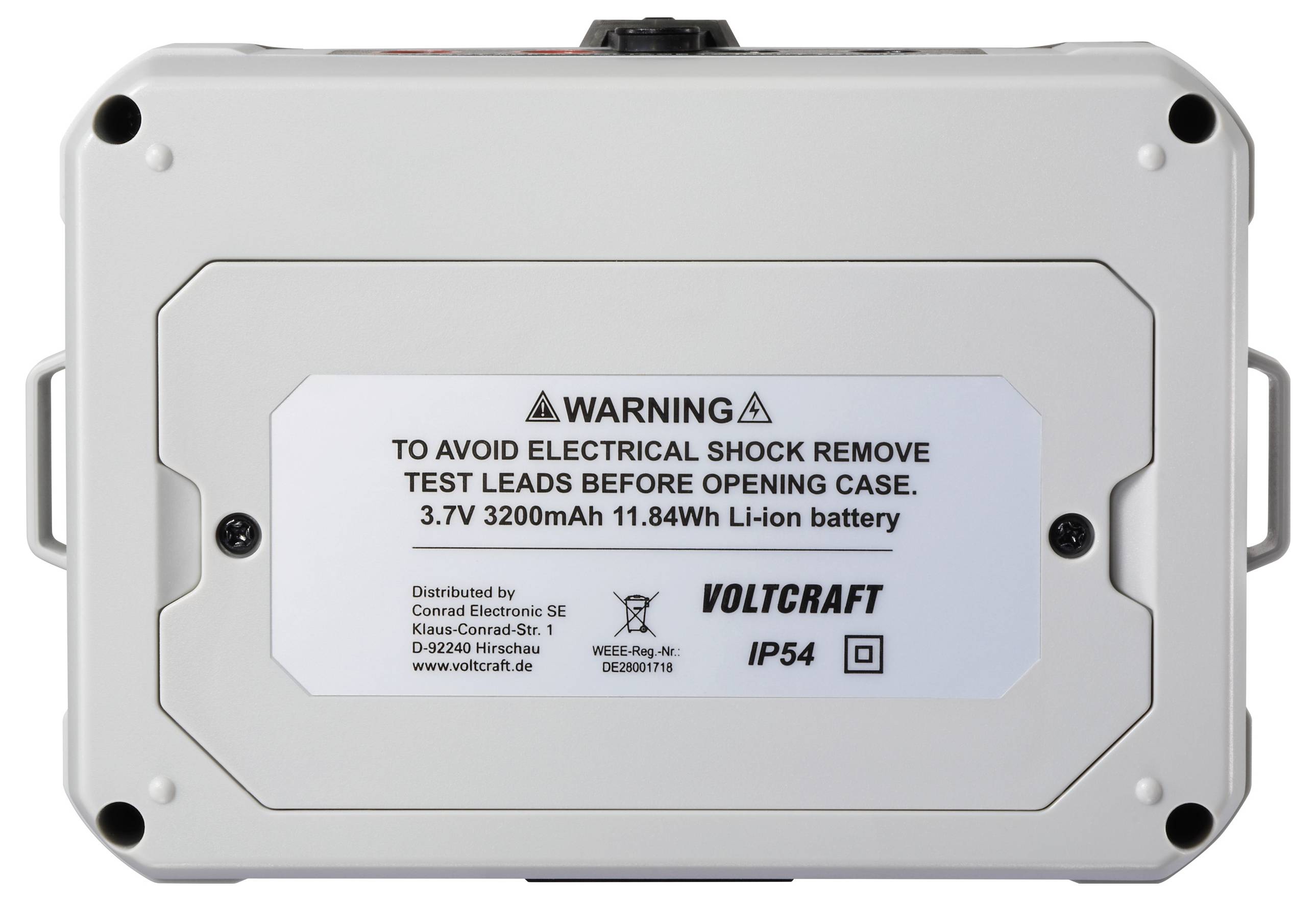

- - rechargeable lithium battery 3.7V 3200mAh 11.84 Wh
- Interfaces
USB-C
IP54
- Dim
(L x W x H) 16.1 x 11.7 x 6.8 cm
- Weight
480 g
- Height
6.8 cm
- Length
16.1 cm
- Width
11.7 cm
Manufacturer's standards (no certificate)
- Display type
Digital (LCD)
- Reading type
Resistance
- Plastic free packaging
Plastic-free packaging
- Product type
Micro ohmmeter
Documents & Downloads
Datasheet
Datasheet 3414440 VOLTCRAFT R-1000 Micro ohmmeter
User & Safety Instructions
User & Safety Instructions 3414440 VOLTCRAFT R-1000 Micro ohmmeter
Warranty Terms
Warranty Terms 3414440 VOLTCRAFT R-1000 Micro ohmmeter
Download
Download 3414440 VOLTCRAFT R-1000 Micro ohmmeter
Description
Features
- Auto power off function
- LCD with backlight
- Data storage: 500 sets
- "OL" display
- Data reading function
- USB-C® port

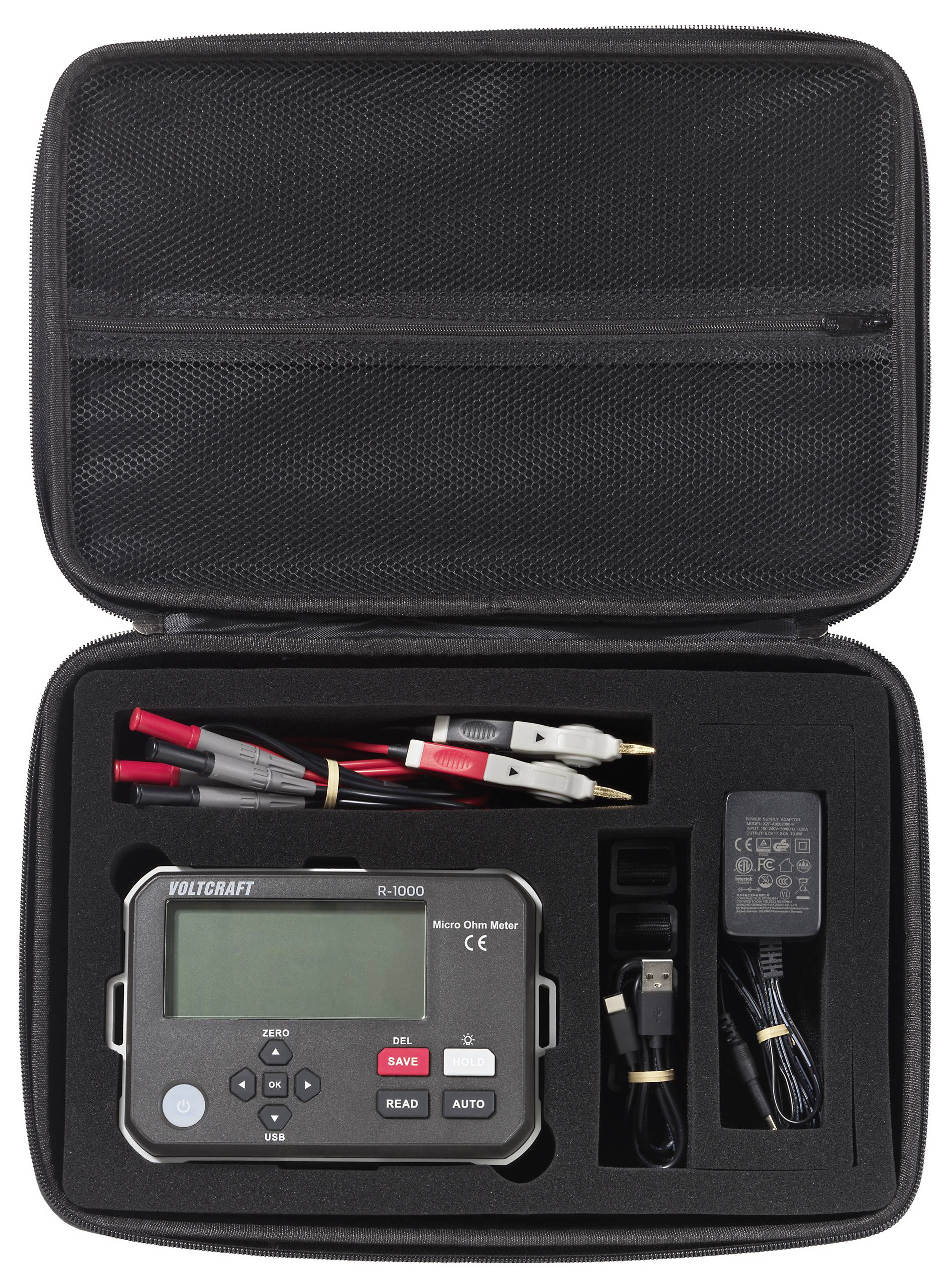

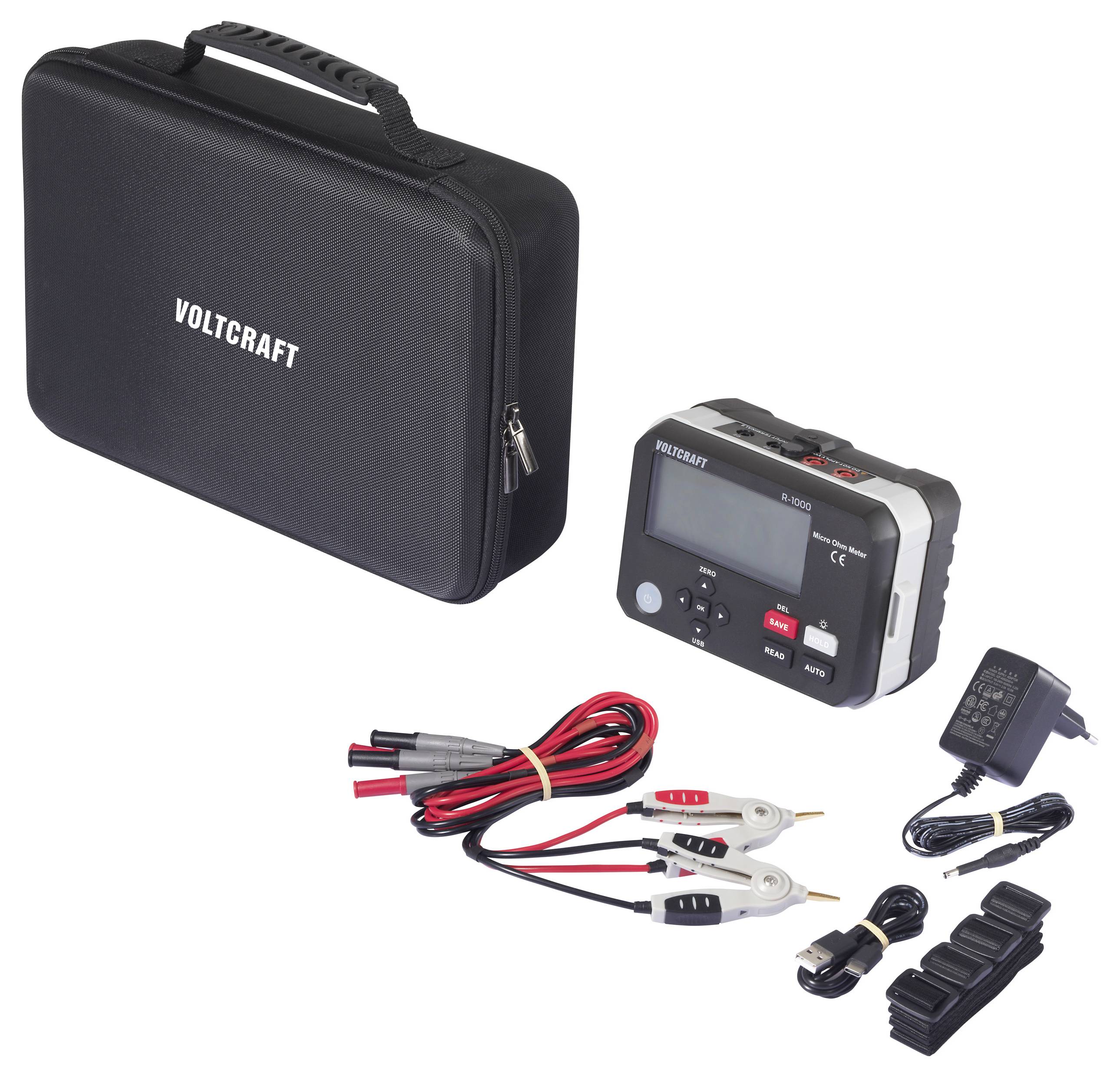

Scope of delivery
- Meter
- Test leads (pair)
- Power adapter
- USB-C® cable
- Carry bag
- Strap
- User manual
